OPERATION
TMC-7DSP/TMC-6DSP Color CCD Camera
Switch NTCS PAL
0 1/60 1/50
1 1/100 1/120
2 1/250 1/250
3 1/500 1/500
4 1/1,000 1/1,000
5 1/2,000 1/2,000
6 1/4,000 1/4,000
7 1/10,000 1/10,000
8 (not used)
9 (not used)

3.1.2 Color Balance and Adjustment

The TMC-7DSP/TMC-6DSP cameras feature an advanced color balancing system which is controlled
by DSP (Digital Signal Processing). Upon powering up, the camera will load the color balance setting
from the internal EEPROM.

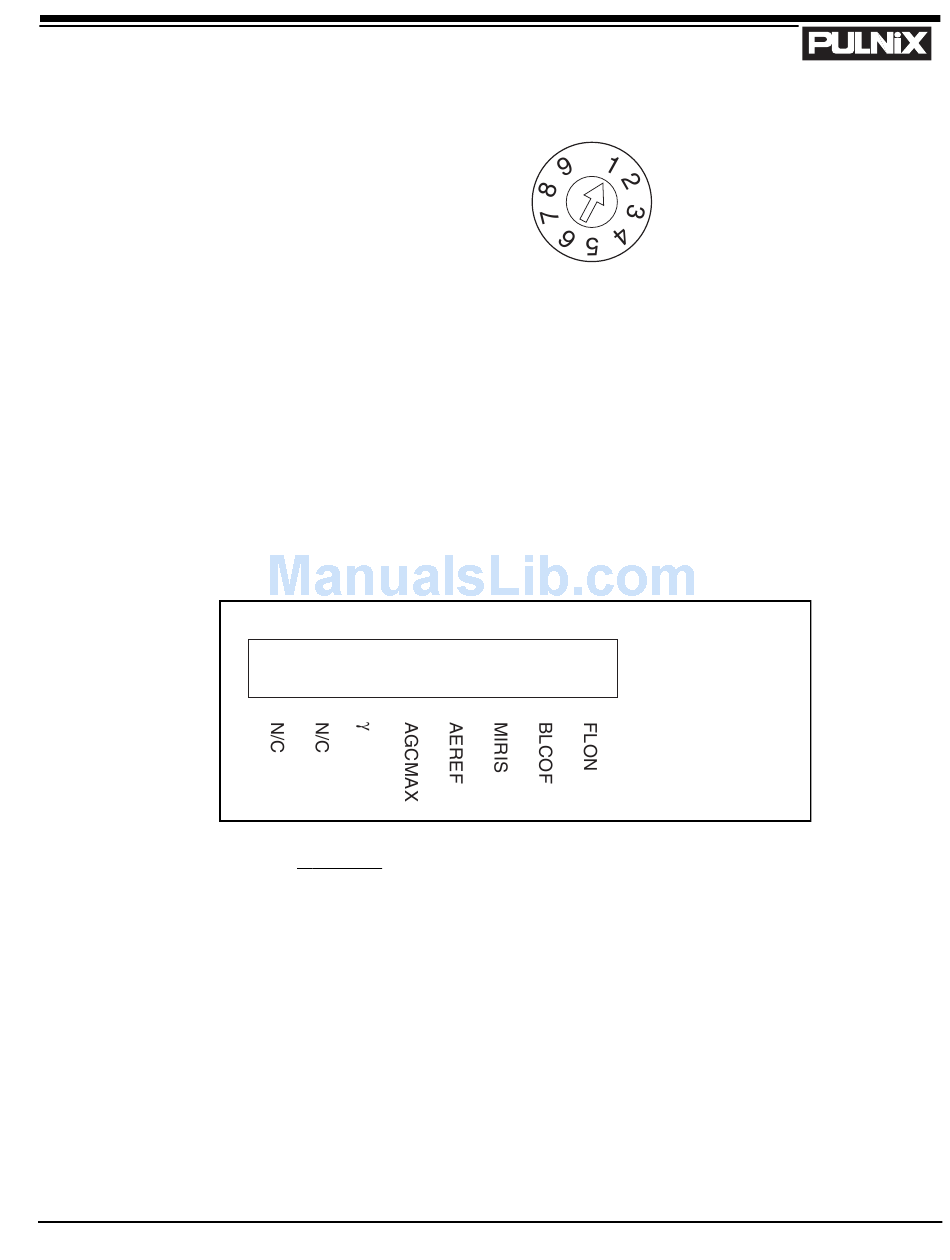

3.1.3 Jumper Switch (JSW)*
8 7 6
*WARNING: Information is for reference only. Opening the cover voids the
warranty. Contact PULNiX for JSW settings.

3.1.4 White Balance Modes

The TMC-7DSP/TMC-6DSP has seven white balance modes. These are selectable by switching SW1,
SW2 and SW3 using the DIP switch.
0
Shutter Control Switch
5 4 3 2 1
JSW - Inside camera
jumper switch
Page 13
