INSTALLATION
FIGURE 5.
TMC-7DSP/TMC-6DSP Color CCD Camera
2.2.2 (f) RS-232C-9 Communication Cable and Connector (optional)
The TMC-7DSP/TMC-6DSP camera's built-in microcomputer chip (CPU) can be controlled by an
external RS-232C interface. The RS-232C-9 cable (Figure 5, "RS-232C-9 Cable") connects to the 6-
pin connector on the rear of the camera. The internal CPU controls the TMC-7DSP/TMC-6DSP
camera's operation mode and DSP parameter changes. Contact PULNiX for the TMC-7DSP/TMC-
6DSP software diskette.

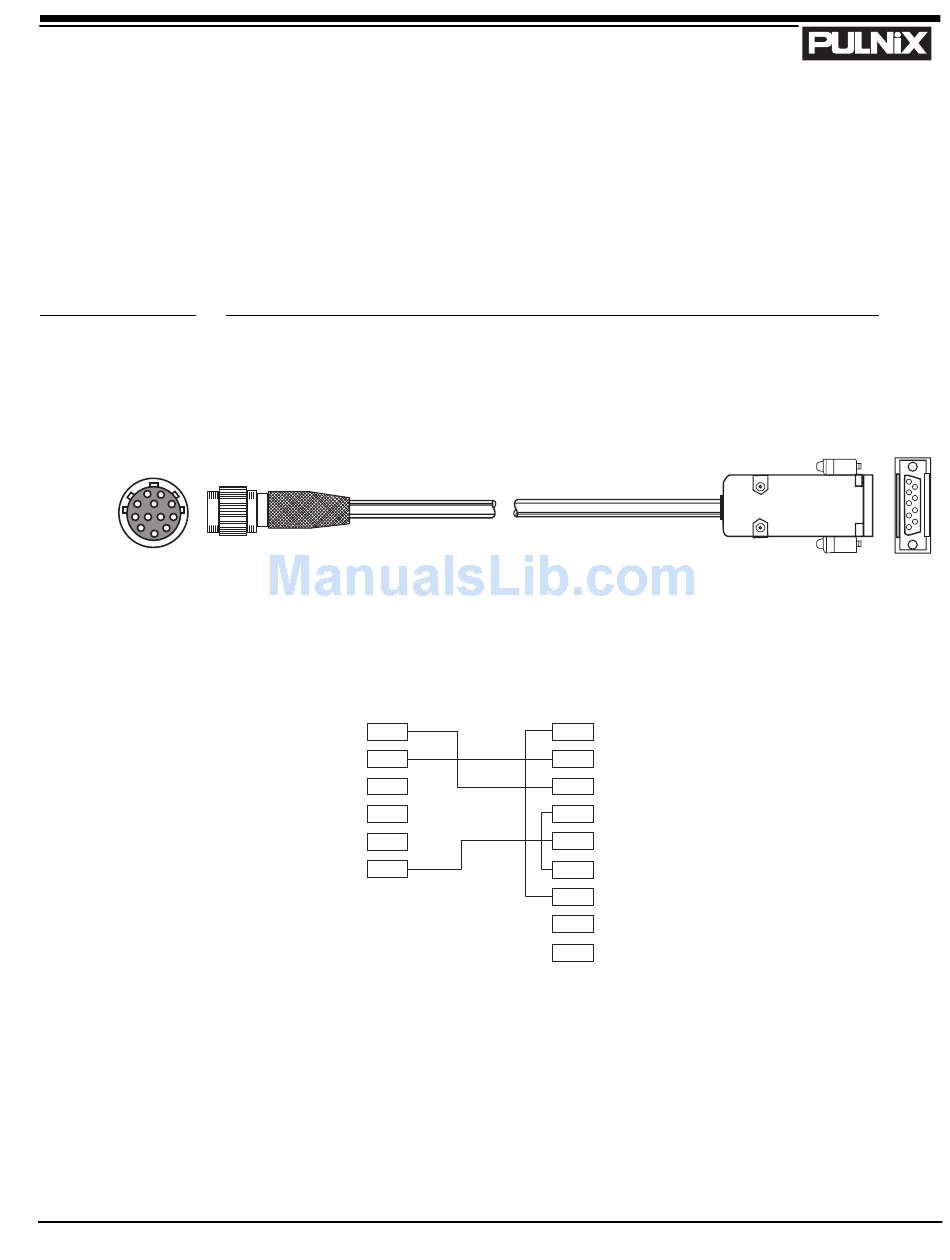

RS-232C-9 Cable
6-PIN CONNECTOR
RXD PIN 2
TXD PIN 2
+12V PIN 3
Y out PIN 4
C out PIN 5
GND PIN 6
2.2.2 (g) Building Your Own Power Cable
Consult the pin-out for the camera purchased. Connect the Ground and +12V power leads of the PC-
12P power connector (Part #PC-12P) to Pin #1 and Pin #2, respectively (power must be DC regulated,
and of sufficient current to properly power the camera).
D-SUB 9-PIN CONNECTOR
PIN 1 DCD
PIN 2 RXD
PIN 3 TXD
PIN 4 DTR
PIN 5 GND
PIN 6 DSR
PIN 7 RTS
PIN 8 CTS
PIN 9 RI
