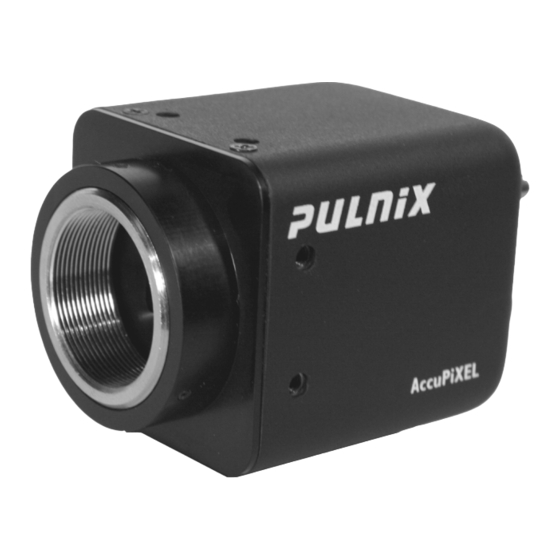

- Page 1 TM-1402 Series Progressive Scan Shutter Cameras O p e r a t i o n M a n u a l 10053 I m a g i n g P r o d u c t s Rev. A...
- Page 3 The material contained in this manual consists of information that is proprietary to JAI PULNiX, Inc., and may only be used by the purchasers of the product. JAI PULNiX, Inc. makes no warranty for the use of its product and assumes no responsibility for any errors which may appear or for damages resulting from the use of the information contained herein.
-
Page 5: Table Of Contents
3.10 Camera Timing Charts ....... . 25 TM-1402 Series Progressive Scan Shutter Cameras... - Page 6 Spectral Response ........36 TM-1402 Series Progressive Scan Shutter Cameras...
- Page 7 Spectral Response ..........36 TM-1402 Series Progressive Scan Shutter Cameras...
- Page 8 External Sync ..........20 TABLE 8. TM-1402 Series Product Specifications Table ....34 TM-1402 Series Progressive Scan Shutter Cameras...
-
Page 9: Introduction
Introduction 1.1 Product Description The PULNiX TM-1402 series consists of high-resolution, high-speed progressive scan CCD cameras. The progressive interline-type CCD permits full vertical and horizontal resolution of very high speed shutter images and applications. The electronic shutter, which has speeds to 1/16,000 sec., can be reset asynchronously by external pulse control. -
Page 10: Features
Ω • Asynchronous image capturing The TM-1402 captures async reset images and provides single-shot video output with single FDV. This makes it simpler for an ordinary frame grabber to capture the async reset images. TM-1402 Series Progressive Scan Shutter Cameras... -
Page 11: Functional Options
Unscrewing the camera cover or opening the camera in any way will void the warranty unless prior written approval is obtained from the factory. 1.3 Functional Options • RS-422 (digital) output (OP93) (TM-1402). • 10-bit output (OP93-1). TM-1402 Series Progressive Scan Shutter Cameras... -
Page 12: System Configuration
Figure 2 below presents a typical system configuration for the TM-1402CL camera. 26CL-02-26 CAMERA LINK Power and 12P-02S Ext. Sync POWER VIDEO PD-12P (series) power supply Analog frame grabber Computer with Camera Link™ frame grabber TM-1402 Series Progressive Scan Shutter Cameras... -
Page 13: Installation
The TM-1402 camera is a compact 1.4 megapixel camera. Since all the electronics have been packed in a very small package, the outer case of the camera gets hot due to heat dissipation. JAI PULNiX TM-1402 Series Progressive Scan Shutter Cameras... -
Page 14: Connector Pin Configurations
MDR26 Camera Link connector on the rear panel of the camera. TABLE 2. 12-Pin Connector (TM-1402CL) Description Description GND (power) VD in +12V DC Reserved GND (analog) HD in Video out GND (digital) VINIT in TM-1402 Series Progressive Scan Shutter Cameras... -
Page 15: Figure 4. 31-Pin Digital Connector On Rear Panel Of Camera (Tm-1402 Only)
EXT CLK: external pixel clock, []: Differential input option. 31-Pin Connector (MP211-031-113-4300) TABLE 3. Pin # Description Pin # Description CLK+ CLK- LDV+ LDV- FDV+ FDV- VINIT (TTL) EXT HD (TTL) EXT VD (TTL) [EXT CLK+] [EXT CLK-] [HD+] [HD-] [VINIT+/(VD+)] [VINIT-/(VD-)] TM-1402 Series Progressive Scan Shutter Cameras... -
Page 16: Table 4. Connector Pinout Configurations (10226-6212 Vc)
Note: SerTC: Differential Serial Communication to camera; SerToFG: Differential Serial Communication to frame grabber. 2.2.2 (e) Analog Output Connector The TM-1402 has a BNC connector on the rear panel to output non-standard analog video. TM-1402 Series Progressive Scan Shutter Cameras... -
Page 17: Shutter Speed Control Dial (Tm-1402 Only)
RS-232 interface. The camera settings can be programmed or changed using the communication cable and software. Commands from the RS-232 interface will override the rear panel switch settings of the camera. Please refer to the AccuPiXEL Series Camera-Control Software manual for details on the graphical user interface. TM-1402 Series Progressive Scan Shutter Cameras... -
Page 18: Digital Output Cable (Tm-1402 Only)
78.74 in (2 meters) The TM-1402 camera uses the cable 30DG-02 from JAI PULNiX as a digital output cable. This cable has a 31-pin AirBorn connector on the camera end and a 37-pin D-sub male connector on the other end. -
Page 19: Camera Link Cable (Cl Versions Only)
If you are providing power through the 12-pin connector, the PD-12UUP and PD-12UEP power supplies are available with the 12-pin mating connector already attached to the leads from the power supply. The PD-12UU or PD-12UE power supply can be connected to the JAI PULNiX power cable either directly or via a terminal strip. -
Page 20: Figure 7. 12P-02S Interface Cable (Optional)
2.2.7 (b) JAI PULNiX Power Cables If you are using JAI PULNiX power cables such as the 12P-02S, please refer to the 12-pin connector pin-out diagram in “12-Pin Connector (TM-1402)” on page 6. The cable pin-out diagram is shown in Figure 7 below. -
Page 21: Attaching The Analog Video Output
Standard RG-59 type coaxial cable should carry a full video signal for up to 100 feet. The multi-conductor cable 12P-02S from JAI PULNiX can be used to transmit analog video, power, sync. signals, and serial communication. The mini coaxial leads in JAI PULNiX multi-conductor cables are designed for short runs of no longer than 100 feet. -
Page 22: Operation
“no shutter.” 3.1.6 Mode Selection Switch Various modes can be implemented with the rear panel Mode Selection switch. The Mode Selection switch works in conjunction with the Up/Down switch and RS-232 external control. Commands from TM-1402 Series Progressive Scan Shutter Cameras... -
Page 23: Table 6. Mode Selection Switch
Direct Shutter Control Up: Increment Change Direct shutter Down: Decrement speed in 1H increments Scan Format2 Up: PS500L Partial Scan 500L Down: PS250L Partial scan 250L Scan Format1 Up: 30fps, Down: 15fps 30 fps, 15 fps TM-1402 Series Progressive Scan Shutter Cameras... -
Page 24: Camera Rear Panel (Cl Versions)
The interline transfer architecture is also important to generate simultaneous shuttering. This is different from full frame transfer architecture which requires a mechanical shutter or strobe light in order to freeze the object motion. TM-1402 Series Progressive Scan Shutter Cameras... -
Page 25: Electronic Shutter
The shutter speed is the same as the external pulse width, but the integration delays 1H from the leading edge. For the immediate reset option, please contact JAI PULNiX. For the progressive format, one frame of video output will start from the rising edge of the pulse width control. -
Page 26: Internal Shutter Speed Control
“1” to “8.” Video output timing starts right after the internal VD and single shots, FDV is output at the internal VD timing. EXT. VINIT INT. VD with shutter speed control Discharge Exposure time set by shutter speed Transfer Gate Analog Video Sync TM-1402 Series Progressive Scan Shutter Cameras... -
Page 27: Programmable Look-Up Table (Lut) And Knee Control
CCD is utilized at 10-bit references as the input and the LUT output is converted into 8-bit to adjust the gamma correction. The 10-bit input is segmented into two or more regions by the knee-point settings as variable gamma selection. TM-1402 Series Progressive Scan Shutter Cameras... -
Page 28: Scan Modes
Pixel clock = 25.00 MHz 3.9 Bayer Color Filter (Color Versions) JAI PULNiX AccuPiXEL series color cameras are high-resolution, high-speed progressive scan CCD cameras. The interline transfer, progressive scan CCD permits full vertical and horizontal resolution of images acquired at very high shutter speeds. The electronic shutter, which has speeds to... -
Page 29: Color Filter Array
On-chip micro lenses mean increased sensitivity. 3.9.1 Color Filter Array JAI PULNiX AccuPiXEL cameras use Bayer CFA (color filter array) as their standard primary color filter. This filter provides the most popular color interpolation supported by numerous software suppliers. -
Page 30: Starting Pixel Configuration
R/G start or G/R start, as well as G/B start and B/G start. Once the correct scanning is configured, the rest of the interpolation will be exactly the same. Please contact JAI PULNiX for further information regarding CCD manufacturers. -
Page 31: Camera Functions
Gamma 0.45 is logarithmic and is closed to human perception. When LUT is selected, black-level adjustment must be more accurate than for B/W cameras. For a detailed timing chart, please refer to the standard AccuPiXEL camera data sheet, or contact JAI PULNiX. TM-1402 Series Progressive Scan Shutter Cameras... -
Page 32: Interpolation Software
3 x 3 interpolation, 2 x 2 interpolation, color matrix, white balance capability, etc. All AccuPiXEL color cameras are carefully designed for maximum color performance. JAI PULNiX strongly suggests that you use digital output for the best performance. -
Page 33: Camera Timing Charts
G [ 1392 P], (27.84 µs) Analog Video H [ 216 P], (4.32 µs) K [ 1392 P], (27.84 µs) L [ 61 P], (1.22µs) I [ 48 P], (960 ns) J [ 168P], ( 3.36 µs) TM-1402 Series Progressive Scan Shutter Cameras... - Page 34 R [1 H], (32.16 us) S [13 H], (418.08 us) T [13 H], (418.08 us) Digital Data U [1040 H], (33.45 ms) V [9 H], (289.44 us) Analog Video X [1040 H], (33.45 ms) W [3 H], (96.48µs) TM-1402 Series Progressive Scan Shutter Cameras...
- Page 35 G [ 1392 P], (55.68 µs) H [ 216 P], (8.64 µs) Analog Video K [ 1392 P], (55.68 µs) L [ 61 P], (2.44 µs) I [ 48 P], (1.92 µs) J [ 168 P], (6.72 µs) TM-1402 Series Progressive Scan Shutter Cameras...
- Page 36 S [13 H], (836.16 us) T [13 H], (836.16 us) Digital Data U [1040 H], (66.90 ms) V [9 H], (578.88 us) Analog Video X [1040 H], (66.89 ms) W [3 H], (192.96 µs) TM-1402 Series Progressive Scan Shutter Cameras...
- Page 37 U [50 H], (1.61 ms) Digital Data V [500 H], (16.08 ms) W [47 H], (1.51 ms) Analog Video X [3 H], (96.48 µs) Z [500 H], (16.08 ms) Y [3 H], (96.48 µs) TM-1402 Series Progressive Scan Shutter Cameras...
- Page 38 U [65 H], (2.09 ms) Digital Data V [250 H], (8.04 ms) W [62 H], (1.99 ms) Analog Video Y [250 H], (8.04 ms) X [3 H], (96.48 µs) Z [3 H], (96.48 µs) TM-1402 Series Progressive Scan Shutter Cameras...
-
Page 39: Serial Communication Kit Cs-232C
The software disk contains setup files for the graphical user interface (GUI) program. Refer to the camera-control software manual for information on the GUI. Note: For CL models, the control software is downloadable. Serial communication is through the Camera Link cable. No additional accessories are required. TM-1402 Series Progressive Scan Shutter Cameras... -
Page 40: Troubleshooting
Remedies: Check that the following are properly connected and operational. • Proper mode output • Frame grabber software camera selection Note: Breaking the factory seal without prior approval from the factory will void the product warranty. TM-1402 Series Progressive Scan Shutter Cameras... -
Page 41: Information And Support Resources
4.2 Information and Support Resources For further information and support: Phone: (408) 747-0300 (800) 445-5444 Fax: (408) 747-0660 E-mail: imaging@jaipulnix.com Mail: JAI PULNiX, Inc. Sales Department 1330 Orleans Drive Sunnyvale, CA 94089 ATTN: Video Applications Web Site: www.jaipulnix.com TM-1402 Series Progressive Scan Shutter Cameras... -
Page 42: Appendix
30DG-02 digital output cable, CS-232E serial communication kit (TM-1402) Power cable 12P-02S power cable with open leads Power supply PD-12UUP series (includes power connector) *. Refer to Section 2.2 on page 5 for information on camera heat dissipation. TM-1402 Series Progressive Scan Shutter Cameras... -
Page 43: Physical Dimensions
75.7 [2.98] 22.0 [0.87] 1/4-20 11.0 [0.43] 2X M6 22.4 [0.88] 18.4 [0.73] 2X M3 X 6.0 [0.24] SOC HD CAP SCR 18.0 [0.71] Physical Dimensions (TM-1402CL) FIGURE 11. CAMERA LINK POWER VIDEO R4.5 [0.23] TM-1402 Series Progressive Scan Shutter Cameras... -
Page 44: Spectral Response
Page 36 Appendix 5.3 Spectral Response Spectral Response FIGURE 12. 1000 Wave Length (nm) TM-1402 Series Progressive Scan Shutter Cameras... - Page 45 I m a g i n g P r o d u c t s JAI PULNiX, Inc. Tel: 408-747-0300 1330 Orleans Drive Tel: 800-445-5444 Sunnyvale, CA 94089 Fax: 408-747-0660 Email: imaging@jaipulnix.com w w w . j a i p u l n i x . c o m 10053 Rev.
