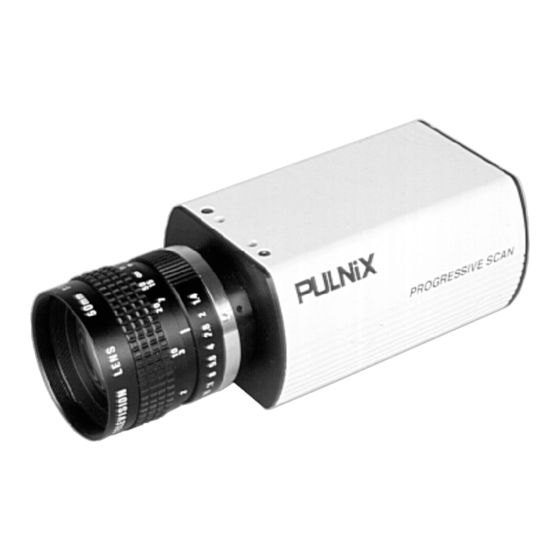

- Page 1 TMC-6700/1000 Series Progressive Scan CCD Digital Color Camera O p e r a t i o n M a n u a l 69-0117 Rev. A I m a g i n g P r o d u c t s...
- Page 3 The material contained in this manual consists of information that is proprietary to PULNiX America, Inc., and may only be used by the purchasers of the product. PULNiX America, Inc. makes no warranty for the use of its product and assumes no responsibility for any errors which may appear or for damages resulting from the use of the information contained herein.
-
Page 5: Table Of Contents
Page ii Table of Contents 1 Introduction ....... . 1 1.1 Product Description and Applications . - Page 6 Page iii Table of Contents 4.2.5 Write 1 Byte Into RAM Bank ......24 4.2.6 Read 1 Byte From RAM Bank ......25 4.3 Camera Control .
- Page 7 Page iv List of Figures FIGURE 1. TMC-6700/1000 (Base models only) Series System Configuration . .4 FIGURE 2. TMC-6700CL/1000CL (Camera Link models only) Series System Configuration .......4 FIGURE 3.
- Page 8 Page v List of Tables TABLE 1. 15-Pin SVGA Output Connector Configuration ....8 TABLE 2. 6-Pin Connector Pinout Configuration ......8 TABLE 3.
-
Page 9: Introduction
CCD combines excellent resolution (1008 H x 1018 V) and color fidelity with superb electronic shutter capability. Full digital processing using real-time DSPs • PULNiX’s state-of-the-art DSP technology offers increased speed, greater efficiency and specialization of function. RS-232C external control •... - Page 10 National Semiconductor for high-speed data transmission. Originally designed for flat-panel display technologies, Channel Link lends itself to digital video transmission and has been adopted by PULNiX in their latest cameras. Visit PULNiX’s website at www.pulnix.com for information on Channel Link-compatible frame grabbers.
-
Page 11: Functional Options
The TMC-6700/1000 series cameras accept HD and VD inputs from an external sync generator. Anti-smear filter • Like all PULNiX color cameras, the TMC-6700/1000 series cameras contain a filter to minimize smear that can result when shooting a very bright object. Smear should only occur under extremely bright and pointed light source conditions. -
Page 12: System Configuration
CBL-2R-15 CBL-2R-15 or 15-pin SVGA cable* Power and 12P-02S Computer with Sync Frame Grabber Board SVGA Color Monitor *TMC-6700 series only TMC-6700CL/1000CL (Camera Link models only) Series System Configuration FIGURE 2. 26CL-02-26 CAMERA LINK POWER ANALOG Power Supply PD-12UUP CBL-2R-15... - Page 13 Page 5 Introduction Power supply • Use the optional PD-series power supply or use cable 12P-02S (optional) that connects to the camera’s 12-pin Hirose connectors on one end and has flying heads for power and sync signals on the other end. Display monitor •...
-
Page 14: Installation
2.1.3 Accessories and Options Following is a list of additional accessories and options that may be recommended or required for your particular application. Please check with your PULNiX representative prior to the installation of your video system to determine what you might need. -
Page 15: Camera Setup
Page 7 Installation 2.2 Camera Setup 2.2.1 Connector Pin Configurations 2.2.1 (a) 12-Pin Connector The TMC-6700/1000 series has a 12-pin connector (PC-12P) on the rear panel for power input and integration control. Description Description VD In +12V DC HD In Integ Cont Vinit 2.2.1 (b) -
Page 16: Table 1. 15-Pin Svga Output Connector Configuration
Green GND Blue GND 2.2.1 (d) 6-Pin Connector (base only) The TMC-6700/1000 series has a 6-pin connector for RS-232C communication. A mating 6-pin connector (PC-6P) can be obtained from PULNiX. 6-Pin Connector Pinout Configuration TABLE 2. Standard Description RS-232 RX... -
Page 17: Power Supply And Power Cable Setup
For users providing power through the 12-pin connector, the PD-12P, PD-12UUP, and PD-12UEP power supplies are available with the 12-pin mating connector already attached to the leads from the power supply. The PD-12 power supply can be connected to the PULNiX power cable via a terminal strip or directly. -
Page 18: Figure 3. 12P-02S Interface Cable (Optional)
2.2.2 (b) PULNiX Power Cables If you are using PULNiX power cables, such as the 12P-02S, please refer to the12-pin connector pin-out diagram in Section 2.2.1 on page 7. The cable pin-out diagram is shown below in Figure 3. The color- coded leads use Gray for Ground and Yellow for +12V DC. -
Page 19: Rs-232C Communication Cable And Connector
The selection of an appropriate digital output cable depends on whether you are using a Channel Link frame grabber or a non-Channel Link frame grabber. PULNiX offers two digital output cables. The Channel Link/TTL Adapter cable (15CL-02) provides 24 bit TTL output for use with a non-Channel Link frame grabber. -
Page 20: Analog Output Cable (Cbl-2R-15)
Not all frame grabbers have BNC analog input connectors, in which case a custom adapter cable will be needed. Contact your PULNiX representative if you need assistance. 2.2.6 Camera Link Cable (Camera Link models only) The MDR26 cable assembly (26CL-02-26) from 3M (part number 10226-6212VC) has been standardized as the Camera Link cable. -
Page 21: Back-Focusing The Lens
Page 13 Installation 2.2.7 Back-Focusing the Lens Follow these directions to back-focus the TMC- Set Screws (quantity 3) 6700/1000 series camera. Attach a C-mount lens to the camera. Be sure that the lens is properly mounted. Loosen the three miniature set screws holding the focus ring. -
Page 22: Operation
Page 14 Operation Operation 3.1 Camera Rear Panel-Base Only TMC-6700/1000 Series Rear Panel FIGURE 7. White Balance Reset White Balance Control (4) IWB RST (3) Gamma Control Switch (5) G1.0 BANK1 Shutter Mode Switch (2) MAN ASY Bank Switch (6) 0.45 BANK2 SHUTTER Shutter Dial (1) -
Page 23: White Balance Control Switch
Page 15 Operation Note: In order to avoid video problems, make sure that you turn the shutter-speed control dial quickly. If you turn the dial too slowly, the shutter may not expose for the proper period of time, resulting in either no video or bright video. If this happens, push the IWB RST switch on the rear panel or repeat the dial change at a faster speed. -
Page 24: Camera Rear Panel Switches And Connectors
Page 16 Operation 3.2 Camera Rear Panel Switches and Connectors The following two charts list and describe the features of the camera rear panel illustrated in Figure 7. Table 5 on page 16 contains information on the switches on the rear panel and Table 6 on page 17 contains information on connectors on the rear panel. -
Page 25: Color Balance Adjustment
Page 17 Operation Camera Rear Panel Connectors TABLE 6. Connector Type Cable Needed Cable Information RS-232 6-pin female connector CBL-RS232-C9 Connect PC to the camera using the RS-232C control cable (CBL- RS232-C9). This cable is a part of the communication kit (CS-232C). Analog 15-pin High Density CBL-2R-15... -
Page 26: User-Programmable Functions
Page 18 Operation The mathematical transformation is a linear-space 3 x 3 matrix operation, as shown below. 1.75 – 0.25 – – 0.1875 1.3125 0.125 – – 0.125 – – 1.625 The coefficients have been optimized for the spectral sensitivities of a Bayer CFA (color filter array). For camera systems, a linear-space color correction matrix is used. -
Page 27: Camera Link Rear Panel
Page 19 Operation RAM banks can be saved by the EEPROM save command (Section 4.2.3, “Save RAM Data Into EEPROM,” on page 24). 3.3.4 (f) Black Level Control The TMC-6700/1000’s DSP has independent red, green and blue offset controls, and black level control. -
Page 28: Asynchronous Reset And Shutter Speed
Page 20 Operation Asynchronous Reset FIGURE 9. ASYNC RESET VINIT SG (TRANSFER GATE) DISCHARGE PULSES VIDEO Async Image Stand-by Image 3.5.2 Asynchronous Reset and Shutter Speed The TMC-6700/1000 series asynchronous reset operates with internal sync or external HD for phase locking. -
Page 29: Figure 10. External Pulse Width Control
Page 21 Operation External Pulse Width Control FIGURE 10. External (min. 1H) Pulse Width Internal Vinit Transfer Gate Pulse Exposure Time Discharge pulse Composite Video 3.5.2 (b) Long Integration With pulse-width control, long integration is possible up to a few seconds besides integration control (pin #11 of the 12-pin connector). -
Page 30: Tmc-6700/1000 Series Rs-232C Control
1-bit Baud rate : 9600 bps If other communication conditions are required, please contact PULNiX. 4.1.2 RS-232C Command The TMC-6700/1000 series command packet is in 8-bit binary code. When a packet is received by the TMC-1000, it reads the internal packet of the received buffer. If it is the correct packet, then it processes the parameters based on the commands detailed in Section 4.2. -
Page 31: Basic Command Code
Page 23 TMC-6700/1000 Series RS-232C Control 4.2 Basic Command Code 4.2.1 Set/Refresh RAM Bank Function: Set or refresh the RAM bank. Four user’s RAM banks are available from Bank 1 to Bank 4. Typical situations in which you may want to use this command are when you want to change to another RAM bank, and when you want to reflect changes after sending the shutter command, WB command, etc. -
Page 32: Save Ram Data Into Eeprom
Page 24 TMC-6700/1000 Series RS-232C Control Rear Panel Override Flag D2:0 Ram Bank Number -1 (0, 1, 2 or 3) D3 is the rear panel override flag, indicating whether the software or the rear panel has priority regarding parameter control. Note: Once any rear panel switch is changed, rear panel control will take priority, and the configuration of all the rear panel switch settings will apply to the current image:... -
Page 33: Read 1 Byte From Ram Bank
Page 25 TMC-6700/1000 Series RS-232C Control D7:0 8-bit data to update The first command code specifies the RAM address to write. The RAM address is shown in the Appendix, Section 6.3, “TMC-6700/1000 Series Control Parameter Address Map,” on page 36. The second command code specifies the new 8-bit data to overwrite. -
Page 34: Adc Offset
Page 26 TMC-6700/1000 Series RS-232C Control *Note: The byte order of the ADC offset, VCA gain and ADC Ref. Top is opposite to that which is actually seen. For instance, if the user needs to write 48 (00110000 in binary code) as the new VCA gain, the code for 48 must be sent (00001100). -
Page 35: White Balance
Page 27 TMC-6700/1000 Series RS-232C Control 4.3.4 White Balance The white balance mode is saved in address 6 in RAM. If the internal WB mode is set, then the TMC- 6700/1000 series internally accumulates R and B white balance. If the external WB mode is set, then the external WB-R and WB-B offset are loaded from address 2B (hex) and 2A (hex) respectively. -
Page 36: Rgb To Ycrcb Conversion
Page 28 TMC-6700/1000 Series RS-232C Control Set V Enh and level 3 (RGB, Int. WB) 01000110 (address 6, write) 00111000 Refresh RAM Bank 4.3.6 RGB to YCrCb Conversion RGB to YCrCb Conversion mode is saved in address 6. The TMC-6700/1000 series supports RGB, 4:4:4 YCrCb and 4:2:2 YCrCb. -
Page 37: Gamma Conversion
Page 29 TMC-6700/1000 Series RS-232C Control when n=9H~1048H----> TMC-1000 when n is exposing line count. when n=9H-523 ----> TMC-6700 Example 1 Set Normal Manual Shutter Dial 5 (Gamma on) 01000111 (address 7, write) 01000101 Refresh RAM Bank Example 2 Set Direct Shutter Async mode (n=1030H, Gamma on) 01000111 (Address 7) 01110000 (Shutter Mode) 01111110 (Address 3E) -
Page 38: 10Black Level Reference
Page 30 TMC-6700/1000 Series RS-232C Control 11111100 01100001 (Address of GB) 11111100 01100010 (Address of GG) Tx10 00101010 Tx11 01100011 (Address of GR) Tx12 11111010 Tx13 01100100 (Address of RB) Tx14 11110000 Tx15 01100101 (Address of RG) Tx16 11111000 Tx17 01100110 (Address of RR) Tx18 00111000... -
Page 39: Troubleshooting
Following are troubleshooting tips for common problems. In general, problems can easily be solved by following these instructions. If the following remedies fail to offer a solution to your problems, please contact a PULNiX representative. 5.1.1 Symptom: No Video Remedies: Check that the following are properly operational. -
Page 40: Information And Support Resources
Page 32 Troubleshooting 5.2 Information and Support Resources For further information and support: Phone: (408) 747-0300 (800) 445-5444 (800) 3-PULNIX (24-hour message access) Fax: (408) 747-0660 E-mail: imaging@jaipulnix.com Mail: PULNiX America, Inc. Sales Department 1330 Orleans Drive Sunnyvale, CA 94089... -
Page 41: Appendix
Page 33 Appendix Appendix 6.1 Specifications 6.1.1 Product Specifications TMC-6700/1000 Series Product Specifications Table TABLE 7. TMC-1000/1000CL TMC-6700/6700CL Imager 1” progressive scanning interline transfer CCD 1/2” progressive scanning interline transfer CCD Pixels 1008 (H) x 1018 (V) 648 (H) x 484 (V) Cell size 9.0µm x 9.0µm Color filter... -
Page 42: Physical Dimensions
Page 34 Appendix 6.1.2 Physical Dimensions TMC-6700/1000 Series Physical Dimensions FIGURE 11. 116.5 (4.58) 67.0 (2.64) 112.5 (4.43) PULNiX PROGRESSIVE SCAN 51.0 (2.01) 7.0 (.28) 1/4"-20 11.0 11.0 2XM6 2x ø5/50 22.0 11.5 40.0 TMC-6700/1000 Series Progressive Scan CCD Digital Color Camera... -
Page 43: Imager Color Filters
Page 35 Appendix 6.2 Imager Color Filters 6.2.1 Spectral Response with Complementary Mosaic Filter Spectral Response FIGURE 12. (RGB PRIMARY COLOR FILTER) GREEN BLUE 1000 1100 Wave Length (nm) 6.2.2 Bayer Primary Color Filter Bayer Primary Color Filter Diagram FIGURE 13. 3 G, R/B STAGGERED FILTER, BAYER CFA HORIZONTAL SHIFT REGISTER TMC-6700/1000 Series Progressive Scan CCD Digital Color Camera... -
Page 44: Address Map
Page 36 Appendix 6.3 TMC-6700/1000 Series Control Parameter Address Map FPGA RAM EIA-232 Control Dec Addr. Hex Addr. Bin Addr. Parameter Dec Index Hex Index 000000000 none 000001000 VCA gain 000010000 ADC offset 000011000 ADC reference top 000100000 000101000 000110000 WB, edge enh. -
Page 45: Digital Output Wave Forms
Page 37 Appendix 6.4 Digital Output Wave Forms Line Data Valid (TMC-1000/1000CL) FIGURE 14. 128N 1N = 49.91 nsec 25.5N H-SYNC 52.5N 206N 42.5N DATA 266N 1006N (active data) 1272N Frame Data Valid (TMC-1000/1000CL) FIGURE 15. 1H = 1272N V-SYNC DATA 1016H (active data) Line Data Valid (TMC-6700/6700CL) -
Page 46: Figure 17. Frame Data Valid (Tmc-7600/6700Cl)
Page 38 Appendix Frame Data Valid (TMC-7600/6700CL) FIGURE 17. 1H = 810N V-SYNC DATA 482H (active data) TMC-6700/1000 Series Progressive Scan CCD Digital Color Camera... - Page 48 I m a g i n g P r o d u c t s w w w . p u l n i x . c o m PULNiX America, Inc. Tel: 408-747-0300 1330 Orleans Drive Tel: 800-445-5444 Sunnyvale, CA 94089 Fax: 408-747-0660 Email: imaging@jaipulnix.com...
