80C186EA 80C188EA 80L186EA 80L188EA

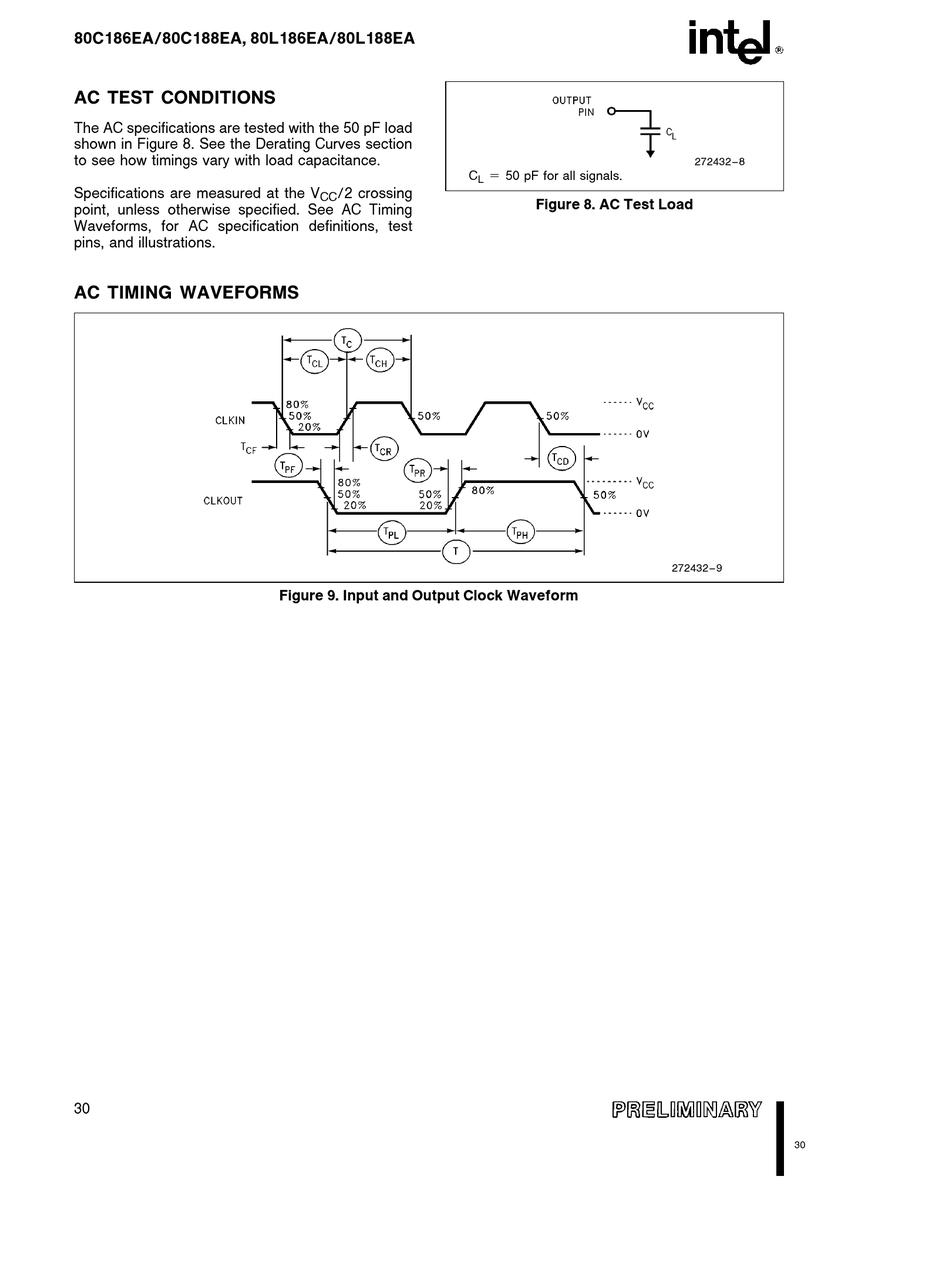

AC TEST CONDITIONS

The AC specifications are tested with the 50 pF load
shown in Figure 8 See the Derating Curves section
to see how timings vary with load capacitance
272432 – 8
C 50 pF for all signals
e
L
Specifications are measured at the V 2 crossing
CC
Figure 8 AC Test Load
point unless otherwise specified See AC Timing
Waveforms for AC specification definitions test
pins and illustrations

AC TIMING WAVEFORMS

272432 –9
Figure 9 Input and Output Clock Waveform
