80C186EC 188EC 80L186EC 188EC

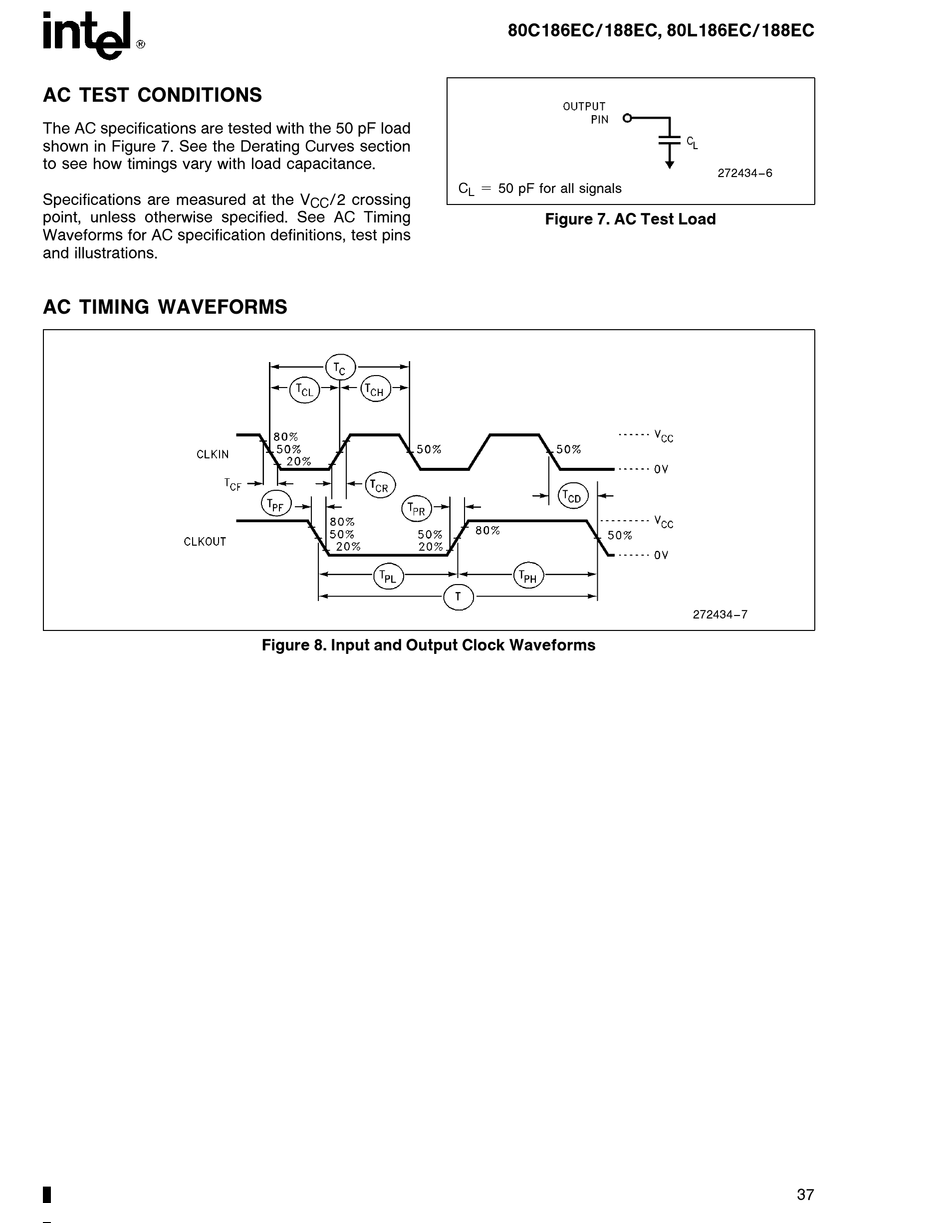

AC TEST CONDITIONS

The AC specifications are tested with the 50 pF load
shown in Figure 7 See the Derating Curves section
to see how timings vary with load capacitance
272434 –6
C 50 pF for all signals
e
L
Specifications are measured at the V 2 crossing
CC
point unless otherwise specified See AC Timing
Figure 7 AC Test Load
Waveforms for AC specification definitions test pins
and illustrations

AC TIMING WAVEFORMS

272434 –7
Figure 8 Input and Output Clock Waveforms
37
