2-5 HDD/FDD Installation
• To install HDD (Hard Disk Drive), you may connect the connector of IDE
cable to the primary (IDE1) or secondary (IDE2) connector on board, and
then connect the gray connector to your slave device and the black
connector to your master device. If you install two hard disks, you must
configure the second drive to Slave mode by setting its jumpers correctly.
Please refer to your hard disk documentation for the jumper settings.
Clock
Generator
1
1
3
FAN2
AC'97
Codec
1
4
CD1
1
4
CD2
1
3
WOL1
Black connector
1
3
FAN1
mPGA478B
1
Intel RG82845
Intel RG82845
LED2
PCI 1
AGP4X
PCI 2
82801BA
PCI 3
USB1
FWH
DIP
1
3
16
SW1
1
1 2 3 4 5
FAN3
IDE Cable

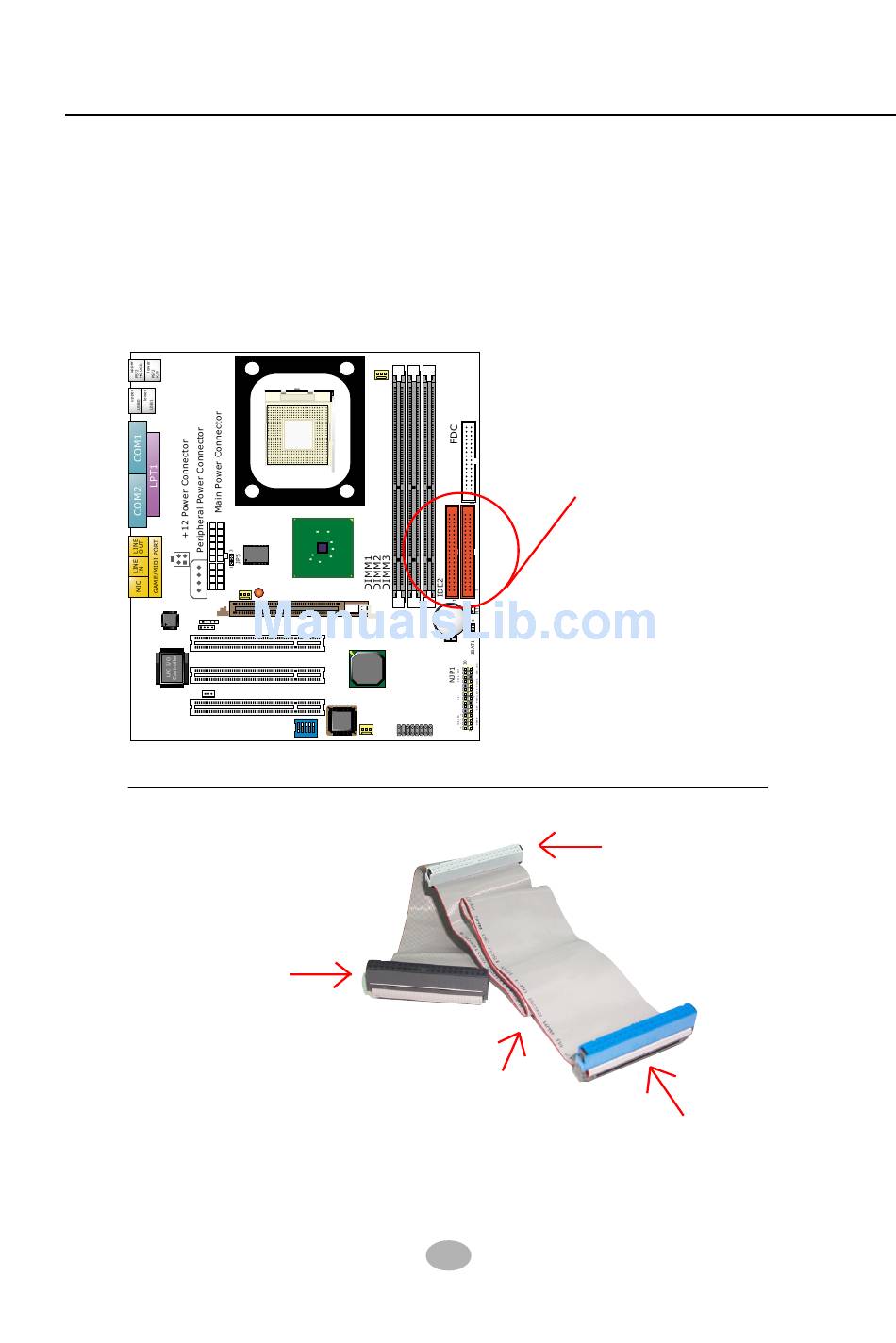

Hard Disk Drive Connector:
Orient the red line on the IDE
ribbon cable to Pin1.
IDE1
Li
Battery
red line
20
Gray connector
Blue connector
