2-6.2 Factory Test (By JP5)

2-6.3 JBAT1 Clear CMOS

• When you have problem with rebooting your system, you can clear CMOS
data and restore it to default value. To clear CMOS with Jumper JBAT1,
please follow the steps below:
(1) Power off system.
(2) Set JBAT1 to Pin 2-3 closed.
(3) After 2 or 3 seconds, return the JBAT1 setting to Pin1-2 closed.
(4) CMOS data are restored to default. Remember never clear CMOS
when system power is on.

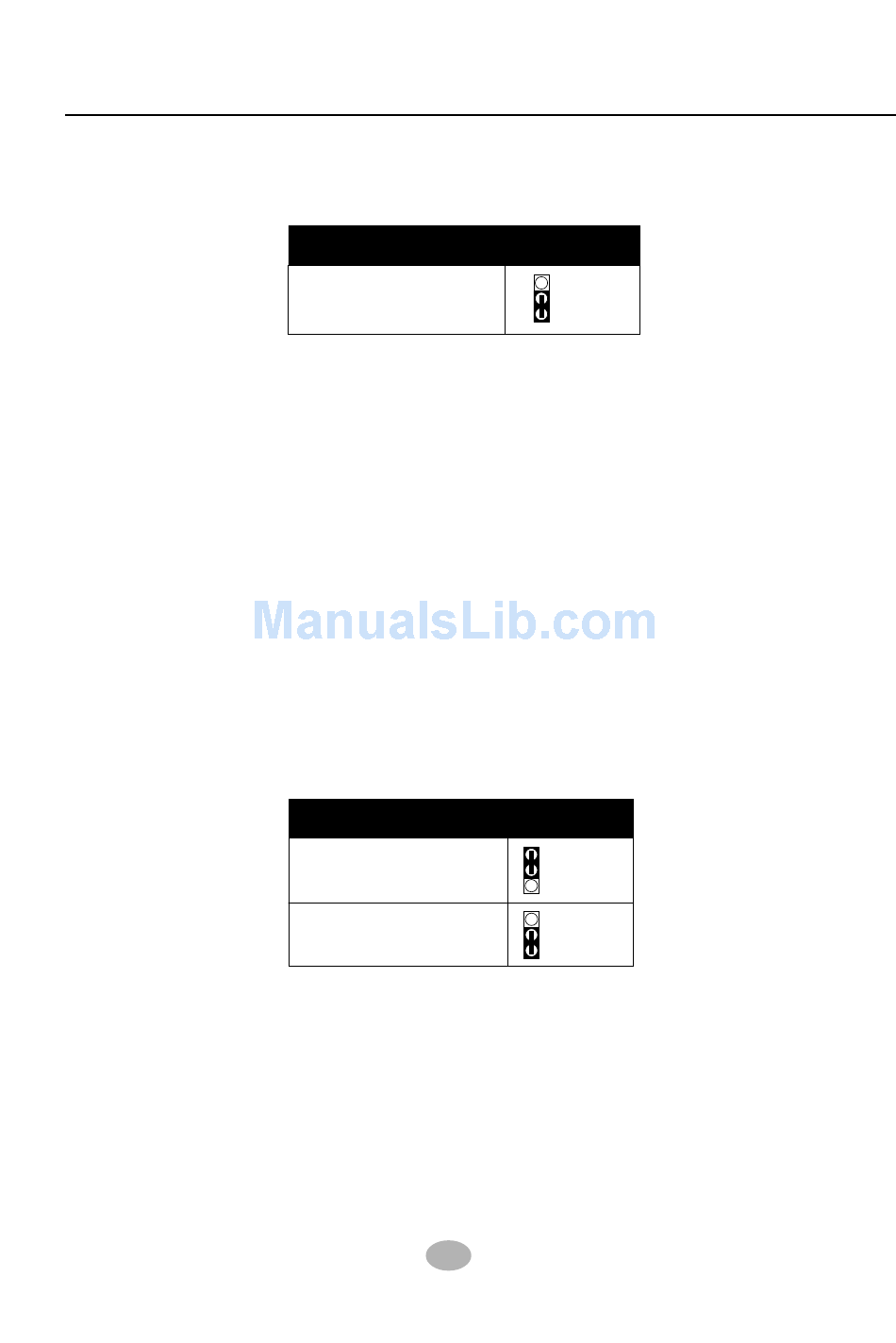

JP5: Factory Test
Only for factory test.
JBAT1: Clear CMOS Data
Clear CMOS Data
Retain Data (Default)
24
3
JP5
1
3
JBAT1
1
3
JBAT1
1
