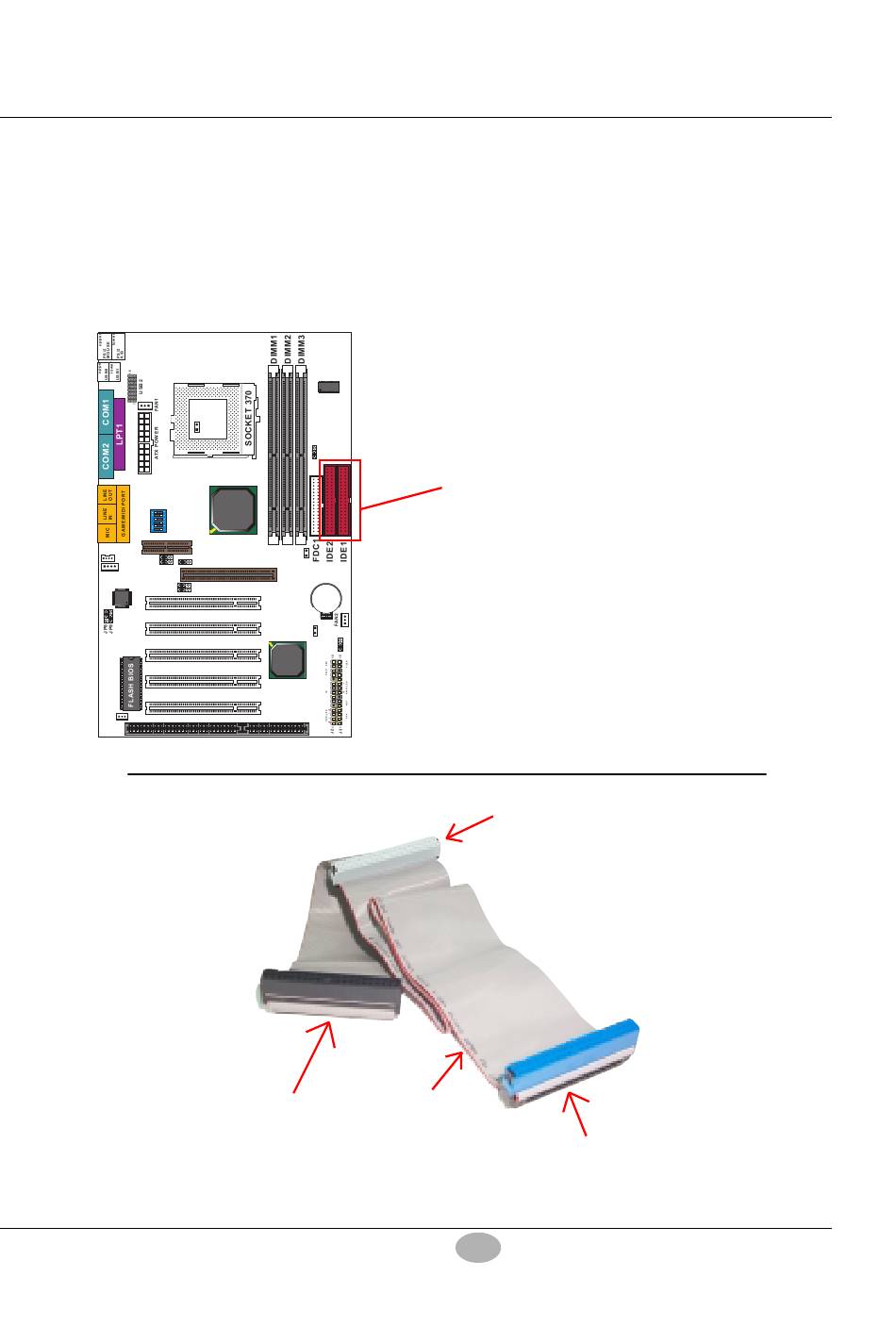

2- 3 HDD/FDD INSTALLATION
• To install HDD (Hard Disk Drive), you may connect the cable's blue
connector to the mainboard's primary (IDE1) or secondary IDE connector,
and then connect the gray connector to your slave device and the black
connector to your master device. If you install two hard disks , you must
configure the second drive to Slave mode by setting its jumper accordingly.
Please refer to your hard disk documentation for the jumper settings.
RT1
VIA
694X
SW1
AMR
1
4
JP3
1
3
1
3
CD_IN2
JP4
JP5
AGP 4X
1
3
CD_IN1
1
4
JP6
1
3
JP7
1
3
PCI 1
AC'97
Codec
3
3
PCI 2
1
1
PCI 3
PCI 4
PCI 5
JWOL1
black connector
Clock
Generator
JP2
1
3
JP14
Li
Battery
RT2
JBAT1
3
1
VIA
VT82C
686B
ISA
red line
IDE Cable
Chapter 2 Hardware Setup
Hard Disk Drive Connector:
Orient the red line on the IDE ribbon
cable to Pin1.
gray connector
blue connector
19
