65EB
2-3 HDD / FDD INSTALLATION
• you must configure the second drive to Slave mode by setting its jumper
accordingly.Please refer to your hard disk documentation for the jumper
settings.
• To install FDD (Floppy Disk Drive), you may connect the single end to the
board , and connect two plugs on the other end to the floopy drives.
• Even though the IDE controller on the Motherboard supports Ultra ATA33
only, but it also compatible with ultra ATA66, ATA100 and legacy IDE devise.
8 7 6 5 4 3 2 1
DIP
SFAN1
JP6
JP7
I/O
Controller
1
3
JP12
ISA
14
3
JP2
1
CFAN1
82443BX
Host
SW1
Bridge
ON
1
3
1
3
AGP
PCI 1
PCI 2
(PCI-to-ISA
JVGA1
PCI 3
PCI 4
PCI 5
Clock
Generator
82371EB
(PIIX4E)
Bridge)
Li
Battery

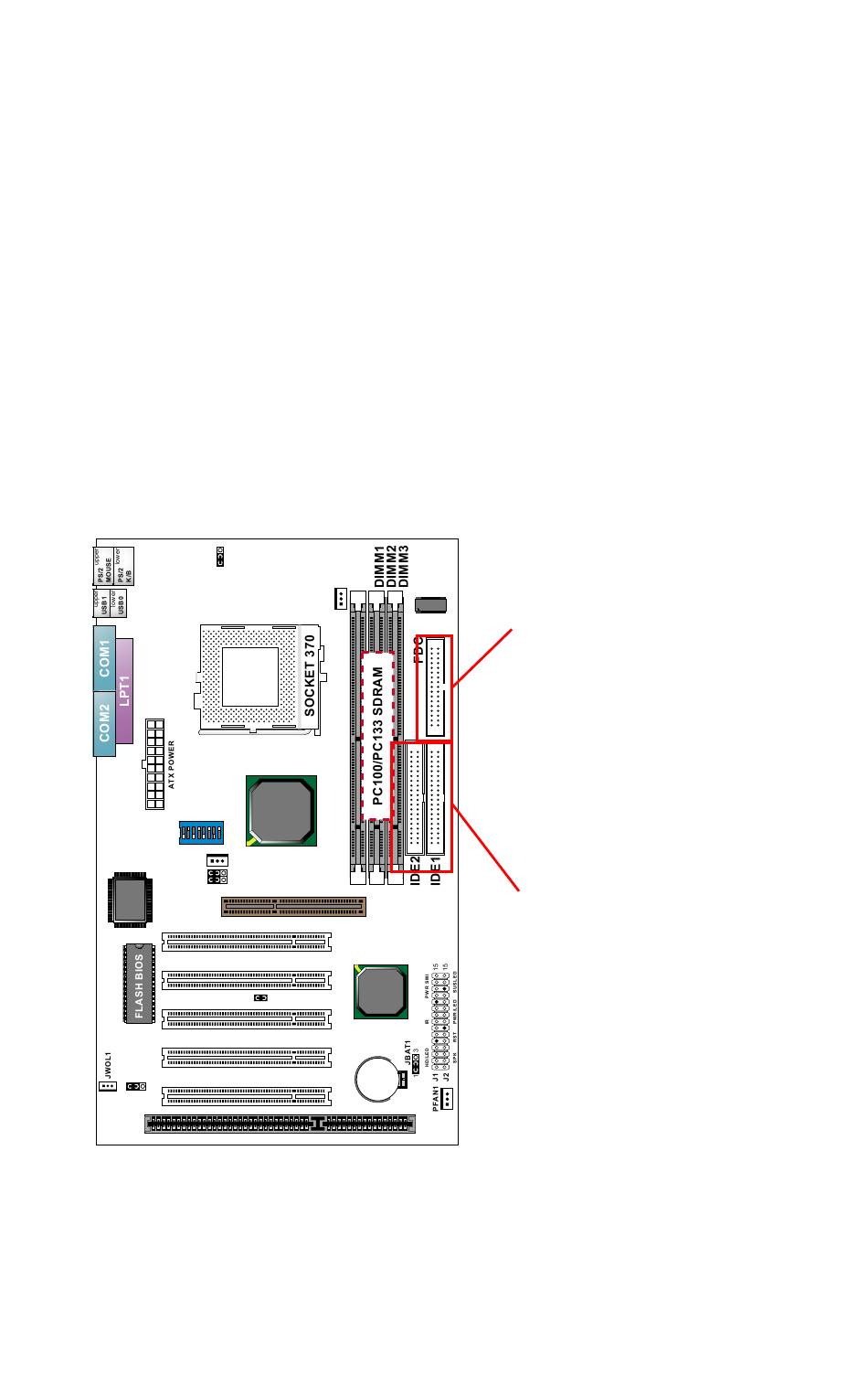

Floppy Disk Drive
Connector:
Orient the red markings
on the floppy ribbon
cable to Pin1.
Hard Disk Drive
Connector:
Orient the red markings
on the IDE ribbon cable
to Pin1.
