2-6 HDD/FDD INSTALLATION

• To install HDD (Hard Disk Drive), you may connect the cable's blue
connector to the motherboard's primary (IDE1) or secondary IDE
connector, and then connect the gray connector to your slave de-
vice and the black connector to your master device.If you install two
hard disks , you must configure the second drive to Slave mode by
setting its jumper accordingly.Please refer to your hard disk docu-
mentation for the jumper settings.
• To install FDD (Floppy Disk Drive), you may connect the single end
to the board , and connect two plugs on the other end to the floopy
drives.
CPUFA1
1 3
JP2
JP8
JP9
JP10
1 3
AUXFA1
AC'97
CD_IN1
Codec
1 4
1 4
CD_IN2
COM2
20
ATX POWER
Clock
Generator
RT1
Intel
815EP
MCH
AGP PRO
PCI 1
Intel
PCI 2
ICH2
JBAT1
1 3
PCI 3
1 3 JBAT2
1 3
JP16
Li
FWH
PCI 4
Battery
PCI 5
I/O
Controller
USB1 SCR1
CNR
16
1

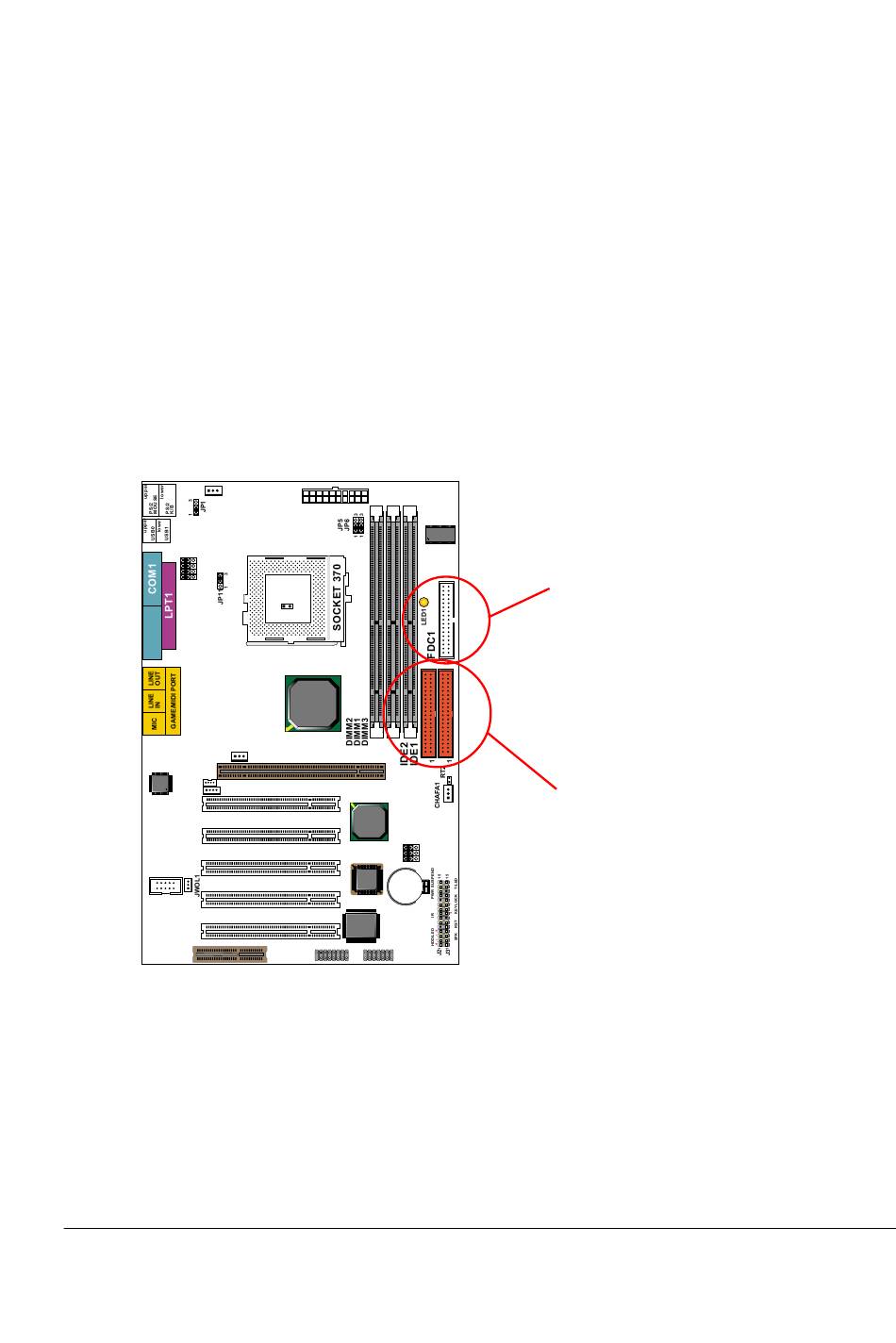

Floppy Disk Drive Connector:
Orient the red markings on
the floppy ribbon cable to
Pin1.
Hard Disk Drive Connector:
Orient the red markings on
the IDE ribbon cable to Pin1.
