2-7.4 Thermal Sensor Connector (RT2) (Optional)

mPGA478B
Clock
Generator
1
Intel RG82845
1 3
LED2
FAN2
AC'97
Codec CD1
1 4
PCI 1
1 4
CD2
PCI 2
PCI 3
1 3 WOL1
DIP
SW1
1 2 3 4 5

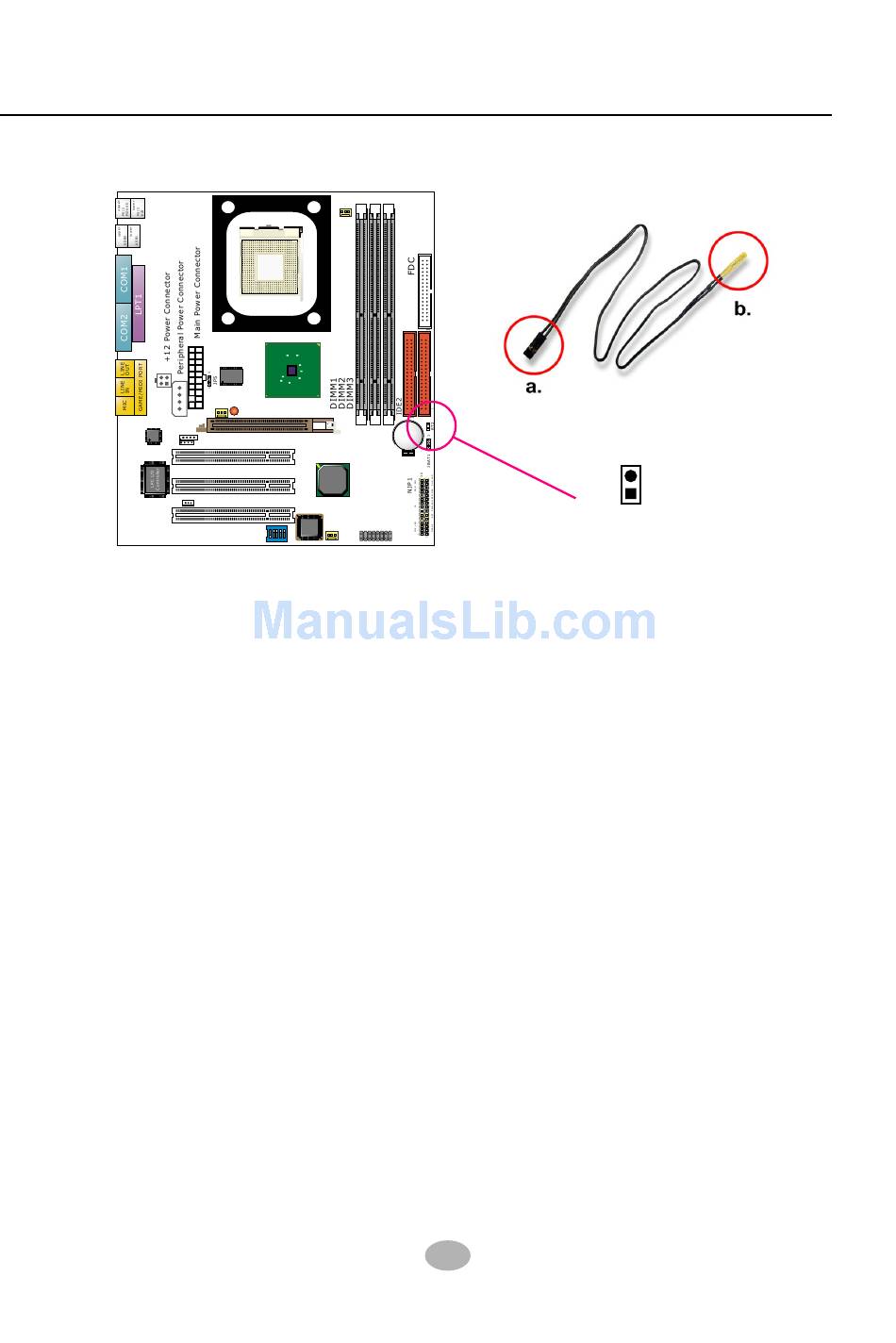

We provide a thermal cable in the mainboard package. This thermal cable
is to monitor device which will generates a lot of heat, such as HDD,
Graphics card etc. Please connect one end (A) of the thermal cable to
mainboard RT2 header, and tape another end (B) of thermal cable on to
the device which you want to monitor. After you have finish the thermal
cable installation, you will see the detected temperature in BIOS setup
or Hardware monitor utility.
1 3
FAN1
1
Intel RG82845
IDE1
Li
Battery
AGP4X
82801BA
USB1
FWH
1 3
16
1
FAN3
27
Chapter 2 Hardware Setup
RT2
