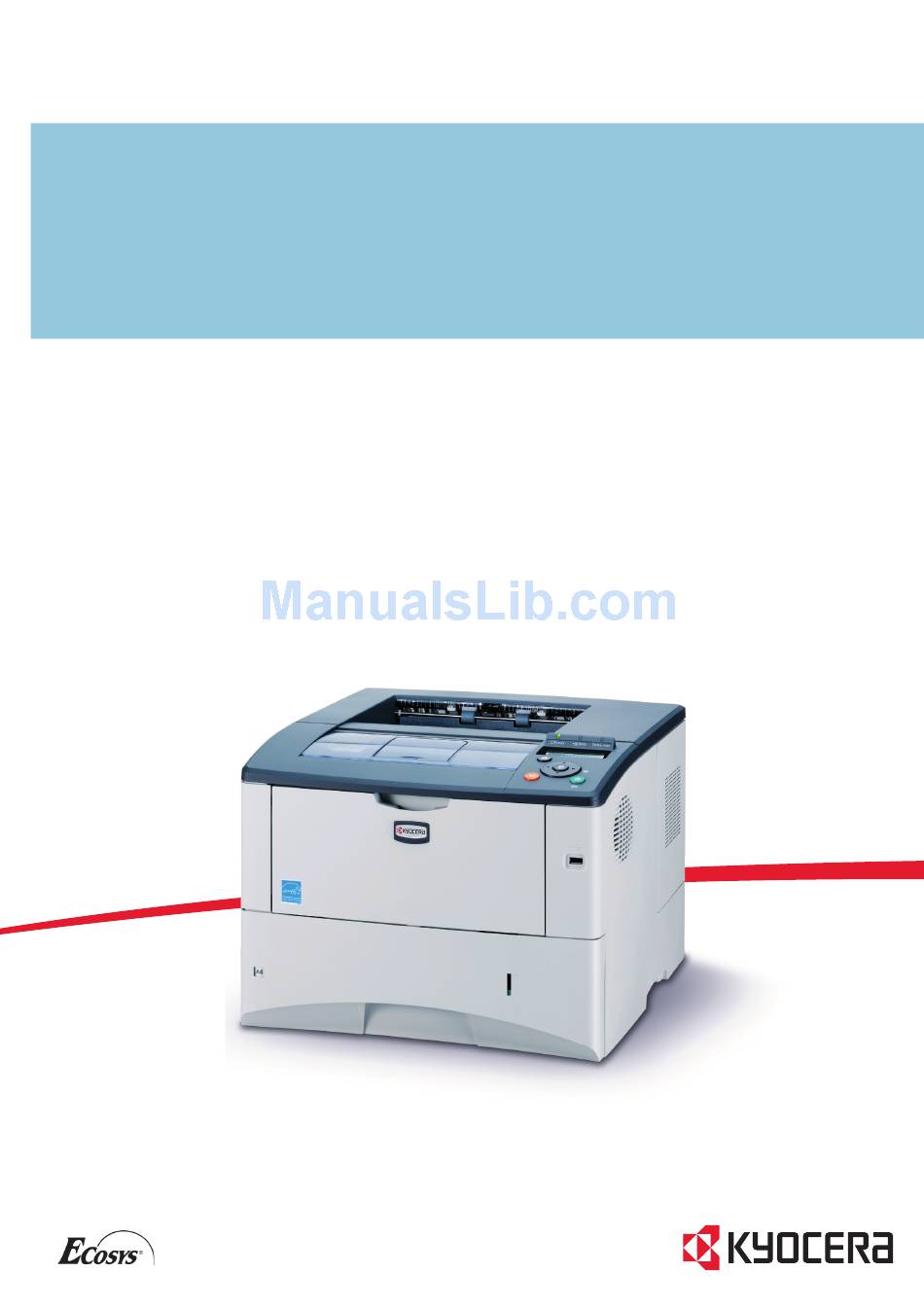

Page 1 OPERATION GUIDE FS-2020D/FS-3920DN/FS-4020DN/ FS-1100 FS-6970DN FS-1300D...
Page 2 This Operation Guide is for models FS-2020D, FS-3920DN, FS-4020DN FS-6970DN . Note This Operation Guide contains information that corresponds to using both the inch and metric versions of these machines. The inch versions of these machines are shown in the screens in this guide.
Page 3: Table Of Contents
Contents Machine Parts ..............1-1 Components at the Front of the Printer ......1-2 Components at the Rear of the Printer ......1-3 Operation Panel ..............1-4 Paper Handling ..............2-1 General Guidelines ............2-2 Selecting the Right Paper ..........2-4 Paper Type ...............
Page 4 Paper Feeder (PF-310) ............8-6 Paper Feeder (PF-430) ............8-6 CompactFlash (CF) Card ........... 8-7 Other Options ..............8-9 Computer Interface ............. 9-1 General Information ............9-2 Network Interface .............. 9-3 10 Appendix ................10-1 Specifications ..............10-2 Glossary Index...
Page 5 Legal and Safety Information Please read this information before using your machine. This chapter provides information on the following topics: Legal Information License Agreements Safety Information Symbols xvii Installation Precautions xviii Precautions for Use About the Operation Guide xxii Conventions in This Guide xxiii...
Page 6: Legal Information
All rights are reserved. Copying or other reproduction of all or part of this guide, or any copyrightable subject matter without the prior written consent of Kyocera Mita Corporation is prohibited. Any copies made of all or part of this guide, or any copyrightable subject must contain the same copyright notice as the material from which the copying is done.
Page 7: License Agreements
License Agreements IBM Program License Agreement THE DEVICE YOU HAVE PURCHASED CONTAINS ONE OR MORE SOFTWARE PROGRAMS (“PROGRAMS”) WHICH BELONG TO INTERNATIONAL BUSINESS MACHINES CORPORATION (“IBM”). THIS DOCUMENT DEFINES THE TERMS AND CONDITIONS UNDER WHICH THE SOFTWARE IS BEING LICENSED TO YOU BY IBM. IF YOU DO NOT AGREE WITH THE TERMS AND CONDITIONS OF THIS LICENSE, THEN WITHIN 14 DAYS AFTER YOUR ACQUISITION OF THE DEVICE YOU MAY RETURN THE DEVICE FOR A FULL...
Page 8 1. the equivalent of U.S. $25,000 in your local currency; or 2. IBM's then generally available license fee for the Program This limitation will not apply to claims for bodily injury or damages to real or tangible personal property for which IBM is legally liable. IBM will not be liable for any lost profits, lost savings, or any incidental damages or other economic consequential damages, even if IBM, or its authorized supplier, has been advised of the possibility of such...
Page 9 3. To protect proprietary rights of Monotype Imaging, you agree to maintain the Software and other proprietary information concerning the Typefaces in strict confidence and to establish reasonable procedures regulating access to and use of the Software and Typefaces. 4. You agree not to duplicate or copy the Software or Typefaces, except that you may make one backup copy.
Page 10 Firmware of this machine is using in part the GPL applied codes (www.fsf.org/copyleft/gpl.html). Please access "http:// www.kyoceramita.com/gpl" for more information on how to make GPL applied codes available. Open SSLeay License Copyright © 1998-2006 The OpenSSL Project. All rights reserved. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: Redistributions of source code must retain the above copyright...
Page 11: Original Ssleay License
Original SSLeay License Copyright © 1995-1998 Eric Young (eay@cryptsoft.com) All rights reserved. This package is an SSL implementation written by Eric Young (eay@cryptsoft.com). The implementation was written so as to conform with Netscapes SSL. This library is free for commercial and non-commercial use as long as the following conditions are aheared to.
Page 12 The licence and distribution terms for any publically available version or derivative of this code cannot be changed, i.e, the code cannot simply be copied and put under another distribution licence [including the GNU Publica License.]...
Page 13 Compliance and Conformity This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
Page 14: Safety Information
Radio Frequency Transmitter This machine contains a transmitter module. We, the manufacturer (Kyocera Mita Corporation) hereby declare that this equipment (page printer), models mentioned on the cover page are in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.
Page 15: Caution Labels
Caution Labels The printer bears any of the following labels. Laser inside the printer (Laser radiation warning) For Europe, Asia, and For U.S.A. and other countries Canada CDRH Regulations The Center for Devices and Radiological Health (CDRH) of the U.S. Food and Drug Administration implemented regulations for laser products on August 2, 1976.
Page 16: Safety Instructions Regarding The Disconnection Of Power
Model name: FS-2020D/FS-3920DN/FS-4020DN Description of devices: This Page Printer Model FS-4020DN is 28ppm (FS-2020D is the 30ppm, FS-3920DN is the 35ppm); A4 size and utilizes plain paper; dry toner; etc. The printer can be equipped with several optional enhancement units, such as a PF-310 paper feeder.
Page 17: Duplex Printing
ISO 7779. Disclaimer Kyocera Mita will not be liable to customers or any other person or entity for any loss or damage caused or alleged to be caused directly or indirectly by equipment sold or furnished by us, including but not limited...
Page 18 ® Energy Star (E ) Program NERGY We have determined as a participating company in the International Energy Star Program that this product is compliant with the standards laid out in the International Energy Star Program.
Page 19: Symbols
Symbols The sections of this guide and parts of the machine marked with symbols are safety warnings meant to protect the user, other individuals and surrounding objects, and ensure correct and safe usage of the machine. The symbols and their meanings are indicated below. DANGER: Indicates that serious injury or even death will very possibly result from insufficient attention to or incorrect compliance with the related points.
Page 20: Installation Precautions
Installation Precautions Environment Caution Avoid placing the machine on or in locations which are unstable or not level. Such locations may cause the machine to fall down or fall over. This type of situation presents a danger of personal injury or damage to the machine. Avoid locations with humidity or dust and dirt.
Page 21: Handling Of Plastic Bags
Power Supply/Grounding the Machine Warning Do not use a power supply with a voltage other than that specified. Avoid multiple connections in the same outlet. These types of situations present a danger of fire or electrical shock. Plug the power cord securely into the outlet. If metallic objects come in contact with the prongs on the plug, it may cause a fire or electric shock.
Page 22: Precautions For Use
Precautions for Use Cautions when using the machine Warning Do not place metallic objects or containers with water (flower vases, flower pots, cups, etc.) on or near the machine. This situation presents a danger of fire or electrical shock should they fall inside.
Page 23 If dust accumulates within the machine, there is a danger of fire or other trouble. It is therefore recommended that you consult with your service representative in regard to cleaning of internal parts. This is particularly effective if accomplished prior to seasons of high humidity.
Page 24: About The Operation Guide
About the Operation Guide This Operation Guide contains the following chapters: 1 Machine Parts This chapter explains the names of parts. 2 Paper Handling Explains how choose, handle and load paper. 3 Loading Paper This chapter explains paper specifications for this printer and how to load paper into the cassette or MP tray.
Page 25: Conventions In This Guide
Conventions in This Guide This manual uses the following conventions. Convention Description Example Italic Used to emphasize a key word, Refer to Replacing the Toner Container Typeface phrase or reference to additional on page 4-3. information. Bold Used to denote buttons on the Select the printer you want to install, and software.
Page 26 Introduction-xxiv...
Page 27: Machine Parts
Machine Parts This section provides explanations and illustrations for you to determine the parts and their functions. Try to be familiar with the names and functions of these parts for correct use and optimal performance. Components at the Front of the Printer Components at the Rear of the Printer Operation Panel Machine Parts...
Page 28: Components At The Front Of The Printer
Components at the Front of the Printer Top Cover Paper Stopper Top Tray Right Cover Operation Panel USB Memory Slot Paper Cassette MP (Multi-Purpose) Tray Components at the Left of the Printer and Internal Components Left Cover Toner Container Power Switch Waste Toner Box Machine Parts...
Page 29: Components At The Rear Of The Printer
Components at the Rear of the Printer USB Interface Connector /FS-6970DN only) Network Indicators (FS-3920DN/FS-4020DN Network Interface Connector (FS-3920DN/FS-4020DN /FS-6970DN only) Parallel Interface Connector Power Cord Connector Rear Unit Option Interface Slot (Network/CF card/Hard disk) (FS-2020D/ FS-3920DN/FS-4020DN only) Machine Parts...
Page 30: Operation Panel
Operation Panel Indicators Message Display Cursor Keys [GO] Key [Cancel] Key [OK] Key [MENU] Key Machine Parts...
Page 31: Paper Handling
Paper Handling This chapter explains paper specifications for this printer and how to load paper into the cassette or MP tray General Guidelines Selecting the Right Paper Paper Type 2-12 Paper Handling...
Page 32: General Guidelines
General Guidelines The machine is designed to print on standard copier paper, but it can also accept a variety of other types of paper within the limits specified below. Note The manufacturer assumes no liability for problems that occur when paper not satisfying these requirements is used. Selection of the right paper is important.
Page 33 Maximum Paper Size Paper Size 216mm (8-1/2 inches) 216mm (8-1/2 inches) Note The minimum paper sizes of the paper cassette for FS-2020D is 140mm (5-1/2 inches) x 210mm (8-1/4 inches). For FS-6970DN: Paper cassette MP tray Minimum Minimum Paper Size...
Page 34: Selecting The Right Paper
16 kai 197 x 273 mm Custom Cassette: 140 x 210 mm to 216 x 356 mm (FS-2020D); 105 x 148 mm to 216 x 356 mm (FS-3920DN and FS-4020DN)MP Tray: 70 x 148 mm to 216 x 356 mm...
Page 35 For FS-6970DN: Cassette or MP Tray Size Size MP Tray Envelope Monarch 3-7/8 x 7-1/2 inches Ledger 11 x 17 inches Envelope #10 4-1/8 x 9-1/2 inches Legal 8-1/2 x 14 inches Envelope DL 110 x 220 mm Letter 8-1/2 x 11 inches Envelope #9 3-7/8 x 8-7/8 inches ISO A3...
Page 36: Paper Weight Equivalence Table
Paper Weight Equivalence Table The paper weight is listed in pounds (lb) and metric grams per square meter (g/m²). The shaded part indicates the standard weight. U. S. Bond Weight (lb) Europe Metric Weight (g/m²) Thickness The paper used with the machine should be neither extremely thick nor extremely thin.
Page 37: Paper Grain
• Store paper in its original carton. Place a pallet etc. under the carton to separate it from the floor. • After removing paper from storage, let it stand in the same room as the machine for 48 hours before use. •...
Page 38: Special Paper
Special Paper The following types of special paper can be used: Paper type to be used Paper type to be selected Thin paper (60 to 64 g/m²) Vellum Thick paper (90 to 220 g/m²) Thick Colored paper Color Recycled paper Recycled Overhead projector transparencies Transparency...
Page 39 Label paper has a structure comprising of three layers, as shown in the diagram. The top Top sheet (white sheet is printed on. The bond paper) adhesive layer consists of Adhesive pressure-sensitive adhesives. The carrier sheet (also called Carrier sheet the linear or backing sheet) holds the labels until used.
Page 40 Some postcards have rough edges on the back (those are created when the paper is cut). In this case, put the postcards on a flat place and rub the edges with, for example, a ruler to smooth them. Envelopes Note If you use envelopes quite often, we recommend to use optional paper feeder EF-310.
Page 41 Colored Paper Colored paper should satisfy the same conditions as white bond paper. Refer to Paper Specifications on page 2-2. In addition, the pigments used in the paper must be able to withstand the heat of fusing during the printing process (up to 200°C or 392°F). Preprinted Paper Preprinted paper should satisfy the same conditions as white bond paper.
Page 42: Paper Type
Paper Type The printer is capable of printing under the optimum setting for the type of paper being used. A different paper type setting can be made for each paper source including the MP tray. Not only can preset paper types be selected, but it is also possible for you to define and select customized paper types.
Page 43: Loading Paper
Loading Paper This chapter explains the procedure for loading paper in the cassette and the MP tray Loading Paper into the Cassette Loading Paper into MP (Multi-Purpose) Tray Loading Envelopes into the MP Tray (FS-2020D/3920DN/4020DN only) Loading Paper...
Page 44: Loading Paper Into The Cassette
Loading Paper into the Cassette The paper cassette can accommodate A6 (FS-2020D: A5) to A4/Letter and Legal size paper and can hold approximately 500 sheets. For FS-6970DN: The paper cassette can accommodate A5 to A3/Letter and Legal size paper and can hold approximately 250 sheets.
Page 45 Turn the paper size dial so that the size of the paper you are going to use appears in the paper size window. Note When the paper size dial is set to OTHER the paper size must be set into the printer on the operation panel. Refer to the Custom Paper Size section in the Advanced Operation Guide.
Page 46 Fan the paper, then tap it on a level surface to avoid media jams or skewed printing. Place the paper in the paper cassette. Ensure the side to be printed is facing down and the paper is not folded, curled, or damaged. Note Do not load more paper than will fit under the load limits on the paper guides.
Page 47 Insert the paper cassette into the slot in the printer. Push it straight in as far as it will go. There is a paper gauge on the right side of the front of the paper cassette to indicate the remaining paper supply. When paper is exhausted, the pointer will go down to the level of (empty).
Page 48: Loading Paper Into Mp (Multi-Purpose) Tray
Loading Paper into MP (Multi-Purpose) Tray The MP tray can accommodate the various paper sizes and can hold approximately 100 sheets of paper. Fan the media (paper/transparencies), then tap it on a level surface to avoid media jams or skewed printing. Pull the MP tray towards you until it stops.
Page 49 Align the paper with the paper guides and insert as far as it will go. Note If the paper is considerably curled in one direction, for example, if the paper is already printed on one side, try to roll the paper in the opposite direction to counteract the curl. Printed sheets will then come out flat.
Page 50: Loading Envelopes Into The Mp Tray (Fs2020D/3920Dn/4020Dn Only)
Loading Envelopes into the MP Tray (FS-2020D/3920DN/4020DN only) To print on the envelopes, follow the instructions below. If you use envelopes quite often, we recommend to use optional paper feeder EF-310. (FS-3920DN/4020DN only) Open the rear unit. Press the green buttons to change the thickness of paper.
Page 51: Connecting And Printing
Connecting and Printing This chapter explains how to start up the printer, print from your PC, and use the application software included in the CD-ROM. Connections Changing Network Interface Parameters Printing a Network Interface Status Page 4-12 Installing the Printer Driver 4-13 Printing from Application Software 4-19...
Page 52: Connections
Connections This section explains how to start up the printer. The figure shown below is the overviews of connections between the printer and the computer. Connecting the USB Cable Follow the steps as below for connecting the USB cable. Connect the USB cable (not included) to the USB interface connector at the rear of this machine.
Page 53: Connecting The Power Cord
Connecting the Power Cord Install the printer close to an AC wall outlet. If an extension cord is used, the total length of the power cord plus extension should be 5 meters (16 feet) or less. Note Ensure the printer's power switch is off. Only use the power cord supplied with the printer.
Page 54: Changing Network Interface Parameters
Changing Network Interface Parameters This printer supports TCP/IP, TCP/IP (IPv6), NetWare, AppleTalk, IPP, SSL Server, IPSec protocols, and Security Level. For more information, refer to the Advanced Operation Guide. Note After all network related settings have been done, turn the machine OFF and ON again.
Page 55: Subnet Mask
TCP/IP This section describes how to enable the TCP/IP protocol. If TCP/IP is set to Off, use to select On and press [OK]. >TCP/IP > Press . Each time you press , the selection changes. >>DHCP >>IP Address 000.000.000.000 >>Subnet Mask 000.000.000.000 >>Gateway 000.000.000.000...
Page 56 TCP/IP (IPv6) This section describes how to enable the TCP/IP (IPv6) protocol. If TCP/IP (IPv6) is set to Off, use to selecto On and >TCP/IP (IPv6) > press [OK]. Press . Each time you press , the selection changes. >>RA(Stateless) >>DHCPv6 Display the item you want to set and press [OK].
Page 57 IPSec to connect to a network, you must enter an administrator password and press [OK]. The default setting is the numeric part of your printer's model name. If you use FS-2020D, enter "2020". Set this item to On when you connect to a network using NetWare.
Page 58: Security Level
Set the Security Level to High. >Security Level High NetWare This section explains the procedure for enabling NetWare. Enter the administrator ID and password. Then, if NetWare is set to >NetWare > Off, use to select On and press [OK]. Press >>Frame Type Auto...
Page 59 AppleTalk This section explains the procedure for enabling AppleTalk. Enter the administrator ID and password. Then, if AppleTalk is set >AppleTalk to Off, use to select On. Press [OK]. A blinking question mark (?) appears. >AppleTalk Press [OK] again. Press [MENU]. The display returns to Ready. This section explains the procedure for enabling IPP.
Page 60 SSL Server This section explains the procedure for enabling SSL Server. Enter the administrator ID and password. Then, if SSL Server is >SSL Server set to Off, use to select On and press [OK]. Press . Each time you press , the selection changes.
Page 61 Security Level Security Level is primarily a menu used by service personnel for >Security Level maintenance work. There is no need for customers to use this menu. High Connecting and Printing 4-11...
Page 62: Printing A Network Interface Status Page
Printing a Network Interface Status Page You can print out a status page for the network interface. The network status page shows the network addresses, and other information under various network protocols about the network interface. Adjust/Maintenance Adjust/Maintenance is used to adjust the print quality and to carry out printer maintenance.
Page 63: Installing The Printer Driver
Installing the Printer Driver According to the instructions of the Installation Guide, connect the PC to the printer and turn on them to install the printer driver. For more information on printer driver, refer to the KX Driver User Guide in the CD- ROM.
Page 64 • Custom Mode: This option allows you to select items to be installed as required and to specify the port. Proceed the section below according to the installation method. Express Mode When selecting Express Mode, printer driver and fonts are installed. After installing with this mode, the other utilities can be added using Custom Mode.
Page 65: Custom Mode
Custom Mode When selecting Custom Mode, printer port and utilities are changed as necessary. On Installation Method screen, click Custom Mode. On Driver tab and Utility tab of the Custom Installation screen, select the printer driver and utilities you want to install, and click Next. Select the printer you want to install, and click Next.
Page 66 Double-click either OS X 10.2 and 10.3 Only or OS X 10.4 or higher depending on your Mac OS version. Double-click Kyocera OS X x.x. The printer driver installation program starts up. Choose Select Destination, Installation Type and then install the printer driver as directed by the instructions in the installation software.
Page 67 Open System Preferences and click Print & Fax. Click the plus symbol (+) to add the installed printer driver. Click the IP icon for an IP connection and then enter the IP address and printer name. When you click the AppleTalk icon for an AppleTalk connection, enter the printer name.
Page 68 Select the options available for the printer and click Continue. The selected printer is added. This completes the printer setup procedure. 4-18 Connecting and Printing...
Page 69: Printing From Application Software
Printing from Application Software The steps required to print a document created with an application are explained below. You can select the printing paper size and output destination. Note You can also select the various settings by clicking Properties to open the Properties dialog box. Load the paper required into the paper cassette.
Page 70: Status Monitor
Status Monitor The Status Monitor monitors the printer status and provides an ongoing reporting function. It also allows you to specify and modify settings for printers not included in the KX Driver. The Status Monitor is installed automatically during KX Driver installation.
Page 71 If an information notification event occurs, the 3D view and an alert sound are used to notify you. For information on the sound notification settings, refer to Status Monitor Settings on page 4-22. Status Monitor icon The Status Monitor icon is displayed in the taskbar notification area when the Status Monitor is running.
Page 72 Status Monitor Settings The Status Monitor has two tabs to configure its settings. Use the Preference option to set up the Status Monitor. Sound Notification Tab The Event Notification tab contains the following items. IMPORTANT To confirm the settings on Sound Notification tab, the computer requires the sound capabilities such as sound card and speaker.
Page 73 Appearance Tab The Appearance tab is contains the following items. Enlarge window Doubles the size of the Status Monitor window. Always on top Positions the Status Monitor in front of other active windows. Transparency Displays the Status Monitor as a transparent window. Connecting and Printing 4-23...
Page 74: Uninstalling Software (Windows Pc)
Exit all active software applications. Insert the enclosed CD-ROM (Product Library) into the CD-ROM drive. Following the procedure used to install the printer driver, click Remove Software. The Kyocera Uninstaller wizard appears. Select the software package to remove. Click Uninstall. Note In Windows Vista, Remove Driver and Package screen appears.
Page 75: Maintenance
Maintenance This chapter explains how to replace the toner container and clean the printer General Information Toner Container Replacement Cleaning the Printer Prolonged Non-Use and Moving of the Printer Maintenance...
Page 76: General Information
For best results, we recommend that you only use genuine Kyocera Parts and Supplies. Should any damage be caused by the application of a toner other than the original. Kyocera Mita toner, then this damage is excluded from the guarantee.
Page 77: Replacing The Toner Container
Kyocera toner containers. For optimum performance, it is also recommended to use only the Kyocera toner containers which are specifically intended for use in your country or region.
Page 78 Push lock lever to the right and pull out the toner container. Put the old toner container in the plastic bag (contained in the toner kit) and discard it later according to the local code or regulations for waste disposal. Take the new toner container out of the toner kit.
Page 79: Replacing The Waste Toner Box
Replacing the Waste Toner Box When replacing the toner container, the used waste toner box in the printer should also be replaced with the new one from the new toner kit. A new waste toner box is included with the toner kit. The printer will not operate without replacing the waste toner box.
Page 80 Open the cap of the new waste toner box. Insert the new waste toner box as shown at the left. When the box is set correctly, it will snap into place. Make sure that the waste toner box is correctly inserted and close the left cover.
Page 81: Cleaning The Printer
Cleaning the Printer To avoid print quality problems, the interior of the printer must be cleaned with every toner container replacement. Open the top cover and MP tray. Lift the developer unit together with the toner container out of the printer.
Page 82: Prolonged Non-Use And Moving Of The Printer
Open the left cover. Use a lint free cloth to clean dust and dirt away from the vents. Close the left cover. Use a lint free cloth to clean dust and dirt away from the vent on the right side of the machine. Prolonged Non-Use and Moving of the Printer Prolonged Non-use If you ever leave the printer unused for a long period of time, remove the...
Page 83: Troubleshooting
Troubleshooting This chapter explains how to handle printer problems, understand messages, and clean paper jams General Guidelines Print Quality Problems Error Messages Ready, Data, and Attention Indicators 6-11 Clearing Paper Jams 6-12 If a problem cannot be corrected, contact your service technician. Troubleshooting...
Page 84: General Guidelines
General Guidelines The table below provides basic solutions for problems you may encounter with the printer. We suggest you consult this table to troubleshoot the problems before calling for service repairs. Symptom Check Items Corrective Actions Print quality is poor. –...
Page 85: Print Quality Problems
Print Quality Problems The tables and diagrams in the following sections define print quality problems and the corrective action you can conduct to solve the problems. Some solutions may require cleaning or replacing parts of the printer. If the suggested corrective action will not solve the problem, call for service.
Page 86 Printed Results Corrective Action Gray background Check the operation panel. If the Toner low message is displayed and [Attention] indicator is flashing, install a new toner kit. To replace toner, refer to Toner Container Replacement on page 5-2 Check the print density. Display the print menu from the operation panel and select a lighter density setting.
Page 87: Error Messages
1 (topmost) to 4 (bottom). Cassette # not loaded Displayed when the paper type does not match the envelope switch setting. (FS-2020D/3920DN/4020DN only) Change envelope switch position This message is displayed when a paper lift error has occurred in the paper source’s cassette.
Page 88 Accounting function is enabled. For more information, refer to Job Accounting (Job Accounting selection/setting) section in the Advanced Operation Guide. Displayed when the envelope switches are set to envelope mode. (FS-2020D/3920DN/4020DN only) Envelope mode Turn the power switch off and then back on again. If this message still remains, turn the power switch off, and contact your service representative or authorized service center.
Page 89 This message is displayed when Low was selected in Security Level. Low security Displayed when either of the envelope switches is not pressed. To print on the envelope, press the both switches. (FS-2020D/3920DN/4020DN only) Match envelope switches The total amount of data received by the printer exceeds the printer’s internal memory.
Page 90 No multi copies [GO] to print error report. Press GO Displayed when the installed toner is the original Kyocera product. Original toner installed A paper jam has occurred. The location of the paper jam is indicated in place of the #’s. For details, refer to Clearing Paper Jams on page 6-12.
Page 91 Message Corrective Action Displayed when the installed toner is not the original Kyocera product. Install original Kyocera toner. Install the toner container. Unknown toner installed This message is displayed if the installed toner container's regional specification does not match the printer's.
Page 92: Storage Error Codes
Storage Error Codes Hard Disk Errors Code Meaning Hard disk format error. If this error recurs even if the power has been turned off and then on, reformat the hard disk. The disk system is not installed. Recheck the requirements for using the system and the devices.
Page 93 RAM Disk Errors Code Meaning Format error. Try turning the power off and on again. RAM disk mode is Off. Turn RAM disk mode On from the operation panel. No disk space. Purge unnecessary files. Specified file is not on disk. Insufficient printer memory to support the RAM disk system.
Page 94: Clearing Paper Jams
The locations where paper jams might occur are also shown here, with each location explained in the table below. Paper jams can occur in more than one component on the paper paths. Face-up Tray FS-2020D/3920DN/4020DN: PT-310 FS-6970DN: PT-430 Paper Feeder...
Page 95 Paper is jammed at the paper page 6-15 Paper jam cassette. The cassette number can be Cassette 1 (to 4) 1 (topmost) to 5 (bottom) [FS-2020D: 1 and 2]. Paper is jammed inside the duplex page 6-16 Paper jam section.
Page 96 MP Tray Paper is jammed at the MP tray. Remove the jammed paper using the procedure given below. Remove the paper jammed at the MP tray. Open and close the top cover to clear the error. 6-14 Troubleshooting...
Page 97 Paper Cassette/Paper Feeder Pull out the cassette or optional paper feeder. Remove any partially fed paper. Note Check to see if paper is loaded correctly. If not, reload the paper. Push the cassette back in securely. The printer warms up and resumes printing.
Page 98 Duplexer Paper is jammed in the duplex section. Remove the jammed paper using the procedure given below. CAUTION Do not touch parts in this area, because it may result in burn injury. Pull the paper cassette all the way out of the printer. Open the duplexer's cover and remove any jammed paper.
Page 99: Inside The Printer
Inside the Printer Open the top cover and MP tray. Lift the developer unit together with the toner container out of the printer. Open the feed cover. Remove the paper from the printer If the jammed paper appears to be pinched by rollers, pull it along the normal running direction of the paper.
Page 100 Rear Unit If paper is not completely ejected into the output tray, open the rear unit. Open the fuser cover and remove the jammed paper by pulling it out. Note If you cannot find a paper jam, try checking inside the rear of the printer.
Page 101: Using The Operation Panel
Using the Operation Panel This chapter contains explanations on the following topics: General Information Understanding the Operation Panel Using the Menu Selection System Report Print 7-11 USB Memory (USB flash memory selection) 7-17 Job Box 7-19 Counter (Viewing the counter value) 7-25 Paper Settings 7-26...
Page 102: General Information
General Information This chapter provides the information you need to configure the Ecosys printer. In general you need to use the operation panel only to make default settings. You can make most changes to the printer settings using the printer driver through the application software. Note Changes to printer settings made using a software application override changes made using the operation panel.
Page 103: Understanding The Operation Panel
Understanding the Operation Panel The operation panel on the top of the printer has a 2-line by 16-character liquid crystal display (LCD), eight keys, and three indicators (LED). Indicators Message Display MENU Key Cursor Key OK Key Cancel Key GO Key Messages that appear on the display and functions of indicators and keys are explained in this chapter.
Page 104: Message Display
Message Display The message display on the operation panel shows: • Status information, the ten messages listed below which are displayed during normal operation. • Error codes, when the printer requires the operator’s attention; as explained in the Operation Guide. Status Information Message Meaning...
Page 105 Indicators in Message Display Ready Ready, Data, and Attention Indicators The following indicators light during normal operation and whenever the printer needs attention. Depending on the status of lighting, each indicator has the following meaning: Indicator Description Flashing. Indicates an error that you can resolve. Refer to Troubleshooting section in the Operation Guide.
Page 106: Menu Key
Keys The operation panel keys are used to configure the printer operation. Note that certain keys have a secondary function. GO Key Use this key to: • Recover from certain errors. • Recover from Auto Sleep mode. Cancel Key This key is used to: •...
Page 107 Cursor Keys The four cursor keys are used in the menu system to access an item or enter numeric values. Use to change menus, and move to the sub menu. The cursor key with the question mark ( ) may be pressed when the paper jam message has appeared on the message display.
Page 108: Using The Menu Selection System
Using the Menu Selection System Menu Selection System This section explains how to use the menu selection system. [MENU] on the operation panel allows you to use the menu to configure the printer settings to your specific needs. Settings can be made when Ready, Please wait, Sleeping or Processing is indicated on the printer message display.
Page 109: Selecting A Menu
Selecting a Menu The mode selection menu is hierarchical. Press to display the desired menu. If the selected menu has a sub-menu, > is displayed after the menu. Paper Settings > Press to move to the sub-menu or to go back. Indicates that there is a sub-menu >...
Page 110: Setting A Mode Selection Menu
Setting a Mode Selection Menu This section explains the setting procedures used for each menu item in the mode selection menu. While the printer displays Ready, Please wait, Sleeping and Report Print > Processing, press [MENU]. The mode selection menu is displayed.
Page 111: Report Print
Report Print The printer prints the report. Report Print includes the following items: • Print Menu Map • Print Status Page • Print Fonts List • Print Hard Disk File List • Print RAM Disk File List • Print Mem. Card File List Press [MENU].
Page 112: Menu Map
Menu Map Sample Menu Map Printer Firmware version 7-12 Using the Operation Panel...
Page 113: Print Status Page
Print Status Page You can check the printer's current status, including available memory space and option settings by printing a status page. Press while Report Print > is displayed. Press repeatedly until >Print Status Page appears. Press [OK]. A question mark (?) appears. >Print Press [OK] again.
Page 114 Firmware Version This item shows the version and release date of the printer firmware. Printer Settings Information This item shows various printer settings for hardware-related items: • MP tray paper size and type • Paper cassette size and type • Sleep time •...
Page 115: File List
Print Fonts List To help you decide in selecting a font, you can printout lists of the internal fonts or the optional fonts. Press while Report Print > is displayed. Press repeatedly until >Print Fonts List appears. Press [OK]. A question mark (?) appears. >Print Fonts List ? Press [OK] again.
Page 116 Print Mem. Card File List This allows you to print a list of the files on a CompactFlash (memory) card. IMPORTANT This message will be displayed only when the CompactFlash card is installed in the printer and properly formatted. Press while Report Print >...
Page 117: Usb Memory (Usb Flash Memory Selection)
USB Memory (USB flash memory selection) This specifies the settings for removing the USB flash memory and printing USB flash memory content. IMPORTANT This message is displayed only when the USB host block is set to Unblock . For more information, refer toI/F Block (Interface (external device) block setting) on page 7-68.
Page 118: Flash Memory
Copies (Number of copies) Sets the number of copies printed of the specified file in USB flash memory. IMPORTANT To use this feature, an optional hard disk must be installed in the printer or the RAM disk must be set to On . While Copies in step 5 above is displayed, press Copies to display the number of copies.
Page 119: Job Box
Job Box Job box implements the Job Retention function and Job Storage function that are available from the printer driver. The settings are specified from the printer driver. Refer to KX Printer Driver User Guide for the driver settings. In either job mode, when printing a document, the print data is transferred from the computer to the printer then stored on the printer’s hard disk.
Page 120: Job Storage
Job Storage Job storage stores print jobs either temporarily or permanently, as you click an appropriate radio button on the printer driver when printing from a computer. There are two types of code job: • Permanent (permanently saved) code jobs •...
Page 121 Printing Additional Copies using Quick Copy Press while Job Box > is displayed. Press repeatedly until >Quick Copy appears. The name entered in the printer driver (Harold, in this example) also appears. Press [OK]. A blinking question mark (?) appears before the user >Quick Copy name.
Page 122 Printing Remaining Copies of a Proof-and-Hold Job Press while Job Box > is displayed. Press repeatedly until >Quick Copy appears. The name entered in the printer driver (Harold, in this example) also appears. Press [OK]. A blinking question mark (?) appears before the user >Quick Copy name.
Page 123 Private/Stored (Printing a Private Print/Stored Job) In private printing, you can specify that a job is not printed until you release the job from the operation panel. When sending the job from the application software, specify a 4-digit access code in the printer driver. The job is released for printing by entering the access code on the operation panel ensuring confidentiality of the print job.
Page 124 Deleting a Private/Stored Job You can individually delete stored jobs by performing the following procedure. Jobs saved using Private Print will be automatically deleted if you turn the power off after printing, but jobs saved using Stored Job will not be deleted automatically. Follow steps 1 through 6 in the above section.
Page 125: Counter (Viewing The Counter Value)
Counter (Viewing the counter value) This only displays the total number of pages printed. You cannot change the displayed number. Press [MENU]. Press repeatedly until Counter > appears. Counter > Press . >Printed Pages appears as he total number of pages >Printed Pages printed.
Page 126: Paper Settings
Paper Settings This sets the paper size and type for the MP tray and cassettes from which paper is supplied. The options available in Paper Settings are as follows: • MP Tray Size (Setting MP tray paper size) • MP Tray Type (Setting the MP tray paper type) •...
Page 127 Press [OK]. A blinking question mark (?) appears. >MP Tray Size ? A4 Press to display the desired paper size. The message display toggles through the following paper sizes: For FS-2020D/3920DN/4020DN For FS-6970DN Env. Monarch Env. Monarch Envelope #10 Envelope #10...
Page 128 MP Tray Type (Setting the MP tray paper type) You can use this to set the paper type that can be supplied from the MP tray. The default setting is PLAIN. For more information about paper types that you can feed from the MP tray, refer to Paper Specifications on page 2-2.
Page 129 Cassette (1 to 5) Size (Setting the cassette paper size) To set the standard sizes A5, A4, B5, A3 (FS-6970DN only), Letter, and Legal size for the paper cassette, load the paper and turn the paper size dial so that the size of the paper you are going to use appears in the paper size window.
Page 130: Custom Paper Size
Press [OK]. A blinking question mark (?) appears. >Cassette Size > ? Custom Press to display the desired paper size. The message display toggles through the following paper sizes: For FS-2020D/3920DN/4020DN For FS-6970DN Envelope C5 Envelope C5 A6 (FS-3920DN/FS-4020DN only) A5-R...
Page 131 Set the desired length in the same way as the width. Acceptable paper lengths are: For FS-2020D/3920DN/4020DN: 210 to 356 mm (8-1/4 to 14 inches). For FS-6970DN: 210 to 432 mm (8-1/4 to 17 inches). Display the paper length, press [OK].
Page 132 Cassette (1 to 5) Type (Setting the cassette paper type) By setting a paper type (plain, recycled, etc.) for the paper cassette, you can automatically select the paper in the paper cassette according to the paper type you command on the printer driver. The default setting is plain paper for all paper cassettes.
Page 133 Type Adjust (Creating custom paper type) The following describes the procedure used to set a user-defined paper type for the printer. Eight custom user settings may be registered. After having been set, any of these may be called up when setting the paper type for a paper source.
Page 134 Press to display the desired paper thickness. The display changes as shown below. For details of the default setting for each paper type, refer to Paper Type on page 2-12. Light Normal 1 Normal 2 Normal 3 Heavy 1 Heavy 2 Heavy 3 Extra Heavy Press [OK].
Page 135: Print Settings
Print Settings These settings specify printing parameters such as the print quality used for printing (Normal or Fine), the gloss mode (Low or High), the number of copies, reduced printing and the page orientation. The options available in Print Quality are as follows: •...
Page 136 Paper Feed Mode (Setting the paper feed source) This mode specifies how the paper should be fed once the paper feed source and paper type have been chosen. If Auto is selected, the printer searches for a paper feed source that matches the paper size and type, and paper is then delivered from that source.
Page 137 Duplex (Duplex printing) Using the duplexer, you can automatically print on both sides of the paper. The duplexer is mounted underneath the printer. Duplex printing is available for the following paper types: PLAIN PREPRINTED BOND RECYCLED ROUGH LETTERHEAD COLOR PREPUNCHED HIGH QUALITY CUSTOM 1 (to 8) Activating the duplexer is done by selecting either short edge or long...
Page 138 Press to display the desired binding mode. The message display toggles through the following: Off (default) Short edge bind Long edge bind Press [OK]. Press [MENU]. The display returns to Ready. Paper Output (Selecting the output stack) The Paper Output menu on the operation panel allows you to select either the face-down tray or the faceup tray option for the output stack.
Page 139 Press [MENU]. The display returns to Ready. Alternative Emulation for KPDL Emulation KPDL is Kyocera’s implementation of the PostScript language. The KPDL (AUTO) emulation enables the printer to automatically change the emulation mode according to the data received when printing.
Page 140: Error Report
Error Report (Printing KPDL errors) The printer can print error descriptions when printing error occurs during KPDL emulation. The default is On — the printer prints KPDL errors. Press while Print Settings > is displayed. Press repeatedly until >Emulation > appears. Press [OK].
Page 141 Press [OK]. A blinking question mark (?) appears. >>KC-GL Page Set ? [SPSZ] Press repeatedly until the desired page size (A2, A1, A0, B3, B2, B1, B0, and SPSZ) is displayed. When selecting SPSZ, printing will be done with the paper size specified by the PRESCRIBE SPSZ command.
Page 142 Make sure that Internal is displayed and press Press repeatedly until >>Courier appears. If you are >>Courier selecting the thickness of the Letter Gothic font, choose >>Letter Regular Gothic here instead. Press [OK]. A blinking question mark (?) appears. >>Courier ?Regular Select Regular or Dark using Press [OK].
Page 143 Character Pitch You can set the character pitch for fixed fonts. Press while Print Settings > is displayed. Press repeatedly until >Font Select > appears. >Font Select > Internal Make sure that Internal is displayed and press Press repeatedly until >>Pitch appears. >>Pitch 10.00 cpi Press [OK].
Page 144 >Print Quality > KIR Mode (Selecting the KIR mode) This printer incorporates the KIR (Kyocera Image Refinement) smoothing function. KIR users the software to enhance resolution, resulting in high quality printing at resolution of 600 dpi and 300 dpi. The default is On.
Page 145 EcoPrint Mode (Selecting the EcoPrint mode) By enabling EcoPrint mode, you can minimize the amount of toner used during printing. Because images printed in this mode may be slightly coarser than those printed in standard resolution, you should use EcoPrint for test prints or other situations where high-quality prints are not required.
Page 146 Select the print density from five steps from 01 (light) to 05 (dark) using the Press [OK]. Press [MENU]. The display returns to Ready. Page Set (Setting pagination) In Page Set menus, you can set the number of copies, page orientation, and other settings regarding pagination.
Page 147 Bring up the Zoom menu. The following display will appear. >>Zoom [CS]->[CS] Source size indicator: This is the paper size before reduction. Target size This must be the same as the paper size indicator set for print data from the computer. Target size indicator: Source size indicator This is the paper size after reduction.
Page 148 Press repeatedly until >>Zoom appears. Press [OK]. A blinking cursor (_) appears under the source size. >>Zoom [CS]->[CS] Press to select source size. The both sizes change simultaneously. Press to move the cursor to the target size. To make a reduced print, press to select the target size.
Page 149 LF Action (Linefeed) This procedure instructs the printer what to do when it receives a linefeed code (0AH). • LF only: Linefeed is performed (Default). • CR and LF: A linefeed and carriage return are performed. • Ignore LF: The linefeed is ignored. Press while >Page Set >...
Page 150: Network (Network Settings)
Network (Network settings) This printer supports TCP/IP and TCP/IP (IPv6) protocols. IP is an abbreviation for Internet Protocol. This printer routinely uses the TCP/IP (IPv4) protocol, but provides a separate setting for the next- generation IP, IPv6. TCP/IP (IPv4) uses 32-bit IP addresses, but the rapid growth in the number of Internet users has resulted in a shortage of IP addresses.
Page 151 Select On or Off using Select On and press [OK]. The display changes to the settings shown below. DHCP (DHCP setting) DHCP (Dynamic Host Configuration Protocol) is the protocol that assigns the information required to establish a network connection when a host attempts to connect to the network (Internet).
Page 152 Subnet Mask (Subnet mask setting) The subnet mask is a way of augmenting the network address section of an IP address. A subnet mask represents all network address sections as 1 and all host address sections as 0. The number of bits in the prefix indicates the length of the network address.
Page 153 Bonjour (Bonjour setting) Bonjour, also known as zero-configuration networking, is a service that automatically detects computers, devices and services on an IP network. Bonjour, because an industry-standard IP protocol is used, allows devices to automatically recognize each other without an IP address being specified or DNS server being set.
Page 154 RA(Stateless) (RA (Stateless) setting) The IPv6 router communicates (transmits) information such as the global address prefix using ICMPv6. This information is the Router Advertisement (RA). ICMPv6 stands for Internet Control Message Protocol, and is a IPv6 standard defined in the RFC 2463 "Internet Control Message Protocol (ICMPv6) for the Internet Protocol Version 6 (IPv6) Specification".
Page 155: Device Common (Selecting/Setting The Common Device)
Device Common (Selecting/Setting the common device) Selects/sets all the functions in this printer. The options available in Device Common are as follows: • MSG Language (Selecting the message language) • Buzzer (Alarm (Buzzer) setting) • RAM Disk Mode (Using the RAM disk) •...
Page 156 Buzzer (Alarm (Buzzer) setting) This function uses tones to notify the user of printer operations and the printer status. This setting is useful, for example, when the printer is located some distance from the user. The options available in Buzzer are as follows: •...
Page 157 Ready (Preparation completed tone setting) When On is selected in this setting, a tone sounds when print preparation has been completed. The default setting is Off. Press while >Buzzer > is displayed. Press repeatedly until >>Ready appears. Press [OK]. A blinking question mark (?) appears. >>Ready ? Off Select On or Off using...
Page 158 RAM Disk Mode (Using the RAM disk) The RAM disk is a memory space shared within the printer memory that can temporarily store print jobs. The stored print job can then be used to print multiple copies of the job reducing the total amount of time required to print the whole job.
Page 159 RAM Disk Size (Setting the RAM disk size) Use this procedure to set the amount of memory used for the RAM disk. IMPORTANT The RAM Disk Size menu option only appears when is set to On . RAM Disk Mode Press while >RAM Disk Mode On >...
Page 160 Format (Formatting hard disk) A new hard disk must be formatted before it can be used in the printer. Formatting allows data to be written to the hard disk. This menu is displayed only when the optional hard disk is installed on the printer.
Page 161 Format (Formatting CF card) A new CF card must be formatted before it can be used in the printer. Formatting allows data to be written to the CF card. Note Format is only displayed when a CF card is installed in the printer and protection is disabled.
Page 162 Duplex (Duplex printing error detection setting) If the error detection setting for duplex printing has been turned On, and you attempt to print onto a paper size and paper type that cannot be used for duplex printing, the Duplex disabled Press GO error message will be displayed and printing will stop.
Page 163 Timer (Timer setting) This specifies timer-related settings such as the automatic form-feed timeout and the timeout settings for Auto Sleep. The options available in Timer are as follows: • Form Feed Time Out (Automatic form feed timeout setting) • Sleep Timer (Sleep timer timeout time) •...
Page 164 Sleep in the absence of data. The printer reverts to normal operation mode when the printer receives a print job, the operation panel is operated, or one of the exterior covers is opened. The default time is 30 minutes (FS-2020D/3920DN/4020DN)/5 minutes (FS-6970DN). Note Calibration is automatically executed before the printer reverts to normal operation mode.
Page 165 Auto Error Clear (Auto error clear setting) If an error that still allows you to continue printing occurs, the next received data is automatically printed after a set period of time elapses. For example, if the printer is shared over a network as a network printer and one person causes one of the above errors, after the set period of time elapses, the data sent from the next person is printed.
Page 166 Auto Panel Reset (Auto panel reset settings) The Auto Panel Reset function automatically restores the default settings if the panel is not used for a set time. The default setting is On. For setting the time until the panel is reset, refer to the next section Panel Reset Timer (Setting the panel reset timer).
Page 167: Security
Security The security functions can be set up to protect printer operation and the print data. The options available in Security are as follows: • ID (Administrator ID input) • Password (Administrator password input) • I/F Block (Interface (external device) block setting) •...
Page 168 Password (Administrator Password input) To set up the Security functions, you must enter an administrator ID and administrator password. For information on how to set the administrator password, refer to Admin (Administrator settings) on page 7-81. When you entered the ID in the previous step (ID (Administrator ID Password input)), the message display shows Password (Administrator password input) and a blinking cursor (_).
Page 169 USB Device (USB interface setting) This locks and protects the USB interface. The default setting is Unblock. Press while >I/F Block > is displayed. >>USB Device appears. Press [OK]. A blinking question mark (?) appears. >>USB Device ? Unblock Select Block or Unblock using Press [OK].
Page 170 NetWare (NetWare setting) NetWare is a PC-based network operating system specifically for servers. NetWare is a client-server system that operates by installing the NetWare OS on the server and dedicated client modules (NetWare clients) on the client machines (running MS-DOS, OS/2, Windows, etc.). The basic network layer protocol used is NetWare's own IPX (Internetwork Packet eXchange)/SPX (Sequenced Packet eXchange), but the system also supports TCP/IP.
Page 171 AppleTalk (AppleTalk setting) AppleTalk is a communications protocol used primarily on Macintosh computers and also refers to the Mac OS network functions. AppleTalk assigns 24-bit network addresses (a 16-bit network section and an 8-bit node address) that are used to identify devices (computers, printers, etc.) on the network.
Page 172 SSL Server (SSL Server setting) SSL (Secure Sockets Layer) refers to a protocol used to encrypt information sent and received over a network. SSL can currently be used to encrypt data such as the WWW or FTP files widely used on the Internet so that privacy-related information, credit card numbers, corporate secrets and other confidential information can be sent and received safely.
Page 173 3DES (SSL Server 3DES setting) 3DES (Triple Data Encryption Standard) is a high level of encryption in which DES encryption is repeated threefold. The default setting is Off. Press while >SSL Server On > is displayed. >>3DES appears. Press [OK]. A blinking question mark (?) appears. >>3DES ? Off Select On or Off using...
Page 174 HTTPS (SSL Server HTTPS setting) HTTPS (Hyper Text Transfer Protocol Secure) is a protocol that adds SSL data encryption, message authentication and a digital signature function to the HTTP protocol used for data transfer between WWW servers and clients. S-HTTP is a similar protocol, but HTTPS differs in that it uses SSL. The default setting is Off.
Page 175: Job Accounting (Job Accounting Selection/Setting)
Job Accounting (Job Accounting selection/setting) Job Accounting is a function that allows the number of pages used to be managed by each department to be managed through the use of entered account IDs. Job accounting on this machine offers the following features: •...
Page 176: Job Accounting (Job Accounting Selection/Setting)
Password (Administrator Password input) To set up Job Accounting, you must enter an administrator ID and administrator password. For information on how to set the administrator password, refer to Admin (Administrator settings) on page -81. After entering the ID in the previous step (ID (Administrator ID Password input)), the message display shows Password (Administrator password input) and a blinking cursor (_).
Page 177 Select Account (Department-specific settings) This specifies the functions used for managing individual account IDs. The options available in Select Account are as follows: • Counter (Account-specific counter management) • Restriction (Print restriction selection) • Maximum Output (Maximum print output setting) •...
Page 178 Maximum Output (Maximum print output setting) Limits the number of pages for all printing on the currently selected account. Set the account ID and then press repeatedly until >>Maximum Output appears. Press [OK]. The message display shows a blinking cursor (_). >>Maximum Output 0000001 Press...
Page 179 Add Account (Department registration) This allows you to add a new account for which printing is permitted. IMPORTANT Because account IDs are managed as numeric strings, " 1 " and " 001 " are handled as different accounts. Also, once Job Accounting is enabled, no jobs are printed unless information is attached showing the accounts from which the jobs are being printed.
Page 180 Print Job Accounting List (Job Accounting list output) This enables you to print the total number of pages for all accounts as a Job Accounting list. Press while Job Accounting > is displayed. Press repeatedly until >Print Job Accounting List appears.
Page 181: Admin (Administrator Settings)
Admin > ID (Administrator ID input) You can use this to set the administrator ID. The default setting is the numeric part of your printer's model name. If you use FS-2020D, enter "2020". Press while Admin > is displayed. The message display shows ID and a blinking cursor (_).
Page 182 Once you enter the correct ID and password, the Admin (change) >Change ID screen appears. (E.g.: Where the administrator ID is 00000001) 00000001 Each time you press , the following settings to be changed appear in succession. • Change ID •...
Page 183: Adjust/Maintenance (Adjust/Maintenance Selection/Setting)
Adjust/Maintenance (Adjust/Maintenance selection/setting) Adjust/Maintenance is used to adjust the print quality and to carry out printer maintenance. The options available in Adjust/Maintenance are as follows: • Restart Printer • Service (for maintenance) IMPORTANT is primarily a menu used by service Service personnel for maintenance work.
Page 184: Status Page
Service (for maintenance) The options available in Service are as follows: • Print Status Page (Printing the service status page) • Print Network Status Page (Printing the network status page) • Print Test Page (Printing the test page) • Developer (Initializing the developer unit) •...
Page 185: Test Page
Press while >Service > is displayed. Press repeatedly until >>Print Test Page appears. Press [OK]. A question mark (?) appears. >>Print Test Page ? Press [OK] again. Processing appears and a test page is printed out. When printing ends, the display returns to Ready. Developer (Initializing the developer unit) The replaced developer can be automatically fill up the toner using this menu when a toner container is installed and the printer is turned on.
Page 186 7-86 Using the Operation Panel...
Page 187: Options
Options This chapter explains the options for this printer General Information Expansion Memory Modules Paper Feeder (PF-310) Paper Feeder (PF-430) CompactFlash (CF) Card Other Options Options...
Page 188: General Information
Faceup Output Tray PT-310 FS-3920DN/FS-4020DN) (for FS-3920DN/FS-4020DN) Expansion Memory (DIMM 64/128/256/512 MB) CompactFlash Network Interface Card Hard Disk IB-31 (for FS-2020D) HD-5A USB Flash Memory Paper Feeder PF-310 FS-2020D x 1 Bulk Paper Feeder PF-315 FS-3920DN/FS-4020DN x 3 (for FS-3920DN/FS-4020DN)
Page 189 Note Install the memory module before installing the optional paper feeder (PF-430). FS-6970DN Faceup Output Tray PT-430 Expansion Memory (DIMM 128/256/512 MB) CompactFlash Hard Disk HD-5A USB Flash Memory Paper Feeder PF-430 x 4 Options...
Page 190: Expansion Memory Modules
Expansion Memory Modules To expand the printer memory for more complex print jobs and faster print speed, you can plug in optional memory module (dual in line memory module) in the memory slot provided on the printer main controller board. You can select additional memory module from 128, 256 or 512MB.
Page 191: Removing A Memory Module
Installing the Memory Module Turn off the printer and disconnect the power cord and printer cable. Remove the right cover. Remove the screw and open the inner cover. Remove the memory module from its package. Aligning the cutouts of the memory module with the matching keys of the socket, carefully plug the memory module into the memory socket until it clicks in place.
Page 192: Paper Feeder (Pf-310)
Paper Feeder (PF-310) The PF-310 paper feeder allows you to add three (FS-2020D: one) more paper cassettes to the bottom of the printer for continuous feeding of a large volume of paper. Each paper cassette can hold up to approximately 500 sheets of ISO A4, ISO A5, JIS B5, letter, and legal size (80g/m ) paper.
Page 193: Compactflash (Cf) Card
CompactFlash (CF) Card The printer is equipped with a slot for a CF card with the maximum size of 256MB. A CF card is useful for storing fonts, macros, and overlays. Turn off the printer and disconnect the power cord and printer cable. CAUTION Before inserting a CF card in the printer, make sure that the printer is switched off.
Page 194 Install the paper stopper according to the size of paper to be used. Install the faceup output tray on the rear of the printer. IB-31 Network Interface Cards (For FS-2020D) Along with the standard for the network interface on the printer, the...
Page 195: Other Options
Other Options PF-315 Bulk Paper Feeder (for FS-3920DN/FS- 4020DN) Holds approximately 2,000 sheets of 76 to 216 mm x 148 to 305 mm size paper. This bulk paper feeder can be attached to the front of the printer after the MP tray has been removed. EF-310 Envelope Feeder (for FS-3920DN/FS-4020DN) Holds more envelopes at a time than the MP tray.
Page 196 8-10 Options...
Page 197: Computer Interface
Computer Interface This chapter contains explanations on the following topics: General Information Parallel Interface USB Interface Network Interface Computer Interface...
Page 198: General Information
General Information This chapter explains the connector specifications of parallel, USB, and network interfaces. Parallel Interface The printer provides high-speed data transmission on a parallel interface. Note Use a parallel interface cable that complies with the IEEE 1284 standard. USB Interface This printer supports the Hi-Speed USB.
Page 199: Network Interface
Network Interface Features Automatic IP address resolution This feature is compatible with the DHCP/DHCPv6 protocol and allows the printer to automatically receive IP addresses from the DHCP/DHCPv6 server. Management using Web browsers HTTP pages are incorporated in to the interface, so that a web browser can be used to monitor and change a range of settings.
Page 200 EMI Countermeasures VCCI Class B, FCC Class B (U.S.), CE (Europe) IMPORTANT When IPv6 functions are used, the devices used on the network (routers, PCs, etc) must support IPv6. Computer Interface...
Page 201: 10 Appendix
10 Appendix This section lists the following information of this printer. Specifications 10-2 Environmental Standard Requirements 10-4 Appendix 10-1...
Page 202: Specifications
Specifications Note These specifications are subject to change without notice. Description Item FS-2020D FS-3920DN FS-4020DN FS-6970DN Type Desktop Printing Method Semiconductor laser and electrophotography Paper Cassette 60 to 120 g/m² Weight MP Tray 60 to 220 g/m² Paper Cassette Plain, Preprinted, Bond, Recycled, Rough, Letterhead, Color (Colour), Prepunched, High...
Page 203 Description Item FS-2020D FS-3920DN FS-4020DN FS-6970DN First Print Time (A4, 9 seconds or less 10.5 seconds or less 10.5 seconds or less 9 seconds or less when feed from Cassette) EcoFuser is Off and the printer is in Ready status.
Page 204 Environmental Standard Requirements This machine conforms to the following environmental standard requirements. • Time for switching to Sleep mode (default): 15 minutes (FS-2020D/3920DN/4020DN)/5 minutes (FS-6970DN) • Duplex Printing: Standard Equipment • Durable paper for feeding: Paper made of 100% recycled paper...
Page 205: Glossary
Glossary Additional memory An additional memory (optional) is used for increasing the memory capacity of this machine. For DIMM that can be used in this machine, contact your service technician. AppleTalk AppleTalk offers file sharing and printer sharing and it also enables you to utilize application software that is on another computer on the same AppleTalk network.
Page 206: Printer Driver
192.168.110.171. Each number should be a decimal between 0 and 255. KPDL KPDL is Kyocera's implementation of the PostScript page description language Level3. MP tray This tray is used instead of the cassette when printing on envelopes, postcards, transparency sheets, and labels.
Page 207 Sleep mode This mode is provided to save power. It is activated when the machine is not used for a preset period of time. In this mode, power is reduced to the minimum. The default setting can be changed. Status page This lists machine conditions, such as the machine's memory, the total number of prints and paper source settings.
Page 208 11-4...
Page 209: Index
