Operations of the Control Panel

Operations of the Control Panel
This section summarizes status indications and operations of the control panel in Normal
mode. For details on Set-Up mode, see Chapter 4, "Special mode" on page 4-1.
Normal mode operation includes everyday operations, such as paper handling, font and
character pitch selection.

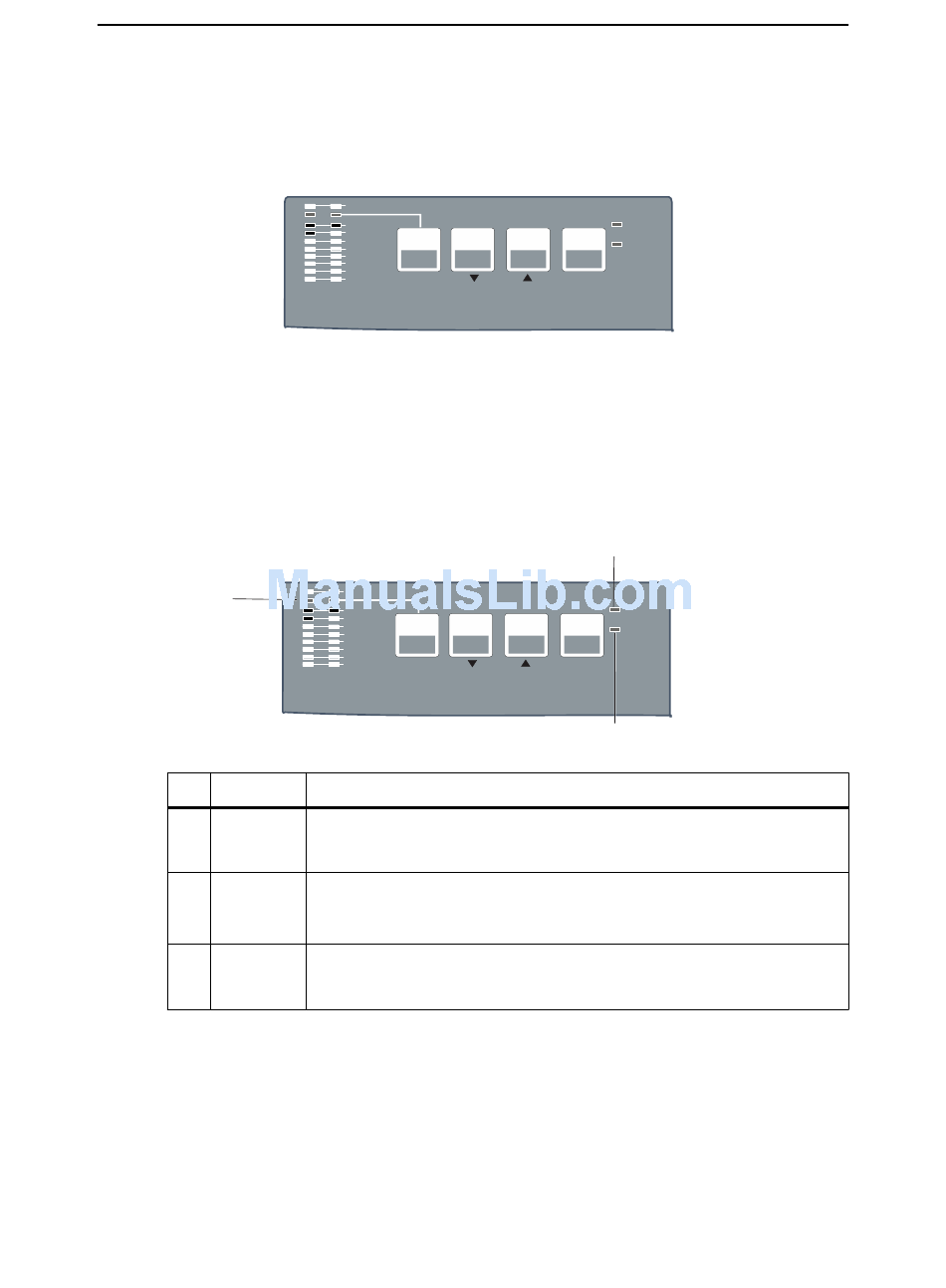

LED indicators

The LED lights of the control panel indicate the current status of the printer.
3
No. LED
1 POWER
PAPER OUT
2 ON LINE
3 TEAR OFF
FONT
2-12
Tear Off
Draft
Draft Condensed
LF/FF
Tear Off
Roman
Sans Serif
Prestige
Font Micro Down
Courier
Script
Others
Panel Layout
Tear Off
Draft
Draft Condensed
LF/FF
Tear Off
Roman
Sans Serif
Prestige
Font Micro Down
Courier
Script
Others
Status
On: the printer is switched on. Off: the printer is switched off.
Flashing: Paper out.
Flashing + buzzer: Paper jam
On: the printer is in Online mode and ready to receive data from the
computer.
Off: the printer is in Offline mode and cannot receive data.
When online, this key will move any loaded continuous paper to the tear-
off position. When in setup state, this key is used to select the desired
font.
Operating the printer
Power /
Paper Out
Online
Load/Eject
Online
Micro Up
3 sec
1
Power /
Paper Out
Online
Load/Eject
Online
Micro Up 3 sec
2
