Password Programming

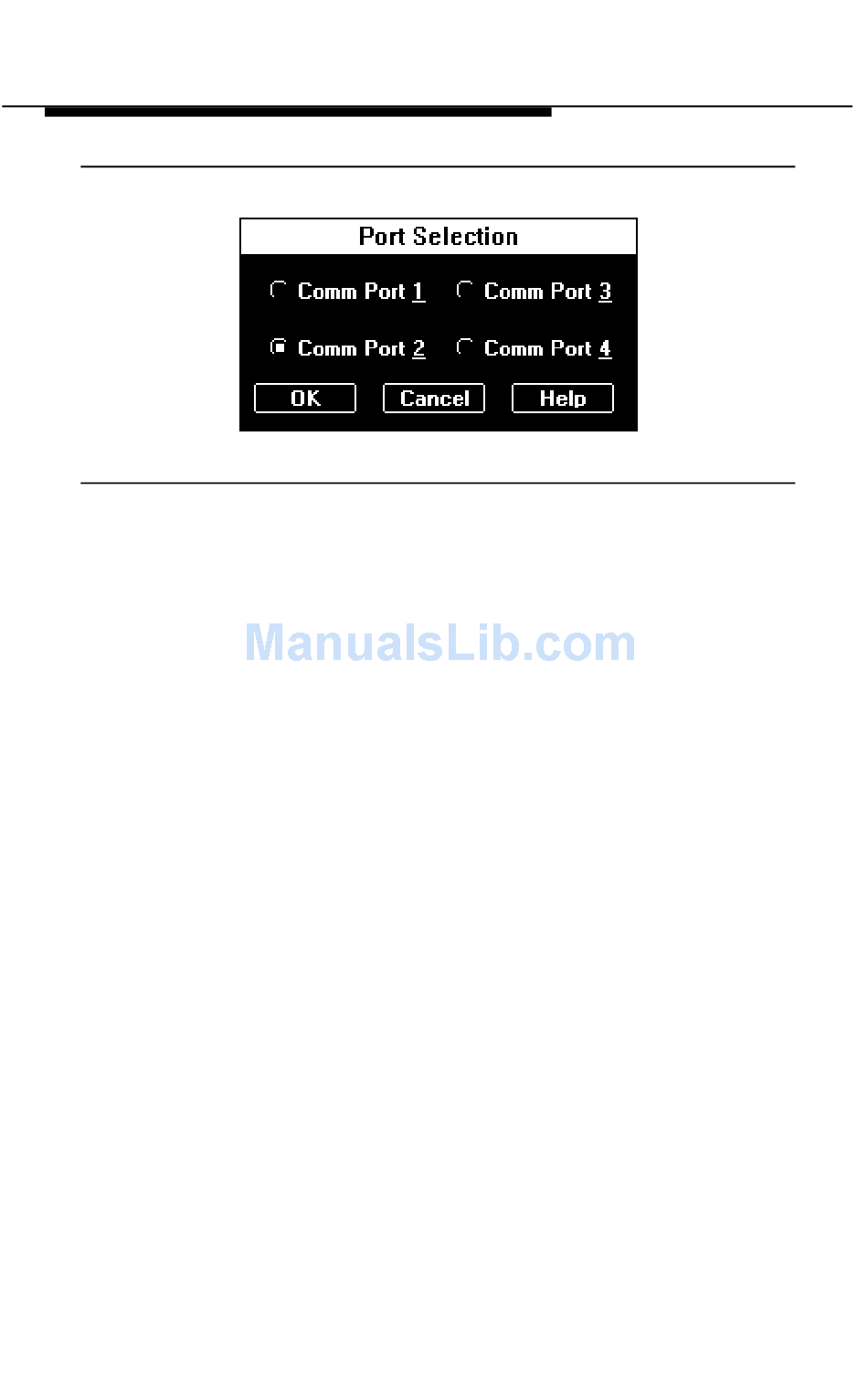

Figure 2-3. Port Selection Window
3. Point to the Com Port to which the Extender Rack is connected
(Com Port 1, Com Port 2, Com Port 3 or Com Port 4), and click
the left mouse button to select the correct communications port.
You can also type the number of the comm port. For example,
to select Com Port 2, type 2 and a black dot appears in the
option button next to your choice . If you prefer, you can use the
ARROW keys to move the black dot to your selection.
4. Click on OK or press ENTER.
5. Select Set Password from the Com Link menu.
6. On the Administrator window, enter the current System
Administrator password for Card A (see Figure 2-4).
NOTE:
The administrator password you enter on this window is always
Card A's user00 password regardless of the cards selected for
password upload. The default password for user00 is "00000000"
as shown on the window the first time you use the Password
Manager.
