Barco CLM HD8 R9050130 User Manual

Barco CLM HD8 R9050130 User Manual

Hide thumbs Also See for CLM HD8 R9050130:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
CLM HD8

User guide

R9050130
R90501301
R59770057/00
16/07/2007

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CLM HD8 R9050130 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Barco CLM HD8 R9050130

Summary of Contents for Barco CLM HD8 R9050130

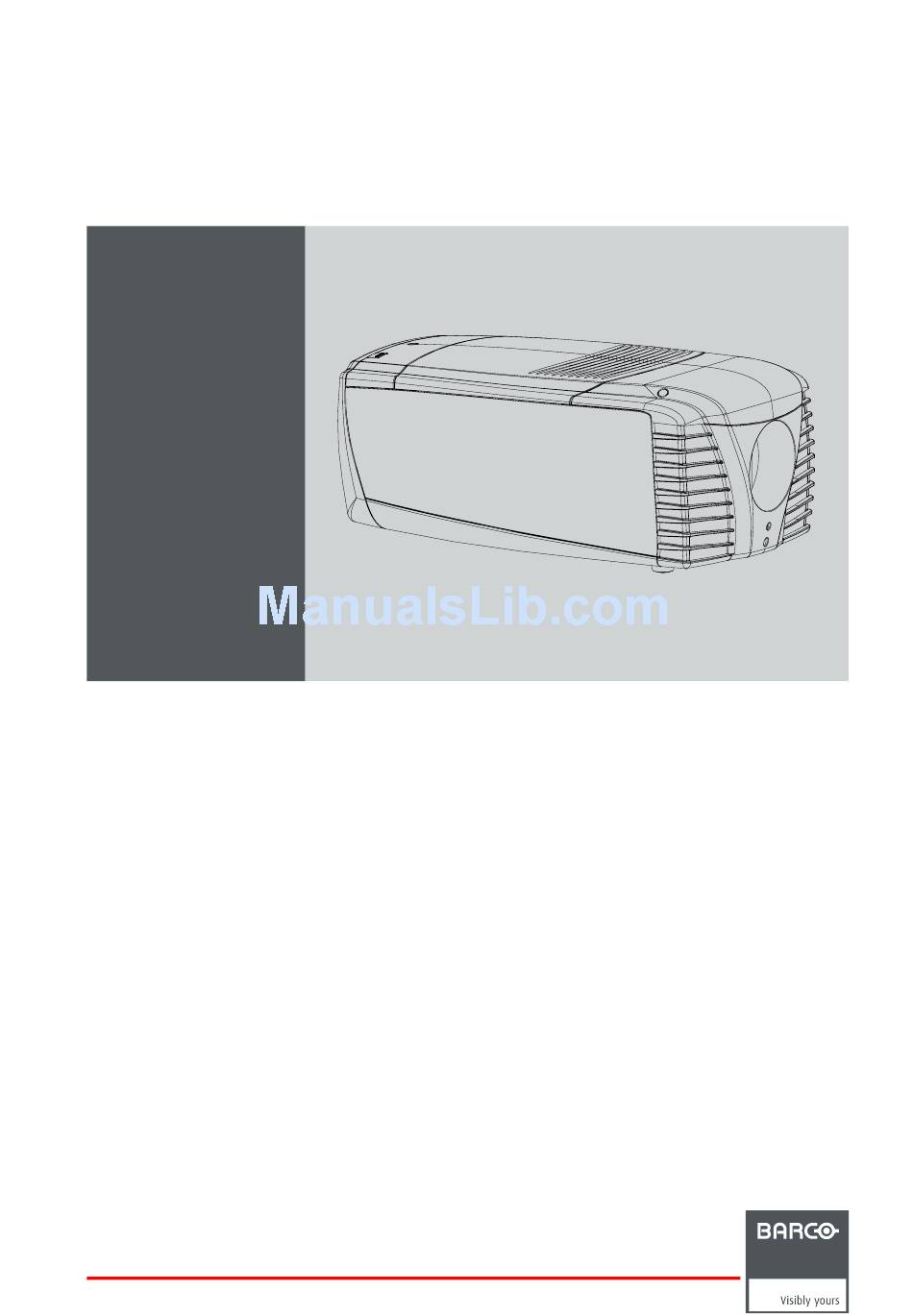

  • Page 1: User Guide

    CLM HD8 User guide R9050130 R90501301 R59770057/00 16/07/2007...
  • Page 2 Barco nv Events Noordlaan 5, B-8520 Kuurne Phone: +32 56.36.89.70 Fax: +32 56.36.88.24 E-mail: sales.events@barco.com Visit us at the web: www.barco.com Printed in Belgium...
  • Page 3 The period of guarantee begins on the date of transfer of risks, in the case of special systems and software on the date of commissioning, at latest 30 days after the transfer of risks. In the event of justified notice of complaint, Barco can repair the fault or provide a replacement at its own discretion within an appropriate period.

  • Page 5: Table Of Contents

    Table of contents TABLE OF CONTENTS 1. Safety ....................... . . 5 General .
  • Page 6 Table of contents Minimum delay........................60 Native resolution .
  • Page 7 Table of contents 12.11.4 ScenergiX pattern ......................118 12.11.5 ScenergiX overlap zone (horizontal ScenergiX) .
  • Page 8 Table of contents Specifications CLM DVI input ..................... .172 D.

  • Page 9: Safety

    • Before operating this equipment please read this manual thoroughly, and retain it for future reference. • Installation and preliminary adjustments should be performed by qualified Barco personnel or by authorized Barco service deal- ers. • All warnings on the projector and in the documentation manuals should be adhered to.

  • Page 10: Important Safety Instructions

    1. Safety Important safety instructions To prevent the risk of electrical shock • This product should be operated from a mono phase AC power source. Power input voltage range must be between 100- 120/200-240V 12/8A 50/60Hz • Warning: This apparatus must be grounded (earthed) via the supplied 3 conductor AC power cable. If none of the supplied power cables are the correct one, consult your dealer.
  • Page 11 Caution: High pressure lamp may explode if improperly handled. Refer servicing to qualified service personnel. The customer should never attempt to disassemble the lamp casing or to dispose of the lamp casing other than by returning it to Barco. •...
  • Page 12 The exclusion zone must be not less than 40 cm (16”) for all Barco DLP projectors. The exclusion zone on the lens side must be at least 2 meter (80”).

  • Page 13: Recycling Guidelines

    If the product exhibits a distinct change in performance, indicating a need for service. • Replacement parts: When replacement parts are required, be sure the service technician has used original Barco replacement parts or authorized replacement parts which have the same characteristics as the Barco original part. Unauthorized substitu- tions may result in degraded performance and reliability, fire, electric shock or other hazards.

  • Page 14: Important Warnings Concerning Clm Flight Cases

    1. Safety Important warnings concerning CLM flight cases Important warnings concerning stacking/transporting CLM rental flight cases • Stack maximum two (2) CLM rental flight cases high. Never higher. • Surface on which flight case is standing must be level to ensure that the total load is evenly spread out among the four wheels. The surface must also be able to support the load safely.

  • Page 15: General

    Projector weight Do not underestimate the weight of one Barco CLM HD8, which is about ±31 kg (±68 lb.). Be sure that the table or truss installation on which the projector(s) has to be installed is capable of handling five (5) times the complete load of the complete system.

  • Page 16: Unpacking The Projector

    2. General Which screen type ? There are two major categories of screens used for projection equipment. Those used for front projected images and those for rear projection applications. Screens are rated by how much light they reflect (or transmit in the case of rear projection systems) given a determined amount of light projected toward them.

  • Page 17: Box Content

    This check should confirm that there are no broken knobs or connectors, that the cabinet and panel surfaces are free of dents and scratches, and that the operating panel are not scratched of cracked. The Barco sales and service office should be notified as soon as possible.

  • Page 18: Projector Configurations

    2. General Projector configurations The different configurations Depending on the installation the projector can be mounted in different ways, the 4 different configurations are: Front / Table (F/T) Front / Ceiling (F/C) Rear / Table (R/T) Rear / Ceiling (R/C) For a ceiling mounted configuration, the optional carry handle kit is required.

  • Page 19: Positioning The Projector

    2. General Positioning the projector SCREEN FLOOR Image 2-5 On-Axis / Off-Axis projection The position of the projector with reference to the screen may also be different depending on the installation. Basically the projector can be positioned in On-Axis or Off-Axis configuration. On-Axis configuration means that the projector is positioned so as to have the centre of the lens coinciding with the centre of the screen.
  • Page 20 Side to side tilt must not exceed 10°. This limit ensures that the lamp in the projector operates properly and safely. Front - back tilting is limited to 10°. When using the projector out of this range, Barco cannot guarantee a safe operation and the responsibility is for the installer/operator.

  • Page 21: Projector Air Inlets And Outlets

    Projector Toolset is only available in a download version, no CD can be ordered. Where to find the download file(s) The program and all necessary plug-ins, as well as the Reference manual can be downloaded for free from Barco’s Partnerzone, (URL: www.partnerzone.events.barco.com). Registration is necessary.
  • Page 22 2. General R59770057 CLM HD8 16/07/2007...

  • Page 23: Physical Installation

    3. Physical installation 3. PHYSICAL INSTALLATION About this chapter This chapter explains how to install and set up your CLM projector. If you are familiar with the projector and want to quickly set it up for temporary use, follow the “Quick setup” instructions below. For a more complete setup, follow the instructions and guides covered in the remaining subsections.

  • Page 24: Rcu Battery Installation

    3. Physical installation Overview • RCU battery installation • RCU rugged case installation • RCU XLR adaptor installation • Using the XLR adaptor of the RCU • RCU usage possibilities 3.1.1 RCU battery installation Where to find the batteries for the remote control ? The batteries are not placed in the remote control unit to avoid control operation in its package, resulting in a shorter battery life time.

  • Page 25: Rcu Rugged Case Installation

    3. Physical installation 3.1.2 RCU rugged case installation Only with optional rugged case kit which is part of the touring kit (R9861000). Necessary tools No tools. Necessary parts Touring kit How to install the rugged case of the remote control ? 1.

  • Page 26: Using The Xlr Adaptor Of The Rcu

    3. Physical installation Image 3-6 Mounting the XLR adapter 2. Fasten the two screws (S) of the XLR adaptor. Turn each screw repeatedly one or two turns until both screws are tight. 3.1.4 Using the XLR adaptor of the RCU How to use the XLR adaptor of the remote control unit ? 1.

  • Page 27: Lenses

    3. Physical installation Image 3-8 Lenses Overview • Available lenses • Lens selection • Lens formulas 3.2.1 Available lenses Available lenses for the CLM HD8 The CLD lens series can be used on the CLM HD8. Image 3-9 Image 3-10 Image 3-11 R9849870: CLD zoom lens (1.2 - 1.6 : 1) R9861100: CLD zoom lens (1.6 - 2.4 : 1)

  • Page 28: Lens Formulas

    3. Physical installation Image 3-12 PD for lens selection 3.2.3 Lens formulas Formulas Lens Throw ratio for Metric formulas (meter) Inch formulas (inch) CLM HD8 CLD (1.2 - 1.6 : 1) 1.1 - 1.5 =1.12 x SW - 0.05 =1.12 x SW - 1.97 =1.53 x SW - 0.097 =1.53 x SW - 3.80 1.5 - 2.2...

  • Page 29: Suspension Of The Clm Projector With Rigging Clamps

    3. Physical installation When this is achieved, the projector is set horizontal and vertical at right angles to the screen. Image 3-14 Suspension of the CLM projector with rigging clamps Before the projector can be suspended, the optional carry handle must be mounted on the projector. For more information about the optional carry handle, see "Mounting optional Carry handle", page 179.
  • Page 30 3. Physical installation Image 3-16 Mount rigging points The cover plate will move down while pushing with the head but comes back to its position once the bolt is in the slot. 2. Slide a washer on the bolt and turn on a nut. 3.
  • Page 31 3. Physical installation Image 3-19 Mounting rigging clamps 6. Place all four rigging clamps in open position as illustrated. Image 3-20 Opening clamps 7. Place the projector (upside down) under the truss installation and lower the truss until the support bars of the truss are nearby the rigging clamps on the projector.
  • Page 32 3. Physical installation Image 3-21 Mounting to truss 8. Lift up the projector and hook the four rigging clamps over the support bars of the truss. 9. Lock all four rigging clamps. 10.Install the safety cable. Hook one end into a provided hole. Route the cable around the truss and hook the other end into a second hole in the carry handle.

  • Page 33: Alignment Of A Ceiling Mounted Clm Projector

    3. Physical installation Alignment of a ceiling mounted CLM projector Necessary tools Spanner 17 mm How to align a ceiling mounted CLM projector 1. Install the projector in the desired location. See "Suspension of the CLM projector with rigging clamps", page 25. Take into account the zoom range of the used lens and the size of the screen.
  • Page 34 3. Physical installation R59770057 CLM HD8 16/07/2007...

  • Page 35: Stacking Clm Projectors

    4. Stacking CLM projectors 4. STACKING CLM PROJECTORS Stacking of CLM projectors is only possible with optional touring kit. See "Mounting optional Carry handle", page 179 for more information. Overview • Stacking CLM projectors • Aligning stacked CLM projectors Stacking CLM projectors Preparations Install first a carry handle on the upper projector.
  • Page 36 4. Stacking CLM projectors Image 4-2 Close the interlocking 3. Are these projectors stacked for a ceiling mounted configuration? If yes, mount a safety cable from one side of the projector around the truss installation to the other side of the projector. Repeat this for the second projector.

  • Page 37: Aligning Stacked Clm Projectors

    4. Stacking CLM projectors Image 4-4 Open the interlocking ARNING Never open an interlocking adapter of a stacked projector which is still suspended. First place the stacked projectors on the floor. Aligning stacked CLM projectors How to align two stacked CLM projectors 1.
  • Page 38 4. Stacking CLM projectors Inclination Image 4-6 Inclination adjustment 5. If necessary, adjust the skew of the stacked projector with respect to the reference projector by turning the screw on the right front side. Adjust until the outline of the hatch pattern is most symmetric with the reference hatch pattern. Skew Image 4-7 Skew adjustment...

  • Page 39: Connections

    5. Connections 5. CONNECTIONS About this chapter This chapter describes more in detail the power (P), the input source (S) and the communication (C) connections of the CLM HD8. Image 5-1 Overview • Power connection • Input source connections • Communication connections Power connection AUTION...
  • Page 40 5. Connections Image 5-2 Power input 4. Connect the male side of the power cord to the local power net. Caution: Ensure that the power net meets the power requirements of the projector, which are: 100-120/200-240V 12/8A 50/60Hz. ARNING Do not attempt operation if the AC supply and cord are not within the specified voltage and power range.

  • Page 41: Input Source Connections

    5. Connections 4 lamps on max. 3 lamps on Light output % Input voltage V Image 5-3 Input source connections General The input and communication unit is equipped with two input slots, which accept any type of input designed for the CLM projector. The modularity of the input modules makes the CLM projector very flexible regarding input source connectivity.

  • Page 42: Communication Connections

    5. Connections Image 5-8 Cover plate for unused input slot (R848607). The CLM HD8 is standard equipped with one 5 cable input module and one SDI/HDSDI input module. Communication connections Communication interface DIAGNOSTIC CODE IR RECEIVER STBY / ON WARNING IR 10/100 10/100 REMOTE...

  • Page 43: Projector Status

    5. Connections RS232/422 input port XLR input port for remote control IR receiver M Two digit 7-segment display for diagnostic code Projector status The projector “status” LED (A) lights up green while in operation. The same LED lights up red when the projector is switched to standby.
  • Page 44 5. Connections RS232/422 input port RS232/422 output port Description Description DTR : Data Terminal Ready [RS232] DTR : Data Terminal Ready [RS232] TXD+ : Transmitted Data [RS422] TXD+ : Transmitted Data [RS422] GND : Ground GND : Ground DSR : Data Set Ready [RS232] DSR : Data Set Ready [RS232] RXD+ : Received Data [RS422] RXD+ : Received Data [RS422]...

  • Page 45: Usb Port

    5. Connections 10/100 Base-T — RJ45 port Description TXD+ TXD- RXD+ — — RXD- — — USB port The communication interface is equipped with a master USB port, type “A” connector (H). This USB port will simplify the service procedures for software updates or for taking backup files from the projector without network connection. An USB-stick is plugged into the USB port and files can be transferred from or to the projector using the local or remote control unit.
  • Page 46 5. Connections R59770057 CLM HD8 16/07/2007...

  • Page 47: Getting Started

    6. Getting started 6. GETTING STARTED About this chapter This chapter describes the functions on the remote control and local keypad and gives an overview how to start up the projector. It gives also a brief overview of the direct adjustment possible with these controls. Overview •...
  • Page 48 6. Getting started MENU EXIT ENTER TEXT PAUSE LENS EXIT MENU PHASE SHARPN PATTERN WINDOW LENS TINT ENTER STBY AUTO RIGGING PAUSE TEXT COLOR BRIGHTN CONTR LENS LENS SHIFT ZOOM LENS LENS FOCUS SHIFT Image 6-1 Local keypad & remote control Ind.

  • Page 49: Operating The Projector

    6. Getting started Ind. Key name Description Lens shift Shift control of the lens, to shift the lens up/down or left/right Picture controls Use these buttons to obtain the desired picture level. PHASE Used to remove the horizontal instability of the image (usually for RGB source). It adjusts the phase of the pixel sampling clock relative to the incoming signal.

  • Page 50: Errors, Warnings And Messages During Start Up

    6. Getting started Starting image projection via the standby key. 1. Press Stand by key once on the local keypad or on the remote control. MENU EXIT ENTER PAUSE LENS TEXT EXIT MENU PHASE SHARPN TINT PATTERN WINDOW LENS COLOR ENTER STBY PAUSE...

  • Page 51: Switching Off

    6. Getting started Switching to Standby. When the projector is running and you want to go to standby, press the standby key for 2 seconds. Do not press any longer on the standby key otherwise the projector will restart. All custom settings are written to the internal backup device. A message ’Save data ...’ indicates this process. Never switch off the projector while this message is displayed.

  • Page 52: Quick Setup Adjustments

    6. Getting started 45° 45° 45° 45° 45° 45° Image 6-5 RCU to one of the IR sensors Quick setup adjustments Overview • Text boxes ON or OFF • Quick Lens Adjustment • Quick picture in picture 6.5.1 Text boxes ON or OFF Text toggle function The on-screen text boxes can be switched OFF so that an adjustment during the operation of the projector are not visible on the screen.

  • Page 53: Direct Lens Adjustment (Rcu)

    6. Getting started Press the LENS key to switch to another pattern. Different patterns are available. Quick shift adjustment 1. Press the LENS key on the remote control or local keypad. The zoom/focus menu will be displayed. Image 6-7 2. Press ENTER. The shift menu will be displayed.

  • Page 54: Quick Picture In Picture

    6. Getting started 2. Press LENS FOCUS button [-] or [+] (C) for an overall focus of the image. 3. Press ▲ LENS SHIFT ▼ button for correct vertical position of the image on the screen. 4. Press ◄ LENS SHIFT ► button for correct horizontal position of the image on the screen. 6.5.3 Quick picture in picture Quick On - Off...

  • Page 55: Controlling The Projector

    6. Getting started The projector’s address is displayed as first item in the Identification screen. Image 6-12 To continue using the RCU with that specific address, it is necessary to enter the same address with the digit buttons (address between 0 and 9) within 5 seconds after pushing the address key. For example : if the Address key displays projector address 003, then press "3"...

  • Page 56: Source Selection

    6. Getting started Common Address Every projector has a common address ’0’ or ’1’. The choice between ’0’ and ’1’ can be selected in Projector Control → Projector address → Common address. Source selection Source selection when no picture in picture is active Use the digit keys on the remote control or local keypad to active the desired source.

  • Page 57: The Pause Key

    6. Getting started Tint Tint is only active for Video and S-Video when using the NTSC 4.43 or NTSC 3.58 system. Use the + button for more tint Use the - button for less tint. Sharpness The sharpness function is used to adjust the image sharpness of video signals. Use the + button for more sharpness Use the - button for less sharpness Phase...
  • Page 58 6. Getting started R59770057 CLM HD8 16/07/2007...

  • Page 59: Start Up Of The Adjustment Mode

    7. Start up of the adjustment mode 7. START UP OF THE ADJUSTMENT MODE Overview • About the adjustment mode • About the use of the remote control and the local keypad • Start up the adjustment mode • Navigation and adjustments •...

  • Page 60: Navigation And Adjustments

    7. Start up of the adjustment mode The main menu of the adjustment mode opens. Image 7-1 Navigation and adjustments How to navigate in the menu structure? Once in the menu structure, use the ▲ or ▼ keys on the remote control (or the ▲ or ▼ (+ or -) key on the local keypad) to scroll through the items in the displayed menu.

  • Page 61: Input Menu

    8. Input menu 8. INPUT MENU Overview • Overview flow • Slot module type • Input locking • Minimum delay • Native resolution • Source switching • No signal Overview flow Overview Level 1 Level 2 Level 3 Input Slot module type 5-cable HD-SDI - SDI Input locking...

  • Page 62: Input Configuration

    8. Input menu AUTION Always install a cover plate on an unused input slot. This to prevent dust intrusion into the pro- jector. 8.2.2 Input configuration How to change? 1. Press MENU to activate the menus. 2. Use the ▲ or ▼ key to select Input and press ENTER. The Input menu is displayed.

  • Page 63: Input Locking

    8. Input menu Possible results. Input Indication Description module 5 cable RGB AUTO RGB input. Projector searches for the sync signal and projects the correct image. YUV AUTO YUV input. Projector searches for the sync signal and projects the correct image. CVS/S-VIDEO AUTO Video or S-Video input.

  • Page 64: Minimum Delay

    8. Input menu Image 8-7 Image 8-6 Image 8-5 When: None Output is locked on an internal sync (60 Hz) Automatic Output is locked on the selected input for the main window Input 1 Output is locked on source 1 Input 2 Output is locked on source 2 Minimum delay...

  • Page 65: Native Resolution

    8. Input menu Native resolution What can be done The aim here is to always show the resolution of the source independently of the resolution of the DMD panels. Image 8-10 When the show native resolution function is in the ON position, the projector handles the source as follows: Source Projected image Name...

  • Page 66: Source Switching

    8. Input menu [On] : images displayed in native resolution [Off] : images scaled to fill the complete screen Image 8-12 Image 8-11 When native resolution is on, some other menus such as Aspect ratio, timings are greyed out. Source switching Switching from one source to another To minimize undesired effects when switching from one source to another one can use the seamless switching mode, using the fade effect.

  • Page 67: No Signal

    8. Input menu use the ▲ or ▼ key to scroll until the desired time is reached. Press ENTER to activate. Image 8-16 Image 8-15 Image 8-14 No signal Overview • Background color • Shutdown setting • Shutdown retarding time What can happen when no signal When no signal available, a blue or black background color can be displayed or the projector can be shutdown with a certain retarding time.

  • Page 68: Shutdown Retarding Time

    8. Input menu The Input menu is displayed. 3. Use the ▲ or ▼ key to select Shutdown and press ENTER to toggle between [On] and [Off]. Image 8-22 Image 8-21 Image 8-20 8.7.3 Shutdown retarding time Only accessible when Shutdown is set to [On]. How to set the retarding time? 1.

  • Page 69: Image Menu

    9. Image menu 9. IMAGE MENU Overview • Overview flow • How to select the image adjustments? • Image Settings • Aspect ratio • Timings • Image files services • Save custom settings Overview flow Overview Level 1 Level 2 Level 3 Level 4 Image...

  • Page 70: How To Select The Image Adjustments

    9. Image menu Level 1 Level 2 Level 3 Level 4 Total pixels Active pixels Horizontal start Period Total lines Active lines Vertical start Advanced settings Clamp delay Clamp width Field polarity Image file services Manual load Delete Delete all Rename Options Load file...

  • Page 71: Image Settings

    9. Image menu Image Settings Overview • Contrast • Brightness • Saturation • Tint (hue) • Phase • Sharpness • Noise reduction • Color temperature • Input balance 9.3.1 Contrast About Contrast The contrast function is used to adjust the contrast between the light and dark areas of the displayed image. How to change the contrast? 1.

  • Page 72: Saturation

    9. Image menu 2. Use the ▲ or ▼ key to select Image and press ENTER. 3. Use the ▲ or ▼ key to select Image settings and press ENTER. 4. Use the ▲ or ▼ key to select Brightness and press ENTER. The Brightness progress bar appears.

  • Page 73: Tint (Hue)

    9. Image menu The higher the value, the higher the color saturation. Image 9-12 Image 9-11 Image 9-13 Image 9-14 9.3.4 Tint (hue) About Tint The Tint function is used to adjust color hue to obtain true color reproduction and is only active for Video and S-Video when the NTSC color system is used.

  • Page 74: Phase

    9. Image menu The higher the value, the higher the tint. Image 9-16 Image 9-15 Image 9-17 Image 9-18 9.3.5 Phase About Phase adjustment When displaying computer patterns or graphics (RGB or YUV signals) which are very detailed (tilting, vertical stripes, etc. ), jitter in picture (mis-sampling) may occur, causing horizontal stripes in portions of the screen.

  • Page 75: Sharpness

    9. Image menu Image 9-21 Image 9-20 Image 9-22 Image 9-23 9.3.6 Sharpness About Sharpness The sharpness function is used to adjust the image sharpness of video signals. How to change the sharpness? 1. Press MENU to activate the menus. 2.

  • Page 76: Noise Reduction

    9. Image menu 9.3.7 Noise reduction About Noise reduction Reduces noise and pixel jitter in all video sources. How to change? 1. Press MENU to activate the menus. 2. Use the ▲ or ▼ key to select Image and press ENTER. 3.

  • Page 77: Set A Custom Color Temperature

    9. Image menu How to select? 1. Press MENU to activate the menus. 2. Use the ▲ or ▼ key to select Image and press ENTER. 3. Use the ▲ or ▼ key to select Image settings and press ENTER. 4.

  • Page 78: Input Balance

    9. Image menu Image 9-37 Image 9-36 Image 9-38 Image 9-40 Image 9-41 Image 9-39 9.3.9 Input balance Overview • Introduction to Input Balance • Adjusting the input balance 9.3.9.1 Introduction to Input Balance Introduction: Unbalanced color signals When transporting signals, there is always a risk of deterioration of the information contained in the signals. In case of information contained in the amplitude of the signals which is the case of data color signals (R, G, B),image 9-42 , we are quite sure that the amplitude of these color signals is subject to alterations.

  • Page 79: Adjusting The Input Balance

    9. Image menu ∆ ∆Β ∆ Black level Image 9-43 One can conclude here that a good color tracking can only be met by using three previously (input) balanced color signals Analog Digital Conversion The analog color signals must pass through an Analog/Digital conversion circuit prior to any digital processing in the PMP. A typical ADC transforms the analog value into an 8 bit coded digital signal.

  • Page 80: Black Balance

    9. Image menu Image 9-45 White balance : In the projector, we will set the contrast for each color until we get a 100% light output picture when projecting a 100% white image (image A) Black balance : In the projector, we will set the brightness for each color until we get a 0% light output picture when projecting a 100% black image (image B).
  • Page 81 9. Image menu Image 9-50 Image 9-51 7. Adjust the red black level on a minimal value 8. Select Black balance blue and adjust the blue black level on a minimal value. Note: This minimal value is not necessary , provided that the 2 other colors are not influencing too much the color to be adjusted, in fact the aim is to minimize the effect of the two other colors since there is a risk of reaching too soon the 50% transition due to the contribution of these two other colors signals.

  • Page 82: Aspect Ratio

    9. Image menu 10.Select White balance blue and adjust the blue white level (gain) on a minimal value. Note: This minimal value is not necessary , provided that the 2 other colors are not influencing too much the color to be adjusted, in fact the aim is to minimize the effect of the two other colors since there is a risk of reaching too soon the transition (bright spots) due to the contribution of these two other colors signals.

  • Page 83: Timings

    9. Image menu Image 9-59 Image 9-60 Image 9-58 How to set up a custom aspect ratio? 1. Select first Custom and press ENTER to activate. The Custom aspect ratio dialog box opens. 2. Use the ▲ or ▼ key to adjust the vertical size of the image. Use the key to adjust the horizontal size of the image.

  • Page 84: Advanced Settings

    9. Image menu The timings menu will be displayed. Image 9-64 Image 9-63 Image 9-65 4. To change a setting, use the ▲ or ▼ key to select and press ENTER. The corresponding adjustment box is displayed. E.g. Horizontal total pixels. Image 9-66 5.
  • Page 85 9. Image menu How to change the clamp delay - clamp width? 1. Press MENU to activate the menus. 2. Use the ▲ or ▼ key to select Image and press ENTER. 3. Use the ▲ or ▼ key to select Timings and press ENTER. 4.

  • Page 86: Image Files Services

    9. Image menu Image 9-75 Image files services Overview • Files and file manipulations • Manual Load file • Delete file • Delete all custom files • Rename a file • File options 9.6.1 Files and file manipulations Connecting a new source. Before using a new source, a correct file has to be installed.

  • Page 87: Delete File

    9. Image menu The manual load window opens. Image 9-77 Image 9-78 Image 9-76 Image 9-79 Depending on the filter setup, the following is displayed: Fit: only fitting files for the selected source will be in the list All: all files in the system will be in the list. 5.

  • Page 88: Delete All Custom Files

    9. Image menu Image 9-81 Image 9-82 Image 9-80 Image 9-83 No recovery possible ! 9.6.4 Delete all custom files How to delete? 1. Press MENU to activate the menus. 2. Use the ▲ or ▼ key to select Image and press ENTER. 3.

  • Page 89: Rename A File

    9. Image menu Image 9-87 if you are not sure to delete all custom files, select No and press ENTER to activate the selection. 9.6.5 Rename a file How to rename? 1. Press MENU to activate the menus. 2. Use the ▲ or ▼ key to select Image and press ENTER. 3.

  • Page 90: File Options

    9. Image menu 9.6.6 File options How to set the options? 1. Press MENU to activate the menus. 2. Use the ▲ or ▼ key to select Image and press ENTER. 3. Use the ▲ or ▼ key to select Image services and press ENTER. The Image service menu is displayed.
  • Page 91 9. Image menu The custom settings are written to the internal backup device. A message menu “Save data ...” is displayed during the save operation. Image 9-97 R59770057 CLM HD8 16/07/2007...
  • Page 92 9. Image menu R59770057 CLM HD8 16/07/2007...

  • Page 93: Layout Menu

    10. Layout menu 10. LAYOUT MENU Overview • Overview flow • Main window • PIP window • Layout file services 10.1 Overview flow Overview Level 1 Level 2 Level 3 Level 4 Layout Main window Size Position PIP window PIP window [ON/OFF] Size Position Layout file services...

  • Page 94: Size Adjustment

    10. Layout menu Image 10-2 Image 10-1 The first character is highlighted. Use the ▲ or ▼ key to select the desired character and press key to select the next character in the name. Press EXIT to return. The new file is generated. 10.2.1 Size adjustment What can be done? The size of the main window can be adjusted until the desired window dimensions are reached.

  • Page 95: How To Adjust Height And Width Separately

    10. Layout menu The size adjustment window opens. Image 10-6 Image 10-5 Image 10-4 5. Toggle with ENTER till Lock is set to [x]. Image 10-7 [ ] = no lock between height and width. [x] = width and height are locked. 6.

  • Page 96: Position Adjustment

    10. Layout menu The size adjustment window opens. Image 10-11 Image 10-10 Image 10-9 5. Toggle with ENTER till Lock is set to [ ]. Image 10-12 [ ] = no lock between height and width. [x] = width and height are locked. 6.
  • Page 97 10. Layout menu Image 10-14 Positioning the window How to position? 1. Press MENU to activate the menus. 2. Use the ▲ or ▼ key to select Layout and press ENTER. 3. Use the ▲ or ▼ key to select Main Window and press ENTER. The main window opens.

  • Page 98: Pip Window

    10. Layout menu 10.3 PIP window Overview • Introduction to PIP • Picture in Picture activation • Picture in Picture size of the window • Picture in Picture, position window 10.3.1 Introduction to PIP PiP stands for "Picture in Picture" and allows to display multiple windows containing each of them an image. The windows may be of the video or data type.

  • Page 99: Picture In Picture Size Of The Window

    10. Layout menu 5. Press EXIT to quit the menu. When PIP is activated (ON state), the PIP window becomes the active window. Switching to the main window is still possible with the window button on the RCU. 10.3.3 Picture in Picture size of the window What can be done? The width and height of the picture in picture window can be changed till the desired dimensions are obtained.

  • Page 100: How To Change The Height And Width Separately

    10. Layout menu The size adjustment window opens. Image 10-28 Image 10-27 Image 10-26 5. Toggle with ENTER till Lock is set to [x]]. Image 10-29 [ ] = no lock between height and width. [x] = width and height are locked. 6.

  • Page 101: Picture In Picture, Position Window

    10. Layout menu The main window opens. Image 10-33 Image 10-32 Image 10-31 4. Use the ▲ or ▼ key to select Size and press ENTER. The size adjustment window opens. 5. Toggle with ENTER till Lock is set to [ ]. Image 10-34 [ ] = no lock between height and width.

  • Page 102: Layout File Services

    10. Layout menu The PIP window opens. 4. Use the ▲ or ▼ key to select Position and press ENTER. The size adjustment window opens. 5. Use the ▲ or ▼ key to adjust Top Use the ◄ or ► key to adjust Left When the desired position is reached, press EXIT.

  • Page 103: Rename A Layout

    10. Layout menu The load layout window opens. Image 10-43 Image 10-42 Image 10-41 Image 10-44 5. Use the ▲ or ▼ key to select the desired layout and press ENTER to select. The first 3 layouts are default layouts, all others are customer created layouts. The menu shows only the first 10 layouts, but use the ▼...

  • Page 104: Delete A Layout

    10. Layout menu Image 10-47 Image 10-46 Image 10-45 Image 10-48 10.4.3 Delete a layout What is possible? Custom created layouts can be removed from the projector memory. How to delete? 1. Press MENU to activate the menus. 2. Use the ▲ or ▼ key to select Window and press ENTER. 3.

  • Page 105: Copy / Save As A Layout

    10. Layout menu The Delete window opens. Image 10-51 Image 10-50 Image 10-49 Image 10-52 The first 3 layouts are default layouts and cannot be delete. 5. Use the ▲ or ▼ key to select the layout that must be deleted. 6.
  • Page 106 10. Layout menu Image 10-55 Image 10-54 Image 10-53 Image 10-56 R59770057 CLM HD8 16/07/2007...

  • Page 107: Lamp Menu

    11. Lamp menu 11. LAMP MENU Overview • Overview flow • Lamp power mode • Lamp power • Lamp Identification • Status and run time overview lamps • Lamp mode 11.1 Overview flow Overview Level 1 Level 2 Level 3 Level 4 Lamp Power...

  • Page 108: Lamp Power

    11. Lamp menu How to switch? 1. Press MENU to activate the menus. 2. Use the ▲ or ▼ key to select Lamp and press ENTER. 3. Use the ▲ or ▼ key to select Power and press ENTER. 4. Use the ▲ or ▼ key to select Mode. 5.

  • Page 109: Lamp Identification

    11. Lamp menu Image 11-7 11.4 Lamp Identification About The lamp identification menu gives an overview of the most important parameters of the used lamps. It starts with the first lamp. Scrolling to other lamps is possible with the cursor keys. These parameters are: •...

  • Page 110: Lamp Mode

    11. Lamp menu 3. Use the ▲ or ▼ key to select Overview and press ENTER. The status and the run time for each lamp are displayed. Image 11-12 Image 11-13 Image 11-11 11.6 Lamp mode What can be done? The projector is equipped with 4 identical lamps.

  • Page 111: Alignment Menu

    12. Alignment menu 12. ALIGNMENT MENU About this chapter This chapter describes the alignment of the projector once the physical installation is finished. Via the software, the image will be perfectly aligned on the screen. Overview • Overview flow • Orientation •...

  • Page 112: Orientation

    12. Alignment menu Level 1 Level 2 Level 3 Convergence Focus Full screen black Full screen blue Full screen green Full screen red Full screen white Hatch Outline Color space Projector SMPTE Custom White peaking ScenergiX Status Bottom Left Right Show pattern Black level 12.2 Orientation...

  • Page 113: Lens Adjustment

    12. Alignment menu Image 12-3 Image 12-1 Image 12-2 For more information about the physical installation, see chapter “General”, “Projector configurations”. 12.3 Lens adjustment Quick way to enter the lens adjustment setting; press the lens button on the local keypad or the remote control. Access to the lens adjustments 1.

  • Page 114: Side Keystone

    12. Alignment menu Image 12-8 Image 12-7 2. Use the ▲ or ▼ key to zoom the lens. Use the ◄ or ► key to focus the lens. 3. Press ENTER to go to the shift adjustments. Lens shift 1. Use the ▲ or ▼ key to select Shift and press ENTER or when in the Zoom/Focus menu press ENTER to toggle to the Shift menu. Image 12-10 Image 12-9 2.

  • Page 115: Blanking

    12. Alignment menu When the upper part of the image is wider than the lower part of the image, push the ◄ key. The value below the bar scale will be negative. When the upper part of the image is smaller than the lower part of the image, push the ► key. The value below the bar scale will be positive.

  • Page 116: Optical Dimming

    12. Alignment menu The reset function brings all blanking settings back to zero. How to adjust the blanking? 1. Press MENU to activate the menus. 2. Use the ▲ or ▼ key to select Alignment and press ENTER. 3. Use the ▲ or ▼ key to select Blanking and press ENTER. 4.

  • Page 117: Gamma

    12. Alignment menu Image 12-21 Image 12-19 Image 12-20 12.7 Gamma About Gamma Gamma is an image quality enhancement function that offers a richer image by brightening the already darker portions of the image without altering the brightness of the brighter portions (contrast feeling enhanced). How to adjust gamma? 1.

  • Page 118: Color Space

    12. Alignment menu 4. Use the ▲ or ▼ key to scroll through the possible selection and press ENTER to activate the selected pattern. Select ▲ or ▼ in the menu to display the previous or next page with possible internal patterns. Image 12-27 Image 12-25 Image 12-26...

  • Page 119: White Peaking

    12. Alignment menu Projector Maximum color space European Broadcasting Union. This organization defines a European standard. American standard. SMPTE Custom The user can define the x and y coordinates for red, green and blue which forms the corners of the color space. By changing the coordinates, the color reproduction can be changed.

  • Page 120: Scenergix

    12. Alignment menu White peaking can be set between 0 and 10. The default value is 10. With 0, no white peaking, spokes not used to enhance the secondary colors and 10, full white peaking, spokes are fully used to enhance the secondary colors to show a truly life-like image.

  • Page 121: Preparations

    12. Alignment menu Adjustable overlapping area Light output per image 100% image 1 image 2 Total composite light output 100% image 1 image 2 Image 12-36 ScenergiX Basic Principle 12.11.2 Preparations ScenergiX Preparations To ensure proper ScenergiX adjustment, be sure that the following adjustments are done perfectly on all projectors: •...

  • Page 122: Scenergix Pattern

    12. Alignment menu 12.11.4 ScenergiX pattern What can be done? To make the ScenergiX adjustment more easy, an internal pattern can be displayed. How to display or remove the pattern? 1. Use the ▲ or ▼ key to select Show pattern and press ENTER. The internal ScenergiX pattern is displayed.

  • Page 123: Scenergix Overlap Zone (Horizontal Scenergix)

    12. Alignment menu 12.11.5 ScenergiX overlap zone (horizontal ScenergiX) Definitions Image 12-43 ScenergiX set up Overlap : number of pixels that overlap Horizontal resolution of 1 projector : 1024 for Graphics versions, 1280 for Reality versions, 1400 for SXGA projectors. Total horizontal screen resolution : [(horizontal resolution of 1 projector) x 2] minus overlap.

  • Page 124: Scenergix Overlap Zone (Vertical Scenergix)

    12. Alignment menu Image 12-48 Image 12-47 Image 12-49 2. Enter value for horizontal active as follows : Horz. active= [(Horz. resolution of 1 projector)/(Total horz. screen resolution)] x (horz. resolution source) 3. Horizontal start = original start + [(Horz. resolution source) minus (newly calculated Horz. active)] Example Horizontal resolution source : 1600 pixels horizontal resolution projector 1 &...

  • Page 125: Scenergix Size Adjustment

    12. Alignment menu Image 12-52 Image 12-51 Image 12-53 2. Enter value for vertical active (= Lact) as follows : Lact = [(vert.. resolution of 1 projector)/(Total Vert. screen resolution)] x (Vert. resolution source) 3. Vertical start (= Lstart) remains the same. Adjustment of Active lines (Lact) of second projector 1.
  • Page 126 12. Alignment menu The ScenergiX menu items are only accessible when status is [On]. How to set the blending zone? 1. Press MENU to activate the menus. 2. Use the ▲ or ▼ key to select Alignment and press ENTER. 3.

  • Page 127: Adjusting The Black Level Of The Images

    12. Alignment menu Image 12-61 Width set up for projector 1 Image 12-62 Width set up for projector 2 12.11.8 Adjusting the black level of the images Why black level adjustment For dark images, the overlap zone will be brighter then the rest of the images. Therefore we can rise the black level of the remaining image (excluding the overlap zone).
  • Page 128 12. Alignment menu Image 12-65 Image 12-63 Image 12-64 5. Adjust the black level of area A until the black level of area A, B and C are equal. Image 2 Image 1 Image 12-66 Black level adjustment Use the Reset function to bring all ScenergiX settings back to zero. R59770057 CLM HD8 16/07/2007...

  • Page 129: Projector Control

    13. Projector control 13. PROJECTOR CONTROL About this chapter This chapter explains the setup of the control part of the software such as projector address and all types of communication with the external world. Overview • Overview flow • Projector address •...

  • Page 130: Projector Address

    13. Projector control Level 1 Level 2 Level 3 AUTO [auto image menu] Overtemp DMD safety [ON] Menu position Menu [Center] Bar scale [Bottom] Local LCD contrast 13.2 Projector address Overview • Individual projector address • Common address 13.2.1 Individual projector address About individual projector address Before a projector, and only this projector, can be controlled via a remote control, an individual address must be entered in the projector.

  • Page 131: Common Address

    13. Projector control Image 13-4 13.2.2 Common address About common address A common address can be ’0’ or ’1’. Any command coming from a remote control programmed with that common address will be executed. How to change the common address? 1.

  • Page 132: Baud Rate Setup

    13. Projector control 13.3.1 Baud rate setup What can be done? The baudrate for a serial connection with a computer can be set up. How to set up? 1. Press MENU to activate the menus. 2. Use the ▲ or ▼ key to select Projector control and press ENTER. 3.

  • Page 133: Rs422 Termination

    13. Projector control Default: [RS232] Image 13-14 Image 13-13 Image 13-12 13.3.3 RS422 termination What can be done? When the interface standard is set to RS422, the last projector in a line should be RS422 terminated (ON position). All others in the line should be in the OFF position.

  • Page 134: Introduction To A Network Connection

    13. Projector control 13.4.1 Introduction to a Network connection DHCP Dynamic host configuration protocol. DHCP is a communications protocol that lets network administrators manage centrally and automate the assignment of IP addresses in an organization’s network. Using the Internet Protocol, each machine that can connect to the Internet needs a unique IP address.

  • Page 135: Ip-Address Set Up

    13. Projector control [ON] = DHCP is activated. Automatic assigning of an address is activated. [OFF ] = DHCP is deactivated. A fixed address will be used. Image 13-20 Image 13-19 Image 13-18 13.4.3 IP-address set up How to set up? 1.

  • Page 136: Subnet-Mask Set Up

    13. Projector control 13.4.4 Subnet-mask set up How to set up? 1. Press MENU to activate the menus. 2. Use the ▲ or ▼ key to select Projector control and press ENTER. 3. Use the ▲ or ▼ key to select Network and press ENTER. The Ethernet menu opens.

  • Page 137: Ir Control Switching

    13. Projector control enter the value with the digit keys on the remote control or local keypad. The next digit in the address will be selected automati- cally. Note: This must NOT be 0.0.0.0 Image 13-31 Image 13-30 Image 13-29 Image 13-32 6.

  • Page 138: Dmx

    13. Projector control 13.6 DMX Overview • DMX address • DMX monitor While the local LCD display on the CLM is active (backlight is on), the DMX response time may increase. 13.6.1 DMX address How to set the DMX address 1.
  • Page 139 13. Projector control The DMX monitor window opens. Image 13-42 Image 13-41 Image 13-40 Image 13-43 When selecting DMX monitor and no DMX device is connected, the message “No DMX data, check connection <ENTER> to display channels” appears on the screen. When ENTER is pressed the same window appears as DMX Monitor but without values.

  • Page 140: Buttons

    13. Projector control 64 - 95 Zoom 96 - 127 Horizontal shift 128 - 255 Vertical shift 13.7 Buttons Functionality Some buttons on the RCU or local keypad can have a different functionality depending on the need of the projector owner. Overview •...

  • Page 141: Over Temperature Dmd Safety

    13. Projector control 3. Use the ▲ or ▼ key to select Buttons and press ENTER. 4. Use the ▲ or ▼ key to select Auto and press ENTER to toggle between [Align only] and [Auto-image menu]. Image 13-49 Image 13-48 Image 13-47 13.7.3 Over temperature DMD safety What can be done...

  • Page 142: Local Lcd Contrast

    13. Projector control Both can be positioned : • Center • • Bottom How to change the position? 1. Press MENU to activate the menus. 2. Use the ▲ or ▼ key to select Projector control and press ENTER. 3. Use the ▲ or ▼ key to select Menu position and press ENTER. The Menu position window opens 4.

  • Page 143: Service Menu

    14. Service menu 14. SERVICE MENU About this chapter This chapter refers to the Service menu in which the owner can find valuable information when calling the Barco help desk. Overview • Overview flow • Identification • Diagnosis • Internal service patterns •...
  • Page 144 14. Service menu The following items will be displayed: • Projector address • Type of projector • Package • Configuration • Baud rate • IP address • MAC address • Text • Serial number of projector: this number can be useful when calling for technical assistance. •...

  • Page 145: Diagnosis

    14. Service menu 14.3 Diagnosis What can be seen? The diagnosis menu gives the possibility to get an overview of the working of the projector. 14.3.1 How to start up the diagnosis? Start up 1. Press MENU to activate the menus. 2.

  • Page 146: Voltages

    14. Service menu The Versions overview is displayed. Image 14-10 Image 14-9 Image 14-8 Image 14-11 Use the ▲ or ▼ item in the menu to select the previous or next page with information. 14.3.3 Voltages How to display an overview? 1.

  • Page 147: I²C Diagnosis

    14. Service menu The Voltage overview menu will be displayed. Image 14-14 Image 14-13 Image 14-12 Image 14-15 Use the ▲ or ▼ item in the menu to select the previous or next page with information. 14.3.4 I²C diagnosis How to select? 1.

  • Page 148: Temperatures

    14. Service menu The I²C diagnosis overview is displayed. Image 14-18 Image 14-17 Image 14-16 Image 14-19 14.3.5 Temperatures How to get an overview? 1. Press MENU to activate the menus. 2. Use the ▲ or ▼ key to select Service and press ENTER. The service window opens.

  • Page 149: Fan Speeds Overview

    14. Service menu The Temperature overview menu will be displayed. Image 14-22 Image 14-21 Image 14-20 Image 14-23 Use the ▲ or ▼ item in the menu to select the previous or next page with information. 14.3.6 Fan speeds overview How to get an overview? 1.

  • Page 150: Error Logging Overview

    14. Service menu The Fan speeds overview menu will be displayed. Image 14-26 Image 14-25 Image 14-24 Image 14-27 Use the ▲ or ▼ item in the menu to select the previous or next page with information. 14.3.7 Error logging overview How to get an overview? 1.

  • Page 151: Internal Service Patterns

    14. Service menu The Error logging overview menu is displayed. For more explanation about the stored error message, see "Error codes", page 173. Image 14-30 Image 14-29 Image 14-28 14.4 Internal service patterns How to select 1. Press MENU to activate the menus. 2.

  • Page 152: Save Custom Settings

    14. Service menu 3. Use the ▲ or ▼ key to select Restore factory defaults and press ENTER. The factory defaults confirmation window opens. 4. Use the ▲ or ▼ key to select Yes or No and press ENTER. If you are sure to restore the factory defaults and to erase the custom settings, select Yes. If you are not sure, select No.

  • Page 153: Maintenance

    15. Maintenance 15. MAINTENANCE About this chapter This chapter contains detailed maintenance procedures like lens cleaning, etc. These procedures can easily be performed by the operator of the projector. Overview • Cleaning the lens • Cleaning the exterior of the projector 15.1 Cleaning the lens To minimize the possibility of damage to optical coatings, or scratches to lens surfaces, we have developed recommendations for cleaning.
  • Page 154 15. Maintenance R59770057 CLM HD8 16/07/2007...

  • Page 155: Servicing

    This chapter contains general servicing procedures like lamp replacement, input unit replacement etc. Note that some of these procedures may only be performed by qualified technical service personnel. These procedure are marked with a warning. Extra service information Extra service information for qualified service technicians can be found on Barco’s Partnerzone (URL:www.partner- zone.events.barco.com). Registration is necessary.

  • Page 156: Replacement Of The Dust Filters On The Front Side

    16. Servicing Image 16-1 Filter top replacement 4. Insert a new HEPA filter first with the side next to the lamp housing and pull down the other side to lock the filter. 5. Reinstall the lamp door, see "Installation of the lamp door", page 164. AUTION Never install a used HEPA filter.

  • Page 157: Lens Installation

    16. Servicing Image 16-2 Front filter replacement 4. Insert a new HEPA filter by pulling the spring clamp away and insert the filter into its position. Release the spring clamp. 5. Reinstall the front cover of the projector, see "Installation of the front cover", page 163. AUTION Never install a used HEPA filter.

  • Page 158: Lens Removal

    16. Servicing Image 16-3 Mounting the lens 4. Insert the lens in such a way that the female jack (C) is in front of the male jack (upper left corner) (B) and ensure the lens touches the front plate of the lens holder. Caution: Do not release the lens yet, as the lens may fall out of the lens holder.

  • Page 159: Removal Of A Lamp Unit

    16. Servicing Image 16-5 Slide out lens 16.5 Removal of a lamp unit ARNING This procedure may only be performed by qualified technical service personnel. AUTION Never attempt to disassemble the lamp from its housing or to dispose of it. Due to its high internal pressure, the lamp may explode in either hot or cold states if improperly handled.
  • Page 160 16. Servicing Mercury Vapor Warnings: The lamp used in the projector contains mercury. In case of a lamp rupture, explosion there will be a mercury vapor emission. In order to minimize the potential risk of inhaling mercury vapors: • Ensure the projector is installed only in ventilated rooms. •...

  • Page 161: Mounting A New Lamp Unit

    16. Servicing Image 16-9 Take out the lamp For recycling guidelines of the lamp, see "Recycling guidelines", page 9. 16.6 Mounting a new lamp unit About the lamp units All four lamp units are equal. A spare lamp can be inserted in any position without problems. See "Order info", page 185 for the order numbers.

  • Page 162: Removal Of An Input Module

    16. Servicing Image 16-10 Lamp insertion 2. Rotate the fixation handle and close it. Push till it clicks. 3. Insert the cable connector into lamp unit socket. 16.7 Removal of an input module Necessary tools Phillips screw driver PH1 How to remove an input module 1.

  • Page 163: Inserting An Input Module

    16. Servicing AUTION Ensure that an unused slot is always covered with a dummy front plate. Immediately install after removing an input module a new input module or a dummy front cover. 16.8 Inserting an input module Necessary tools Phillips screw driver PH1 How to insert an input module 1.
  • Page 164 16. Servicing R59770057 CLM HD8 16/07/2007...

  • Page 165: Projector Covers, Removal And Installation

    17. Projector covers, removal and installation 17. PROJECTOR COVERS, REMOVAL AND INSTALLATION Overview • Removal of the front cover • Removal of the lamp door • Installation of the front cover • Installation of the lamp door ARNING The cover removal procedures may only be performed by qualified technical service personnel. 17.1 Removal of the front cover Necessary tools Flat screwdriver...

  • Page 166: Removal Of The Lamp Door

    17. Projector covers, removal and installation Image 17-2 Remove the front cover 17.2 Removal of the lamp door ARNING This procedure may only be performed by qualified technical service personnel. Necessary tools Flat screwdriver How to remove the lamp door 1.

  • Page 167: Installation Of The

    17. Projector covers, removal and installation Image 17-4 Remove lamp door 17.3 Installation of the front cover Front cover can only be installed after that the side covers and top cover are installed. Necessary tools Flat screwdriver How to install the front cover 1.

  • Page 168: Installation Of The Lamp Door

    17. Projector covers, removal and installation Image 17-6 Secure front cover 17.4 Installation of the lamp door Lamp door can only be installed when the top cover is installed. Necessary tools Flat screwdriver How to install the lamp door 1. Place the lamp door with its pins (B) on its sockets (A) and push on it until clicks Image 17-7 Lamp door installation 2.

  • Page 169: Dimensions

    A. Dimensions A. DIMENSIONS Overview • Dimensions of the CLM HD8 A.1 Dimensions of the CLM HD8 Dimensions without carry handle 691.18 Image A-1 Dimensions R59770057 CLM HD8 16/07/2007...
  • Page 170 A. Dimensions Dimensions with optional carry handle 145.5 97.5 Image A-2 R59770057 CLM HD8 16/07/2007...

  • Page 171: Standard Source Files

    B. Standard Source Files B. STANDARD SOURCE FILES B.1 Table overview Table overview The following standard image files are pre-programmed in the projector. Name Fvert FHor Fpix Ptot Pact Ltot Lact 85,079 37,860 31,500 640x350@85 640x400@85 85,079 37,860 31,500 640x480@60 59,940 31,668 25,175...
  • Page 172 B. Standard Source Files Name Fvert FHor Fpix Ptot Pact Ltot Lact 1280x1024@85 85,027 91,149 157,506 1728 1280 1072 1024 1360x768@60 59,898 47,619 85,333 1792 1360 1400x1050@50 50,015 54,517 94,641 1736 1400 1090 1050 1400x1050@60 59,979 65,317 121,751 1864 1400 1089 1050 74,866...

  • Page 173: Specifications

    C. Specifications C. SPECIFICATIONS Overview • Specifications CLM HD8 • Specifications CLM 5 cable input (multi purpose) • Specifications CLM HDSDI – SDI input • Specifications CLM DVI input C.1 Specifications CLM HD8 Overview Light Output 8.000 Center Lumen Resolution 1920 x 1080 (full HD) Contrast ratio 1200:1 (full field)

  • Page 174: Specifications Clm 5 Cable Input (Multi Purpose)

    C. Specifications C.2 Specifications CLM 5 cable input (multi purpose) Front view 5 cable input 5-CABLE INPUT SYCN OK G/Y/VIDEO Image C-1 Signal connectivity Input signal R / P G / Y / VIDEO B / P H / S V / C RGBHV —...

  • Page 175: Specifications Clm Hdsdi - Sdi Input

    C. Specifications Specifications • Data and HD sources RGB and YUV [HS/VS, CS or SOG(Y)]: Pixel clock maximum 275 MHz 8 bit digital output • Video sources CVBS, S-VIDEO, RGB and YUV [CS, CV or SOG(Y)]: PAL B/D/I/G/H, PAL60, PAL M, PAL N, PAL Nc NTSC M/J, NTSC 4.43 SECAM B/D/G/K/L 525i, 625i, 525p, 625p...

  • Page 176: Specifications Clm Dvi Input

    C. Specifications Specifications • SD SMPTE 259M-C and HD SMPTE 292M input data • 2 inputs (BNC), 1 active loop-through output (BNC) of selected input • Automatic selection of active input with manual override • 10 bit digital output • Diagnostic LED’s on front panel: Green LED: Lights up in case input module is selected Yellow LED: Lights up in case sync detected...

  • Page 177: Troubleshooting

    D. Troubleshooting D. TROUBLESHOOTING D.1 Error codes Overview When the error code is preceded by a ’-’ sign, then the error means a real error for the projector. When the error code is preceded by a ’+’ sign, then the error code means a warning. The projector does not fail yet, but take care for the warning and try to resolve the problem.
  • Page 178 D. Troubleshooting Error Description Error Warn- Caused by Action code 2005 Lamp stop Call qualified service engineer failed 2100 LPS 1 error Replace LPS 2400 LPS 2 error Replace LPS 2700 LPS 3 error Replace LPS 3000 LPS 4 error Replace LPS 3899 Spi flash...
  • Page 179 D. Troubleshooting Error Description Error Warn- Caused by Action code 7986 LPS4 temp High temperature on LPS4 check if air slots are free, clean air high filters. If problem persists, call a qualified service engineer. 7984 Lamp1 temp High temperature on lamp 1 check if air slots are free, clean air high filters.
  • Page 180 D. Troubleshooting Error Description Error Warn- Caused by Action code 7909 Fan LPS B high 7908 Fan inlet A low Fan is running too slow or not at all If problem persists, call a qualified service engineer 7907 Fan inlet A high 7906 Fan inlet B low...
  • Page 181 D. Troubleshooting Error Description Error Warn- Caused by Action code 7885 Fan lamp 4 front high 7884 Pump speed Bad or no water flow in the cooling If problem persists, call a qualified circuit service engineer 7883 Pump speed high 7878 Overtemp extreme overheading of DMD or...
  • Page 182 D. Troubleshooting Error Description Error Warn- Caused by Action code 27995 OSD out of Call a qualified service engineer pos. 27994 OSD fifo full Call a qualified service engineer R59770057 CLM HD8 16/07/2007...

  • Page 183: Mounting Optional Carry Handle

    E. Mounting optional Carry handle E. MOUNTING OPTIONAL CARRY HANDLE About this chapter This chapter describes the procedures to mount the optional carry handle to CLM projector. When this optional carry handle is mounted, the projector can be suspended with the rigging clamps and stacking of projector is possible. Overview •...

  • Page 184: Preparing The New Carry Handle

    E. Mounting optional Carry handle Image E-2 Stacking points mounted Preparing the new carry handle What has to be done? The back stacking point must be removed before the carry handle can be mounted on the CLM projector. The fixation hole for the fixation bolt of the carry handle is covered by the stacking point construction.

  • Page 185: Preparing The Projector

    E. Mounting optional Carry handle Preparing the projector AUTION Before turning the projector upside down, be sure the stacking points on the top cover are mounted. What has to be done? Before the carry handle can be mounted, the projector feet must be removed and an extra support point must be added. How to handle 1.

  • Page 186: Mounting The Carry Handle

    E. Mounting optional Carry handle Mounting the carry handle How to mount the carry handle 1. Place the handle on to the projector. 2. Insert a spacer (A) in the back fixation hole so that a small rotation of the carry handle is still possible. 3.
  • Page 187 E. Mounting optional Carry handle Image E-7 Mounting stacking foot R59770057 CLM HD8 16/07/2007...
  • Page 188 E. Mounting optional Carry handle R59770057 CLM HD8 16/07/2007...

  • Page 189: Order Info

    F. Order info F. ORDER INFO Spare part order info Order info: Order info Description R9854430 5 cable input module R9854450 HDSDI - SDI input module R9854460 DVI input module R848607 Cover plate for unused input slot R98610206 CLM dust filter kit, 6 pack R986102012 CLM dust filter kit, 12 pack R9861030...
  • Page 190 F. Order info R59770057 CLM HD8 16/07/2007...

  • Page 191: Glossary

    Glossary GLOSSARY Color space A color space or color standard is a mathematical representation for a color. For example the RGB color space is based on a Cartesian coordinate system. Common address Projector will always execute the command coming from a RCU programmed with that common address. Default Gateway A router that serves as an entry point into and exit point out of a network.
  • Page 192 Glossary Subnet mask A number that is used to identify a subnetwork so that IP addresses can be shared on a local area network. R59770057 CLM HD8 16/07/2007...

  • Page 193: Index

    Index INDEX Communication connections Configurations Adjustment 48–50 Front projection Quick set up 48–50 Rear projection Lens Connections 35, 37–38, 47 Lens functions Communication connections Lens key Input source Power Adjustment mode 55–56 Switching off About Contrast LCD display menus Cooling liquid circuit warning Local keypad Copy Navigation...
  • Page 194 Index Projector address Shutdown retarding time Quick setup Overview flow Source selection Slot module type Terminology overview Source switching Getting Started 43, 45, 47, 52 Input balance 74–77 Controlling the projector Adjusting RCU & local keypad Black balance Switching on Introduction Using the RCU White balance...
  • Page 195 Index Position Size Size Position Overview flow Main window 94–95, 97 Positioning Activation Power Position Power connection Size Preset color temperature Rename Prevent 6–8, 20 Save as Battery explosion 8, 20 LCD display menus Electrical shock Lens 109, 149 Fire hazard Cleaning Personal injury Focus...
  • Page 196 Index Recycling Removal Remote control 20–21, 39 Lamp unit 155, 157 Battery Mounting Rugged case Removal Remote Control 49–50 Sharpness Lens functions Shift range Shutdown, automatic 63–64 Remove 161–162 No signal Front cover Retarding time Lamp door Side keystone Rename Size Layout Main window...
  • Page 197 Revision Sheet Barco nv Events/Documentation Noordlaan 5, B-8520 Kuurne Phone: +32 56.36.89.70, Fax: +32 56.36.88.24 E-mail: service.mne@barco.com, Web: www.barco.com From: Date: Please correct the following points in this documentation (R59770057/00): page wrong correct R59770057 CLM HD8 16/07/2007...

This manual is also suitable for:
