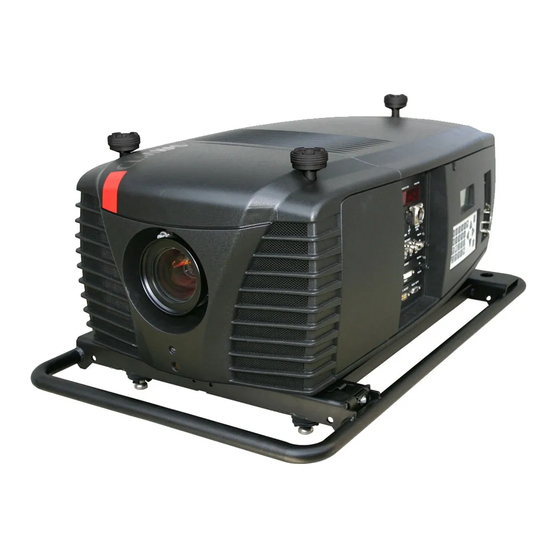

Barco CLM HD8 User Manual

Hide thumbs Also See for CLM HD8:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
CLM HD8

User guide

R9050130
R90501301
R59770057/02
21/01/2008

Advertisement

Table of Contents
loading

Related Manuals for Barco CLM HD8

Summary of Contents for Barco CLM HD8

  • Page 1: User Guide

    CLM HD8 User guide R9050130 R90501301 R59770057/02 21/01/2008...
  • Page 2 Barco nv Events Noordlaan 5, B-8520 Kuurne Phone: +32 56.36.89.70 Fax: +32 56.36.88.24 E-mail: sales.events@barco.com Visit us at the web: www.barco.com Printed in Belgium...
  • Page 3 The period of guarantee begins on the date of transfer of risks, in the case of special systems and software on the date of commissioning, at latest 30 days after the transfer of risks. In the event of justified notice of complaint, Barco can repair the fault or provide a replacement at its own discretion within an appropriate period.

  • Page 5: Table Of Contents

    Input configuration ......................60 R59770057 CLM HD8 21/01/2008...
  • Page 6 12.11 ScenergiX ......................... . .122 R59770057 CLM HD8 21/01/2008...
  • Page 7 Table overview ........................177 R59770057 CLM HD8 21/01/2008...
  • Page 8 Index........................203 R59770057 CLM HD8 21/01/2008...

  • Page 9: Safety

    About this chapter Read this chapter attentively. It contains important information to prevent personal injury while installing and using an CLM HD8 projector. Furthermore, it includes several cautions to prevent damage to the CLM HD8. Ensure that you understand and follow all safety guidelines, safety instructions and warnings mentioned in this chapter before installing your CLM projector.

  • Page 10: Important Safety Instructions

    Lightning - For added protection for this video product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet. This will prevent damage to the projector due to lightning and AC power-line surges. R59770057 CLM HD8 21/01/2008...
  • Page 11 Caution: High pressure lamp may explode if improperly handled. Refer servicing to qualified service personnel. The customer should never attempt to disassemble the lamp casing or to dispose of the lamp casing other than by returning it to Barco. •...
  • Page 12 The exclusion zone must be not less than 40 cm (16”) for all Barco DLP projectors. The exclusion zone on the lens side must be at least 2 meter (80”).

  • Page 13: Recycling Guidelines

    If the product exhibits a distinct change in performance, indicating a need for service. • Replacement parts: When replacement parts are required, be sure the service technician has used original Barco replacement parts or authorized replacement parts which have the same characteristics as the Barco original part. Unauthorized substitu- tions may result in degraded performance and reliability, fire, electric shock or other hazards.

  • Page 14: Important Warnings Concerning Clm Flight Cases

    In the event of a wheel breaking, flight cases must be rigidly strapped tight to prevent a stack collapsing. • Use an appropriate forklift to raise flight cases and take the necessary precautions to avoid personnel injury. R59770057 CLM HD8 21/01/2008...

  • Page 15: General

    Projector weight Do not underestimate the weight of one Barco CLM HD8, which is about ±31 kg (±68 lb.). Be sure that the table or truss installation on which the projector(s) has to be installed is capable of handling five (5) times the complete load of the complete system.

  • Page 16: Unpacking The Projector

    2. Cut open the box but do not insert the cutter too deep, otherwise the projector could be damaged. Image 2-1 3. Take out the cardboard box with the accessories such as manuals, remote control and power cord. 4. Take the projector out of the cardboard box and place it on a stable table. R59770057 CLM HD8 21/01/2008...

  • Page 17: Box Content

    This check should confirm that there are no broken knobs or connectors, that the cabinet and panel surfaces are free of dents and scratches, and that the operating panel are not scratched of cracked. The Barco sales and service office should be notified as soon as possible.

  • Page 18: Projector Configurations

    Rear / Table (R/T) Rear / Ceiling (R/C) For a ceiling mounted configuration, the optional carry handle kit is required. Front projection AUDIENCE FLOOR Image 2-3 Front projection Rear projection AUDIENCE BACKSTAGE FLOOR Image 2-4 Rear projection R59770057 CLM HD8 21/01/2008...

  • Page 19: Positioning The Projector

    (F) as illustrated below. Within these shift ranges the projector and lens perform excellently. Configuring the projector outside these shift ranges will result in a slight decline of image quality. R59770057 CLM HD8 21/01/2008...
  • Page 20 Side to side tilt must not exceed 10°. This limit ensures that the lamp in the projector operates properly and safely. Front - back tilting is limited to 10°. When using the projector out of this range, Barco cannot guarantee a safe operation and the responsibility is for the installer/operator.

  • Page 21: Projector Air Inlets And Outlets

    Air inlets and outlets Image 2-8 The CLM HD8 has 2 inlet channels and one air outlet. The air outlet is located at the rear of the projector. The air inlets are located at the front and top of the projector.
  • Page 22 2. General R59770057 CLM HD8 21/01/2008...

  • Page 23: Physical Installation

    The standard remote control unit (A) can be equipped with the optional rugged case (B) and an XLR adapter (C). The remote control unit can be used wired via mini-jack or via optional rugged XLR. Note that the backlight of the remote control unit illuminate continuously when used with a wire. Image 3-1 R59770057 CLM HD8 21/01/2008...

  • Page 24: Rcu Battery Installation

    To prevent battery explosion • Danger of explosion if battery is incorrectly installed. • Replace only with the same or equivalent type recommended by the manufacturer. • Dispose of used batteries according to the manufacturer’s instruction. R59770057 CLM HD8 21/01/2008...

  • Page 25: Rcu Rugged Case Installation

    How to install the XLR adaptor of the remote control unit ? 1. Push the XLR adaptor (C) upon the rugged case of the remote control unit as illustrated. Note: Ensure that the text of the XLR adaptor is on top. R59770057 CLM HD8 21/01/2008...

  • Page 26: Using The Xlr Adaptor Of The Rcu

    1. Connect a cable with XLR plug into the XLR adaptor. 2. Connect the other end of the cable with your CLM HD8. 3. Push the XLR adaptor completely against the rugged case of the remote control unit, as illustrated in the left image below, for wired communication.

  • Page 27: Lenses

    3. Use the lens formulas to find the best corresponding PD with regard to the measured projector-screen distance for the required screen width SW. Tip: Divide PD by SW to determine the approximately required throw ratio. Choose a lens, which captures the calculated throw ratio. Use the lens formula of the chosen lens to recalculate exactly. R59770057 CLM HD8 21/01/2008...

  • Page 28: Lens Formulas

    1. Place the projector in the desired location. Take into account the zoom range of the used lens and the size of the screen. 2. Project one of the internal hatch patterns on the screen. 3. Turn the adjustable feet in or out until the projected hatch pattern is perfectly rectangle shaped and leveled. R59770057 CLM HD8 21/01/2008...

  • Page 29: Suspension Of The Clm Projector With Rigging Clamps

    The rigging clamps turn in these rigging points and these clamps allow an easy and fast physical setup of the projector in a hanging configuration. Image 3-12 Rigging slots and clamps Necessary tools Open end spanner 17 mm R59770057 CLM HD8 21/01/2008...
  • Page 30 Ensure that the rigging points are symmetrically lined up, so that the projector will hang in balance. If necessary move point B from a transversal position to a longitudinal position. Warning: Always secure the rigging points after adjustment. R59770057 CLM HD8 21/01/2008...
  • Page 31 6. Place all four rigging clamps in open position as illustrated. Image 3-17 Opening clamps 7. Place the projector (upside down) under the truss installation and lower the truss until the support bars of the truss are nearby the rigging clamps on the projector. R59770057 CLM HD8 21/01/2008...
  • Page 32 10.Install the safety cable. Hook one end into a provided hole. Route the cable around the truss and hook the other end into a second hole in the carry handle. Image 3-19 Security cable AUTION Always mount the safety cable when suspending the projector. R59770057 CLM HD8 21/01/2008...

  • Page 33: Alignment Of A Ceiling Mounted Clm Projector

    3. Adjust the height of the rigging clamps with respect to the projector, until the projected hatch pattern is rectangle shaped and leveled. Separate skew adjustment is still possible. Image 3-20 Ceiling mount alignment 4. Adjust the skew adjustment until the rectangle is perfectly shaped. Skew Image 3-21 Skew adjustment R59770057 CLM HD8 21/01/2008...
  • Page 34 3. Physical installation R59770057 CLM HD8 21/01/2008...

  • Page 35: Stacking Clm Projectors

    In case of stacking projectors for a ceiling mount configuration, first turn the projectors upside down before placing the projectors on top of each other. Image 4-1 Stacking projectors 2. Attach the two projectors together by closing all three interlocking adapters as illustrated. R59770057 CLM HD8 21/01/2008...
  • Page 36 If yes, mount a safety cable from one side of the projector around the truss installation to the other side of the projector. Repeat this for the second projector. Image 4-3 Ceiling mounted stacked projectors How to open an interlocking adapter 1. Open an interlocking adapter as illustrated. R59770057 CLM HD8 21/01/2008...

  • Page 37: Aligning Stacked Clm Projectors

    4. If necessary, adjust the inclination of the stacked projector with respect to the reference projector by turning the height adjustment ring of the interlocking adaptor at the rear of the stacked projector in or out. Adjust until the outline of the hatch pattern is most symmetric with the reference hatch pattern. R59770057 CLM HD8 21/01/2008...
  • Page 38 Note: Note that the “Zoom” function is motorized, which means that you have to access the projector software, via the local keypad or remote control unit, to operate the “Zoom” function. Zoom Image 4-9 Zoom adjustment R59770057 CLM HD8 21/01/2008...

  • Page 39: Connections

    5. Connections 5. CONNECTIONS About this chapter This chapter describes more in detail the power (P), the input source (S) and the communication (C) connections of the CLM HD8. Image 5-1 Overview • Power connection • Input source connections •...
  • Page 40 When the input power is between 100V and 140V, 75% of the light output with 3 lamps can be reached. When the input power is between 90V and 100V the light output is reduced to 62.5% with only 3 lamps. R59770057 CLM HD8 21/01/2008...

  • Page 41: Input Source Connections

    Always install a cover plate on an unused input slot. This to prevent dust intrusion into the pro- jector. Available input modules Image 5-5 Image 5-6 Image 5-7 5 Cable input (Multi purpose) (R9854430). HDSDI - SDI input (R9854450). DVI input (R9854460). R59770057 CLM HD8 21/01/2008...

  • Page 42: Communication Connections

    5. Connections Image 5-8 Cover plate for unused input slot (R848607). The CLM HD8 is standard equipped with one 5 cable input module and one SDI/HDSDI input module. Communication connections Communication interface DIAGNOSTIC CODE IR RECEIVER STBY / ON WARNING IR...

  • Page 43: Projector Status

    RS232/422 serial communication The communication interface of the CLM HD8 supports RS232 and RS422 serial communication. You can use the RS232/RS422 input port (J) to connect a local PC to your CLM projector. This way you can configure and control your CLM projector from your local PC.
  • Page 44 The connector used for the Ethernet ports (E) are of rugged Neutrik EtherCon RJ45 type, which is compatible with standard RJ45 cable connector. Straight (most common) as well as cross linked network cables can be used. R59770057 CLM HD8 21/01/2008...

  • Page 45: Usb Port

    Linux FAT16 compatible. DMX interface The communication interface of the CLM HD8 supports DMX. DMX is used as communication bus between different devices in the light technic. Each device has an input and an output, so that the bus can be looped between the different devices.
  • Page 46 5. Connections R59770057 CLM HD8 21/01/2008...

  • Page 47: Getting Started

    • switching to "pause" (blanked picture, full power for immediate restarting) • direct access to all connected sources. Terminology overview Overview The following table gives an overview of the different functionality of the keys. R59770057 CLM HD8 21/01/2008...
  • Page 48 This key can open an Auto image menu so that the user has access to these different functions. Digit buttons Direct input selection or numeric entries Lens zoom/focus Zoom and focus controls of the lens R59770057 CLM HD8 21/01/2008...

  • Page 49: Operating The Projector

    When ’0’ is visible, the projector is switched off. When ’1’ is visible, the projector is switched on. The projector starts up in standby. The menus are accessible via the local LCD panel. To display an image, the standby key must be pressed once. R59770057 CLM HD8 21/01/2008...

  • Page 50: Errors, Warnings And Messages During Start Up

    When temperature is higher than 65°C, the projector switches to standby. For a list of possible error codes, see "Error codes", page 185. 6.3.3 Switching to standby How to switch to standby? 1. Press Standby to switch the projector to standby. R59770057 CLM HD8 21/01/2008...

  • Page 51: Switching Off

    When using the wireless remote control, make sure you are within the effective operating distance (30m, 100ft in a straight line). The remote control unit will not function properly if strong light strikes the sensor window or if there are obstacles between the remote control unit and the projector IR sensor. R59770057 CLM HD8 21/01/2008...

  • Page 52: Quick Setup Adjustments

    1. Press the LENS key on the remote control or local keypad. The zoom/focus menu will be displayed. Image 6-6 2. Push the cursor key ▲ or ▼ to zoom and ◄ or ► to focus the image. R59770057 CLM HD8 21/01/2008...

  • Page 53: Direct Lens Adjustment (Rcu)

    TAL SHIFT and VERTICAL SHIFT. 1. Press LENS ZOOM button [-] or [+] (A) for correct image size on the screen. CONTR LENS LENS SHIFT ZOOM LENS LENS FOCUS SHIFT Image 6-9 Direct lens adjustment keys Zoom Vertical shift R59770057 CLM HD8 21/01/2008...

  • Page 54: Quick Picture In Picture

    The language menu opens. 3. Select with the ▲ or ▼ key the desired language and press ENTER to activate. The current active language is indicated with an asterisk (*). Image 6-13 Image 6-12 Image 6-11 R59770057 CLM HD8 21/01/2008...

  • Page 55: Use Of The Auto Button

    1. Press the Address key (recessed key on the RCU) with a pencil. 2. Enter the address with the digit buttons within 5 seconds after pushing the address key. Note: That address can be any digit between 0 and 9. R59770057 CLM HD8 21/01/2008...

  • Page 56: Controlling The Projector

    Image 6-16 Window selection button The outline of the selected window gets a colored rectangle to indicate the selection. For the main window, the color is blue. For the picture in picture window, the color is orange. R59770057 CLM HD8 21/01/2008...

  • Page 57: Controlling The Projector

    When the Stand-by key is pressed, the image projection is stopped and the projector goes to stand-by. This situation is used when a projection stop is planned for a longer period. All custom settings are saved to an internal backup device. A message ’Save data ...’ is displayed during this backup operation. R59770057 CLM HD8 21/01/2008...
  • Page 58 6. Getting started R59770057 CLM HD8 21/01/2008...

  • Page 59: Start Up Of The Adjustment Mode

    To start up the adjustment mode, use the remote control or the local keypad. How to start up? 1. Press Menu on the remote control (RCU) or on the local keypad to start up the Adjustment mode. R59770057 CLM HD8 21/01/2008...

  • Page 60: Navigation And Adjustments

    These menus can be used in the same way as the on-screen menus. The menus on the LCD panel are still reachable even when the projector lamp is not activated and when Text is in the off mode. R59770057 CLM HD8 21/01/2008...
  • Page 61 7. Start up of the adjustment mode When quitting the menu structure, the backlighting of the LCD panel is switched off after a few seconds. R59770057 CLM HD8 21/01/2008...
  • Page 62 7. Start up of the adjustment mode R59770057 CLM HD8 21/01/2008...

  • Page 63: Input Menu

    The projector has 2 input slots and these slots can be filled up in a random order with the available modules. Identical modules are allowed. For more information about the available input modules and how to install, see "Input source connections", page 37. R59770057 CLM HD8 21/01/2008...

  • Page 64: Input Configuration

    Press ENTER to open the Slot module type configuration window. This window is different for each module type. 5. Use the ▲ or ▼ key to select desired mode for the selected slot. Image 8-3 Image 8-2 Image 8-1 Image 8-4 R59770057 CLM HD8 21/01/2008...

  • Page 65: Input Locking

    3. Use the ▲ or ▼ key to select Input locking and press ENTER. The input locking window is displayed. The actual selected locking method is indicated by an arrow. 4. Use the ▲ or ▼ key to select the desired locking and press ENTER. R59770057 CLM HD8 21/01/2008...
  • Page 66 When Automatic or specific input is selected (arrow in front of it) and then the Options are selected, the following menu appears: Image 8-9 Use the ▲ or ▼ key to select Genlock and press ENTER to toggle between On and Off. R59770057 CLM HD8 21/01/2008...

  • Page 67: Minimum Delay

    3. Use the ▲ or ▼ key to select Minimum delay and press ENTER to toggle between [On] and [Off]. Image 8-11 Image 8-10 Native resolution What can be done The aim here is to always show the resolution of the source independently of the resolution of the DMD panels. R59770057 CLM HD8 21/01/2008...
  • Page 68 3. Use the ▲ or ▼ key to select Native resolution and press ENTER to toggle between [On] and [Off]. [On] : images displayed in native resolution [Off] : images scaled to fill the complete screen Image 8-14 Image 8-13 R59770057 CLM HD8 21/01/2008...

  • Page 69: Source Switching

    ▲ or ▼ key to scroll until the desired time is reached. Press ENTER to activate. Image 8-18 Image 8-17 Image 8-16 No signal Overview • Background color • Shutdown setting • Shutdown retarding time R59770057 CLM HD8 21/01/2008...

  • Page 70: Background Color

    3. Use the ▲ or ▼ key to select Shutdown and press ENTER to toggle between [On] and [Off]. Image 8-24 Image 8-23 Image 8-22 8.7.3 Shutdown retarding time Only accessible when Shutdown is set to [On]. How to set the retarding time? 1. Press MENU to activate the menus. R59770057 CLM HD8 21/01/2008...
  • Page 71 4. Use the ▲ or ▼ key to change the value. enter the desired value with the keyboard. When trying to exceed the maximum allowed value, the system will set it back to the maximum value. Image 8-27 Image 8-26 Image 8-25 R59770057 CLM HD8 21/01/2008...
  • Page 72 8. Input menu R59770057 CLM HD8 21/01/2008...

  • Page 73: Image Menu

    Level 4 Image Image settings Contrast Brightness Saturation Tint Phase Sharpness Noise reduction Color temperature Projector white Computer 9300K Video 6500K Film 5400K Broadcast 3200K Custom balance Input balance Aspect ratio 16/9 2.35 1.88 1.78 Custom Timings R59770057 CLM HD8 21/01/2008...

  • Page 74: How To Select The Image Adjustments

    Load file Save custom settings How to select the image adjustments? Start up 1. Use the ▲ or ▼ key to select Image. 2. Press ENTER to select. The Image menu opens. Image 9-2 Image 9-1 R59770057 CLM HD8 21/01/2008...

  • Page 75: Image Settings

    The higher the value, the higher the contrast. Image 9-4 Image 9-3 Image 9-5 Image 9-6 9.3.2 Brightness About Brightness The Brightness function is used to adjust the overall light output. How to change the brightness? 1. Press MENU to activate the menus. R59770057 CLM HD8 21/01/2008...

  • Page 76: Saturation

    3. Use the ▲ or ▼ key to select Image settings and press ENTER. 4. Use the ▲ or ▼ key to select Saturation and press ENTER. The Saturation progress bar appears. 5. Use ◄ or ► to change the color saturation. R59770057 CLM HD8 21/01/2008...

  • Page 77: Tint (Hue)

    3. Use the ▲ or ▼ key to select Image settings and press ENTER. 4. Use the ▲ or ▼ key to select Tint and press ENTER. The Tint progress bar appears. 5. Use ◄ or ► to change the tint. R59770057 CLM HD8 21/01/2008...

  • Page 78: Phase

    Note: Don’t mix up with wrong number of total pixels. If the jitter doesn’t disappear with the phase adjustment, check the total number of pixels. (Best image = pixel on pixel off pattern. For example: shut down screen of a PC) R59770057 CLM HD8 21/01/2008...

  • Page 79: Sharpness

    4. Use the ▲ or ▼ key to select Sharpness and press ENTER. The Sharpness progress bar appears. 5. Use ◄ or ► to change the sharpness. The higher the value, the higher the sharpness. Image 9-25 Image 9-24 Image 9-26 Image 9-27 R59770057 CLM HD8 21/01/2008...

  • Page 80: Noise Reduction

    These calibrated presets can be selected and will provide optimum color tracking, the projector allows however the setting of a personal color temperature, this is done in custom balance Color temperature selection is only possible when Color space is OFF R59770057 CLM HD8 21/01/2008...

  • Page 81: Predefined Color Temperature

    2. Use the ▲ or ▼ key to select Image and press ENTER. 3. Use the ▲ or ▼ key to select Image settings and press ENTER. 4. Use the ▲ or ▼ key to select Color temperature and press ENTER. R59770057 CLM HD8 21/01/2008...

  • Page 82: Input Balance

    Another value that is subject to alteration is the amplitude of the signal, resulting in an altered “Gain” of the signal (“white level” or contrast). The alterations of the three color signals will happen independently i.e. the colors will end to be unbalanced, image 9-42 R59770057 CLM HD8 21/01/2008...
  • Page 83 These two references also set the range in which the ADC will work for that particular source (this explains also why each input balance setting is linked to a particular source and thus saved in the image file). R59770057 CLM HD8 21/01/2008...

  • Page 84: Adjusting The Input Balance

    5. Use the ▲ or ▼ key to select Black balance and press ENTER. The black balance bar scale for a typical color is displayed. 6. Toggle with ▲ or ▼ key to select Black balance red. R59770057 CLM HD8 21/01/2008...
  • Page 85 7. Use the ▲ or ▼ key to select White balance and press ENTER. The white balance bar scale for a typical color is displayed. 8. Toggle with the ▲ or ▼ key to select White balance red. R59770057 CLM HD8 21/01/2008...

  • Page 86: Aspect Ratio

    Standard television format 16:9 Wide screen television format / anamorphic format Workstation format 2.35 Film format 1.88 1.78 Wide screen television format / anamorphic format Custom Any custom format can be set up Some example images: R59770057 CLM HD8 21/01/2008...

  • Page 87: How To Select An Aspect Ratio

    2. Use the ▲ or ▼ key to adjust the vertical size of the image. Use the key to adjust the horizontal size of the image. When the desired aspect ratio is obtained, press EXIT. Image 9-61 Image 9-60 R59770057 CLM HD8 21/01/2008...

  • Page 88: Timings

    Image 9-65 5. Use the ▲ or ▼ key (or ◄ or ► key) to change the value. 6. Press ENTER to activate the new value. 7. If necessary to change other settings, repeat from step 4. R59770057 CLM HD8 21/01/2008...

  • Page 89: Advanced Settings

    5. Use the ▲ or ▼ key to select Clamp delay or Clamp width and press ENTER. A progress bar appears. 6. Use the ▲ or ▼ key to change the setting. Image 9-68 Image 9-67 Image 9-69 R59770057 CLM HD8 21/01/2008...

  • Page 90: Advanced Settings, Film Mode Detection

    This may confuse the detector and cause it to go into FILM restoration mode. This will cause "jaggies" or motion artefacts. In such cases, disabling FILM mode processing is the best cure. Film mode detection is only for interlaced sources. R59770057 CLM HD8 21/01/2008...
  • Page 91 3. Use the ▲ or ▼ key to select Advanced settings and press ENTER. The Advanced settings menu is displayed. 4. Use the ▲ or ▼ key to select Film mode and press ENTER to toggle between [auto] or [off]. R59770057 CLM HD8 21/01/2008...

  • Page 92: Image Files Services

    When the new source corresponds with one of these files, the file can be loaded and saved for future use. When there is a little difference, the file can also be loaded and then edited until the source specs are reached. VESA standards and video standards are pre-programmed. R59770057 CLM HD8 21/01/2008...

  • Page 93: Manual Load File

    If no, Select Filter and use ► till [ALL] is on the menu. 6. Use the ▲ or ▼ key to select the appropriate file. While scrolling over the files, a preview is shown on the screen. 7. Press ENTER to select. The selected file is loaded. R59770057 CLM HD8 21/01/2008...

  • Page 94: Delete File

    3. Use the ▲ or ▼ key to select File services and press ENTER. The File service menu is displayed. 4. Use the ▲ or ▼ key to select Delete all and press ENTER. A delete all confirmation window opens. R59770057 CLM HD8 21/01/2008...

  • Page 95: Rename A File

    Note: Digits can be entered with the digit keys on the remote control or on the local keypad. When a digit is entered in that way, the next character will be selected automatically. 8. Press ENTER to finalize the rename action. R59770057 CLM HD8 21/01/2008...

  • Page 96: Copy A File

    Note: Digits can be entered with the digit keys on the remote control or on the local keypad. When a digit is entered in that way, the next character will be selected automatically. 8. Press ENTER to finalize the copy action. Image 9-97 Image 9-98 Image 9-96 R59770057 CLM HD8 21/01/2008...

  • Page 97: File Options

    The current custom settings can be saved to the internal backup device in the same way as it would be done when the projector was switched to standby. How to save 1. Press MENU to activate the menus. R59770057 CLM HD8 21/01/2008...
  • Page 98 3. Use the ▲ or ▼ key to select Save custom settings and press ENTER. The custom settings are written to the internal backup device. A message menu “Save data ...” is displayed during the save operation. Image 9-105 R59770057 CLM HD8 21/01/2008...

  • Page 99: Layout Menu

    When the active layout is a read only layout, the projector will ask to create a new layout. Use the ▲ or ▼ key to select Yes or No and press ENTER. If Yes is selected an Enter layout name window opens. R59770057 CLM HD8 21/01/2008...

  • Page 100: Size Adjustment

    2. Use the ▲ or ▼ key to select Layout and press ENTER. 3. Use the ▲ or ▼ key to select Main Window and press ENTER. The main window opens. 4. Use the ▲ or ▼ key to select Size and press ENTER. R59770057 CLM HD8 21/01/2008...

  • Page 101: How To Adjust Height And Width Separately

    2. Use the ▲ or ▼ key to select Layout and press ENTER. 3. Use the ▲ or ▼ key to select Main Window and press ENTER. The main window opens. 4. Use the ▲ or ▼ key to select Size and press ENTER. R59770057 CLM HD8 21/01/2008...

  • Page 102: Position Adjustment

    Select with the ▲ or ▼ key No, when no save is desired and press ENTER. 10.2.2 Position adjustment What can be done? The main window can be repositioned on the screen. The upper left corner is the reference. R59770057 CLM HD8 21/01/2008...
  • Page 103 Image 10-16 Image 10-15 Image 10-19 Image 10-18 6. Select with the ▲ or ▼ key Save and press ENTER. Select with the ▲ or ▼ key Delete, when no save is desired and press ENTER. R59770057 CLM HD8 21/01/2008...

  • Page 104: Pip Window

    3. Use the ▲ or ▼ key to select PIP Window and press ENTER. The PIP window opens. 4. Use the ▲ or ▼ key to select On or Off and press ENTER to toggle between [On] and [Off]. Image 10-23 Image 10-22 Image 10-21 R59770057 CLM HD8 21/01/2008...

  • Page 105: Picture In Picture Size Of The Window

    2. Use the ▲ or ▼ key to select Window and press ENTER. 3. Use the ▲ or ▼ key to select PIP Window and press ENTER. The main window opens. 4. Use the ▲ or ▼ key to select Size and press ENTER. R59770057 CLM HD8 21/01/2008...

  • Page 106: How To Change The Height And Width Separately

    How to change the height and width separately? 1. Press MENU to activate the menus. 2. Use the ▲ or ▼ key to select Window and press ENTER. 3. Use the ▲ or ▼ key to select PIP Window and press ENTER. R59770057 CLM HD8 21/01/2008...

  • Page 107: Picture In Picture, Position Window

    How to position? 1. Press MENU to activate the menus. 2. Use the ▲ or ▼ key to select Window and press ENTER. 3. Use the ▲ or ▼ key to select PIP Window and press ENTER. R59770057 CLM HD8 21/01/2008...

  • Page 108: Layout File Services

    2. Use the ▲ or ▼ key to select Window and press ENTER. 3. Use the ▲ or ▼ key to select Layout and press ENTER. The layout services window opens. 4. Use the ▲ or ▼ key to select Load and press ENTER. R59770057 CLM HD8 21/01/2008...

  • Page 109: Rename A Layout

    Note: Digits can be entered with the digit keys on the remote control or on the local keypad. When a digit is entered in that way, the next character is selected automatically. 7. Press ENTER to save the new name. R59770057 CLM HD8 21/01/2008...

  • Page 110: Delete A Layout

    2. Use the ▲ or ▼ key to select Window and press ENTER. 3. Use the ▲ or ▼ key to select Layout services and press ENTER. The layout services window opens. 4. Use the ▲ or ▼ key to select Delete and press ENTER. R59770057 CLM HD8 21/01/2008...

  • Page 111: Copy / Save As A Layout

    Note: Digits can be entered with the digit keys on the remote control or on the local keypad. When a digit is entered in that way, the next character is selected automatically. 7. Press ENTER to copy to the new name. The new layout will be added to the list of layouts. R59770057 CLM HD8 21/01/2008...
  • Page 112 10. Layout menu Image 10-55 Image 10-54 Image 10-53 Image 10-56 R59770057 CLM HD8 21/01/2008...

  • Page 113: Lamp Menu

    Normal : maximum allowed power is fed to the lamp(s). Maximum light output is reached in this way. Economic : a reduced wattage is fed to the lamp(s). Reduced light output but a longer life time for the lamp(s). R59770057 CLM HD8 21/01/2008...

  • Page 114: Lamp Power

    4. Use the ▲ or ▼ key to select Power and press ENTER. Note: Only possible when lamp mode is [Normal]. 5. Use the ▲ or ▼ key to change the lamp power. Image 11-6 Image 11-5 Image 11-4 R59770057 CLM HD8 21/01/2008...

  • Page 115: Lamp Identification

    The status is given lamp per lamp. Image 11-9 Image 11-10 Image 11-8 11.5 Status and run time overview lamps Overview 1. Press MENU to activate the menus. 2. Use the ▲ or ▼ key to select Lamp and press ENTER. R59770057 CLM HD8 21/01/2008...

  • Page 116: Lamp Mode

    3. Use the ▲ or ▼ key to select Lamp mode and press ENTER. The Lamp mode selection menu is displayed. 4. Use the ▲ or ▼ key to select the desired lamp mode and press ENTER. Image 11-15 Image 11-16 Image 11-14 R59770057 CLM HD8 21/01/2008...

  • Page 117: Alignment Menu

    12.1 Overview flow Overview Level 1 Level 2 Level 3 Alignment Orientation Front Table Front Ceiling Rear Table Rear Ceiling Lens Zoom/Focus Shift Side keystone Blanking Bottom Left Right Reset Intensity Gamma Internal patterns Checker board Color bars R59770057 CLM HD8 21/01/2008...

  • Page 118: Orientation

    2. Use the ▲ or ▼ key to select Alignment and press ENTER. 3. Use the ▲ or ▼ key to select Orientation and press ENTER. 4. Use the ▲ or ▼ key to select the correct orientation and press ENTER. R59770057 CLM HD8 21/01/2008...

  • Page 119: Lens Adjustment

    3. Use the ▲ or ▼ key to select Lens and press ENTER. The lens adjustment menu is displayed. Image 12-6 Image 12-4 Image 12-5 Zoom/focus the lens 1. Use the ▲ or ▼ key to select Zoom/Focus and press ENTER. R59770057 CLM HD8 21/01/2008...

  • Page 120: Side Keystone

    2. Use the ▲ or ▼ key to select Alignment and press ENTER. 3. Use the ▲ or ▼ key to select Side keystone and press ENTER. The keystone dialog box appears. 4. Use the ◄ or ► key to adjust the keystone of the image. R59770057 CLM HD8 21/01/2008...

  • Page 121: Blanking

    (or noise). A ’0’ on the bar scale indicates no blanking. Which blanking adjustments are available ? • top blanking • bottom blanking • left blanking • right blanking Image 12-15 Blanking Top blanking Bottom blanking Left blanking Right blanking R59770057 CLM HD8 21/01/2008...

  • Page 122: Intensity

    2. Use the ▲ or ▼ key to select Alignment and press ENTER. 3. Use the ▲ or ▼ key to select Optical dimming and press ENTER. The Optical dimming progress bar appears. 4. Use ◄ or ► key to change the optical dimming setting and press EXIT. R59770057 CLM HD8 21/01/2008...

  • Page 123: Gamma

    1. Press MENU to activate the menus. 2. Use the ▲ or ▼ key to select Alignment and press ENTER. 3. Use the ▲ or ▼ key to select Internal patterns and press ENTER. The internal patterns menu is displayed. R59770057 CLM HD8 21/01/2008...

  • Page 124: Color Space

    5. When color space is [On], use the ▲ or ▼ key to select the desired color standard and press ENTER to activate. Use the ► key to view the details or to edit the details when Custom is selected. R59770057 CLM HD8 21/01/2008...

  • Page 125: White Peaking

    2. Use the ▲ or ▼ key to select Alignment and press ENTER. 3. Use the ▲ or ▼ key to select White peaking and press ENTER. 4. Use ◄ or ► key to change the white peaking setting and press EXIT. R59770057 CLM HD8 21/01/2008...

  • Page 126: Scenergix

    Why ScenergiX ? When working in a multichannel setup the CLM HD8 and its Soft Edge possibilities enable an image blending that gives the appear- ance of a single view, thus achieving realistic immersion for the majority of wide screen applications.

  • Page 127: Preparations

    3. Use the ▲ or ▼ key to select ScenergiX and press ENTER. 4. Use the ▲ or ▼ key to select Status and press ENTER to toggle between [On] and [Off]. ScenergiX is active ScenergiX is not active Image 12-39 Image 12-37 Image 12-38 R59770057 CLM HD8 21/01/2008...

  • Page 128: Scenergix Pattern

    Image 12-40 10 50 90 130 170 210 250 290 330 370 Image 12-41 ScenergiX pattern 2. To remove the internal pattern, use the ▲ or ▼ key to select Hide pattern and press ENTER. Image 12-42 R59770057 CLM HD8 21/01/2008...

  • Page 129: Scenergix Overlap Zone (Horizontal Scenergix)

    Horz. active= [(Horz. resolution of 1 projector)/(Total horz. screen resolution)] x (horz. resolution source) 3. Horizontal start remains the same. Adjustment of Active pixels (Pact) of second projector 1. Go to Image –> Timings menu of second projector. R59770057 CLM HD8 21/01/2008...

  • Page 130: Scenergix Overlap Zone (Vertical Scenergix)

    Vertical resolution of 1 projector : 768 for Graphics versions, 1024 for Reality versions, 1050 for SXGA projectors. Total vertical screen resolution : [(Vertical resolution of 1 projector) x 2] minus (overlap) Vertical Resolution source : number of active lines of the source R59770057 CLM HD8 21/01/2008...
  • Page 131 Total vertical screen size : 1486 lines Lact projector 1 = (768 / 1486) x 1200 = 620 lines Lact projector 2 = (768 / 1486/) x 1200 = 620 lines Lstart projector 2 = Lstart projector 1 + (1200 – 620) R59770057 CLM HD8 21/01/2008...

  • Page 132: Scenergix Size Adjustment

    3. Use the ▲ or ▼ key to select ScenergiX and press ENTER. 4. Use the ▲ or ▼ key to select one of the four size adjustments and press ENTER. Image 12-59 Image 12-57 Image 12-58 R59770057 CLM HD8 21/01/2008...
  • Page 133 5. Use the cursor keys to move the border of the overlap area to the desired position (value between 0 and 255). Set first the width for the first projector and repeat for the second one. Image 12-61 Width set up for projector 1 R59770057 CLM HD8 21/01/2008...

  • Page 134: Adjusting The Black Level Of The Images

    4. Use the ▲ or ▼ key to select Black level and press ENTER. Image 12-65 Image 12-63 Image 12-64 5. Adjust the black level of area A until the black level of area A, B and C are equal. R59770057 CLM HD8 21/01/2008...
  • Page 135 12. Alignment menu Image 2 Image 1 Image 12-66 Black level adjustment Use the Reset function to bring all ScenergiX settings back to zero. R59770057 CLM HD8 21/01/2008...
  • Page 136 12. Alignment menu R59770057 CLM HD8 21/01/2008...

  • Page 137: Projector Control

    Baud rate [115200] Interface standard [RS232/RS422] RS422 termination [Off/On] Network DHCP [ON/OFF] IP-address Subnet mask Default gateway IR control IR Front [On/Off] IR Back [On/Off] IR Side [On/Off] DMX address DMX monitor Buttons APA [auto image menu] R59770057 CLM HD8 21/01/2008...

  • Page 138: Projector Address

    6. Use the ◄ or ► key to select the next digit and repeat step 5. 7. When the desired address is entered, press ENTER to store that address. Image 13-3 Image 13-2 Image 13-1 R59770057 CLM HD8 21/01/2008...

  • Page 139: Common Address

    ’0’ or ’1’ with the digit keys on the remote control or local keypad. 6. When the desired address is entered, press ENTER to store that address. Image 13-7 Image 13-6 Image 13-5 Image 13-8 13.3 Serial communication Overview • Baud rate setup • Interface standard • RS422 termination R59770057 CLM HD8 21/01/2008...

  • Page 140: Baud Rate Setup

    3. Use the ▲ or ▼ key to select Serial communication and press ENTER. The serial communication menu opens. 4. Use the ▲ or ▼ key to select Interface standard and press ENTER to toggle between [RS232] or [RS422]. R59770057 CLM HD8 21/01/2008...

  • Page 141: Rs422 Termination

    4. Use the ▲ or ▼ key to select RS422 termination and press ENTER to toggle between [On] or [Off]. Default: [On] Image 13-17 Image 13-16 Image 13-15 13.4 Network Overview • Introduction to a Network connection • DHCP setup • IP-address set up • Subnet-mask set up • Default Gateway set up R59770057 CLM HD8 21/01/2008...

  • Page 142: Introduction To A Network Connection

    2. Use the ▲ or ▼ key to select Projector control and press ENTER. 3. Use the ▲ or ▼ key to select Ethernet and press ENTER. The Ethernet menu opens. 4. Use the ▲ or ▼ key to select DHCP. 5. Press ENTER to toggle the DHCP setting. R59770057 CLM HD8 21/01/2008...

  • Page 143: Ip-Address Set Up

    The next digit in the address will be selected automati- cally. 6. Press EXIT to return. Image 13-23 Image 13-22 Image 13-21 Image 13-24 R59770057 CLM HD8 21/01/2008...

  • Page 144: Subnet-Mask Set Up

    IP-address on the subnet. 5. Use the ▲ or ▼ key to select the desired digit and press ◄ or ► key to select the next digit in the address. R59770057 CLM HD8 21/01/2008...

  • Page 145: Ir Control Switching

    4. Use the ▲ or ▼ key to select the desired IR receiver and press ENTER to toggle this receiver [on] or [off]. Image 13-35 Image 13-34 Image 13-33 Activation key 1. Use the ▲ or ▼ key to select Activation key and press ENTER. R59770057 CLM HD8 21/01/2008...

  • Page 146: Dmx

    6. Use the ◄ or ► key to select the next digit and repeat step 5. 7. When the desired address is entered, press ENTER to store that address. Image 13-40 Image 13-39 Image 13-38 R59770057 CLM HD8 21/01/2008...

  • Page 147: Dmx Monitor

    If channel #6 is brought to 32 or more, this is the same as “motor” forward (as pushing the button on the side panel). It also disables control of channel 7. If channel #7 is brought to 32 or more, this is the same as “motor” reverse (as pushing the button on the side panel). It also disables control of channel 6. R59770057 CLM HD8 21/01/2008...

  • Page 148: Buttons

    2. Use the ▲ or ▼ key to select Projector control and press ENTER. 3. Use the ▲ or ▼ key to select Buttons and press ENTER. 4. Use the ▲ or ▼ key to select APA and press ENTER to toggle between [Align only] and [Auto-image menu]. R59770057 CLM HD8 21/01/2008...

  • Page 149: Shortcut Keys

    5. Use the ▲ or ▼ key to select a shortcut with allocation and press ENTER to remove the allocation. The indication becomes No allocation and the key is free again for a new shortcut association. Image 13-51 Image 13-50 Image 13-49 Image 13-52 R59770057 CLM HD8 21/01/2008...

  • Page 150: Menu Position

    2. Use the ▲ or ▼ key to select Projector control and press ENTER. 3. Use the ▲ or ▼ key to select Local LCD contrast and press ENTER. 4. Use the ▲ or ▼ key to adjust the local contrast. Image 13-58 Image 13-57 Image 13-56 R59770057 CLM HD8 21/01/2008...

  • Page 151: Service Menu

    14. Service menu 14. SERVICE MENU About this chapter This chapter refers to the Service menu in which the owner can find valuable information when calling the Barco help desk. Overview • Overview flow • Identification • Diagnosis • Internal service patterns •...

  • Page 152: Identification

    Use the ◄ or ► key to selected another character. Note: Digits can be entered with the digit keys on the remote control or on the local keypad. When a digit is entered in that way, the next character will be selected automatically. R59770057 CLM HD8 21/01/2008...

  • Page 153: Diagnosis

    2. Use the ▲ or ▼ key to select Service and press ENTER. The service window opens. 3. Use the ▲ or ▼ key to select Diagnosis and press ENTER. The diagnosis screen is displayed. 4. Use the ▲ or ▼ key to select Versions and press ENTER. R59770057 CLM HD8 21/01/2008...

  • Page 154: Voltages

    The service window opens. 3. Use the ▲ or ▼ key to select Diagnosis and press ENTER. The diagnosis screen will be displayed. 4. Use the ▲ or ▼ key to select Voltages and press ENTER. R59770057 CLM HD8 21/01/2008...

  • Page 155: I²C Diagnosis

    2. Use the ▲ or ▼ key to select Service and press ENTER. The service window opens. 3. Use the ▲ or ▼ key to select Diagnosis and press ENTER. The diagnosis screen is displayed. 4. Use the ▲ or ▼ key to select I2C and press ENTER. R59770057 CLM HD8 21/01/2008...

  • Page 156: Temperatures

    The service window opens. 3. Use the ▲ or ▼ key to select Diagnosis and press ENTER. The diagnosis screen will be displayed. 4. Use the ▲ or ▼ key to select Temperatures and press ENTER. R59770057 CLM HD8 21/01/2008...

  • Page 157: Fan Speeds Overview

    The service window opens. 3. Use the ▲ or ▼ key to select Diagnosis and press ENTER. The diagnosis screen will be displayed. 4. Use the ▲ or ▼ key to select Fan speeds and press ENTER. R59770057 CLM HD8 21/01/2008...

  • Page 158: Error Logging Overview

    The service window opens. 3. Use the ▲ or ▼ key to select Diagnosis and press ENTER. The diagnosis screen will be displayed. 4. Use the ▲ or ▼ key to select Error logging and press ENTER. R59770057 CLM HD8 21/01/2008...

  • Page 159: Internal Service Patterns

    All settings of the projector will be set to the original factory settings. All user settings are erased with this operation. How to return to the default settings 1. Press MENU to activate the menus. 2. Use the ▲ or ▼ key to select Service and press ENTER. The service window opens. R59770057 CLM HD8 21/01/2008...

  • Page 160: Save Custom Settings

    The custom settings are written to the internal backup device. A message menu “Save data ...” is displayed during the save operation. Image 14-38 Image 14-37 14.7 Refill mode Before selecting Refill mode, take first all preparations necessary to refill the cooling circuit. R59770057 CLM HD8 21/01/2008...

  • Page 161: Over Temperature Dmd Safety

    2. Use the ▲ or ▼ key to select Service and press ENTER. 3. Use the ▲ or ▼ key to select Safety and press ENTER. 4. Use the ▲ or ▼ key to select Overtemp DMD and press ENTER to toggle between [On] and [Off]. R59770057 CLM HD8 21/01/2008...
  • Page 162 60 and 64 °C the projector continues in normal operation but the warning is set on the LCD display. Once the temperature is higher then 64 °C, then the projector is switched to standby. Image 14-44 Image 14-43 Image 14-42 R59770057 CLM HD8 21/01/2008...

  • Page 163: Maintenance

    1. Switch off the projector and unplug the power cord at the projector side. 2. Clean the housing of the projector with a damp cloth. Stubborn stains may be removed with a cloth lightly dampened with a mild detergent solution. R59770057 CLM HD8 21/01/2008...
  • Page 164 15. Maintenance R59770057 CLM HD8 21/01/2008...

  • Page 165: Servicing

    • Inserting an input module AUTION All HEPA filters of the CLM HD8 projector must be replaced on a regular basis, depending on the environment conditions of the projector. 16.1 Replacement of the dust filter on the top side All dust filters in the projector are identical.

  • Page 166: Replacement Of The Dust Filters On The Front Side

    3. Remove the HEPA filter on the front side by pulling the spring clamp (A) on the upper side away from the filter and then pivot the filter a little ( B) and take it out (C). R59770057 CLM HD8 21/01/2008...

  • Page 167: Lens Installation

    1. Remove the front cover of the projector. See "Removal of the front cover", page 171. 2. Remove the foam rubber in the opening of the lens holder if not yet removed. 3. Place the lock handle A is in its right position (table mounted projector). R59770057 CLM HD8 21/01/2008...

  • Page 168: Lens Removal

    2. Support the lens with one hand and push the lens lock handle to the right. Image 16-4 Lens removal 3. Pull out the lens backward until the jack connection is open (A). Slide the lens out of the lens holder. R59770057 CLM HD8 21/01/2008...

  • Page 169: Removal Of A Lamp Unit

    Each lamp position has a number. That number is also used in the software to identify the parameters of the corresponding lamp. Lamp 2 Lamp 1 Lamp 4 Lamp 3 Image 16-6 Lamp position When servicing a projector with exploded lamp Keep the following warning in mind when servicing a projector with exploded lamp. R59770057 CLM HD8 21/01/2008...
  • Page 170 2. Remove the lamp door, see "Removal of the lamp door", page 172. 3. Unplug the cable of the lamp which must be removed. Image 16-7 4. Pull up the fixation handle and rotate it fully upwards. Image 16-8 Lamp removal 5. Clasp the lamp and pull upwards. R59770057 CLM HD8 21/01/2008...

  • Page 171: Mounting A New Lamp Unit

    Never touch the UV filter when a lamp is removed. Necessary tools No tools. How to insert a lamp unit 1. Insert the lamp vertically into the housing, with the front of the lamp facing the middle of the projector. R59770057 CLM HD8 21/01/2008...

  • Page 172: Removal Of An Input Module

    1. Switch off the projector and unplug the power cord at the projector side. 2. Release the two captive screws of the input module. Image 16-11 Input module removal 3. Pull out the input module via the two provided knobs. R59770057 CLM HD8 21/01/2008...

  • Page 173: Inserting An Input Module

    3. Push the input module forward until you feel that the connector of the input module fit in the socket of the input slot. The back of the front plate of the module must touch the front plate of the input unit. 4. Secure the input module by fastening both captive screws in the top corners of the module. R59770057 CLM HD8 21/01/2008...
  • Page 174 16. Servicing R59770057 CLM HD8 21/01/2008...

  • Page 175: Projector Covers, Removal And Installation

    (b) b) In that slightly pivoted position, pull the cover downwards to release it from the top cover (c) R59770057 CLM HD8 21/01/2008...

  • Page 176: Removal Of The Lamp Door

    1. Release the captive screw at the middle upper side of the side cover on the input side. Image 17-3 Release captive screw 2. Take the lamp door with both hands, one on each side, and pull it upward until the cover comes free from its 4 locks. R59770057 CLM HD8 21/01/2008...

  • Page 177: Installation Of The

    2. Pull the bottom side of the front cover toward the projector (B). The sides of the front cover overlap the sides of the side covers. 3. Fasten the captive screw at the middle bottom of the front cover (C). R59770057 CLM HD8 21/01/2008...

  • Page 178: Installation Of The Lamp Door

    1. Place the lamp door with its pins (B) on its sockets (A) and push on it until clicks Image 17-7 Lamp door installation 2. Fasten the captive screw at the middle upper side of the side cover on the input side. Image 17-8 Secure the lamp door R59770057 CLM HD8 21/01/2008...

  • Page 179: Dimensions

    A. Dimensions A. DIMENSIONS Overview • Dimensions of the CLM HD8 A.1 Dimensions of the CLM HD8 Dimensions without carry handle 691.18 Image A-1 Dimensions R59770057 CLM HD8 21/01/2008...
  • Page 180 A. Dimensions Dimensions with optional carry handle 145.5 97.5 Image A-2 R59770057 CLM HD8 21/01/2008...

  • Page 181: Standard Source Files

    4. Fpix MHz: pixel frequency 5. Ptot : total pixels on one horizontal line. 6. Pact: active pixels on one horizontal line. 7. Ltot: total lines in one field 8. Lact: active lines in one field. R59770057 CLM HD8 21/01/2008...
  • Page 182 1125 1080 hd-1920x1080@60p 60,011 67,513 148,528 2200 1920 1125 1080 62,437 15,734 13,500 VIDEO525 59,940 31,468 27,000 VIDEO525p VIDEO625 50,080 15,625 13,500 VIDEO625p 50,080 31,250 27,000 no-signal 100,00 20,000 8,000 no-signal-i 100,00 20,000 8,000 Table B-1 R59770057 CLM HD8 21/01/2008...

  • Page 183: Specifications

    • Specifications CLM 5 cable input (multi purpose) • Specifications CLM HDSDI – SDI input • Specifications CLM DVI input C.1 Specifications CLM HD8 Overview Light Output 8.000 Ansi / 8500 Center Lumen Resolution 1920 x 1080 (full HD) Contrast ratio...

  • Page 184: Specifications Clm 5 Cable Input (Multi Purpose)

    Electromagnetic Interference Complies with FCC rules & regulations, part 15 Class A and CE EN55022 Class A C.2 Specifications CLM 5 cable input (multi purpose) Front view 5 cable input 5-CABLE INPUT SYCN OK G/Y/VIDEO Image C-1 R59770057 CLM HD8 21/01/2008...
  • Page 185 G(s) : 1Vpp ±3dB (0,7Vpp G + 0,3Vpp Sync) 75 Ohm termination. B : 0,7Vpp ±3dB 75 Ohm termination. • Diagnostic LED’s on front panel: Green LED: Lights up in case input module is selected Yellow LED: Lights up in case sync detected R59770057 CLM HD8 21/01/2008...

  • Page 186: Specifications Clm Hdsdi - Sdi Input

    1920x1035/59.94/2:1/ (SMPTE 260M) 1920x1080/60/2:1/ (SMPTE 274M) 1920x1080/59.94/2:1/ (SMPTE 274M) 1920x1080/50/2:1/ (SMPTE 274M) 1920/1080/50/2:1 (1250)/ (SMPTE 295M) 1920x1080/24/Segmented/ (SMPTE 274M) 1920x1080//23.98/Segmented/ (SMPTE 274M) C.4 Specifications CLM DVI input Input front view DVI input Sync OK Image C-3 R59770057 CLM HD8 21/01/2008...
  • Page 187 Cable lengths: up to 3 meter at UXGA speed. • Compliance: DDC2B support according to VESA EDID Version 1.2 • Diagnostic LED’s on front panel: Green LED: Lights up in case input module is selected Yellow LED: Lights up in case sync detected R59770057 CLM HD8 21/01/2008...
  • Page 188 C. Specifications R59770057 CLM HD8 21/01/2008...

  • Page 189: Troubleshooting

    Call a qualified service engineer init failed ctrl 1695 Formatter no communication with formatter Call a qualified service engineer start failed 1693 1692 1691 1694 Formatter formatter ’Power Good’ signal not Call a qualified service engineer PWGGood R59770057 CLM HD8 21/01/2008...
  • Page 190 Ambient temperature out of take measurements to increase the temperature specifications 7996 Ambient temp check ambient conditions Ambient temperature out of high specifications check if air slots are free, clean air filter. 7995 TEC temp low R59770057 CLM HD8 21/01/2008...
  • Page 191 If problem persists, call a qualified service engineer 7919 Fan outlet A high 7918 Fan outlet B Fan is running too slow or not at all If problem persists, call a qualified service engineer 7917 Fan outlet B high R59770057 CLM HD8 21/01/2008...
  • Page 192 If problem persists, call a qualified service engineer 7895 Fan prism high 7894 Fan color Fan is running too slow or not at all If problem persists, call a qualified wheel low service engineer 7893 Fan color wheel high R59770057 CLM HD8 21/01/2008...
  • Page 193 7863 Lamp 1 run The maximum run time for the Replace the lamp with a new one. time max lamp is exceeded Call a qualified service engineer exceeded 7862 Lamp 1 run time shtdwn exceeded R59770057 CLM HD8 21/01/2008...
  • Page 194 FCB mode 7499 FCB time out 7498 FCB I2C 7497 parameters 7496 monitoring 8000 Opening If problem persists, call a qualified shutter failed service engineer 8001 Closing If problem persists, call a qualified shutter failed service engineer R59770057 CLM HD8 21/01/2008...
  • Page 195 OSD memory Call a qualified service engineer 27996 OSD out of Call a qualified service engineer range 27995 OSD out of Call a qualified service engineer pos. 27994 OSD fifo full Call a qualified service engineer R59770057 CLM HD8 21/01/2008...
  • Page 196 D. Troubleshooting R59770057 CLM HD8 21/01/2008...

  • Page 197: Mounting Optional Carry Handle

    Mounting the stacking points 2. Place a stacking point (A) in each hole. 3. For the front stacking points, turn in for each a long bolt (B). For the back stacking point, turn in a short bolt (C). R59770057 CLM HD8 21/01/2008...

  • Page 198: Preparing The New Carry Handle

    How to remove the stacking point construction 1. Turn out the 4 bolts, 2 on each side. Be aware that there is a nut for each bolt on the inside of the carry handle. Image E-3 Remove stacking point construction R59770057 CLM HD8 21/01/2008...

  • Page 199: Preparing The Projector

    4. Place a washer on it and insert a bolt. Secure the bolt. Due to its construction, the support is still a bit movable. Image E-5 Insert extra foot 5. Insert the small ring into the hole of the removed foot. R59770057 CLM HD8 21/01/2008...

  • Page 200: Mounting The Carry Handle

    Note: If both front holes are not completely free, turn on the skew adjustment (C) at the right side of the carry handle until the holes are free. 4. Place the removed stacking point construction back on its place and secure the 4 bolts and nuts. The nuts must be mounted on the inside of the carry handle. R59770057 CLM HD8 21/01/2008...
  • Page 201 E. Mounting optional Carry handle Image E-7 Mounting stacking foot R59770057 CLM HD8 21/01/2008...
  • Page 202 E. Mounting optional Carry handle R59770057 CLM HD8 21/01/2008...

  • Page 203: Order Info

    CLM lamp kit, four lamps R9861000 Optional rigging kit for CLM + rugged remote control R9861010 CLM flight case R764988 CLM remote control unit R9849870 CLD (1.2-1.6:1) zoom lens R9861080 CLD (1.6-2.4:1)[ zoom lens R9849890 CLD (2.4-4.3:1) zoom lens R59770057 CLM HD8 21/01/2008...
  • Page 204 F. Order info R59770057 CLM HD8 21/01/2008...

  • Page 205: Glossary

    Internet Protocol. The network layer of TCP/IP. Required for communication with the internet. MAC address Media Access Control address. Unique hardware number, used in combination with the IP-address to connect to the network (LAN or WAN). R59770057 CLM HD8 21/01/2008...
  • Page 206 2 lines is < - 0.2V that equals with a logical ’0’. When the difference is > +0.2V that equals to a logical ’1’.. Subnet mask A number that is used to identify a subnetwork so that IP addresses can be shared on a local area network. R59770057 CLM HD8 21/01/2008...

  • Page 207: Index

    Gamma Color saturation Genera Color space General 12–14, 17 Color standard Air inlets Color temperature 76–77 Air outlets Custom values Box content Predefined values Download plug-in Communication 39–41 Download Projector Toolset Ethernet Projector configurations IR communication R59770057 CLM HD8 21/01/2008...
  • Page 208 Lamp mode Copy file Lamp power mode Delete file Lamp run time overview File manipulations Lamp status overview File options Lamp unit 165, 167 Files Mounting Rename file Removal Save custom settings Language Infra red Selection R59770057 CLM HD8 21/01/2008...
  • Page 209 Removal Shutdown retarding time Lamp door 172, 174 Noise reduction Installation Notice on safety Removal Projector status Off-Axis On screen menus Quick language On-Axis Selection Order info Quick set up 48–50 Spare part Lens 48–49 Orientations R59770057 CLM HD8 21/01/2008...
  • Page 210 147–156 Diagnosis 149, 151–153 Versions Fan speeds Start up Start up 149, 151 Voltages Temperatures Start up Error logging Start up Identification Internal service patterns Warnings Overview flow Cooling liquid circuit Refill mode Mercury vapor warnings R59770057 CLM HD8 21/01/2008...
  • Page 211 Index Ultraviolet radiation Window UV radiation PIP window White peaking R59770057 CLM HD8 21/01/2008...
  • Page 212 Index R59770057 CLM HD8 21/01/2008...
  • Page 213 Revision Sheet Barco nv Events/Documentation Noordlaan 5, B-8520 Kuurne Phone: +32 56.36.89.70, Fax: +32 56.36.88.24 E-mail: service.mne@barco.com, Web: www.barco.com From: Date: Please correct the following points in this documentation (R59770057/02): page wrong correct R59770057 CLM HD8 21/01/2008...

Table of Contents
