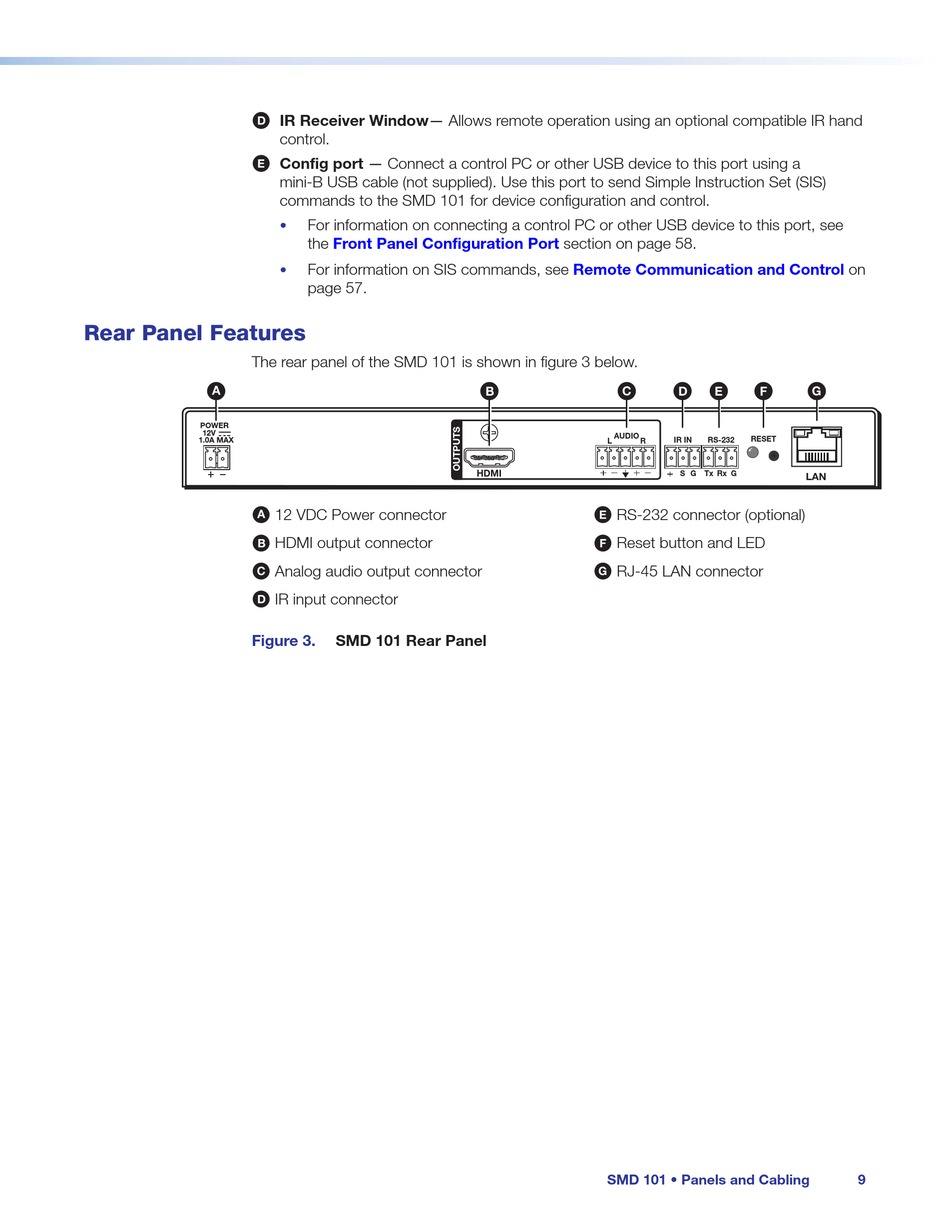

Rear Panel Features
The rear panel of the SMD 101 is shown in figure 3 below.
A A
POWER
12V
1.0A MAX
A
B
C
D
Figure 3.
IR Receiver Window— Allows remote operation using an optional compatible IR hand
control.
Config port — Connect a control PC or other USB device to this port using a
mini-B USB cable (not supplied). Use this port to send Simple Instruction Set (SIS)
commands to the SMD 101 for device configuration and control.
For information on connecting a control PC or other USB device to this port, see
•
the
Front Panel Configuration Port
For information on SIS commands, see
•
page 57.
12 VDC Power connector
HDMI output connector
Analog audio output connector
IR input connector
SMD 101 Rear Panel
section on page 58.
Remote Communication and Control
B B
C C
AUDIO
L
R
HDMI
RS-232 connector (optional)
E
Reset button and LED
F
RJ-45 LAN connector
G
SMD 101 • Panels and Cabling
on
D D E E
F F
G G
RESET
IR IN
RS-232
S G
Tx Rx G
LAN
9
