Rear panel features

100-240 50/60 Hz 0.5A
1
100-240 50/60 Hz 0.5A
1
www.camboard.de
CAMBOARD Electronics
INPUT/LOOP OUT
MAC VGA
VIDEO
2 4 5
3

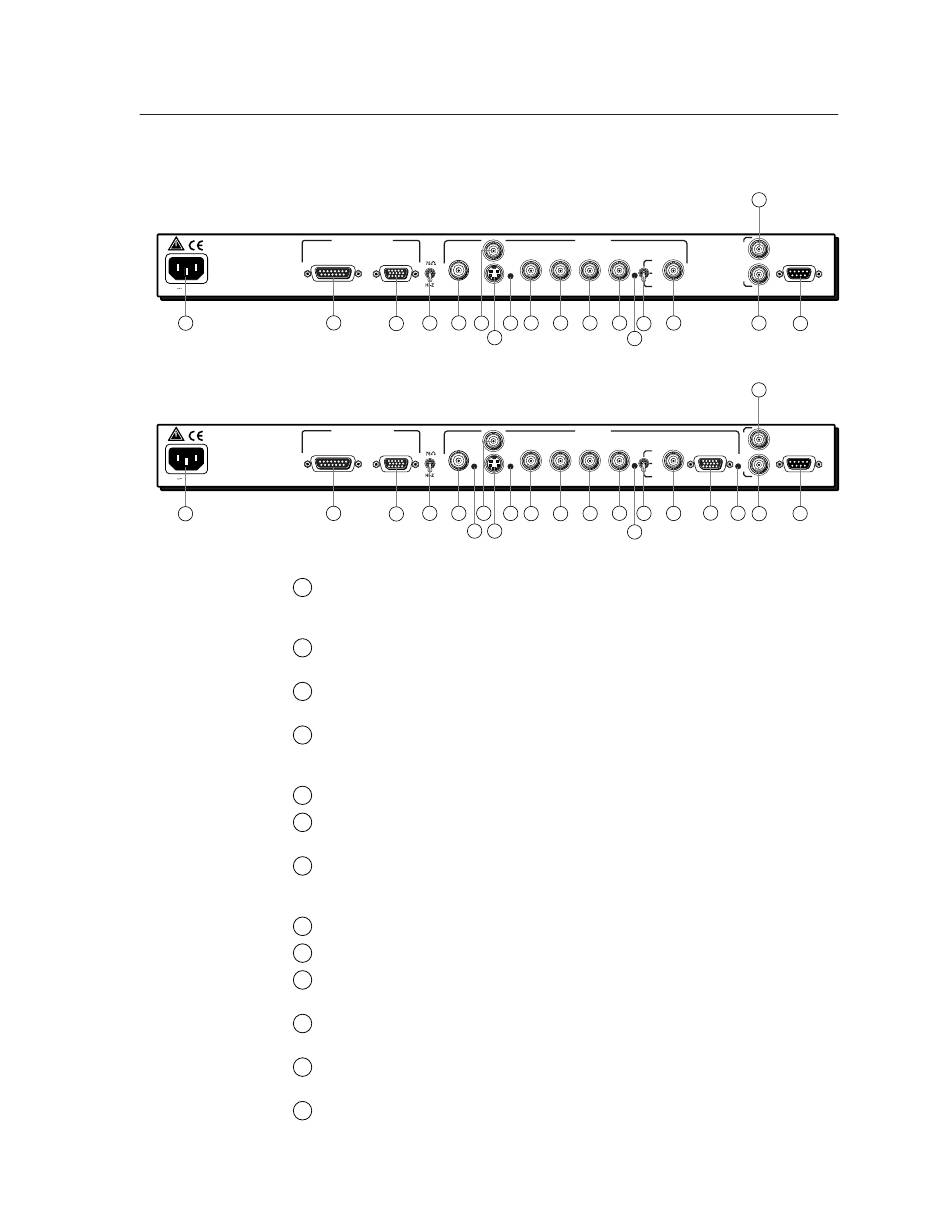

Figure 3 — VSC 200/200D rear panel
INPUT/LOOP OUT
VGA
MAC VIDEO
4 5
2 3
Figure 4 — VSC 300/300D rear panel
AC power connector — Standard AC power connector attaches the scan
1
converter to any power source from 100VAC to 240VAC, operating at 50 Hz or
60 Hz.
15-pin D connector — Mac input/loop out (loop through) computer video
2
connector.
15-pin HD connector — VGA input/loop out (loop through) computer video
3
connector.
75 ohm/Hi-Z switch — Provides termination for computer video input. Set
4
the switch to 75Ω Ω Ω Ω Ω if no local monitor is attached to the scan converter. Set the
switch to Hi-Z if a local monitor is attached.
Composite video output connector
5
Composite video LED (VSC 300/300D only) — Lights to indicate that the
6
composite video output is active.
Digital video output (ITU-R BT.601) connector (VSC 200D/300D only) —
7
Follows composite video out: If composite video is active, digital video is
active.
S-video output connector
8
S-video LED — Lights to indicate that the S-video output is active.
9
R/R-Y output connector — Red video output (RGB) or R-Y video output
10
(component video).
G/Y output connector — Green video output (RGB) or Y video output
11
(component video).
B/B-Y output connector — Blue video output (RGB) or B-Y video output
12
(component video).
H/HV output connector — Horizontal sync output (RGBHV) or composite
13
sync output (RGBS).
