Advanced Configuration Page

The Advanced Configuration page provides options that are not frequently changed.
The page is is always available, but options are dimmed depending on the current user
privileges. It provides initial setup and administrator level configuration.
Figure 30.

Connection

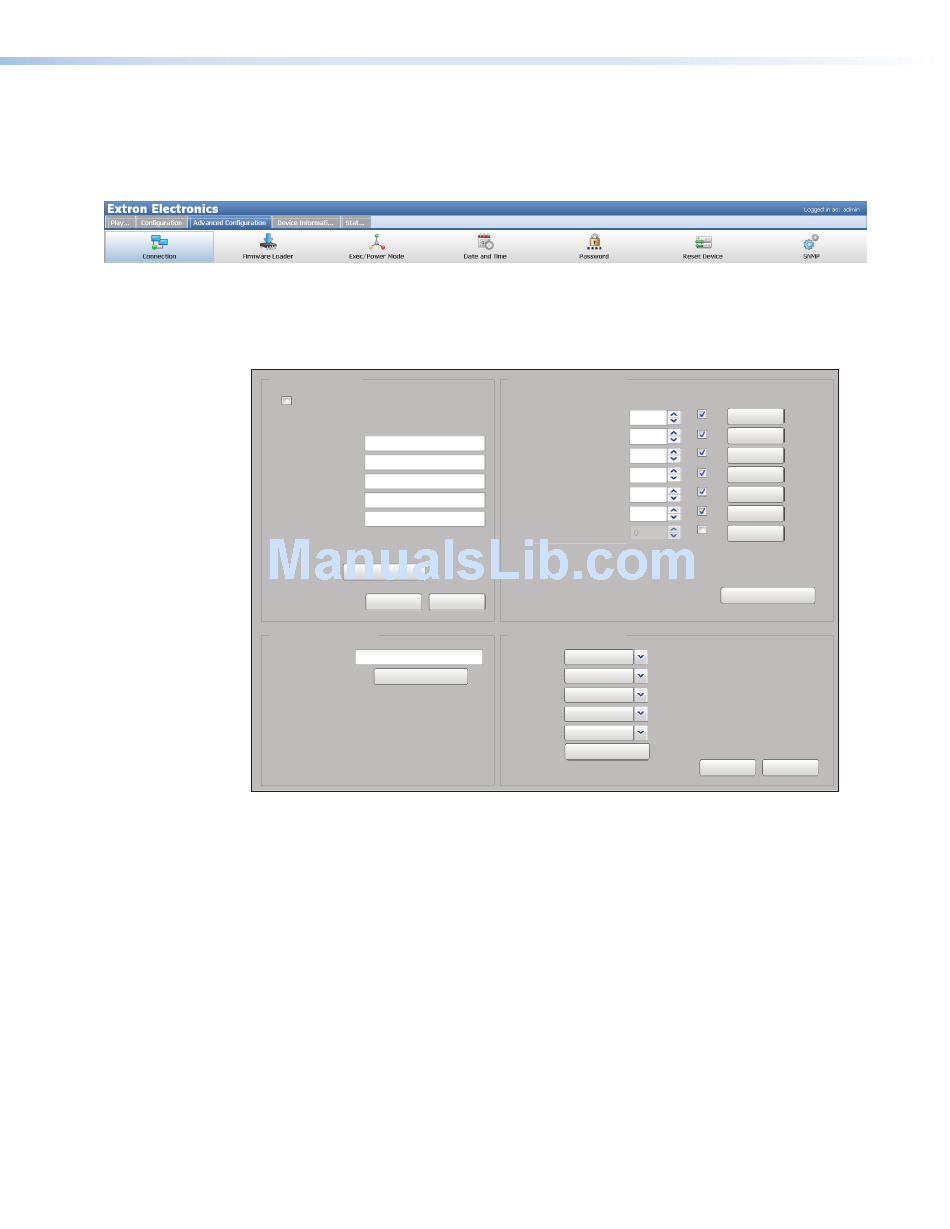

The Connection Settings page allows configuration of parameters related to the LAN
(Ethernet) and serial ports.
Figure 31.
Ethernet Settings panel
This panel provides basic ethernet configuration including:
•
•
•
•
•
•
•
Advanced Configuration Ribbon
Ethernet Settings
Use DHCP
(Obtain IP address automatically)
IP Address:
10.13.193.168
Subnet Mask:
255.255.0.0
Default Gateway: 10.13.0.100
DNS Server: 10.1.0.7
Host Name:
SMD-101-0A-12-73
Link Local: 169.254.4.247
MAC Address: 00-05-A6-0A-12-73
Reset to Default
Save Cancel
Ethernet Diagnostics
Address to ping:
Ping
Connection Settings Page
— Click the checkbox to enable DHCP. The IP Address, Subnet Mask,
Use DHCP
Default Gateway, and DNS Server fields dim.
— Under DHCP control, this field displays the assigned IP address.
IP Address:
Otherwise, enter a static IP address here.
— Under DHCP control, this field displays the assigned Subnet Mask.
Subnet Mask:
Otherwise, enter a mask here.
— Under DHCP control, this field displays the assigned default
Default Gateway:
gateway address. Otherwise, enter the default gateway address here.
— Under DHCP control, this field displays the assigned DNS Server
DNS Server:
address.
— Enter a name for the device here. The name assists identification.
Host Name:
— An IP address automatically negotiated by the SMD 101 when not
Link Local:
assigned a static IP address and DHCP is disabled, or when DHCP is enabled but a
DHCP server is not found.
Network Port Mapping
Port Enable
22022
SFTP:
SIS (SSH): 22023
Telnet (Extron SIS): 23
HTTP: 80
SNMP: 161
HTTPS/SSL: 443
Serial Pass-through:
Serial RS-232 Settings
Mode:
SIS
Baud Rate: 9600
Stop Bits: 1
Bits: 8
Parity: None
Reset to Default
SMD 101 • Web-based User Interface
Reset
Reset
Reset
Reset
Reset
Reset
Reset
Reset to Default
Save Cancel
