Quantum Ultra Series • Setup Guide

Rear Panel Features and Connections

Quantum Ultra 610
QUANTUM ULTRA 610
A A A
B B B
POWER
DISCONNECT POWER
CORD BEFORE
SERVICING
C C C
Primary AC power connector
A
Redundant power connector (Quantum Ultra and Ultra II 610 only)
B
Power switch
C
HDMI Out system output connector
D
USB system connectors
E

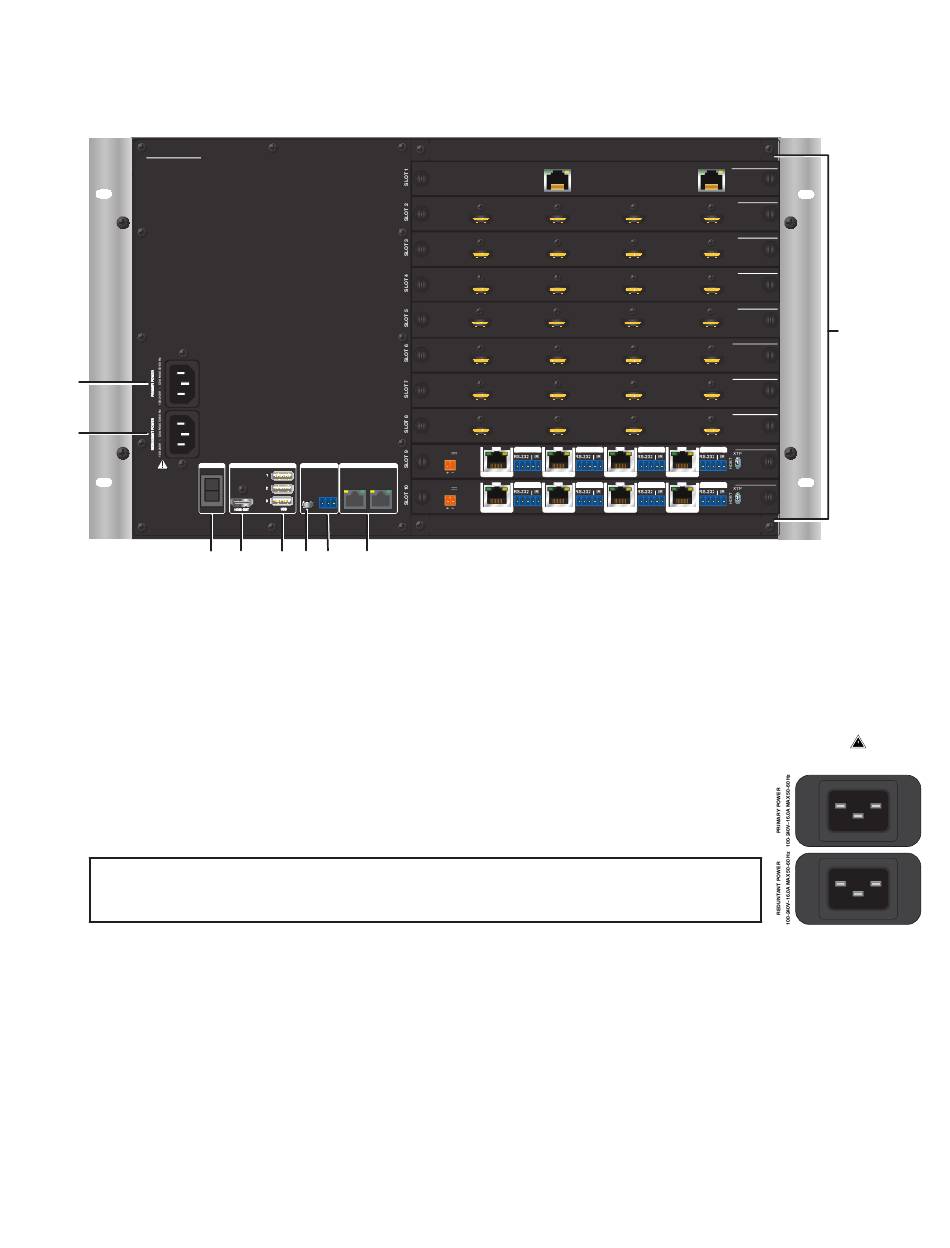

Figure 1. Quantum Ultra 610 Rear Panel
Primary AC power connector — Connect AC power to this IEC connector for the primary power
A
supply.
Redundant power connector (Quantum Ultra 610 and Ultra II 610 only) — (Optional)
B
Connect a second AC power source to this IEC connector for the secondary power supply to
provide uninterrupted operation in the event of failure of the primary supply.
NOTE:
The Quantum Ultra II 610 has IEC C20 power connectors (shown at right), while the
Quantum Ultra and Quantum Ultra II 305 models have standard US IEC connectors. The
Quantum Ultra II requires an IEC C19 power cord to connect AC power.
For Quantum Ultra II 610 only:
• North America — Connect the equipment to a 100-240 VAC, 50-60 Hz, 20 A protected power source using a power
supply cord with a C19 coupler and either a NEMA 5-20 plug (125 V) or NEMA 6-20 plug (250 V).
• Other regions — Connect the equipment to a 200-240 VAC, 50-60 Hz power source using a power supply cord with a
C19 coupler and a plug configuration of 7 A minimum.
Power switch — Press this momentary rocker switch to power the unit off and on.
C
•
If the unit is off, momentarily pressing this switch powers it on.
•
If the unit is on, pressing and holding this switch for approximately 5 seconds powers it down.
• If the unit is logged into the Quantum Ultra Series device operating system, a momentary press of this switch powers off
the device.
HDMI Out system output connector — (Optional) Connect an HDMI monitor to this female HDMI connector to view activity
D
and interactions with the embedded operating system.
SYSTEM REMOTE LAN
A B
RS-232
CONFIG
Tx Rx G
D D D E E E F F F G G G H H H
INPUTS
LAN A
INPUTS
1 2
INPUTS
1 2
INPUTS
1 2
INPUTS
INPUTS
1 2
1 2
OUTPUTS
1 2
OUTPUTS
1 2
OUTPUTS
1 2
OUTPUTS
DTP POWER SIG LINK SIG LINK
OVER TP OVER TP
12V
4A MAX
Tx Rx G Tx Rx Tx Rx G Tx
OUT 1 OUT 2
OUTPUTS
SIG LINK SIG LINK
DTP POWER OVER TP OVER TP
12V
4A MAX
Tx Rx G Tx Rx Tx Rx G Tx
OUT 1 OUT 2
F
G
H
I

Product Category

QUANTUM IN SMD 100
LAN B
QUANTUM IN4HDMI
3 4
QUANTUM IN4HDMI
3 4
QUANTUM IN4HDMI
3 4
QUANTUM IN4HDMI
QUANTUM IN4HDMI
3 4
3 4
QUANTUM OUT4HDMI
3 4
QUANTUM OUT4HDMI
3 4
QUANTUM OUT4HDMI
3 4
QUANTUM OUT4DTP
SIG LINK SIG LINK
OVER TP OVER TP
DTP
Rx Tx Rx G Tx Rx Tx Rx G Tx Rx
OUT 3 OUT 4
QUANTUM OUT4DTP
SIG LINK SIG LINK
OVER TP OVER TP
Rx Tx Rx G Tx Rx Tx Rx G Tx Rx DTP
OUT 3 OUT 4
USB Config control connector
RS-232 control connector
LAN connectors A and B
Input and output card slots
I I I
DISCONNECT POWER
CORD BEFORE
SERVICING
3
