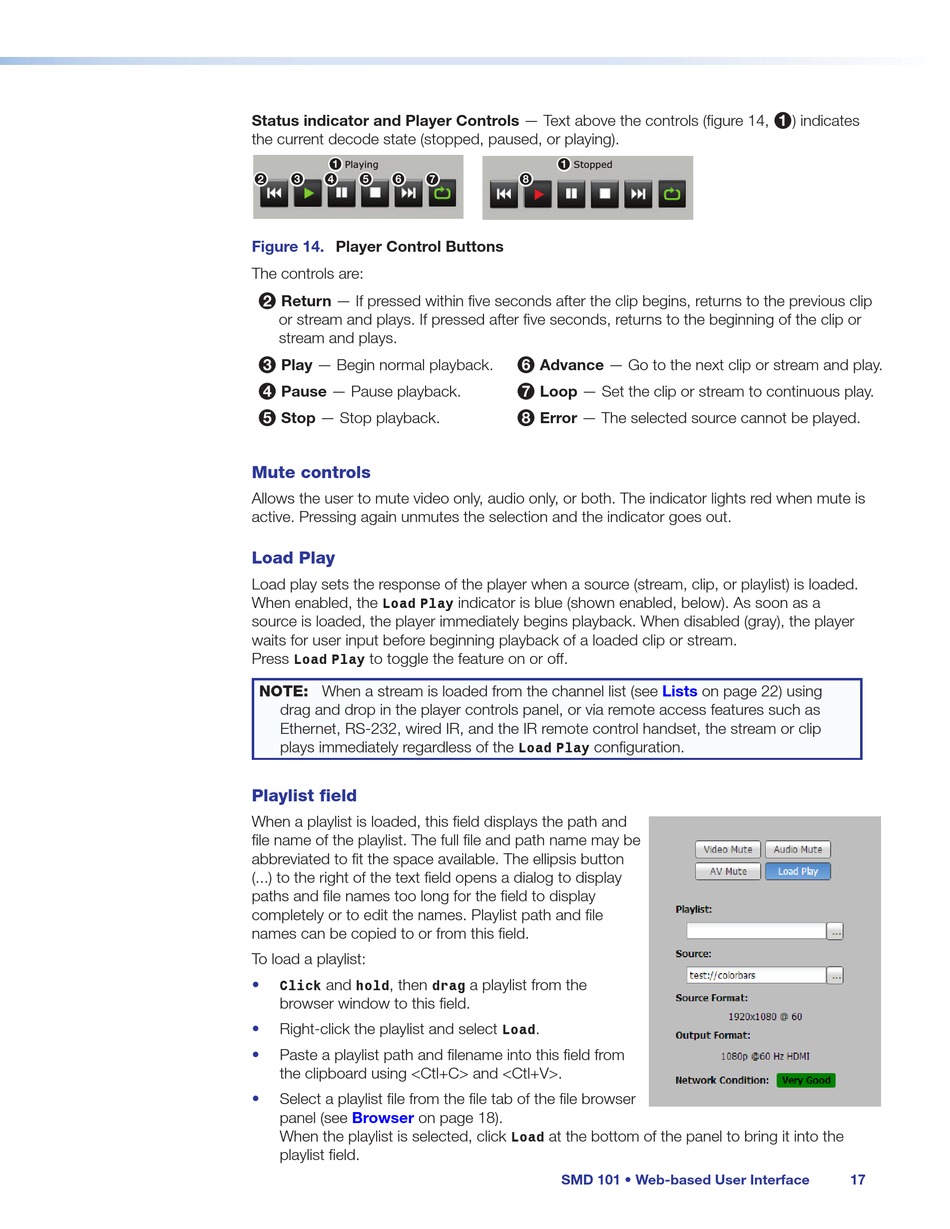

Status indicator and Player Controls — Text above the controls (figure 14,
the current decode state (stopped, paused, or playing).
Playing
1
1
2
2
3
3
4
4
5
5
6
6
7
7
Figure 14.
Player Control Buttons
The controls are:
Return — If pressed within five seconds after the clip begins, returns to the previous clip
2
or stream and plays. If pressed after five seconds, returns to the beginning of the clip or
stream and plays.
Play — Begin normal playback.
3
Pause — Pause playback.
4
Stop — Stop playback.
5
Mute controls
Allows the user to mute video only, audio only, or both. The indicator lights red when mute is
active. Pressing again unmutes the selection and the indicator goes out.
Load Play
Load play sets the response of the player when a source (stream, clip, or playlist) is loaded.
When enabled, the
Load Play
source is loaded, the player immediately begins playback. When disabled (gray), the player
waits for user input before beginning playback of a loaded clip or stream.
Press
to toggle the feature on or off.
Load Play
NOTE: When a stream is loaded from the channel list (see
drag and drop in the player controls panel, or via remote access features such as
Ethernet, RS-232, wired IR, and the IR remote control handset, the stream or clip
plays immediately regardless of the
Playlist field
When a playlist is loaded, this field displays the path and
file name of the playlist. The full file and path name may be
abbreviated to fit the space available. The ellipsis button
(...) to the right of the text field opens a dialog to display
paths and file names too long for the field to display
completely or to edit the names. Playlist path and file
names can be copied to or from this field.
To load a playlist:
•
and
, then
Click
hold
browser window to this field.
•
Right-click the playlist and select
Paste a playlist path and filename into this field from
•
the clipboard using <Ctl+C> and <Ctl+V>.
•
Select a playlist file from the file tab of the file browser
panel (see
Browser
on page 18).
When the playlist is selected, click
playlist field.
Stopped
1
1
8
8
Advance — Go to the next clip or stream and play.
6
Loop — Set the clip or stream to continuous play.
7
Error — The selected source cannot be played.
8
indicator is blue (shown enabled, below). As soon as a
configuration.
Load Play
a playlist from the
drag
.
Load
at the bottom of the panel to bring it into the
Load
SMD 101 • Web-based User Interface
) indicates
1
Lists
on page 22) using
17
