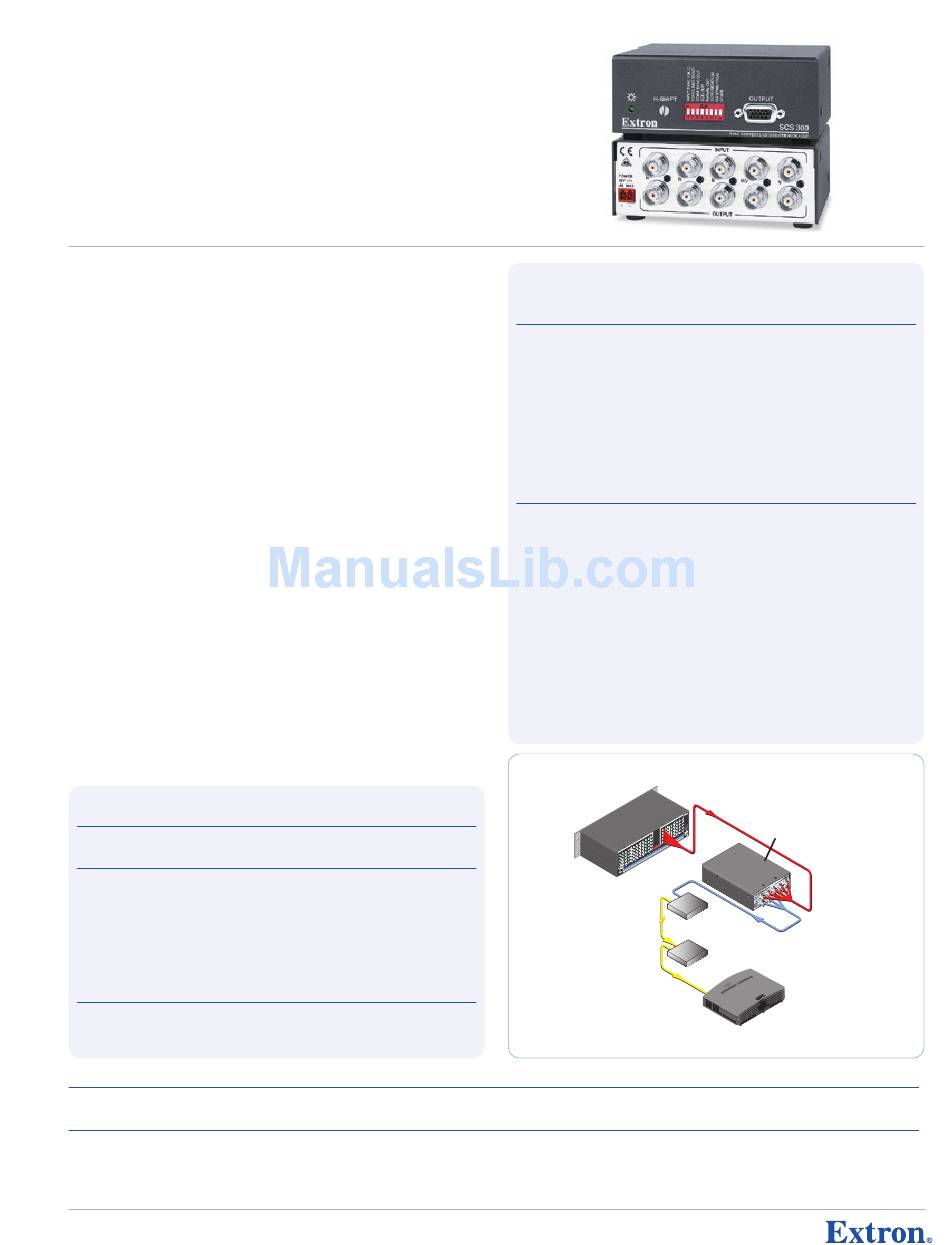

Extron electronics Sync Converter/Stabilizer SCS 300 Specification Sheet

SCS 300
Sync Converter & Stabilizer

FeatUres

• Stabilizes and converts sync for all common high resolution formats
• Input: RGBHV, RGBS, RGsB, and RsGsBs on BNCs
• Outputs: RGBHV, RGBS, RGsB, and RsGsBs on BNCs and 15-pin HD
• Universal sync conversion — Converts any RGB sync format to any other desired
output format for compatibility with three, four, or five-wire RGB system designs.
• Selectable sync-on-all output — Provides the capability to output RGB with sync on
all video signals – RsGsBs – from any RGB sync input format.
• Horizontal shift control — Shifts the displayed image left or right on the display
screen, so that images can be properly centered.
• Dual RGB video outputs — Simultaneously outputs RGB video on five-BNC and
15-pin HD connectors for ease of installation in rack-mount applications or at
the display.
• ADSP - Advanced Digital Sync Processing technology
™
• Rack-mountable 1U, quarter rack width metal enclosure
• External universal power supply included, part # 70-055-01

descriPtion

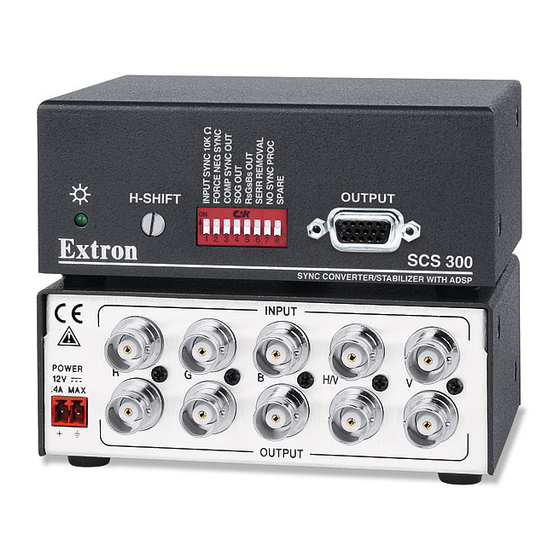

The Extron SCS 300 combines sync conversion and sync stabilization in a single, compact
enclosure. It provides sync conversion between all common high resolution sync formats –
RGBHV, RGBS, RGsB, and RsGsBs. Horizontal shift control enables precise centering of images
on-screen. For ease of installation, the SCS 300 features front and rear panel video outputs to
support both rack-mount and at-the-display applications.
The SCS 300 also features Extron ADSP
™
for poor quality or weak sync signals from PC graphics cards, or signal losses due to long cable
runs. ADSP re-establishes the timing relationship between sync and video signals, and restores
the sync voltage level and waveform to ensure robust, stable image reproduction.

sPeciFications

video
Gain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Unity
Bandwidth . . . . . . . . . . . . . . . . . . . . . . . . 300 MHz (-3 dB)

video inPUt

Number/signal type . . . . . . . . . . . . . 1 analog RGBHV, RGBS, RGsB, RsGsBs
Connectors . . . . . . . . . . . . . . . . . . . . . . . 5 female BNC
Nominal level . . . . . . . . . . . . . . . . . . . . 0.7 Vp-p for RGB
Minimum/maximum levels . . . . Analog: 0.3 V to 1.5 Vp-p with no offset
Impedance . . . . . . . . . . . . . . . . . . . . . . . . 75 ohms
Horizontal frequency. . . . . . . . . . . . 24 kHz to 130 kHz
Vertical frequency . . . . . . . . . . . . . . . 40 Hz to 120 Hz
Return loss . . . . . . . . . . . . . . . . . . . . . . . <-30 dB @ 5 MHz
DC offset (max. allowable). . . . . 4.0 V
Input coupling . . . . . . . . . . . . . . . . . . . . AC

video oUtPUt

Number/signal type . . . . . . . . . . . . . 2 analog RGBHV, RGBS, RGsB, RsGsBs
Connectors . . . . . . . . . . . . . . . . . . . . . . . 5 BNC female, (1) 15-pin HD female
Nominal level . . . . . . . . . . . . . . . . . . . . 0.7 Vp-p for RGB
Minimum/maximum levels . . . . 0.3 V to 1.5 Vp-p with no offset (follows input)
Model
SCS 300

oPtional accessories

PMK 300
PMK 350
RSB 126
RSB 129
Europe Europe Dubai Dubai
+31.33.453.4040 / +800.3987.6673 +31.33.453.4040 / +800.3987.6673 +971.4.2991800 +971.4.2991800
+31.33.453.4050 FAX +31.33.453.4050 FAX +971.4.2991880 FAX +971.4.2991880 FAX
- Advanced Digital Sync Processing to compensate
version descriPtion
Sync Converter & Stabilizer
Model descriPtion
Multi-Product Projector Mount Kit
Low Profile Multi-Product Projector Mounting Kit
1U 6" Deep Basic Rack Shelf
1U 9.5" Deep Basic Rack Shelf
Asia Asia
+65.6383.4400 / +800.7339.8766 +65.6383.4400 / +800.7339.8766
+65.6383.4664 FAX +65.6383.4664 FAX
Impedance . . . . . . . . . . . . . . . . . . . . . . . . 75 ohms
Return loss . . . . . . . . . . . . . . . . . . . . . . . -30 dB @ 5 MHz
DC offset . . . . . . . . . . . . . . . . . . . . . . . . . . ±30 mV with no input and at 0 offset
sync
Input type . . . . . . . . . . . . . . . . . . . . . . . . . RGBHV, RGBS, RGsB, RsGsBs
Output type . . . . . . . . . . . . . . . . . . . . . . . RGBHV, RGBS, RGsB, RsGsBs (switch-selectable)
Input level . . . . . . . . . . . . . . . . . . . . . . . . Sync on R/G/B (RGsB, RsGsBs): 0.15 to 0.6 Vp-p
Output level . . . . . . . . . . . . . . . . . . . . . . Sync on R/G/B (RGsB, RsGsBs): 0.3 Vp-p
Input impedance . . . . . . . . . . . . . . . . 510 ohms or 10k ohms, selectable
Output impedance . . . . . . . . . . . . . . 75 ohms
Max. propagation delay . . . . . . . . 48 ns
Max. rise/fall time . . . . . . . . . . . . . . . 3.5 ns
Polarity
RGBHV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . For RGVHV input, output is positive or negative (follows input) or is forced
RGBS, RGsB, RsGsBs . . . . . . . . . . . . . Negative
general
External power supply . . . . . . . . . 100 VAC to 240 VAC, 50/60 Hz, external, universal; to 12 VDC, 1 A, regulated
Power input requirements . . . . . 12 VDC, 0.4 A
Temperature/humidity . . . . . . . . . . Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Rack mount . . . . . . . . . . . . . . . . . . . . . . Yes, with optional 1U rack shelf, part #60-190-01 or 60-604-01; or 1U, 6"
Enclosure type . . . . . . . . . . . . . . . . . . . Metal
Enclosure dimensions . . . . . . . . . . 1.7" H x 4.3" W x 6.0" D (1U high, quarter rack wide)
Product weight . . . . . . . . . . . . . . . . . . 0.8 lbs (0.4 kg)
Shipping weight . . . . . . . . . . . . . . . . . 2 lbs (1 kg)
Vibration . . . . . . . . . . . . . . . . . . . . . . . . . . ISTA 1A in carton (International Safe Transit Association)
Listings . . . . . . . . . . . . . . . . . . . . . . . . . . . . UL, CUL
Compliances . . . . . . . . . . . . . . . . . . . . . CE, FCC Class A, VCCI, AS/NZS, ICES
MTBF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30,000 hours
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . 3 years parts and labor
NOTE: All nominal levels are at ±10%. Specifications are subject to change without notice.
Extron
CrossPoint
450 Plus
Series
Matrix Switcher
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
China China
+86.21.3760.1568 / +400.883.1568 +86.21.3760.1568 / +400.883.1568
+86.21.3760.1566 FAX +86.21.3760.1566 FAX
S y n c P r o c e S S o r S
TTL: 1.5 V to 5.5 Vp-p with ±0.2 VDC max. offset
TTL: 2.0 Vp-p, unterminated
negative (switch-selectable)
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
deep rack shelf, part #60-190-10 or 60-604-10.
Also furniture mountable with optional kit #70-077-01 or 70-077-02; projector
mountable with kits #70-563-02/-03, #70-526-02/-03, or #70-077-04.
4.3 cm H x 10.9 cm W x 15.2 cm D
(Depth excludes connectors.)
Extron
8
SCS 300
7
6
UT S
OU TP 5
4
3
RE SET
2
1 Sync Converter/Stabilizer
R
G
12 R 8
B
11 7
10 G 6
H
9 5
B
S 8 V 4
UT 7 UT S
INP H 3 TP
6 2 OU
5 V C 1
4 C V SYN
H SYN 12
3
2 11
10
1
9
8
7
6
S
5 UT
INP
4
3
2
1
0
S 30
SC
V
TS
IN PU H/ HV
B
G
R UT S
TP
OU
W ER
PO V X
12 A MA
0.2
Fiber Optic
Transmitter
3 Wire
RsGsBs
Fiber Optic
Receiver
Projector
Part #
60-811-01
Page Part #
page 813 70-374-01
page 814 70-563-02
page 819 60-604-10
page 820 60-604-01
Japan Japan
+81.3.3511.7655 +81.3.3511.7655
+81.3.3511.7656 FAX +81.3.3511.7656 FAX
5 Wire
RGBHV
611
