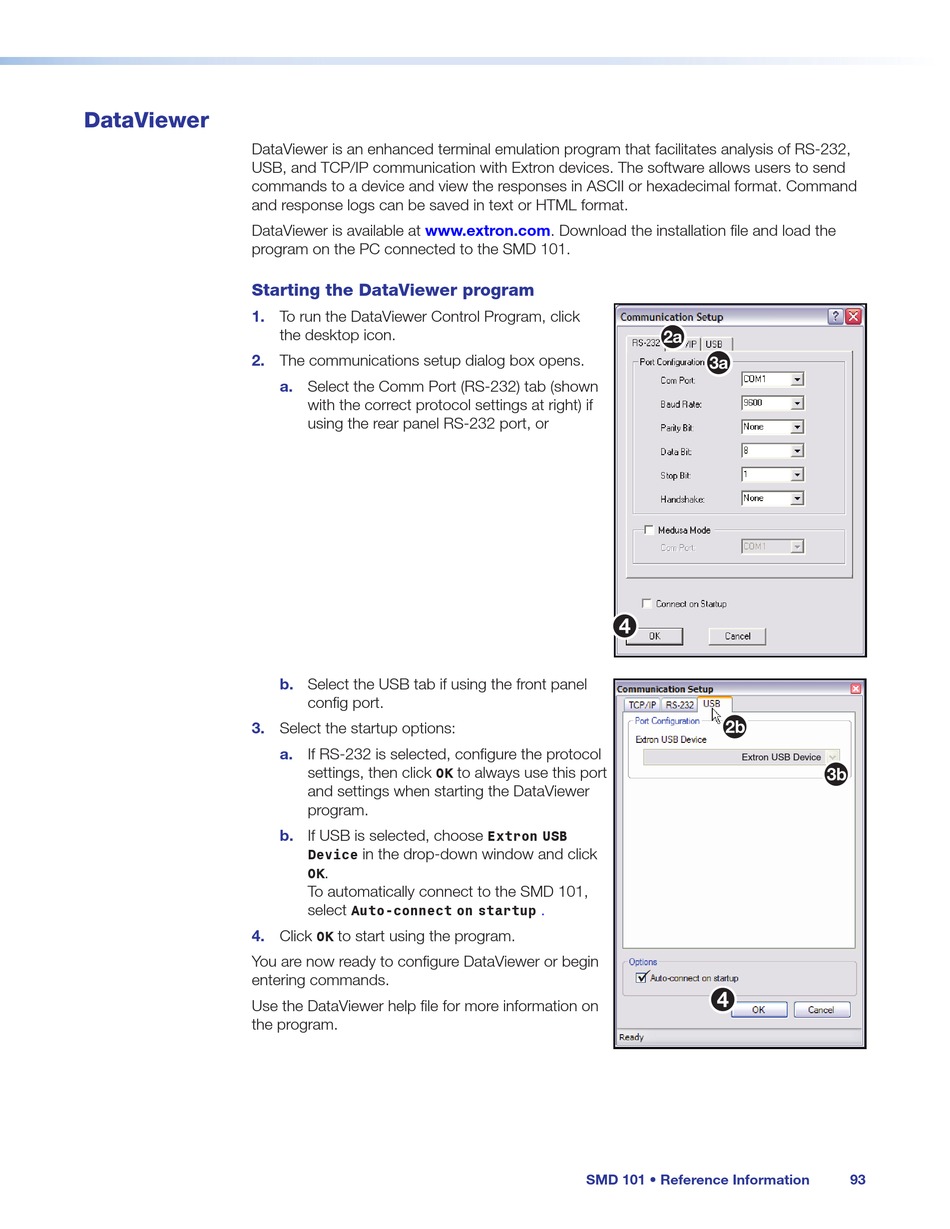

DataViewer
DataViewer is an enhanced terminal emulation program that facilitates analysis of RS-232,
USB, and TCP/IP communication with Extron devices. The software allows users to send
commands to a device and view the responses in ASCII or hexadecimal format. Command
and response logs can be saved in text or HTML format.
DataViewer is available at www.extron.com. Download the installation file and load the
program on the PC connected to the SMD 101.
Starting the DataViewer program
1.
2.
3.
4.
You are now ready to configure DataViewer or begin
entering commands.
Use the DataViewer help file for more information on
the program.
To run the DataViewer Control Program, click
the desktop icon.
The communications setup dialog box opens.
a.
Select the Comm Port (RS-232) tab (shown
with the correct protocol settings at right) if
using the rear panel RS-232 port, or
b.
Select the USB tab if using the front panel
config port.
Select the startup options:
a.
If RS-232 is selected, configure the protocol
settings, then click
to always use this port
OK
and settings when starting the DataViewer
program.
b.
If USB is selected, choose
in the drop-down window and click
Device
.
OK
To automatically connect to the SMD 101,
select
Auto‑connect on startup
Click
to start using the program.
OK
Õ Õ
4 4
Extron USB
.
SMD 101 • Reference Information
Ü Ü
Ö Ö
Extron USB Device
Ý Ý
4 4
93
