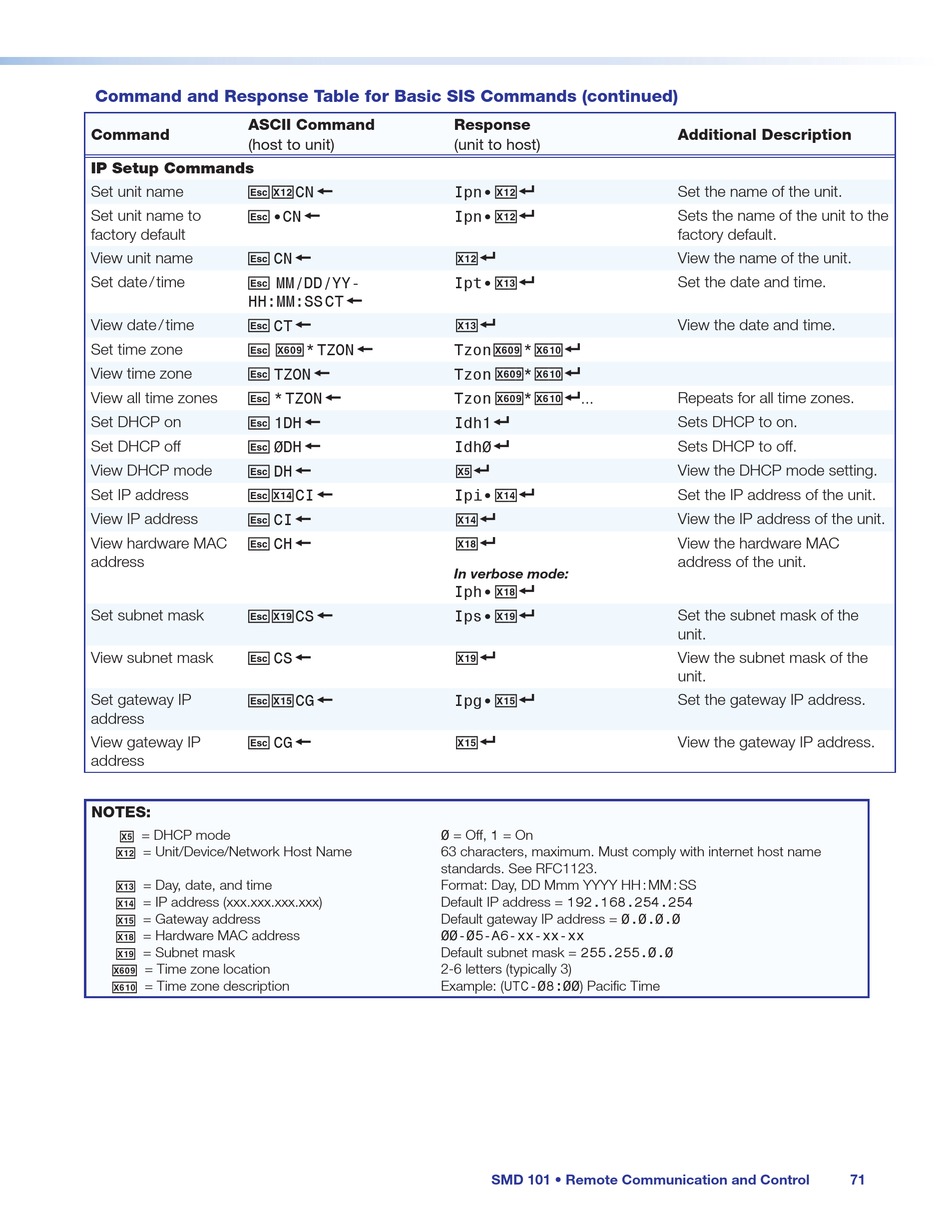

Command and Response Table for Basic SIS Commands (continued)
ASCII Command
Command
(host to unit)
IP Setup Commands
Set unit name E X1@ CN }
Set unit name to E
factory default
E CN }
View unit name
E MM/DD/YY‑
Set date / time
HH:MM:SS CT }
E CT }
View date / time
E X60( * TZON }
Set time zone
View time zone E TZON }
View all time zones E * TZON }
Set DHCP on E 1DH }
E 0DH }
Set DHCP off
View DHCP mode E DH }
Set IP address E X1$ CI }
View IP address E CI }
View hardware MAC E CH }
address
E X1( CS }
Set subnet mask
E CS }
View subnet mask
Set gateway IP E X1% CG }
address
View gateway IP E CG }
address
NOTES:
X% = DHCP mode
X1@ = Unit/Device/Network Host Name
X1# = Day, date, and time
X1$ = IP address (xxx.xxx.xxx.xxx)
X1% = Gateway address
X1* = Hardware MAC address
X1( = Subnet mask
X60( = Time zone location
X61) = Time zone description
CN }
•
0 = Off, 1 = On
63 characters, maximum. Must comply with internet host name
standards. See RFC1123.
Format: Day, DD Mmm YYYY HH : MM : SS
Default IP address = 192.168.254.254
Default gateway IP address = 0.0.0.0
00‑05‑A6‑xx‑xx‑xx
Default subnet mask = 255.255.0.0
2-6 letters (typically 3)
Example: (UTC‑08:00) Pacific Time
Response
(unit to host)
X1@ ]
Ipn
•
X1@ ]
Ipn
•
X1@ ]
X1# ]
Ipt
•
X1# ]
Tzon X60( * X61) ]
Tzon X60( * X61) ]
Tzon X60( * X61) ] ...
Idh1 ]
Idh0 ]
X% ]
X1$ ]
Ipi
•
X1$ ]
X1* ]
In verbose mode:
X1* ]
Iph
•
X1( ]
Ips
•
X1( ]
X1% ]
Ipg
•
X1% ]
SMD 101 • Remote Communication and Control
Additional Description
Set the name of the unit.
Sets the name of the unit to the
factory default.
View the name of the unit.
Set the date and time.
View the date and time.
Repeats for all time zones.
Sets DHCP to on.
Sets DHCP to off.
View the DHCP mode setting.
Set the IP address of the unit.
View the IP address of the unit.
View the hardware MAC
address of the unit.
Set the subnet mask of the
unit.
View the subnet mask of the
unit.
Set the gateway IP address.
View the gateway IP address.
