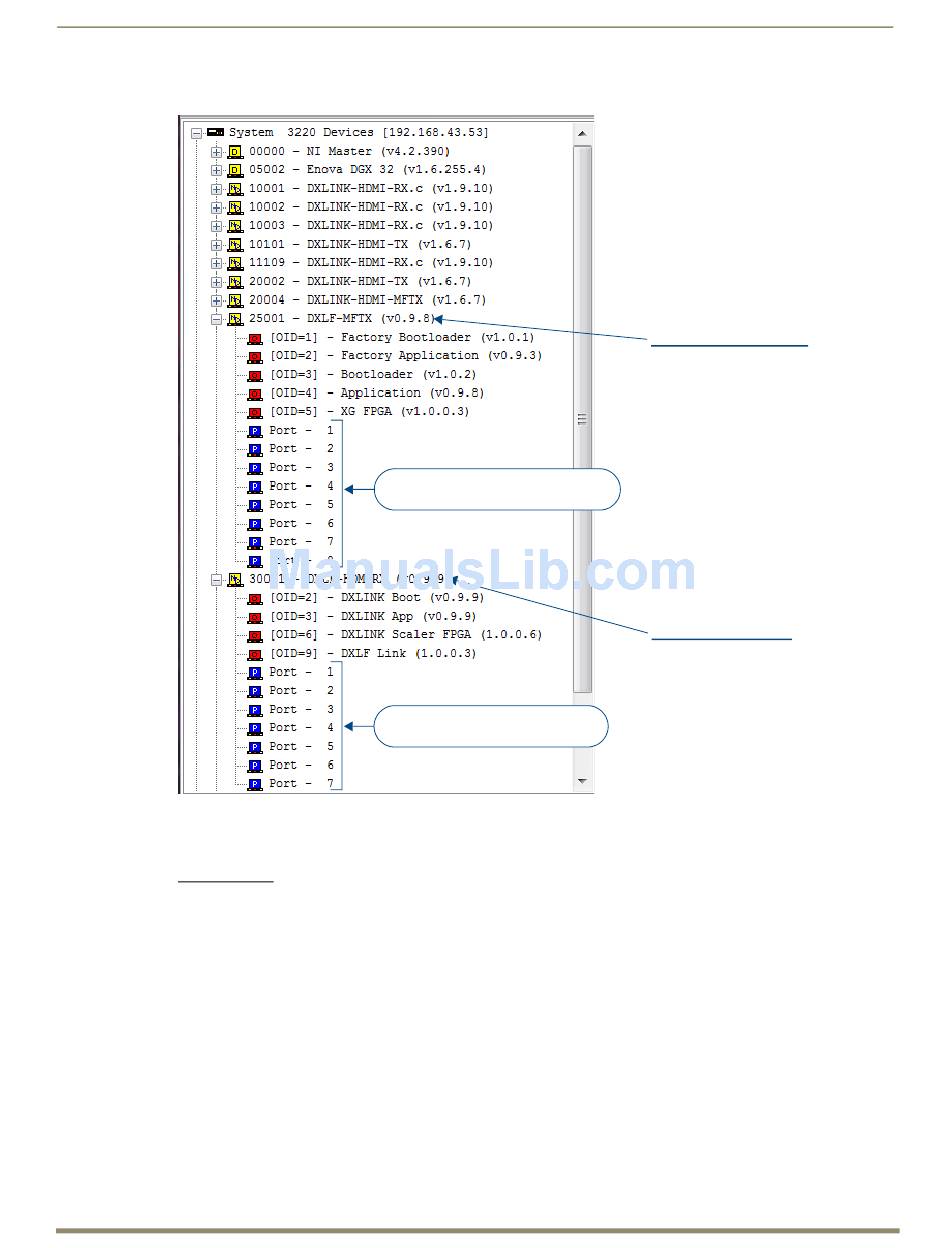

In NetLinx Studio's OnLine Tree, the DXLink Fiber Transmitters and Receivers each display their ports.
FIG. 25
NetLinx Studio OnLine Tree - Ports 1-8 on DXLink Fiber Transmitter and Ports 1-7 on Receiver
Note: For additional information on using NetLinx Studio, refer to the "Instruction Manual – NetLinx Studio
v3.3" and the "WebConsole & Programming Guide – NetLinx Integrated Controllers" (available at
www.amx.com).
Note: All command text is based on a Unicode index.
Tip: Occasionally new firmware versions affect SEND_COMMANDs. If a command does not produce the
expected results, we suggest checking the product's current firmware version against the information in the
"Firmware Version" table on page 92.
Instruction Manual – DXLink™ Fiber Transmitters and Receivers, Duplex
Ports 1-8 on DXLink Fiber Transmitter
(device number 25001)
Ports 1-7 on DXLink Fiber Receiver
(device number 30001)
NetLinx Programming – DXLink Fiber TXs/RXs
DXLink Fiber Transmitter
Port 1 - Serial ICSP (COM)
Port 2 - Not used
Port 3 - IR Output
Port 4 - IR Input
Port 5 - USB (HID) input and output
Port 6 - Digital Video/Audio Output
Port 7 - Digital Video/Audio Input
Port 8 - Analog Video Input
DXLink Fiber Receiver
Port 1 - Serial ICSP (COM)
Port 2 - Not used
Port 3 - IR Output
Port 4 - IR Input
Port 5 - USB (HID) host data
Port 6 - Digital Video/Audio Output
Port 7 - Digital Video/Audio Input
