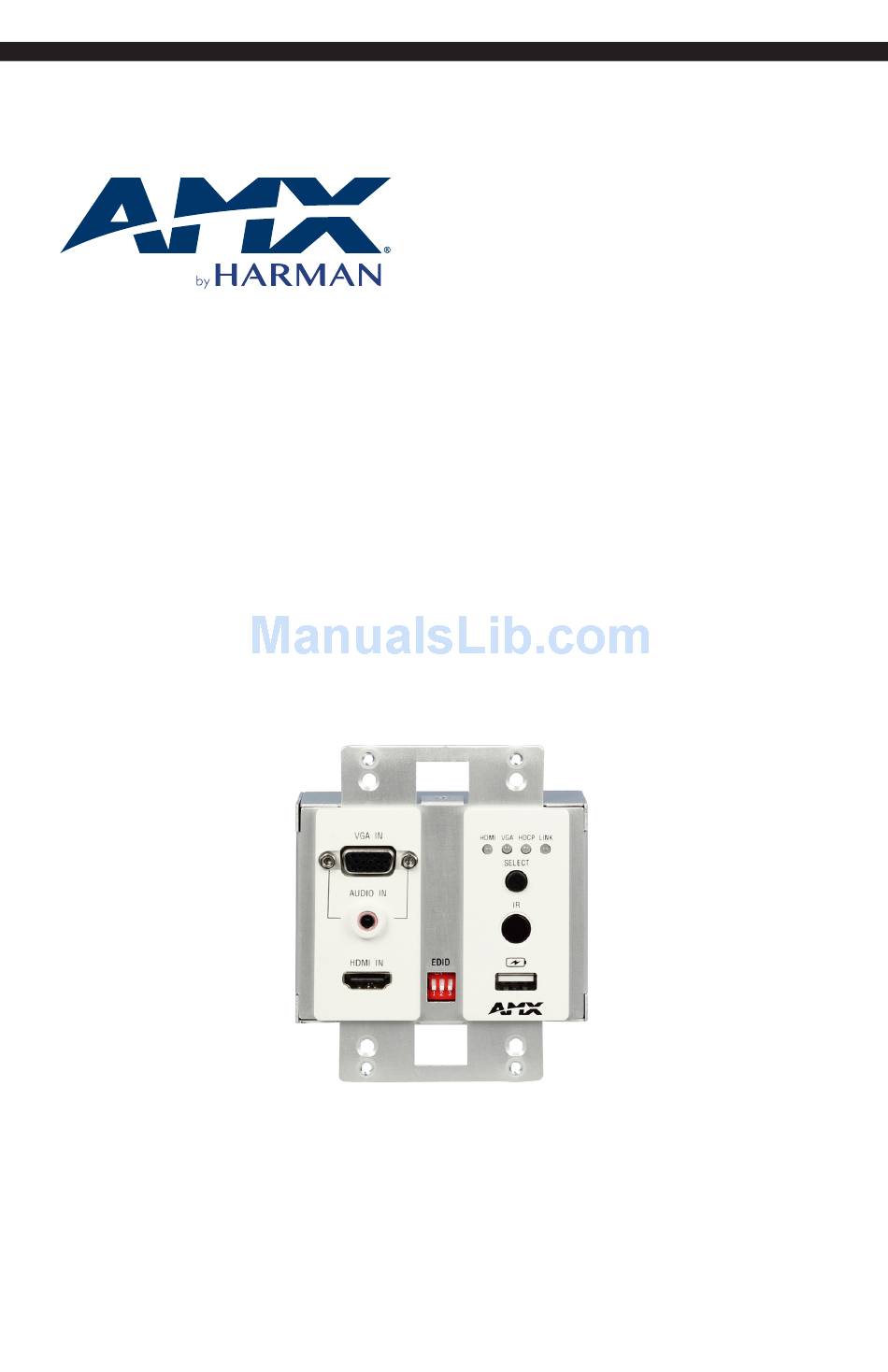

- Page 1 USER MANUAL DUX-MTX-WP 100-METER WALL-PLATE HDBT TRANSMITTER...
-
Page 2: Table Of Contents
TABLE OF CONTENT IMPORTANT SAFETY INSTRUCTIONS ..............03 INTRODUCTION .....................04 PACKING LIST .......................05 SPECIFICATIONS ....................06 CABLE SPECIFICATIONS..................07 PANEL OVERVIEW ....................08 AUTO & MANUAL INPUT SWITCHING ..............10 EDID SWITCH ......................11 INSTALL HARDWARE ....................12 TROUBLESHOOTING .....................14 USER MANUAL - DUX-MTX-WP 100-METER WALL-PLATE HDBT TRANSMITTER... -
Page 3: Important Safety Instructions
Only use attachments/accesso- Refer all servicing to qualified ries specified by the manufac- service personnel. turer. USER MANUAL - DUX-MTX-WP 100-METER WALL-PLATE HDBT TRANSMITTER... -
Page 4: Introduction

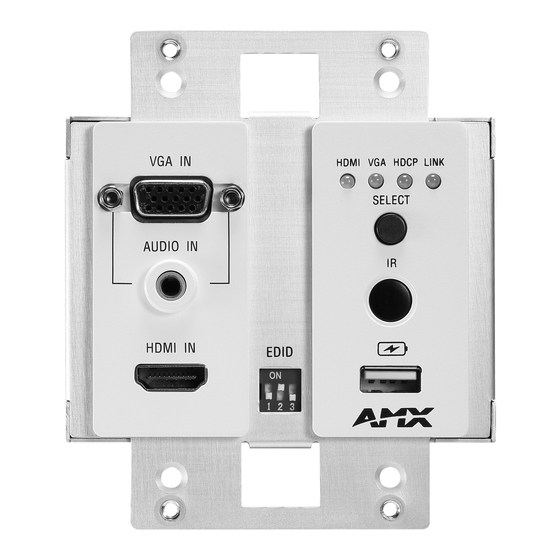

INTRODUCTIONS DUX-MTX-WP Wall Plate 2x1 Transmitter switches VGA and HDMI Inputs to one HDBT Outputs and is able to transmit 1080P@60Hz with 48 bit Deep Color HD Audio up to 100m/328ft and Ultra HD 4K signal up to 70m/230ft. DUX-MTX-WP automatically detects and switches between VGA and HDMI Input signals when connected, with HDMI Input enjoying the priority when both Inputs are active. -
Page 5: Packing List
1 x Phoenix Male Connector (3.5 mm, 3-pin) 2 x Phoenix Male Connector (3.5 mm, 2-pin) 1 x Wall Plate Plastic Panel (2-gang US) 1 x User Manual USER MANUAL - DUX-MTX-WP 100-METER WALL-PLATE HDBT TRANSMITTER... -
Page 6: Specifications
ESD Protection • ±8 kV (Air-gap discharge) • ±4 kV (Contact discharge) Dimension (W × H × D) 105.6 mm × 36.2 mm × 91 mm Weight 0.20 kg Certification CE, FCC USER MANUAL - DUX-MTX-WP 100-METER WALL-PLATE HDBT TRANSMITTER... -
Page 7: Cable Specifications
CABLE SPECIFICATIONS To ensure best performance of DUX-MTX-WP, please use stright-through Category cables wired to T568B standard and a HDBT Receiver device which also supports 100-meter transmission. Cable Type Range Supported Video 100m/328ft 1080p@60Hz 36bit 1080p@60Hz 3D Cat5e/6 70m/230ft 4K@30Hz YUV4:4:4... -
Page 8: Panel Overview
IR sensor. With built-in IR Receiver (30-55 kHz). USB connector. Used for power supply. Used to adjust the EDID setting. Default setting is for EDID 1920*1080 VGA Input. (For more information, please refer to EDID MANAGEMENT.) USER MANUAL - DUX-MTX-WP 100-METER WALL-PLATE HDBT TRANSMITTER... - Page 9 Connects to an Ethernet device. HDBT OUT Connects to an HDBT Receiver via a CatX cable. POWER Connects to the Power Adapter provided. RS232 For RS232 pass-through. IR OUT Connects to an IR Emitter. USER MANUAL - DUX-MTX-WP 100-METER WALL-PLATE HDBT TRANSMITTER...
-
Page 10: Auto & Manual Input Switching
AUTO & MANUAL INPUT SWITCHING After powered on, DUX-MTX-WP will automatically detect the VGA IN and HDMI IN ports for input signals. In such auto-switching mode, HDMI IN will always enjoy priority over VGA IN. AUTO SWITCHING HDMI IN VGA IN... -
Page 11: Edid Switch
EDID (Extended Display Identification Data) is a data structure provided by a digital display to describe its capabilities to a video source. DUX-MTX-WP features an EDID management that can be used when its EDID setting’s does not meet the installation requirements. -
Page 12: Install Hardware
If any of these turns to be an issue in your installation, transmission distance will be affected. 2) When all set, check the LED indicators of DUX-MTX-WP. For LED indication, please refer to page 08. - Page 13 USER MANUAL - DUX-MTX-WP 100-METER WALL-PLATE HDBT TRANSMITTER...
-
Page 14: Troubleshooting
If so, replace with another qualified input source. • Check that no compatibility issue exists between the Receiver and the display. If so, replace the display with qualified models. USER MANUAL - DUX-MTX-WP 100-METER WALL-PLATE HDBT TRANSMITTER... - Page 15 HDBT scaling receiver up to DUX-SRX 4K@60Hz 4:4:4 HDMI 1.4 & VGA over HDBT DUX-MTX TX up to 100m HDMI 1.4 & VGA over HDBT DUX-MTX-WP wall-plate TX up to 100 m USER MANUAL - DUX-MTX-WP 100-METER WALL-PLATE HDBT TRANSMITTER...
