IRL File Transfers

Overview

The NetLinx Studio software application (available for free download from www.amx.com) provides the ability to
transfer IR Library files to NetLinx devices such as DXLink Fiber Transmitters and Receivers.
Endpoint System (with a Switcher)
When a Transmitter and/or a Receiver are being used in conjunction with a switcher as an endpoint system, the

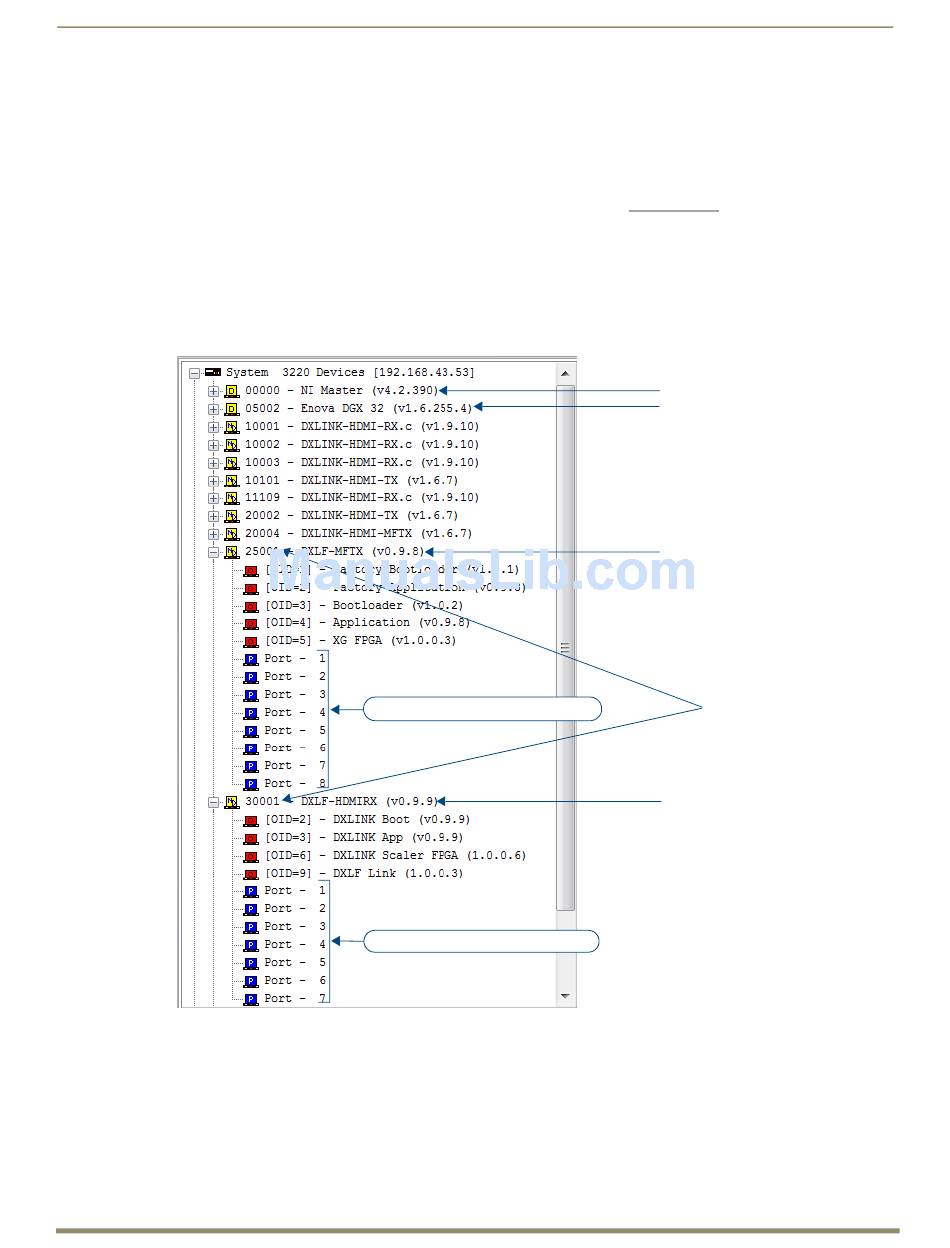

switcher's integrated Master is used for the IRL file transfer. FIG. 24 shows a Transmitter and a Receiver bound to the
integrated Master in an Enova DGX 32 in NetLinx Studio's OnLine Tree. Follow the instructions on the top of page 62
to prepare an endpoint system for IRL file transfer and the instructions on page 63 for the actual transfer.
FIG. 24
NetLinx Studio – Integrated Master, Enova DGX 32, DXLink Fiber Transmitter and Receiver
Instruction Manual – DXLink™ Fiber Transmitters and Receivers, Duplex
Ports 1-8 on DXLink Fiber Transmitter
Ports 1-7 on DXLink Fiber Receiver
IRL File Transfers
Integrated Master
Enova DGX 32
DXLink Fiber Transmitter
Device numbers
DXLink Fiber Receiver
