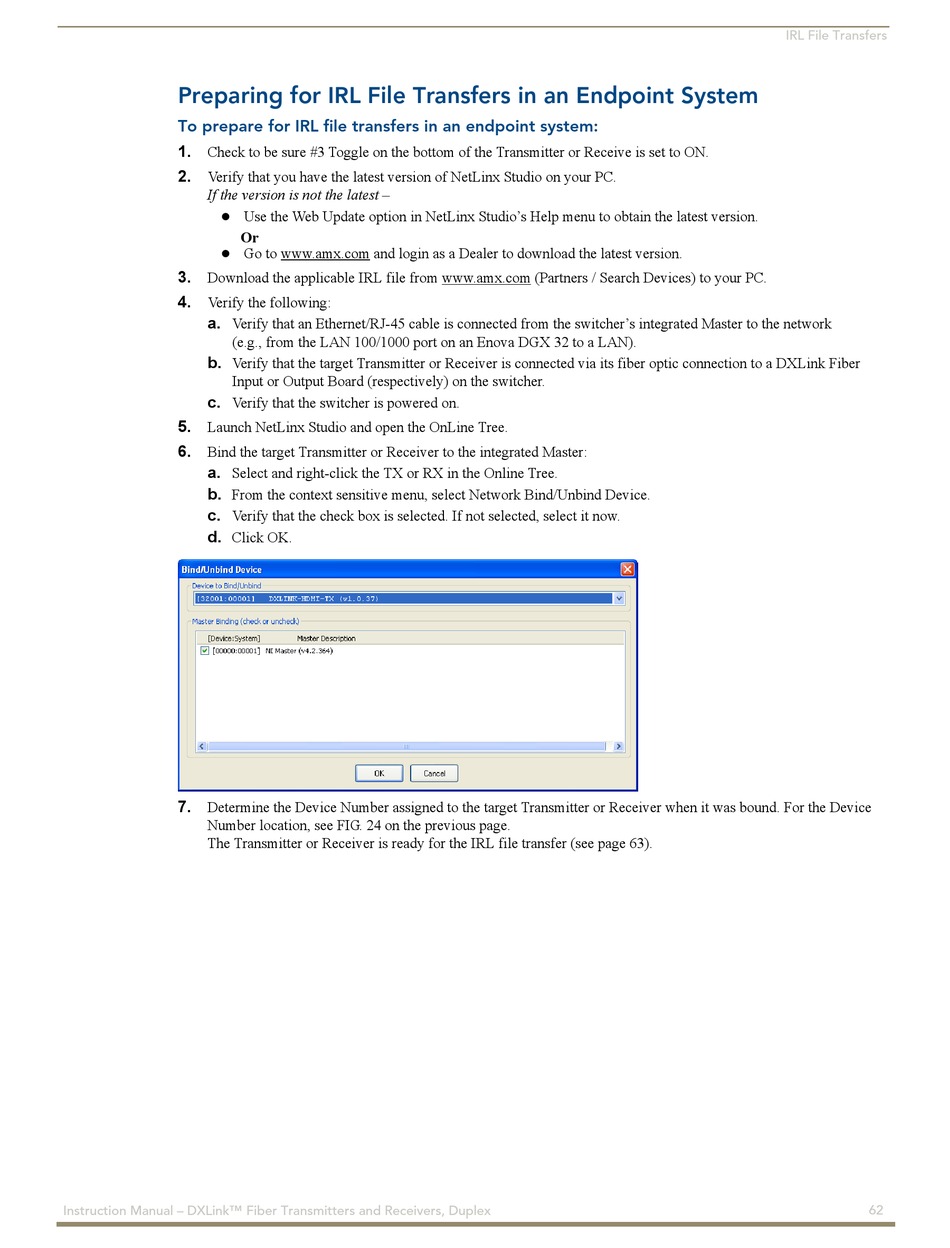

Preparing for IRL File Transfers in an Endpoint System

To prepare for IRL file transfers in an endpoint system:
1.
Check to be sure #3 Toggle on the bottom of the Transmitter or Receive is set to ON.
2.
Verify that you have the latest version of NetLinx Studio on your PC.
If the version is not the latest –

Or

3.
Download the applicable IRL file from www.amx.com (Partners / Search Devices) to your PC.
4.
Verify the following:
a.
Verify that an Ethernet/RJ-45 cable is connected from the switcher's integrated Master to the network
(e.g., from the LAN 100/1000 port on an Enova DGX 32 to a LAN).
b.
Verify that the target Transmitter or Receiver is connected via its fiber optic connection to a DXLink Fiber
Input or Output Board (respectively) on the switcher.
c.
Verify that the switcher is powered on.
5.
Launch NetLinx Studio and open the OnLine Tree.
6.
Bind the target Transmitter or Receiver to the integrated Master:
a.
Select and right-click the TX or RX in the Online Tree.
b.
From the context sensitive menu, select Network Bind/Unbind Device.
c.
Verify that the check box is selected. If not selected, select it now.
d.
Click OK.
7.
Determine the Device Number assigned to the target Transmitter or Receiver when it was bound. For the Device
Number location, see FIG. 24 on the previous page.
The Transmitter or Receiver is ready for the IRL file transfer (see page 63).
Instruction Manual – DXLink™ Fiber Transmitters and Receivers, Duplex
Use the Web Update option in NetLinx Studio's Help menu to obtain the latest version.
Go to www.amx.com and login as a Dealer to download the latest version.
