- Page 1 instruction manual TXC+ Transmitter Series Tran s m it t er s...
- Page 2 This warranty extends only to products purchased directly from AMX Corporation or an Authorized AMX Dealer. AMX Corporation is not liable for any damages caused by its products or for the failure of its products to perform. This includes any lost profits, lost savings, incidental damages, or consequential damages. AMX Corporation is not liable for any claim made by a third party or by an AMX Dealer for a third party.
-
Page 3: Table Of Contents
Table of Contents Product Information ...1 Specifications ... 2 Battery Replacement... 4 TXC4+ and TXC4+L batteries... 4 TXC16+ batteries ... 4 TXC32+ batteries ... 4 OLDesign Overlay Engraving Design Software Program... 4 IR, IR Frequency, RF, and Radio Code Settings ...5 IR, IR Frequency, and RF Settings ... - Page 4 Table of Contents TXC+ Transmitter Series...
-
Page 5: Product Information

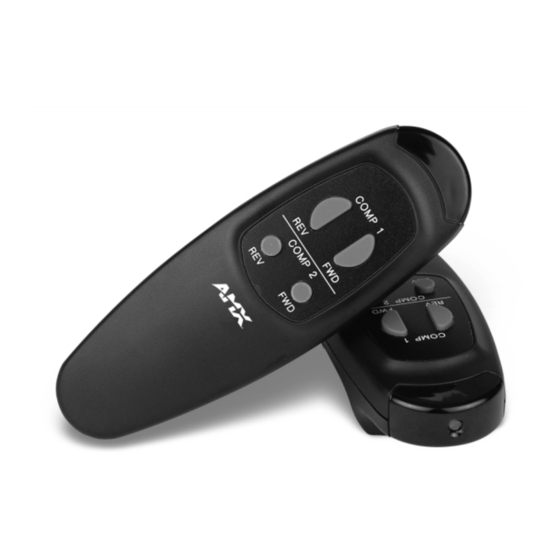

Through the use of infrared (IR) or radio frequency (RF) transmission mediums, the TXC+ hand- held wireless transmitters control a wide variety of devices connected to an AMX Axcess Control System. These transmitters include the TXC4+, TXC4L+, TXC16+, and TXC32+. For these units IR, signals are transmitted at 38 kHz or 455 kHz and RF signals at 418 MHz. -
Page 6: Specifications
Product Information Pushbutton 33 Pushbutton 9 Pushbutton 1 TV/VCR. SELECT. CHANNEL CHANNEL Pushbutton 8 Pushbutton 16 Pushbutton 40 FIG. 3 TXC32+ transmitter example Specifications The specifications for the TXC4+ series are listed in the table below. TXC4+ Series Specifications Dimensions (HWD) Weight TXC4+ TXC4L+... - Page 7 TXC4+ Series Specifications (Cont.) Options The TXC16+ specifications are listed in the table below. TXC16+ Specifications Dimensions (HWD) Weight Enclosure Engraved overlay Power Pushbuttons Transmission Frequencies: DIP switch Options The TXC32+ specifications are listed in the following table. TXC32+ Specifications Dimensions (HWD) Weight Enclosure...
-
Page 8: Battery Replacement
OLDesign Overlay Engraving Design Software Program The AMX OLDesign software program is a Windows™-based design tool that you use to create panel overlays, pushbutton names, and pushbutton operation descriptions. The operation descriptions are used when the Axcess operating software is programmed. OLDesign also contains an online help system that describes how to produce custom overlay designs and pushbutton descriptions, and then store them on your computer. -
Page 9: Ir, Ir Frequency, Rf, And Radio Code Settings
IR, IR Frequency, RF, and Radio Code Settings The TXC+ series transmitters transmit IR or RF signals, according to how you set positions 1, 2, and 3 on the 10-position DIP switch (FIG. 5) located under the battery cover. IR, IR Frequency, and RF Settings FIG. - Page 10 IR, IR Frequency, RF, and Radio Code Settings TXC4+ Radio Codes, DIP Switch Settings, and Channel Code Ranges DIP Switch Positions Radio code 10.5 11.5 12.5 13.5 14.5 15.5 Set the TXC16+ and TXC32+ radio code using DIP switch positions 7 through 10, which are accessible when the battery cover is removed.
-
Page 11: Trigger Switch Operation (Txc4+ Series Only)
Trigger switch operation (TXC4+ series only) The TXC4+ series transmitters have a trigger switch on the front underside of the transmitter (see FIG. 1 on page 1). On the TXC4L+ model, this switch operates the laser pointer. On the TXC4+... -
Page 12: Radiation Hazards
IR, IR Frequency, RF, and Radio Code Settings (e.g.: add 8 to the radio code offset value to calculate the channel number being transmitted). To set position 4, move the switch up (ON) or down (OFF). Radiation hazards Laser beams produce light frequencies that are harmful to the human eye. DO NOT look into, or shine a laser beam into another person's eyes. -
Page 13: Troubleshooting
IR receiver LED lights when you press a transmitter pushbutton. If the red LED flashes but the AMX system does not respond: 1. Verify that positions 1, 2, and 3 of the DIP switch are set to the correct transmit mode. - Page 14 AMX reserves the right to alter specifications without notice at any time. brussels • dallas • los angeles • mexico city • philadelphia • shanghai • singapore • tampa • toronto • york 3000 research drive, richardson, TX 75082 USA • 469.624.8000 • 800.222.0193 • fax 469.624.7153 • technical support 800.932.6993...
