DVI Pinout for DVI-to-HDMI Cable

The pinout in FIG. 29 is for the DVI receptacle for a DVI-to-HDMI cable which can be used with the DXLink
Fiber unit when a DVI-D source signal is required
DVI Cable Connector Pinout
DVI Input Pin #
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
*The +5 VDC on output pin 14 supplies a maximum of 55 mA.

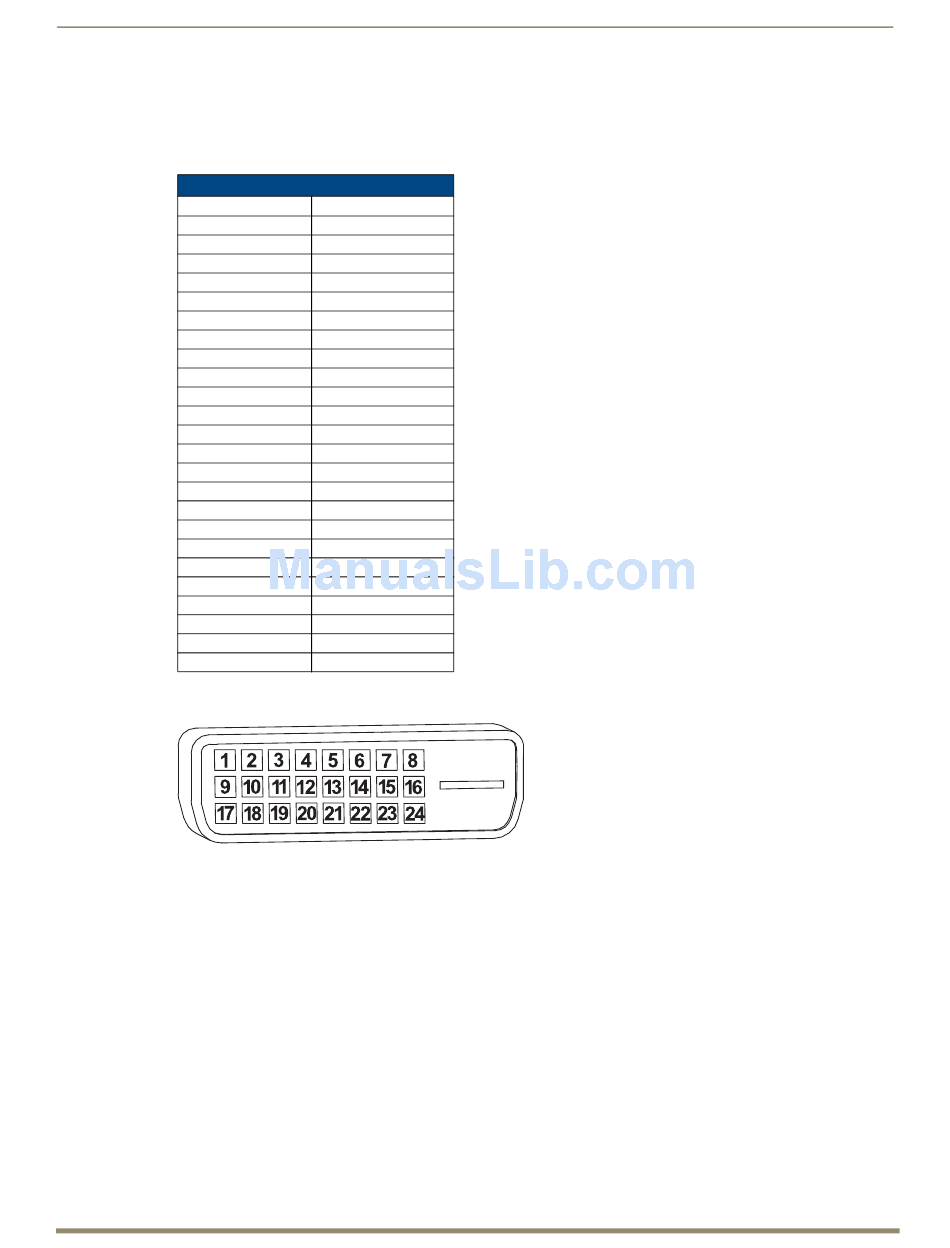

FIG. 29
Pinout table and DVI pinout for DVI receptacle
Instruction Manual – DXLink™ Fiber Transmitters and Receivers, Duplex
.
Signal Name
Data 2-
Data 2+
Gnd
n/c
n/c
DDC-CLK
DDC-Data
n/c
Data 1-
Data 1+
Gnd
n/c
n/c
+5 VDC in
Gnd
Hot-Detect
Data 0-
Data 0+
Gnd
n/c
n/c
Gnd
CLK+
CLK-
