Transferring IRL Files

The File Transfer tool in NetLinx Studio is used to map IRL files to DXLink Fiber Transmitters and Receivers. The
instructions below assume that the preparations on the previous page for IRL file transfers for an endpoint system have
been completed.
To send an IR Library (*.IRL) file to a Transmitter or Receiver:
1.

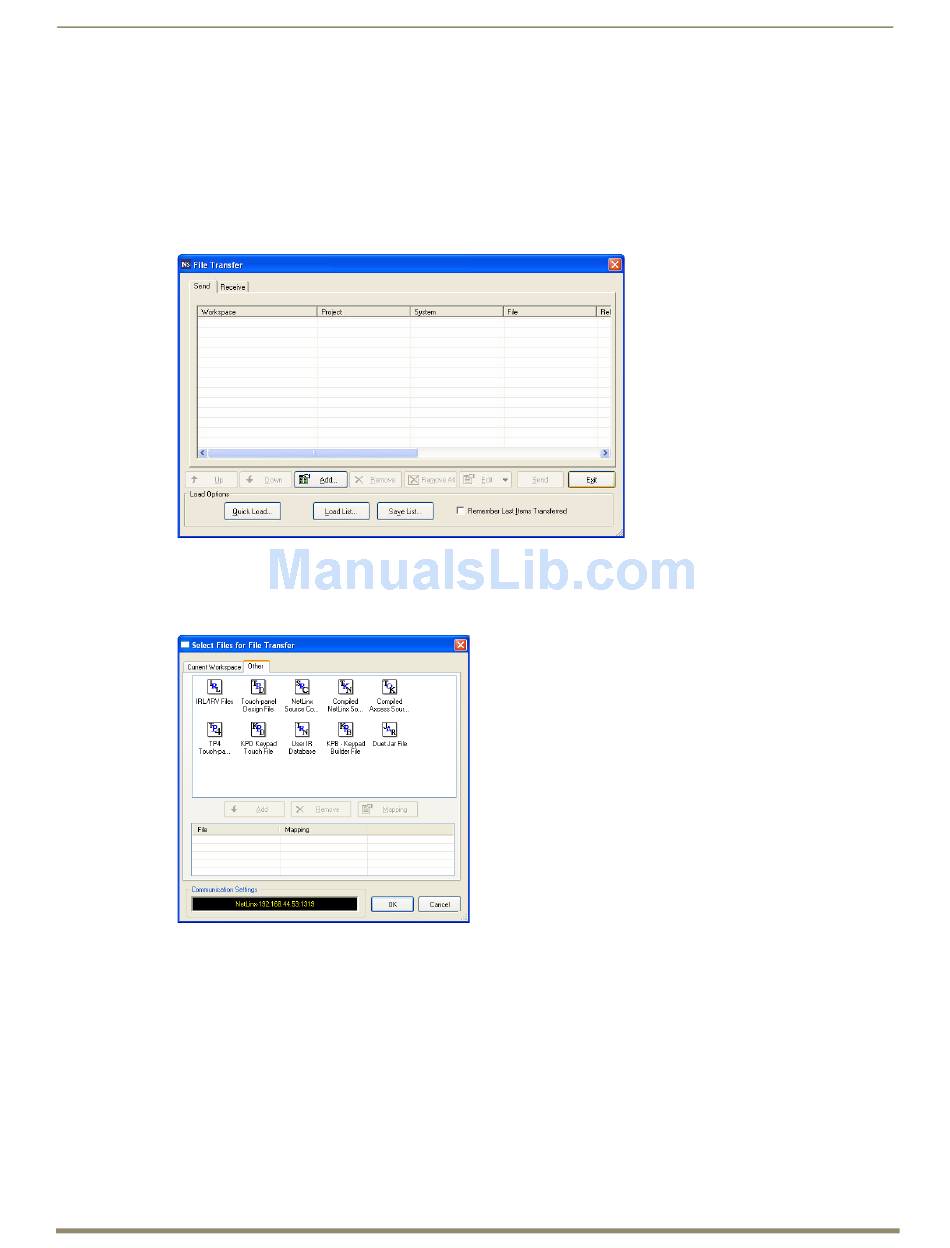

In NetLinx Studio, select Tools > File Transfer to open the File Transfer dialog box.
2.
Click Add to open the Select Files for File Transfer dialog box.
3.
Open the Other tab (if the file you want to transfer is not included in the open workspace.)
The Other tab consists of a display of the different types of files that can be transferred to the Master or System
devices on the bus.
Instruction Manual – DXLink™ Fiber Transmitters and Receivers, Duplex
IRL File Transfers
63
