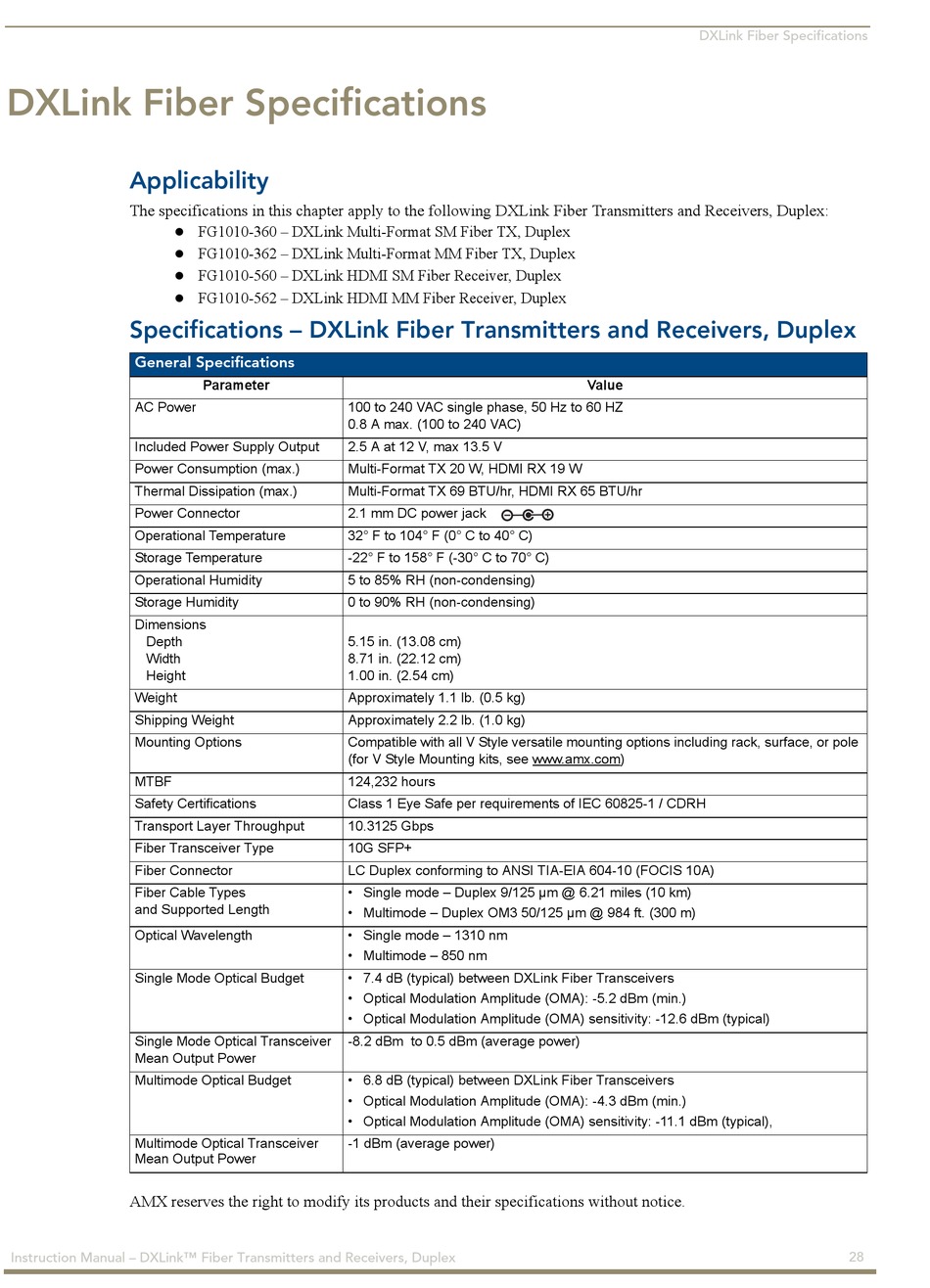

DXLink Fiber Specifications

Applicability

The specifications in this chapter apply to the following DXLink Fiber Transmitters and Receivers, Duplex:
Specifications – DXLink Fiber Transmitters and Receivers, Duplex
General Specifications
AC Power
Included Power Supply Output
Power Consumption (max.)
Thermal Dissipation (max.)
Power Connector
Operational Temperature
Storage Temperature
Operational Humidity
Storage Humidity
Dimensions
Weight
Shipping Weight
Mounting Options
MTBF
Safety Certifications
Transport Layer Throughput
Fiber Transceiver Type
Fiber Connector
fiber cable
Fiber Cable Types
specifications
and Supported Length
Optical Wavelength
Single Mode Optical Budget
Single Mode Optical Transceiver
Mean Output Power
Multimode Optical Budget
Multimode Optical Transceiver
Mean Output Power
AMX reserves the right to modify its products and their specifications without notice.
Instruction Manual – DXLink™ Fiber Transmitters and Receivers, Duplex
FG1010-360 – DXLink Multi-Format SM Fiber TX, Duplex

FG1010-362 – DXLink Multi-Format MM Fiber TX, Duplex

FG1010-560 – DXLink HDMI SM Fiber Receiver, Duplex

FG1010-562 – DXLink HDMI MM Fiber Receiver, Duplex

Parameter
Depth
Width
Height
100 to 240 VAC single phase, 50 Hz to 60 HZ
0.8 A max. (100 to 240 VAC)
2.5 A at 12 V, max 13.5 V
Multi-Format TX 20 W, HDMI RX 19 W
Multi-Format TX 69 BTU/hr, HDMI RX 65 BTU/hr
2.1 mm DC power jack
32° F to 104° F (0° C to 40° C)
-22° F to 158° F (-30° C to 70° C)
5 to 85% RH (non-condensing)
0 to 90% RH (non-condensing)
5.15 in. (13.08 cm)
8.71 in. (22.12 cm)
1.00 in. (2.54 cm)
Approximately 1.1 lb. (0.5 kg)
Approximately 2.2 lb. (1.0 kg)
Compatible with all V Style versatile mounting options including rack, surface, or pole
(for V Style Mounting kits, see www.amx.com)
124,232 hours
Class 1 Eye Safe per requirements of IEC 60825-1 / CDRH
10.3125 Gbps
10G SFP+
LC Duplex conforming to ANSI TIA-EIA 604-10 (FOCIS 10A)
• Single mode – Duplex 9/125 μm @ 6.21 miles (10 km)
• Multimode – Duplex OM3 50/125 μm @ 984 ft. (300 m)
• Single mode – 1310 nm
• Multimode – 850 nm
• 7.4 dB (typical) between DXLink Fiber Transceivers
• Optical Modulation Amplitude (OMA): -5.2 dBm (min.)
• Optical Modulation Amplitude (OMA) sensitivity: -12.6 dBm (typical)
-8.2 dBm to 0.5 dBm (average power)
• 6.8 dB (typical) between DXLink Fiber Transceivers
• Optical Modulation Amplitude (OMA): -4.3 dBm (min.)
• Optical Modulation Amplitude (OMA) sensitivity: -11.1 dBm (typical),
-1 dBm (average power)
DXLink Fiber Specifications
