AMX DXLink Multi-Format SMF-D Instruction Manual page 111

Note: The following procedure was completed on Windows 7 Professional (other versions may vary slightly).
To set a PC to Static IP Mode:
1.
From the Start menu on the desktop taskbar, select Control Panel / Network and Sharing Center.
2.
Click "Change adapter settings" (top left).
3.
Right-click on Local Area Connection and select Properties.
The Local Area Connection Properties dialog box opens.
4.
From the list of "This connection uses the following items" (see above), highlight Internet Protocol Version 4
(TCP/IPv4) and click Properties.
The Internet Protocol Version 4 (TCP/IPv4) Properties dialog box opens.
5.
Select "Use the following IP address" and enter 192.168.1.50 (or the IP range of the Enova DGX).
Instruction Manual – DXLink™ Fiber Transmitters and Receivers, Duplex
Appendix C – Virtual NetLinx Master

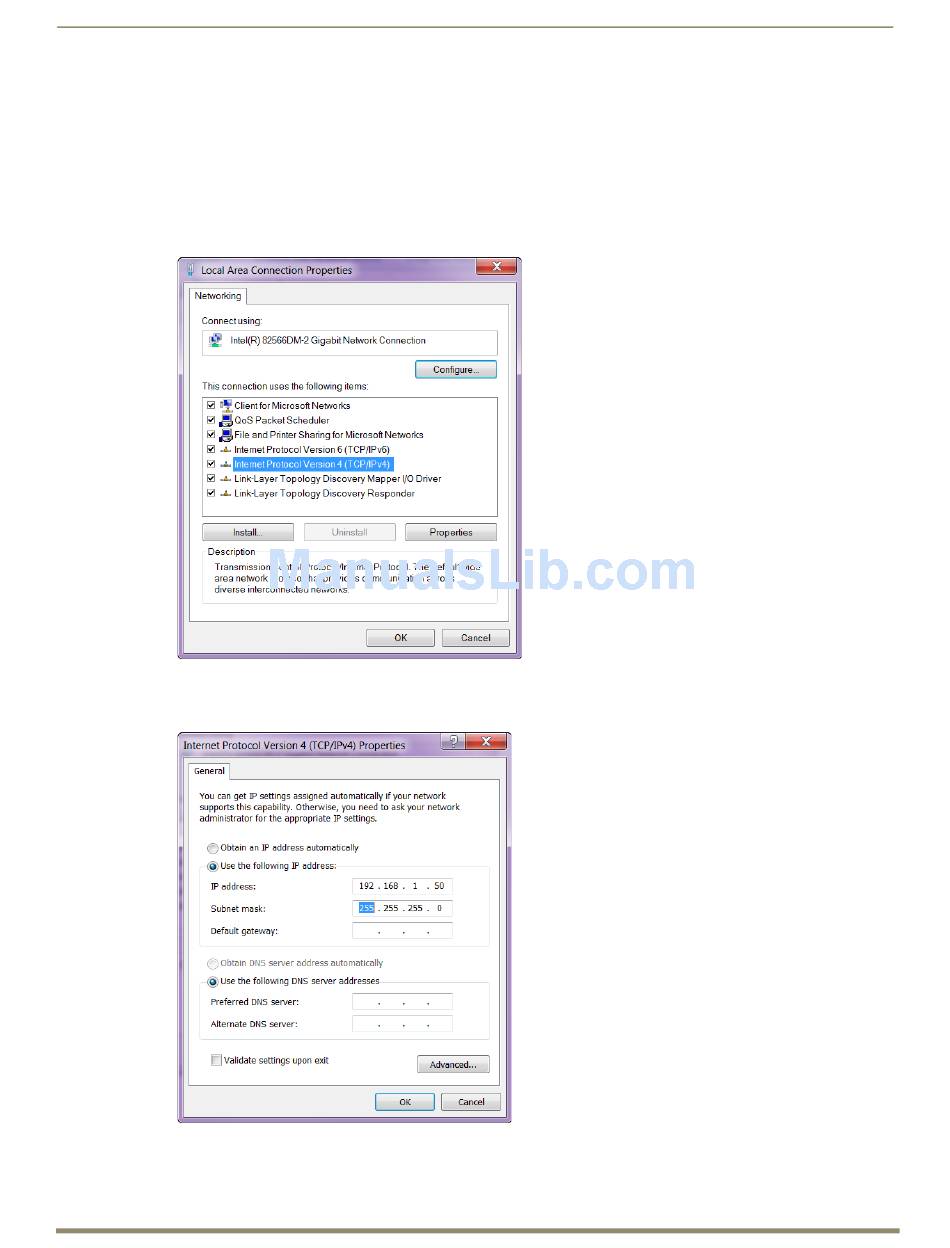

Internet Protocol Properties dialog box
111
