LEDs – DXLink Fiber Transmitters, Duplex
DXLink Fiber Transmitters, Duplex – Indicator LEDs on the Front
LED
Power
Digital Video
Audio (Digital)
Analog Video
IR TX
IR RX
232 (Serial) TX
232 (Serial) RX
NetLinx Link/Act
NetLinx Status
CEC
USB
Note: For detailed behavior of the NetLinx Link/Act and Status LEDs on the unit's front, see page 52.
For detailed behavior of the ICS LAN 10/100 (RJ-45) connector LEDs on the unit's rear, see page 42.
Note: When an analog video source cable is plugged into the TX, one of the Analog Video LEDs on the front
of the TX and the Video LED on the RX (connected via the switcher) turn green to show the type of video that
is present through the system.

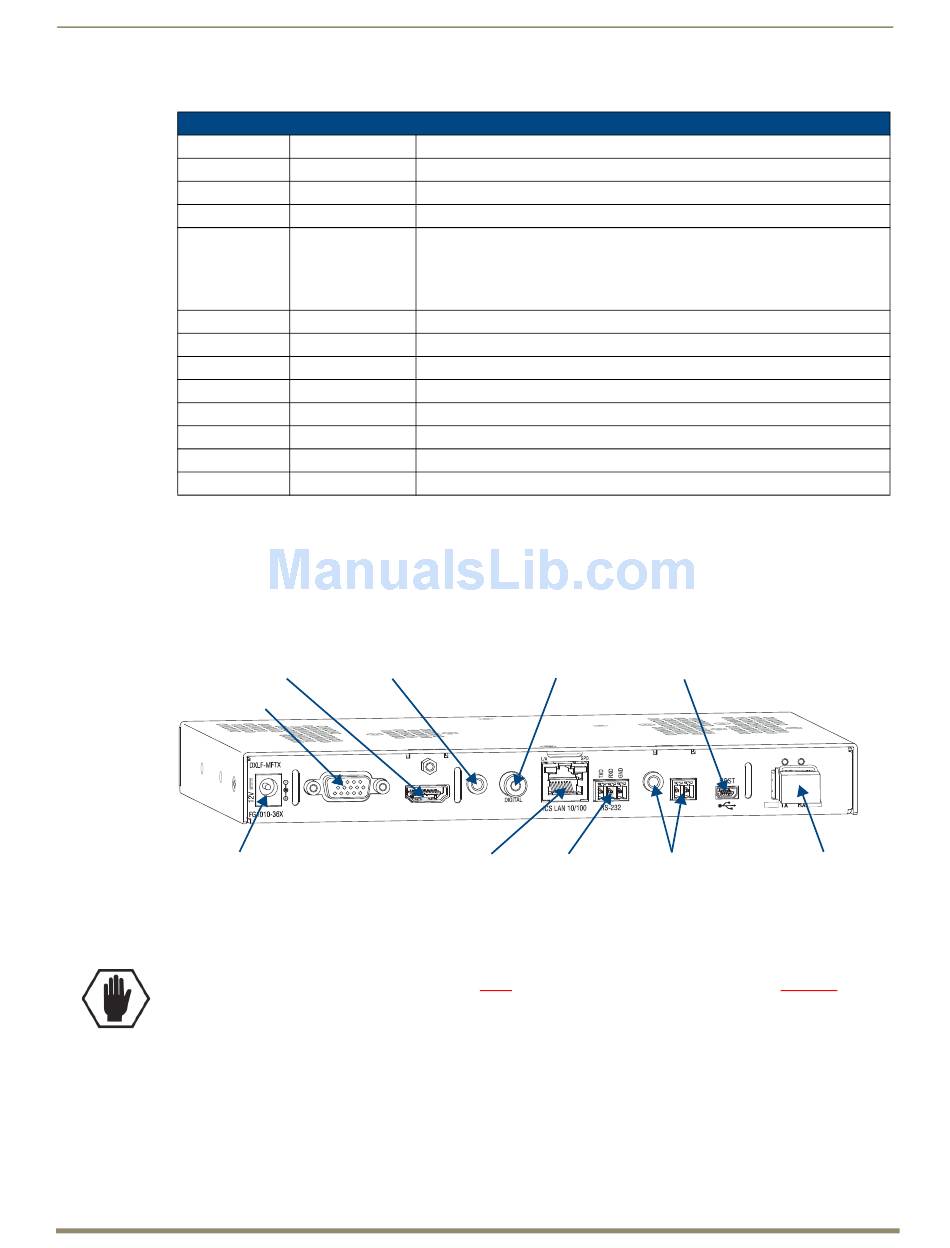

DXLink Fiber Transmitters, Duplex – Rear View
HDMI In connector
Video In connector
Power jack
FIG. 4
DXLink Fiber Transmitter, Duplex - rear view
Components located on the rear of the DXLink Fiber Transmitters, Duplex (from left to right):
Power Jack
Caution: The provided desktop power supply must be used to power the Transmitter, and it must not be
altered in any way.
The power receptacle is a 2.1 mm DC jack for connecting power. Power comes from the locally connected DC supply
of 12 V. The automatically adjusting universal 110/220 IEC power supply is provided. The power supply is ENERGY
®
STAR qualified to ensure maximum efficiency and savings.
Video In Connector
The Video In connector on the TX is an HD-15 connector for analog video (composite, Y/C, Y/Pb/Pr, RGB, RGBHV,
or RGBS). Pinouts for analog video are on page 117.
Instruction Manual – DXLink™ Fiber Transmitters and Receivers, Duplex
Normal Display
Green Power is applied to the unit
Green A digital video signal is present through the unit
Green Embedded audio signal is present through the unit
One of the 3 LEDs The type of analog video present through the unit:
will be Green
• C (composite) or Y/C (two component)
• Y/PB/PR or RGB (three component)
• RGBHV (five component) or RGBS (four component)
Red IR TX active communication
Yellow IR RX active communication
Red Serial TX active communication
Yellow Serial RX active communication
Green Active LAN connection to an AMX Network (blinking = #3 Toggle OFF)
Green LAN connection is active
OFF CEC is not currently supported
Yellow USB is connected and enabled (for details, see page 23)
Stereo Audio In jack
ICS LAN 10/100 connector
Indicates
Digital Audio In jack
USB port
RS-232 port IR ports
Overview DXLink Fiber, Duplex
Fiber optic transceiver
