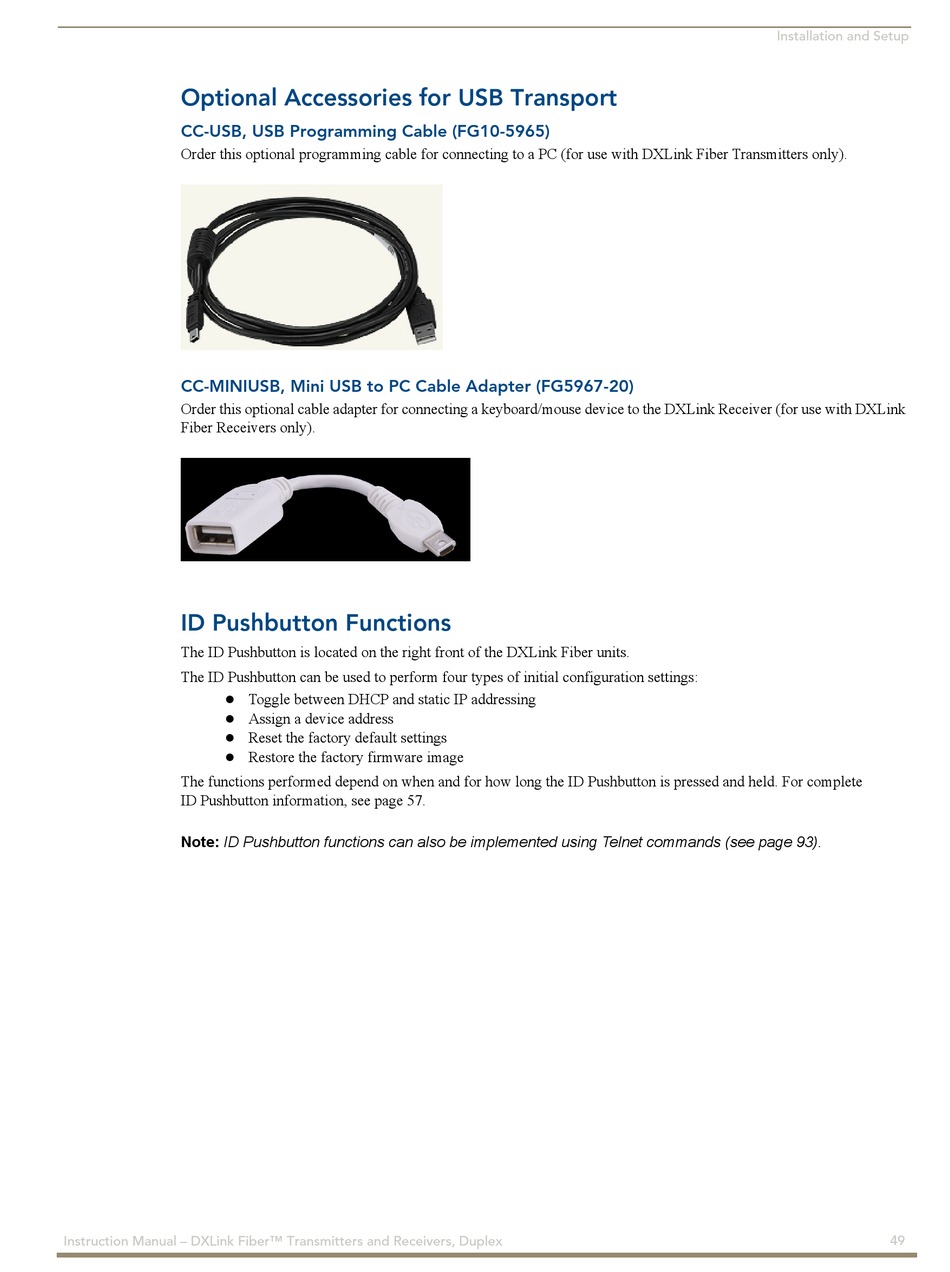

Optional Accessories for USB Transport

CC-USB, USB Programming Cable (FG10-5965)
Order this optional programming cable for connecting to a PC (for use with DXLink Fiber Transmitters only).
CC-MINIUSB, Mini USB to PC Cable Adapter (FG5967-20)
Order this optional cable adapter for connecting a keyboard/mouse device to the DXLink Receiver (for use with DXLink
Fiber Receivers only).

ID Pushbutton Functions

The ID Pushbutton is located on the right front of the DXLink Fiber units.
The ID Pushbutton can be used to perform four types of initial configuration settings:




The functions performed depend on when and for how long the ID Pushbutton is pressed and held. For complete
ID Pushbutton information, see page 57.
Note: ID Pushbutton functions can also be implemented using Telnet commands (see page 93).
Instruction Manual – DXLink Fiber™ Transmitters and Receivers, Duplex
Toggle between DHCP and static IP addressing
Assign a device address
Reset the factory default settings
Restore the factory firmware image
