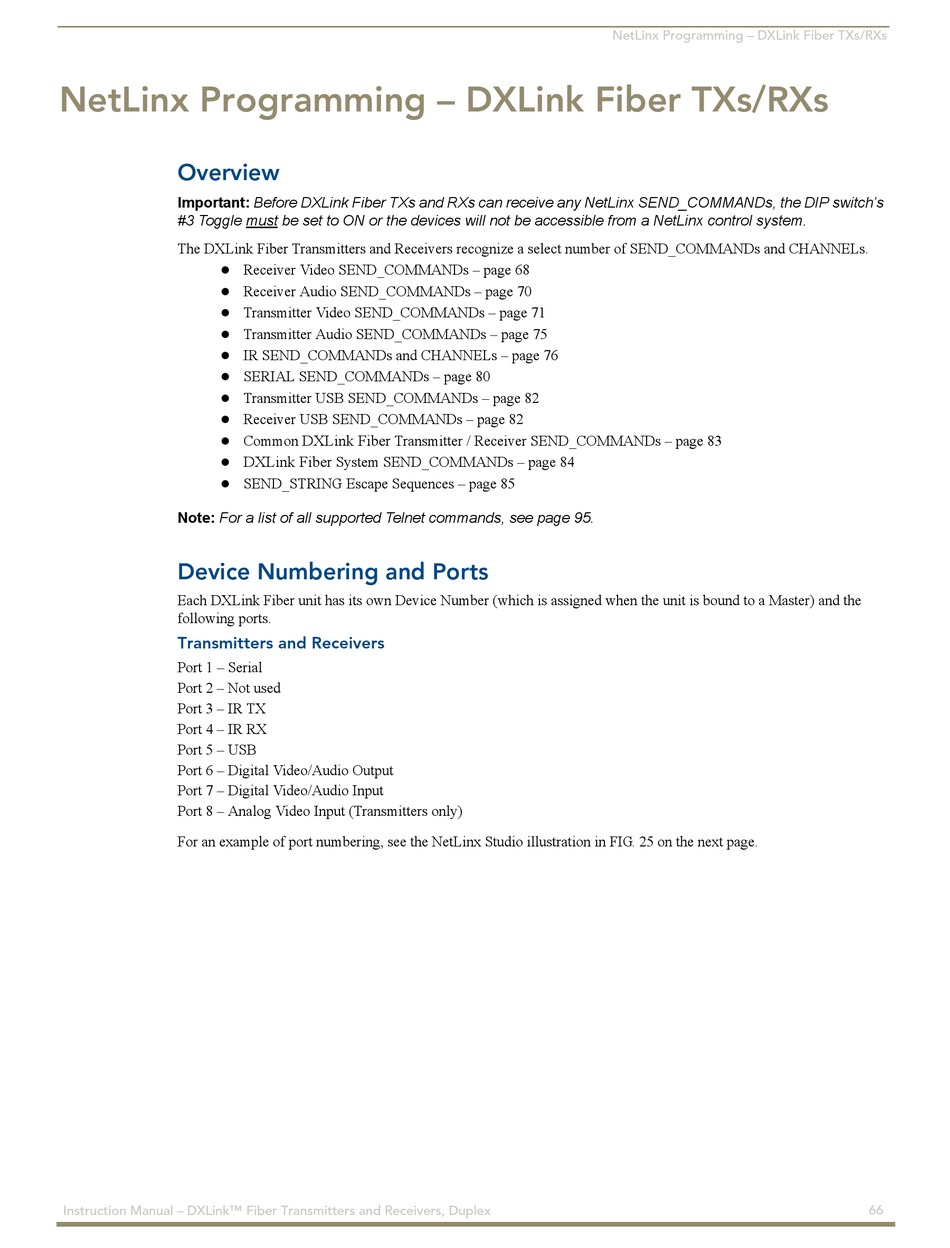

NetLinx Programming – DXLink Fiber TXs/RXs

Overview

Important: Before DXLink Fiber TXs and RXs can receive any NetLinx SEND_COMMANDs, the DIP switch's
#3 Toggle must be set to ON or the devices will not be accessible from a NetLinx control system.
The DXLink Fiber Transmitters and Receivers recognize a select number of SEND_COMMANDs and CHANNELs.











Note: For a list of all supported Telnet commands, see page 95.

Device Numbering and Ports

Each DXLink Fiber unit has its own Device Number (which is assigned when the unit is bound to a Master) and the
following ports.
Transmitters and Receivers
Port 1 – Serial
Port 2 – Not used
Port 3 – IR TX
Port 4 – IR RX
Port 5 – USB
Port 6 – Digital Video/Audio Output
Port 7 – Digital Video/Audio Input
Port 8 – Analog Video Input (Transmitters only)
For an example of port numbering, see the NetLinx Studio illustration in FIG. 25 on the next page.
Instruction Manual – DXLink™ Fiber Transmitters and Receivers, Duplex
Receiver Video SEND_COMMANDs – page 68
Receiver Audio SEND_COMMANDs – page 70
Transmitter Video SEND_COMMANDs – page 71
Transmitter Audio SEND_COMMANDs – page 75
IR SEND_COMMANDs and CHANNELs – page 76
SERIAL SEND_COMMANDs – page 80
Transmitter USB SEND_COMMANDs – page 82
Receiver USB SEND_COMMANDs – page 82
DXLink Fiber
Common Transmitter / Receiver SEND_COMMANDs – page 83
DXLink Fiber
System SEND_COMMANDs – page 84
SEND_STRING Escape Sequences – page 85
