Battery Life and Replacement

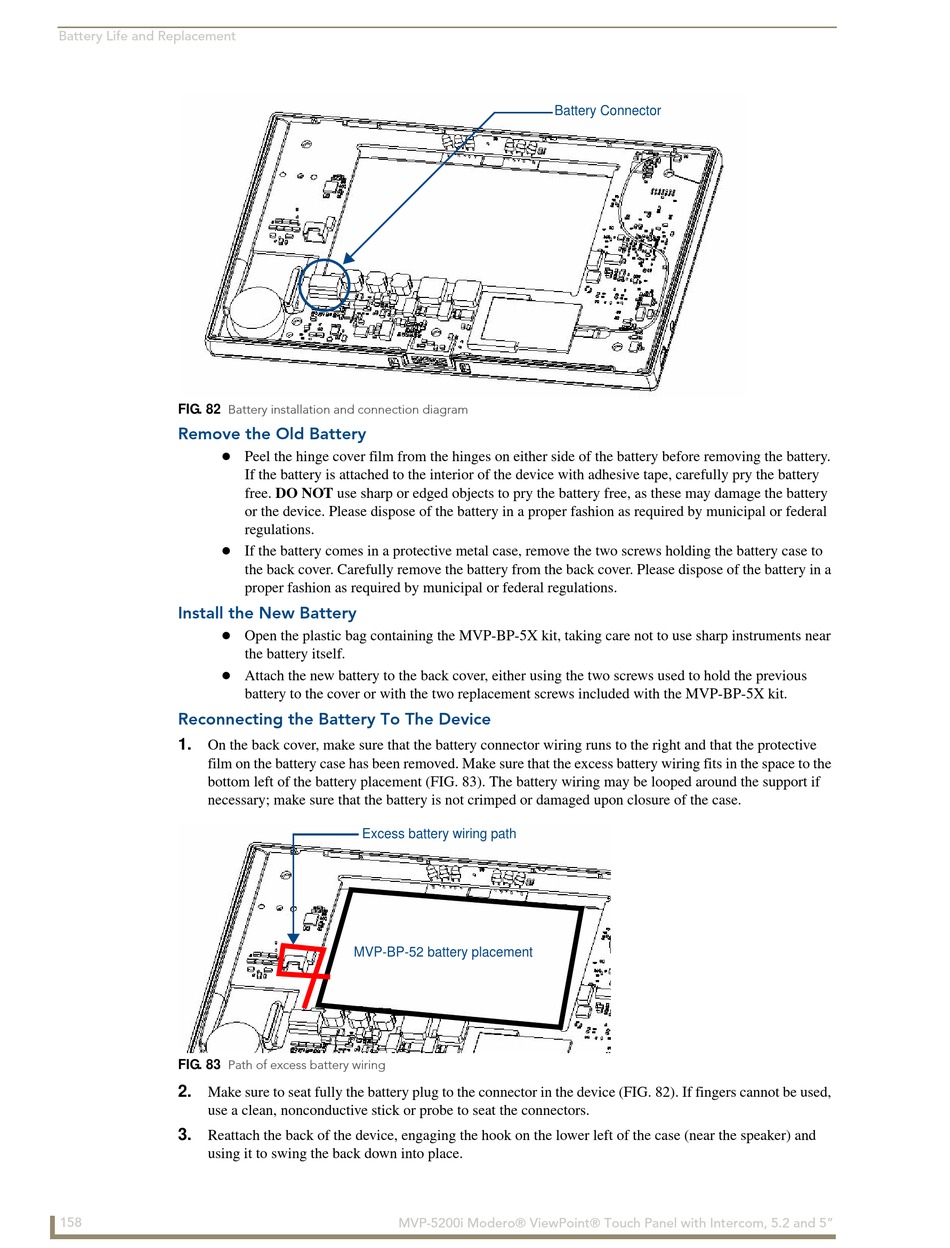

FIG. 82 Battery installation and connection diagram

Remove the Old Battery




Install the New Battery




Reconnecting the Battery To The Device

1.
On the back cover, make sure that the battery connector wiring runs to the right and that the protective
film on the battery case has been removed. Make sure that the excess battery wiring fits in the space to the
bottom left of the battery placement (FIG. 83). The battery wiring may be looped around the support if
necessary; make sure that the battery is not crimped or damaged upon closure of the case.
FIG. 83 Path of excess battery wiring
2.
Make sure to seat fully the battery plug to the connector in the device (FIG. 82). If fingers cannot be used,
use a clean, nonconductive stick or probe to seat the connectors.
3.
Reattach the back of the device, engaging the hook on the lower left of the case (near the speaker) and
using it to swing the back down into place.
158
Peel the hinge cover film from the hinges on either side of the battery before removing the battery.
If the battery is attached to the interior of the device with adhesive tape, carefully pry the battery
free. DO NOT use sharp or edged objects to pry the battery free, as these may damage the battery
or the device. Please dispose of the battery in a proper fashion as required by municipal or federal
regulations.
If the battery comes in a protective metal case, remove the two screws holding the battery case to
the back cover. Carefully remove the battery from the back cover. Please dispose of the battery in a
proper fashion as required by municipal or federal regulations.
Open the plastic bag containing the MVP-BP-5X kit, taking care not to use sharp instruments near
the battery itself.
Attach the new battery to the back cover, either using the two screws used to hold the previous
battery to the cover or with the two replacement screws included with the MVP-BP-5X kit.
Excess battery wiring path
MVP-BP-52 battery placement
MVP-5200i Modero® ViewPoint® Touch Panel with Intercom, 5.2 and 5"
Battery Connector
