AMX Modero ViewPoint MVP-5100 Installation Manual

Overview
The MVP-5100 Modero® Viewpoint® IR Touch Panel (FG5966-08) is a one-way
IR-emitting ergonomic device. The MVP-5100 utilizes a 5.2" Color Active LCD to
display a 800 x 480 pixel image with 262,144 colors, and communicates with IR
receivers via its integral IR emitter. For detailed installation, configuration,
programming, file transfer, and operating instructions refer to the MVP-5100
Modero ViewPoint Touch Panel Operation/Reference Guide, available online at
www.amx.com.
IR Emitters

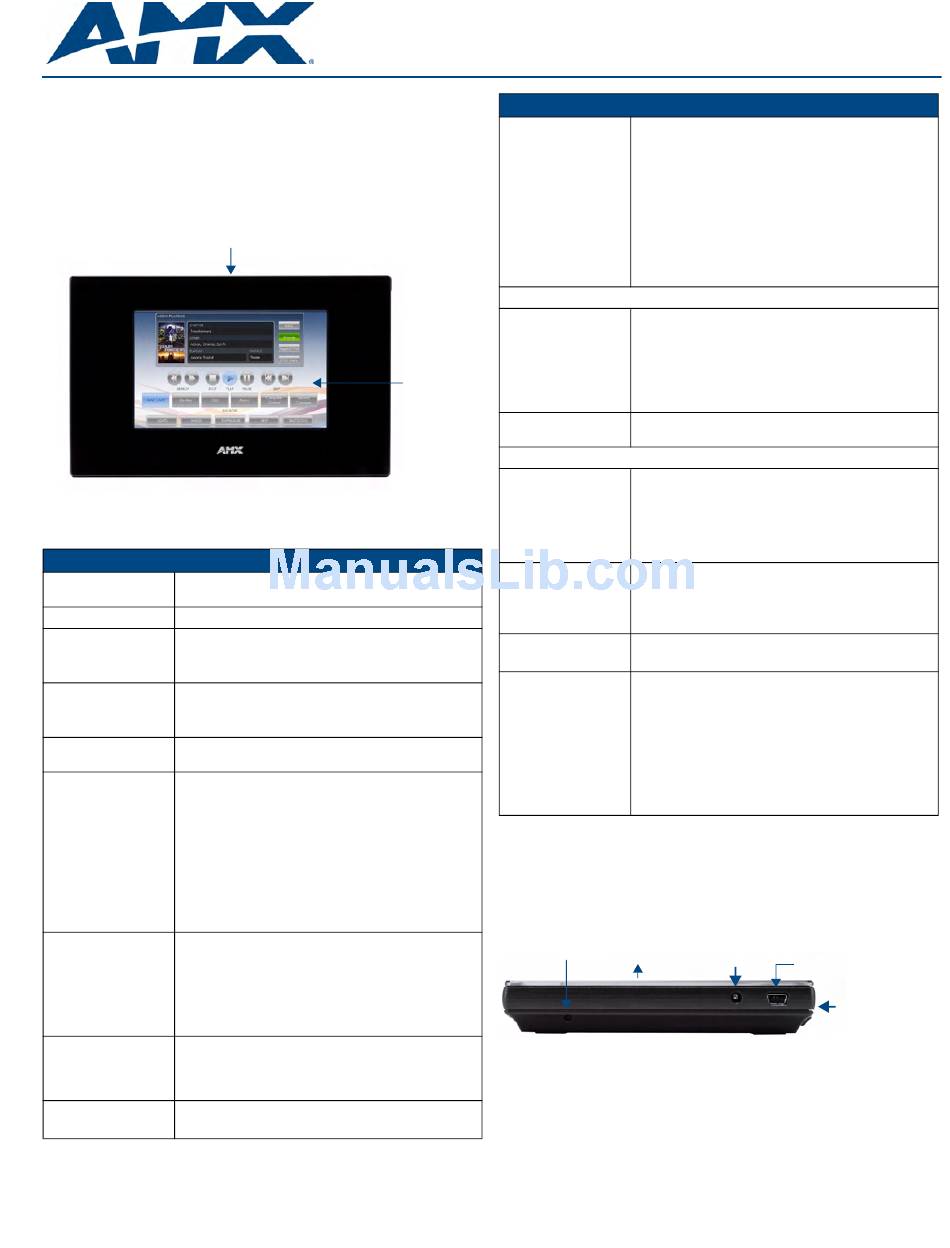

FIG. 1
MVP-5100 touch panel

Specifications

MVP-5100 Specifications (FG5966-08)
Dimensions: 4 3/4" x 7 9/16" x 13/16" (120.7 mm x 191.8 mm x 20.3
mm)
Weight: • 1.25 lbs (0.57 kg)
Power Requirements Panel with battery fully charged or with no battery:
(Without Charging):
• Constant current draw: 0.3 A @ 12 VDC
• Startup current draw: 0.4 A @ 12 VDC
Power Requirements Panel while charging battery:
(While Charging):
• Constant current draw: 1.1 A @ 12 VDC
• Startup current draw: 1.3 A @ 12 VDC
Minimum Power Supply PS3.0 Power Supply (FG423-30) - both 120 VAC and 240
Required: VAC models are shipped with this power supply.
Power Modes: • AWAKE: All necessary modules are powered up and
device remains online with the Netlinx Master.
• ASLEEP: Only the backlight will be turned off after the
user selectable time of inactivity has elapsed. Panel
resumes the Awake Mode in ~ 1 second upon a
momentary press of the touchscreen.
• PROCESSOR SHUTDOWN: Power to all peripherals
and components is turned off. The system remains in
this mode until it is rebooted. The panel is re-activated
by pressing the touchscreen and holding until the AMX
splash screen appears.
Certifications: • FCC Part 15 Class B
• CE
• IEC/EN-60950
• RoHS
• Japan Approved
• Lithium polymer microbattery: UN/IATA
Battery Duration: • 2.5 days of normal use, in a combination of Awake and
Shutdown Modes.
• Three hours of continuous use (continuous Awake
state).
Memory: • 128 MB Mobile DDRAM (upgrade not available)
• 256 MB NAND Flash (upgrade not available)
MVP-5100 5.2" Modero
MVP-5100 Specifications (Cont.)
Screen Properties:
External Components
Connector:
Touch Screen
DC Power Port:
Internal Components:
IR Emitters:
Operating/Storage
Environment
Included Accessories:
Other AMX Equipment:
Table Charging Station Connector Locations
With the unit facing you, the mini-USB port (for programming and downloading
firmware) and the DC power jack are located on the lower left side of the device.
The connector for the Table Charging Station is located on the bottom of the
device.In cases where resetting the MVP-5100 is necessary or for access to the
Setup Pages, a recessed reset button is located on the top left, which can be
depressed using the included stylus..
Reset Button
FIG. 2
MVP-5100 Connector Locations
WARNING: Transferring firmware KIT files over a direct USB connection should
only be done when the panel is connected to a power supply. If battery power
fails during a firmware upgrade, the panel flash file system may become
corrupted.
NOTE: The mini-USB port is only used for uploading firmware to the device. It
cannot be used for headphones, speakers, receiving power, or any other
function.
Installation Guide
© ©
ViewPoint IR Touch Panel
• Screen resolution: 800 x 480 pixels (HV) @ 60 Hz frame
frequency
• Type: WVGA
• Aspect ratio: 16 x 9
• Brightness (luminance): 300 cd/m
• Channel transparency: 8-bit Alpha blending
• Contrast ratio: 400:1
• Display colors: 262,144 colors (18-bit color depth)
• Dot/pixel pitch: 0.23 mm
• Panel type: TFT Color Active-Matrix
5-pin Mini-USB connector used for output to USB
programming, firmware update, and touch panel file
transfer between the PC and the target panel.
Note: When connecting the panel to PC using a CC-USB
(or compatible) cable, be sure to power the panel On
before attempting to connect the USB cable from the PC
to the mini-USB port on the panel.
2.5 mm port to power the panel away from a Charging
Station.
Transmit IR over 20 feet (6.10 m) from the panel.
• IR emitters on G4 panels share the device address
number of the panel.
• Transmits AMX fixed frequencies at 38KHz and 455KHz
and 8 user-programmable frequencies from 20KHz to
1.5MHz
• Operating Temperature: 0° C (32° F) to 40° C (104° F)
• Operating Humidity: 5% - 85% RH
• Storage Temperature: -20° C (-4° F) to 60° C (140° F)
• Storage Humidity: 5% - 85% RH
• Installation Guide (93-5966-01)
• PS3.0 Power Supply (FG423-30)
• MVP-TCS-52: Table Charging Station (FG5966-1X)
• MVP-WCS-52: Wall Charging Station (FG5966-1X)
• MVP-BP-51S, Standard Capacity Replacement Battery
Pack Kit (FG5966-25K)
• MVP-BP-51H, High Capacity Replacement Battery Pack
Kit (FG5966-24K)
• MVP-STYLUS-52-GB: Black Stylus, Pack of 3
(FG5966-21)
• CC-USB: USB Programming Cable (FG10-5965)
Front
DC power jack
Mini-USB port
2
Charging Station
Connector
