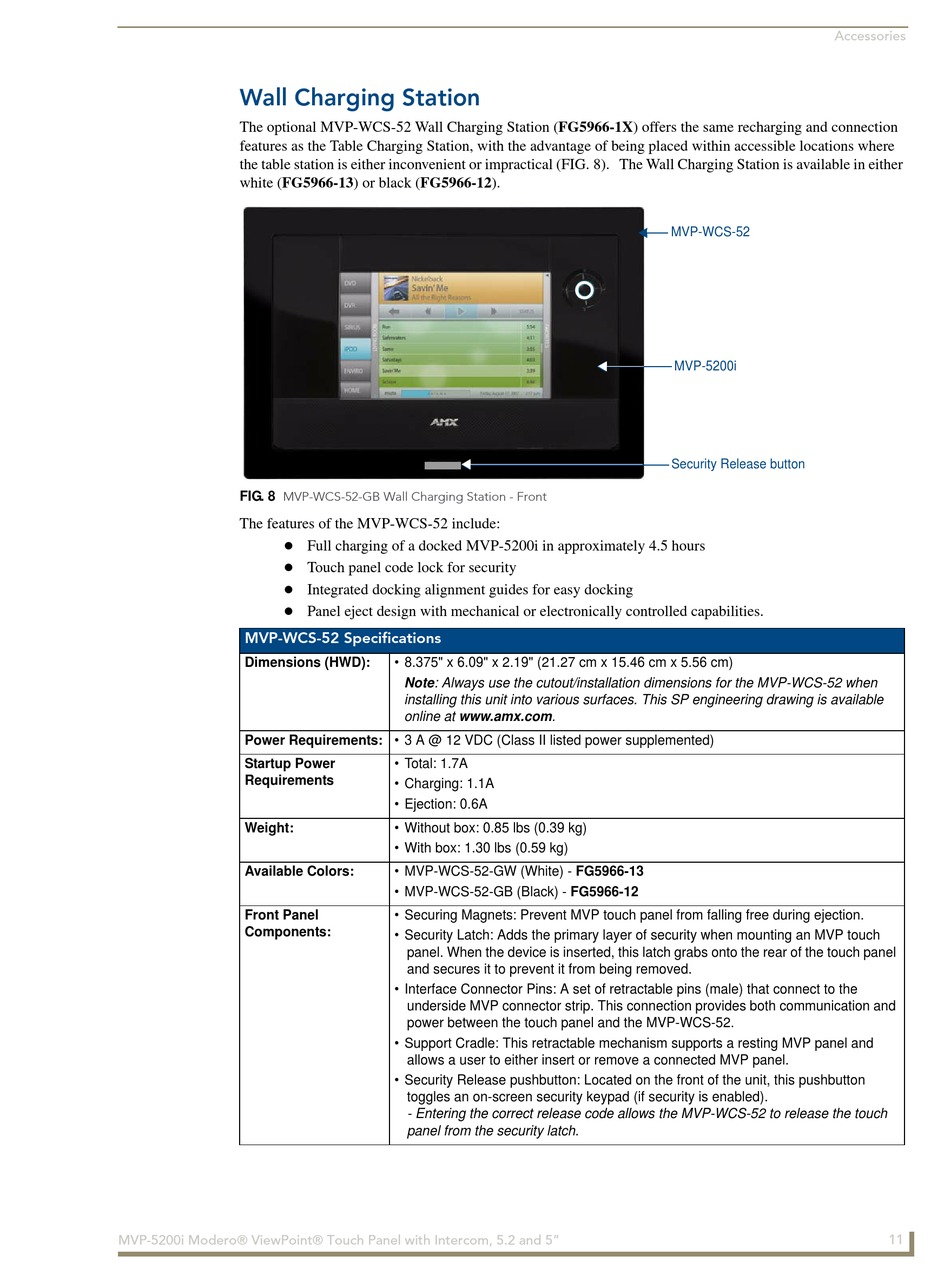

Wall Charging Station

The optional MVP-WCS-52 Wall Charging Station (FG5966-1X) offers the same recharging and connection
features as the Table Charging Station, with the advantage of being placed within accessible locations where
the table station is either inconvenient or impractical (FIG. 8). The Wall Charging Station is available in either
white (FG5966-13) or black (FG5966-12).
FIG. 8 MVP-WCS-52-GB Wall Charging Station - Front
The features of the MVP-WCS-52 include:




MVP-WCS-52 Specifications
Dimensions (HWD):
Power Requirements: • 3 A @ 12 VDC (Class II listed power supplemented)
Startup Power
Requirements
Weight:
Available Colors:
Front Panel
Components:
MVP-5200i Modero® ViewPoint® Touch Panel with Intercom, 5.2 and 5"
Full charging of a docked MVP-5200i in approximately 4.5 hours
Touch panel code lock for security
Integrated docking alignment guides for easy docking
Panel eject design with mechanical or electronically controlled capabilities.
• 8.375" x 6.09" x 2.19" (21.27 cm x 15.46 cm x 5.56 cm)
Note: Always use the cutout/installation dimensions for the MVP-WCS-52 when
installing this unit into various surfaces. This SP engineering drawing is available
online at www.amx.com.
• Total: 1.7A
• Charging: 1.1A
• Ejection: 0.6A
• Without box: 0.85 lbs (0.39 kg)
• With box: 1.30 lbs (0.59 kg)
• MVP-WCS-52-GW (White) - FG5966-13
• MVP-WCS-52-GB (Black) - FG5966-12
• Securing Magnets: Prevent MVP touch panel from falling free during ejection.
• Security Latch: Adds the primary layer of security when mounting an MVP touch
panel. When the device is inserted, this latch grabs onto the rear of the touch panel
and secures it to prevent it from being removed.
• Interface Connector Pins: A set of retractable pins (male) that connect to the
underside MVP connector strip. This connection provides both communication and
power between the touch panel and the MVP-WCS-52.
• Support Cradle: This retractable mechanism supports a resting MVP panel and
allows a user to either insert or remove a connected MVP panel.
• Security Release pushbutton: Located on the front of the unit, this pushbutton
toggles an on-screen security keypad (if security is enabled).
- Entering the correct release code allows the MVP-WCS-52 to release the touch
panel from the security latch.
Accessories
MVP-WCS-52
MVP-5200i
Security Release button
