Wireless Settings Page

Use the options on the Wireless Settings page (FIG. 58) to configure communication settings for the wireless
CF card (802.11b/g), and read the device number assigned to the panel.

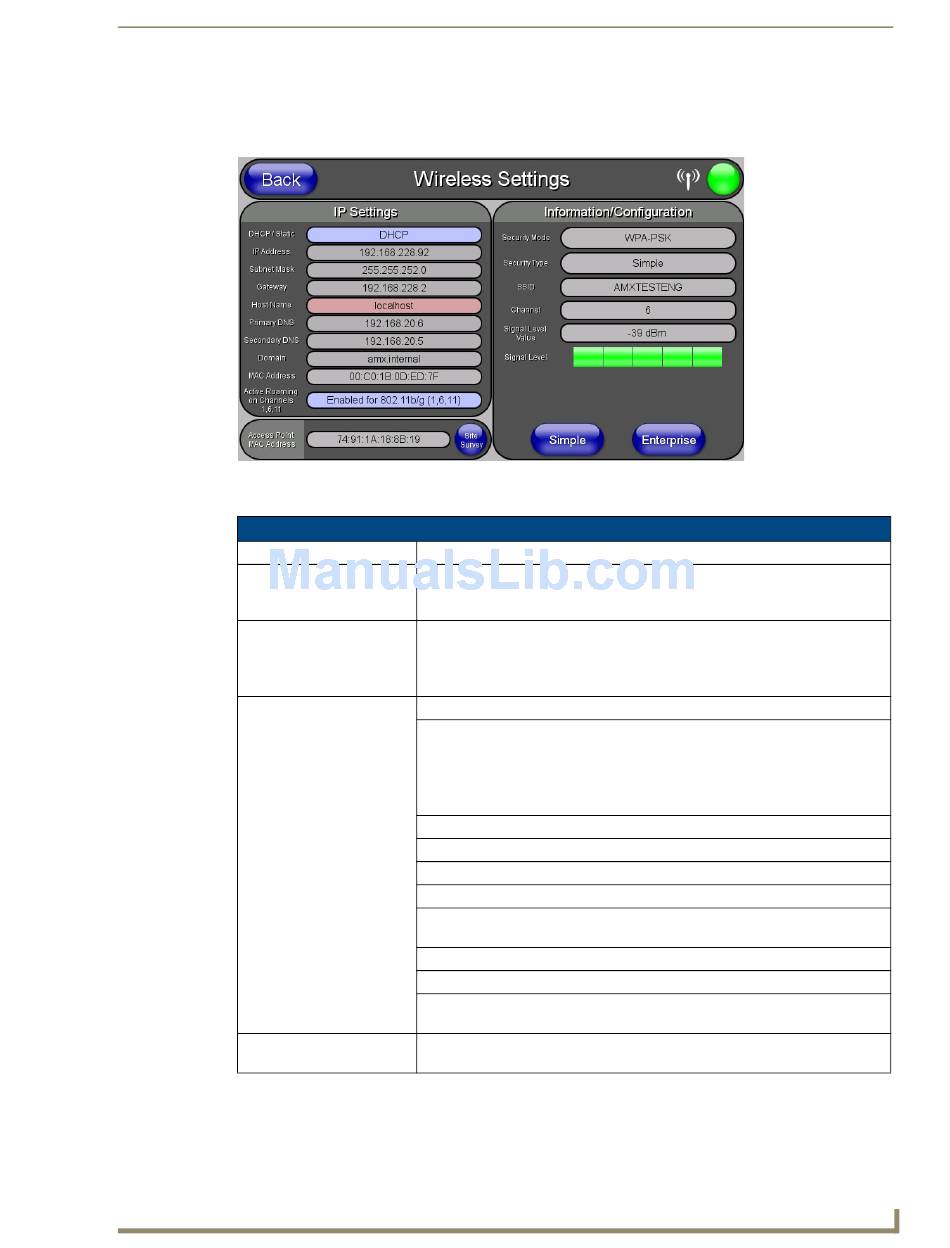

FIG. 58 Wireless Settings page (reads from and assigns values to the AP)
Features on this page include:
Wireless Settings Page
Back:
WiFi/Wired/USB Icon:
Connection Status Icon:
IP Settings:
DHCP/STATIC
IP Address
Subnet Mask
Gateway
Host Name
Primary DNS
Secondary DNS
Domain
MAC Address
Active Roaming on
Channels 1,6,11
MVP-5200i Modero® ViewPoint® Touch Panel with Intercom, 5.2 and 5"
Saves all changes and returns to the previous page.
The icon to the left of the Connection Status Icon displays whether the current
connection to the Master is Wireless (image of a radio antenna), Wired (image
of three networked computers), or USB (USB connection symbol).
The icon in the upper-right corner of each Protected Setup page provides a con-
stant visual indication of current connection status.
Note: a Lock appears on the icon if the panel is connected to a secured NetLinx
Master.
Sets the IP communication values for the panel:
Sets the panel to either DHCP or Static communication modes.
• DHCP - a temporary IP Addresses is assigned to the panel by a DHCP server.
If DHCP is selected, the other IP Settings fields are disabled (see below).
• Static IP is a permanent IP Address assigned to the panel. If Static IP is
selected, the other IP Settings fields are enabled (see below).
Enter the secondary IP address for this panel.
Enter the subnetwork address for this panel.
Enter the gateway address for this panel.
Enter the host name for this panel.
Enter the address of the primary DNS server used by this panel for host name
lookups.
Enter the secondary DNS address for this panel.
Enter a unique name to the panel for DNS look-up.
This unique address identifies the wireless Ethernet card in the panel (read-
only).
When enabled, connection allows active roaming between APs by switching
between channels 1, 6, and 11 if the other channel is unavailable.
