AMX Modero Viewpoint MVP-5200i Installation Manual

Overview
The MVP-5200i Modero® Viewpoint® Widescreen Touch Panel is AMX's
smallest and most powerful wireless handheld panel, available in black
(FG5966-01) and white (FG5966-02). The MVP-5200i is a wireless-only
ergonomic device capable of Voice Over Internet Protocol (VoIP)
communication, with all control established through a NetLinx Master. Besides
offering the same functionality as the rest of AMX's line of G4 touch panels, the
MVP-5200i touch panel offers full duplex VoIP communication, quick wakeup
and connection time, and an extended battery life for longer operation between
charges. The MVP-5200i device utilizes a 5.2" Color Active LCD to display a 800
x 480 pixel image with 262,144 colors.
The MVP-5200i comes with an integrated rear "kickstand", allowing it to be used
and displayed away from a docking station if necessary. It also comes with a
pre-installed 802.11g WPA/WPA2 SDIO wireless card.
For detailed installation, configuration, programming, file transfer, and operating
instructions refer to the MVP-5200i Modero ViewPoint Touch Panel User
Manual, available online at www.amx.com.
Microphone

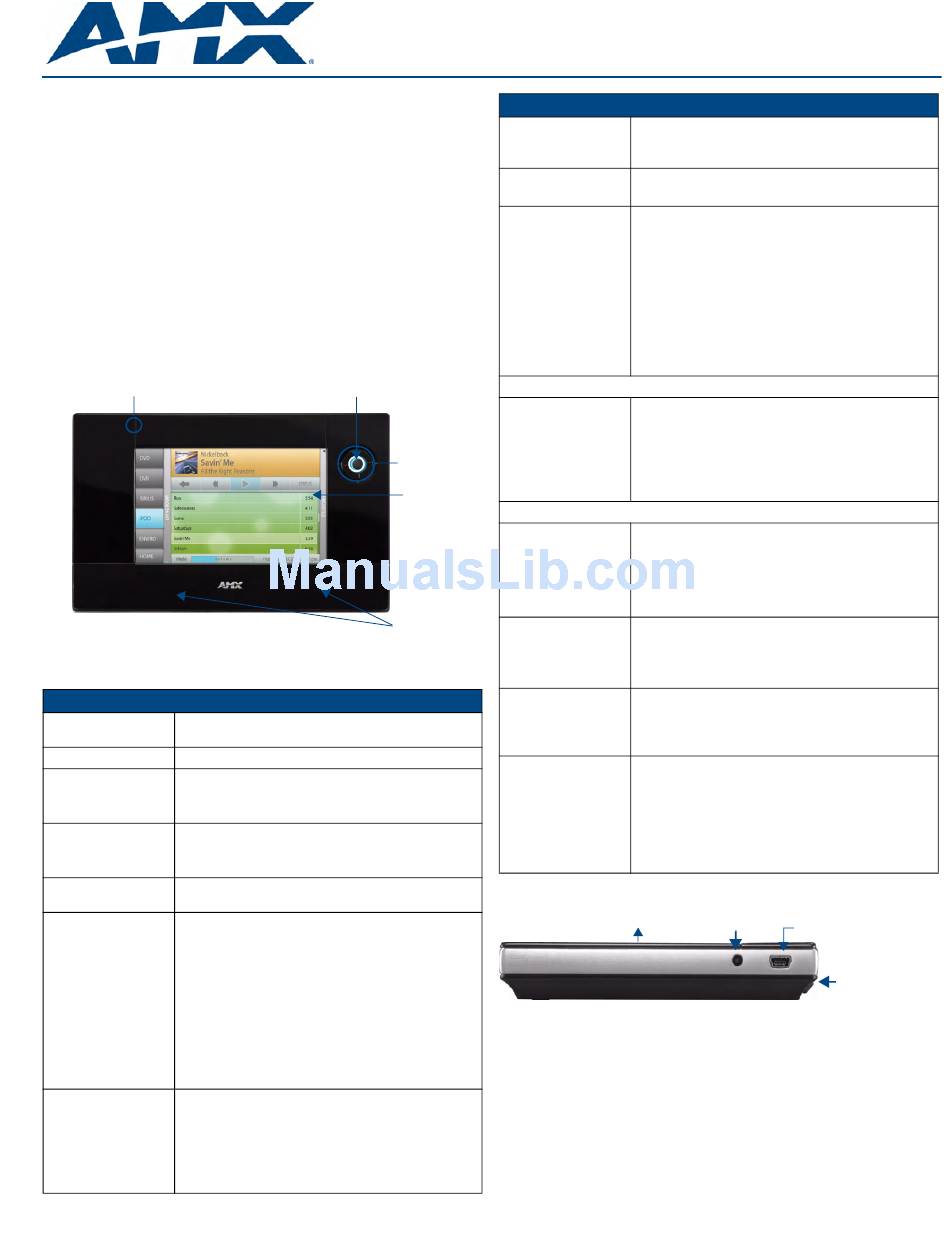

FIG. 1
MVP-5200i-GB touch panel

Specifications

MVP-5200i Specifications
Dimensions: 4 3/4" x 7 9/16" x 13/16" (120.7 mm x 191.8 mm x 20.3
mm)
Weight: • Panel: 1.4 lbs (0.64 kg)
Power Requirements Panel with battery fully charged or with no battery:
(Without Charging):
• Constant current draw: 0.3 A @ 12 VDC
• Startup current draw: 0.4 A @ 12 VDC
Power Requirements Panel while charging battery:
(While Charging):
• Constant current draw: 1.1 A @ 12 VDC
• Startup current draw: 1.3 A @ 12 VDC
Minimum Power Supply PS3.0 Power Supply (FG423-30) - both 120 VAC and 240
Required: VAC models are shipped with this power supply.
Power Modes: • AWAKE: All necessary modules are powered up and
device remains online with the Netlinx Master.
• ASLEEP: Only the backlight will be turned off after the
user selectable time of inactivity has elapsed. Panel
resumes the ON mode in ~ 1 second.
• STANDBY: Power to all components other than the
touch screen is turned off after the user selectable time
of inactivity has elapsed. Device will turn back on by
touching the screen.
• SHUTDOWN: Power to all peripherals and components
is turned off. The system remains in this mode until it is
rebooted.
Certifications: • FCC Part 15 Class B
• CE
• IEC/EN-60950
• RoHS
• Japan Approved
• Lithium polymer microbattery: UN/IATA
MVP-5200i Modero® Viewpoint® Widescreen Touch Panel
Navigation Wheel LED
Navigation
Wheel
Touch Screen
Speaker Grille
MVP-5200i Specifications (Cont.)
Battery Duration: • Four days of normal use, in a combination of Awake,
Standby, and Shutdown.
• Eight hours of continuous use (continuous On state).
Memory: • 128 MB Mobile DDRAM (upgrade not available)
• 256 MB NAND Flash (upgrade not available)
Screen Properties: • Screen resolution: 800 x 480 pixels (HV) @ 60 Hz frame
frequency
• Type: WVGA
• Aspect ratio: 16 x 9
• Brightness (luminance): 300 cd/m
• Channel transparency: 8-bit Alpha blending
• Contrast ratio: 20:1
• Display colors: 262,144 colors (18-bit color depth)
• Dot/pixel pitch: 0.23 mm
• Panel type: TFT Color Active-Matrix
External Components
Connector: 5-pin Mini-USB connector used for output to USB
headphones, programming, firmware update, and touch
panel file transfer between the PC and the target panel.
Note: When connecting the panel to PC using a CC-USB
(or compatible) cable, be sure to power the panel On
before attempting to connect the USB cable from the PC
to the mini-USB port on the panel.
Internal Components:
IR Emitters: Transmit IR over 20 feet (6.10 m) from the panel.
• IR emitters on G4 panels share the device address
number of the panel.
• Transmits AMX fixed frequencies at 38KHz and 455KHz
and user programmable frequencies from 20KHz to
1.5MHz
Operating/Storage • Operating Temperature: 0° C (32° F) to 40° C (104° F)
Environment
• Operating Humidity: 20% - 85% RH
• Storage Temperature: -20° C (-4° F) to 60° C (140° F)
• Storage Humidity: 5% - 85% RH
Included Accessories: • Installation Guide (93-5966-01)
• PS3.0 Power Supply (FG423-30)
• MVP-STYLUS-52 (pre-installed onto the right side of the
unit) (FG5966-06XX)
Other AMX Equipment: • MVP-TCS-52: Table Charging Station (FG5966-1X)
• MVP-WCS-52: Wall Charging Station (FG5966-1X)
• MVP-BP-52: Battery Replacement Kit (FG5966-20)
• MVP-STYLUS-52: Replacement Stylus, Pack of 3
(FG5966-2X)
• CC-USB: USB Programming Cable (FG10-5965)
• MVP-HPUSB 1/8" Adapter (FG5966-23)
Table Charging Station Connector Locations
Front
FIG. 2
MVP-5200i Connector Locations
With the unit facing you, the mini-USB port (for programming and downloading
firmware, as well as connecting USB headphones using the AMX-provided
adaptor cable) and the DC power jack are located on the lower left side of the
device. The connector for the Table Charging Station is located on the bottom of
the device.
The MVP-5200i is the first G4 device to support a new Ethernet over USB driver
for panel downloads and firmware updates. This means that the device can
connect to the Internet through its mini-USB port instead of through a standard
Ethernet port.
Installation Guide
2
DC power jack
Mini-USB port
Charging Station
Connector
