Appendix 4 Interfaces
Parallel Interface
Board (option)
"centronics:"
1
/. Intermec Shell either auto-
matically sets the correct stan-
dard IN and OUT port when
an application is selected or
prompts you to select one, see
Chapter 9.
148

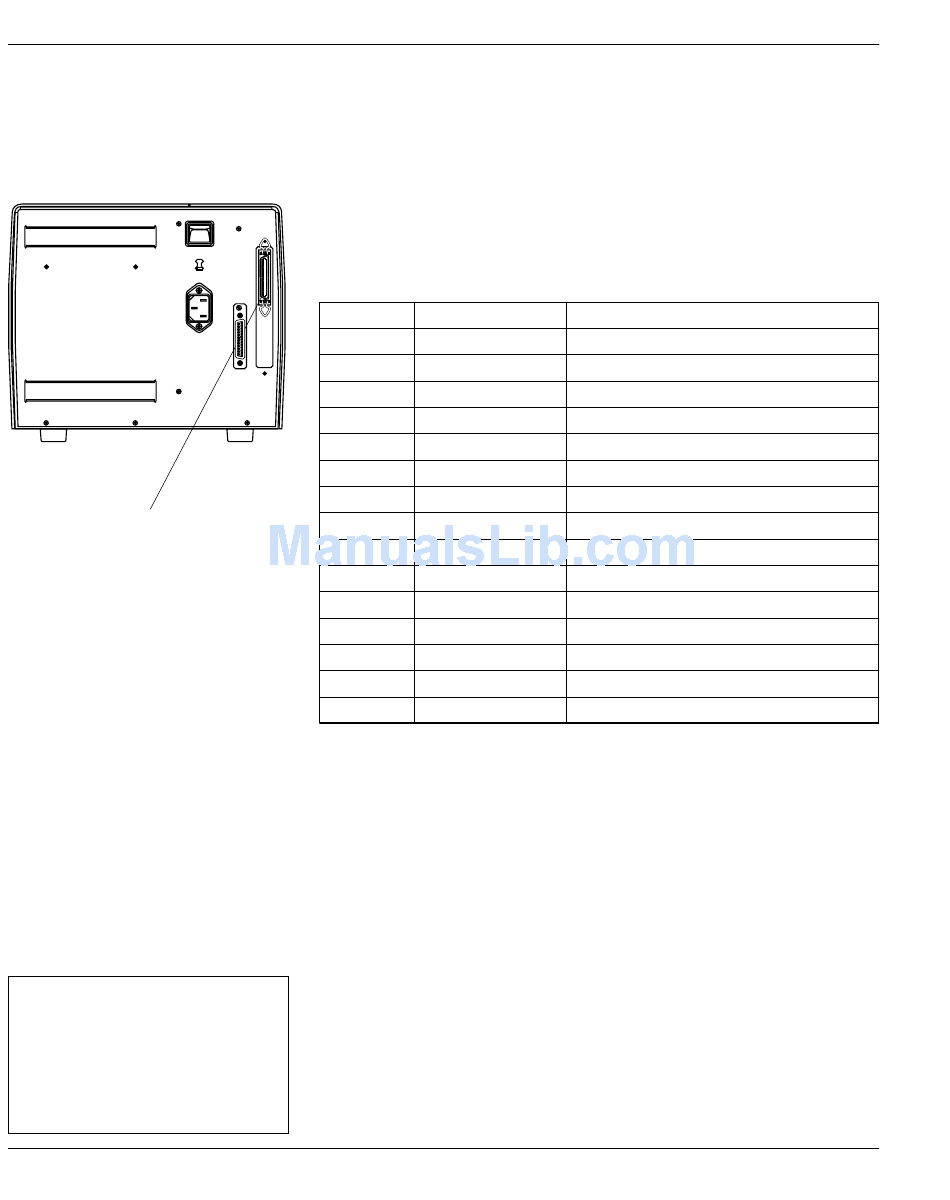

The EasyCoder 501 E can optionally be fi tted with a parallel interface
board. The parallel port is addressed in Intermec Fingerprint
as device "centronics:". Select "centronics:" as the standard IN
port using the instruction SETSTDIO (by default, "uart1:" is std
IN port)
Interface Cable Connectors
0
Computer end:
Printer end:
230V
Pin
1
2–9
10
11
12
13
14–15
16–17
18
19–30
31
32
33-35
36
37–38
Refer to the installation instructions for the Parallel Interface Board
for further information.
1
.
Depends on type of host computer.
36-pin IEEE 1284B Centronics socket
Signal Name
/STROBE
DATA 0–7
ACK
BUSY
PE
SELECT
Not connected
GND
+5 VDC Ext
GND
/INPRM
/ERROR
Not connected
/SLCTIN
GND
Intermec EasyCoder 501 E – Installation & Operation Ed. 1
Remarks
Max. 200 mA. Enabled by strap on P-2
Housing
