Chapter 5 Media Load
Peel-Off, cont.
14
1.

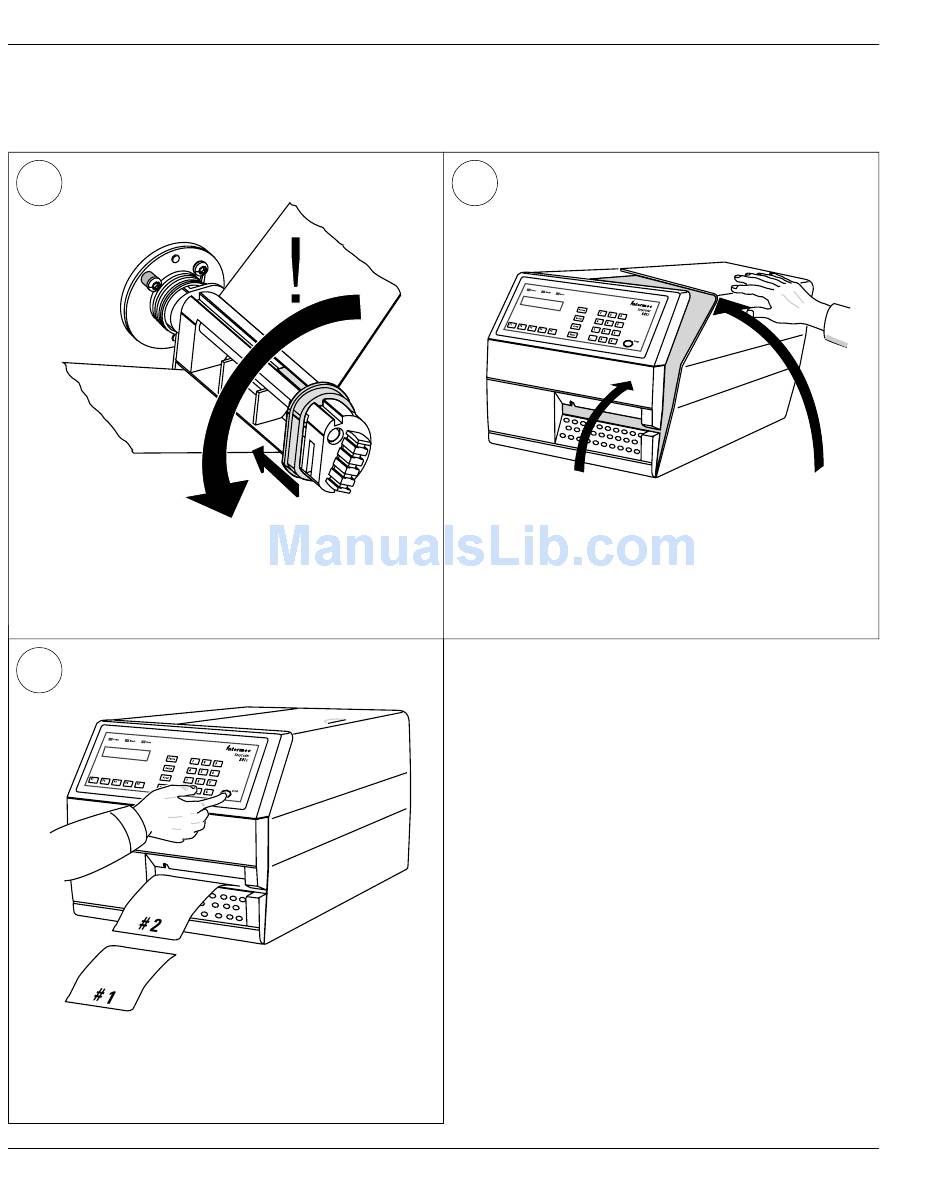

Release the slack absorber (1). Adjust the
green edge guide so the media is guided with a
minimum of play (2).
16
Close the front and side doors. Feed out two
labels by pressing the Print key twice.
40
2.
2x
15
Close the front and side doors.
Intermec EasyCoder 501 E – Installation & Operation Ed. 1
