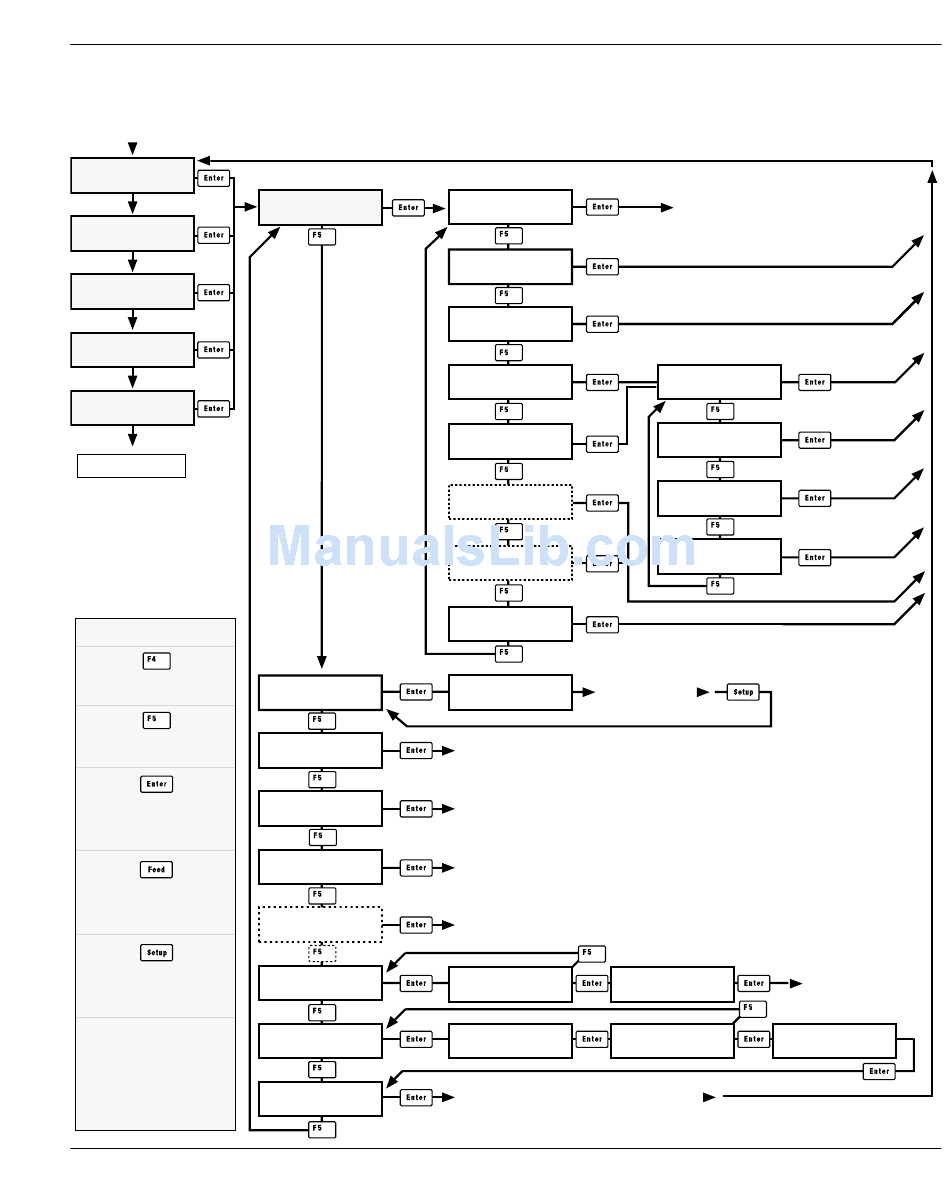

Intermec Shell v4.01 Enhanced, Diagram
POWER ON
ENTER=SHELL
5 sec. v.4.01
ENTER=SHELL
4 sec. v.4.01
ENTER=SHELL
3 sec. v.4.01
ENTER=SHELL
2 sec. v.4.01
ENTER=SHELL
1 sec. v.4.01
No action taken
Last selected
application is started
Default:
Fingerprint 6.14
w. std I/O= "uart1:"
Legend:
Return to previous menu
in a stack of options.
Proceed to next menu
in a stack of options.
Accept displayed option
and proceed, or
execute displayed option.
Perform a Testfeed.
Can be used anywhere
in Intermec Shell.
Enter the Setup Mode.
Can be used anywhere
in Intermec Shell.
Enter Terminal Setup
by transmitting T T T
or t t t to printer,
when menus marked with a
shade of grey are displayed!
Intermec EasyCoder 501 E – Installation & Operation Ed. 1
SHELL
SEL. APPLICATION
SHELL
SETUP
SHELL
PRINT SETUP
SHELL
TESTFEED
SHELL
TEST LABEL
SHELL
FONT SCALING
SHELL
SER-COM RESET
SHELL
CLEAR RAM MEMORY
SHELL
REBOOT
Chapter 9 Intermec Shell Startup Program
SEL. APPLICATION
CURRENT APPL.
SEL. APPLICATION
LABELSHOP
SEL. APPLICATION
WINDOWS DRIVER
SEL. APPLICATION
Fingerprint 6.14
SEL. APPLICATION
Direct Protocol
SEL. APPLICATION
optional applic.
SEL. APPLICATION
optional applic.
SEL.APPL rom:
LINE_ALY.PRG
SETUP:
See Setup Mode
CONTRAST
Print a list of current setup values.
Perform a Testfeed, that is, feed out a blank copy and
autoadjust the label stop sensor.
Print a series of test labels in a loop.
Press Enter for each new label.
Scaling of outline fonts in Speedo and TrueType formats.
Only displayed if a Scaleable Fonts Kit is fitted (option).
ARE YOU SURE ? SER-COM RESET
Y=ENTER/ N=F5 PERFORMED
PASSWORD: ARE YOU SURE ?
491601 Y=ENTER/ N=F5
Exit Shell and enter last selected application!
Last selected application is started
STD I/O CHANNEL
UART1
STD I/O CHANNEL
UART2
STD I/O CHANNEL
UART3
STD I/O CHANNEL
CENTRONICS
RAM MEMORY
CLEARED
