Chapter 6 Thermal Transfer Printing

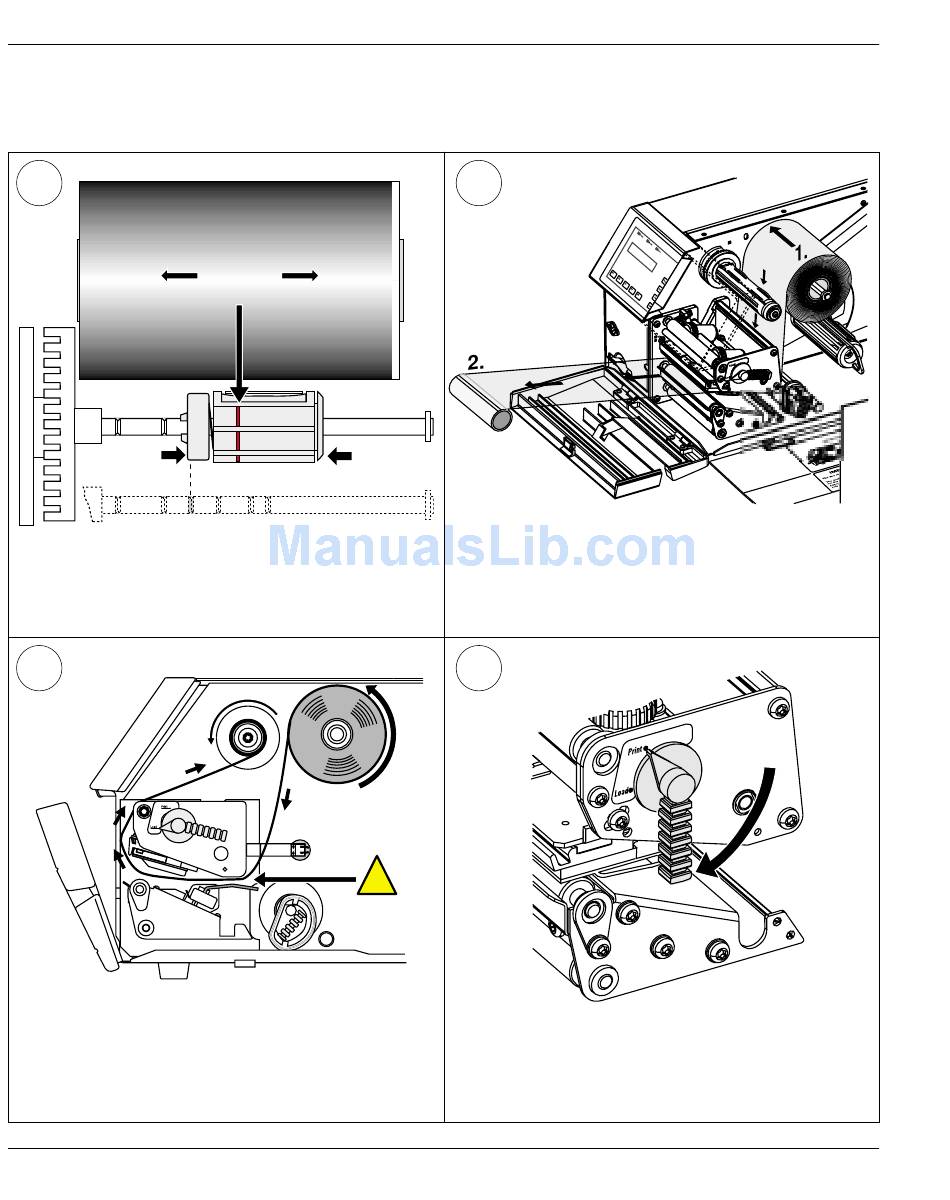

Ribbon Load, cont.
5c
#3
In case of 110 mm (4.3 in.) ribbon width, com-
press the ribbon supply bobbin and move it so
it snaps into the third grove.
7
Be careful to route the ribbon above the handle
of the label stop sensor. The ribbon must be
fi tted so both spools will rotate counterclock-
wise as illustrated above.
50
110 mm
(4.3 in)
!
6
Press the ribbon roll onto the ribbon supply
bobbin (1) and route the ribbon through the
print unit. Pull out approx. 20 cm (8 in.) of
8
Without releasing the ribbon, turn the print-
head lift lever to "Print" position so as to lock
Intermec EasyCoder 501 E – Installation & Operation Ed. 1
ribbon (2).
the ribbon.
