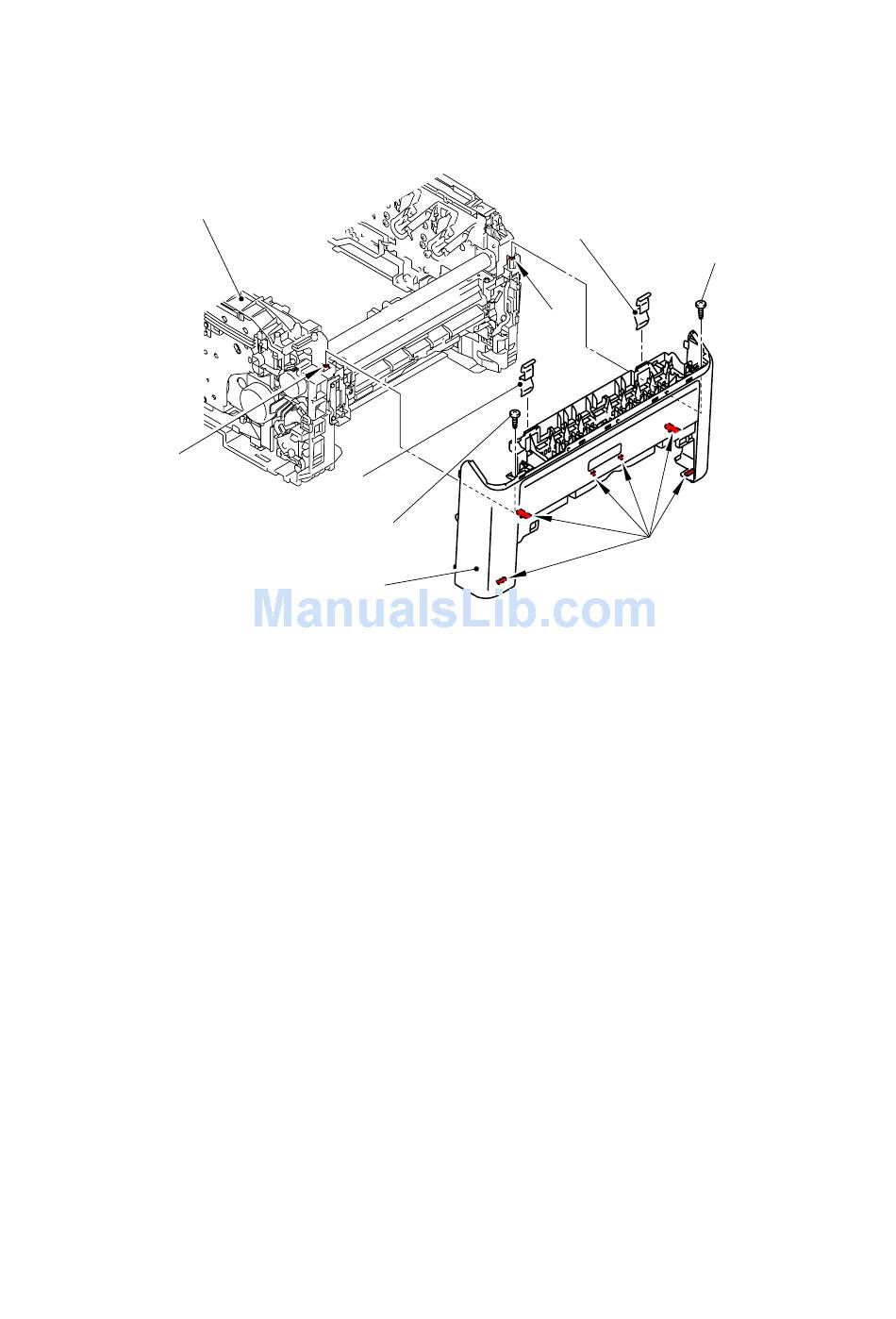

(3) Remove the two Taptite bind B M4x12 screws from the Front cover.
(4) Release the six Hooks and two Bosses to remove the Front cover from the Main body.
(5) Remove the two FG plate from the Front cover.
Main body
FG plate
Taptite bind B M4x12
Boss
Boss
FG plate
Taptite bind B M4x12
Hook
Front cover
<Front>
Fig. 5-105
