Quick Setup Guide
Start Here
Before you can use the machine, please read this Quick Setup Guide for the correct setup and installation.
To view the Quick Setup Guide in other languages, please visit http://solutions.brother.com/.
IMPORTANT
DO NOT connect the interface cable yet.
1
Unpack the machine and check the components
CD-ROM
®
(Windows
)
(Macintosh)
Waste Toner Box
(pre-installed)
WARNING
• Plastic bags are used in the packaging of your machine. To avoid danger of suffocation, please keep
these bags away from babies and children.
• This machine is heavy and weighs approximately 50.5 lb. (22.9 kg). To prevent injuries use at least two
people to lift the machine. Be careful not to pinch your fingers when you put the machine back down.
User's Guide
Quick Setup Guide
Belt Unit
(pre-installed)

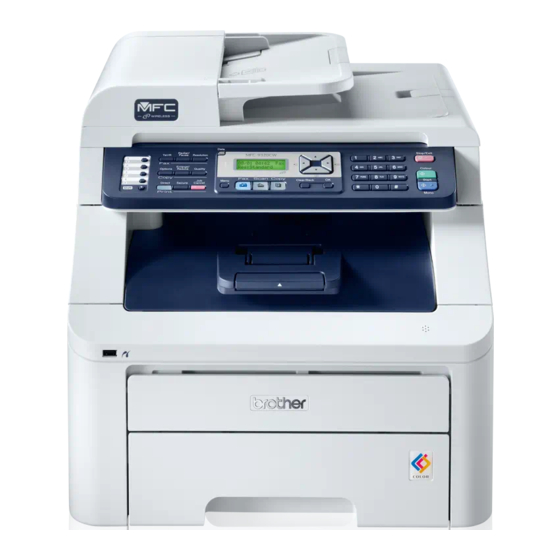

MFC-9320CW
Product Registration
Accessory Order
Form
(USA only)
AC Power Cord
Telephone Line Cord
Drum Unit and Starter Toner Cartridge
Assemblies
(Black, Cyan, Magenta and Yellow)
USA/CAN Version A
Sheet
1
