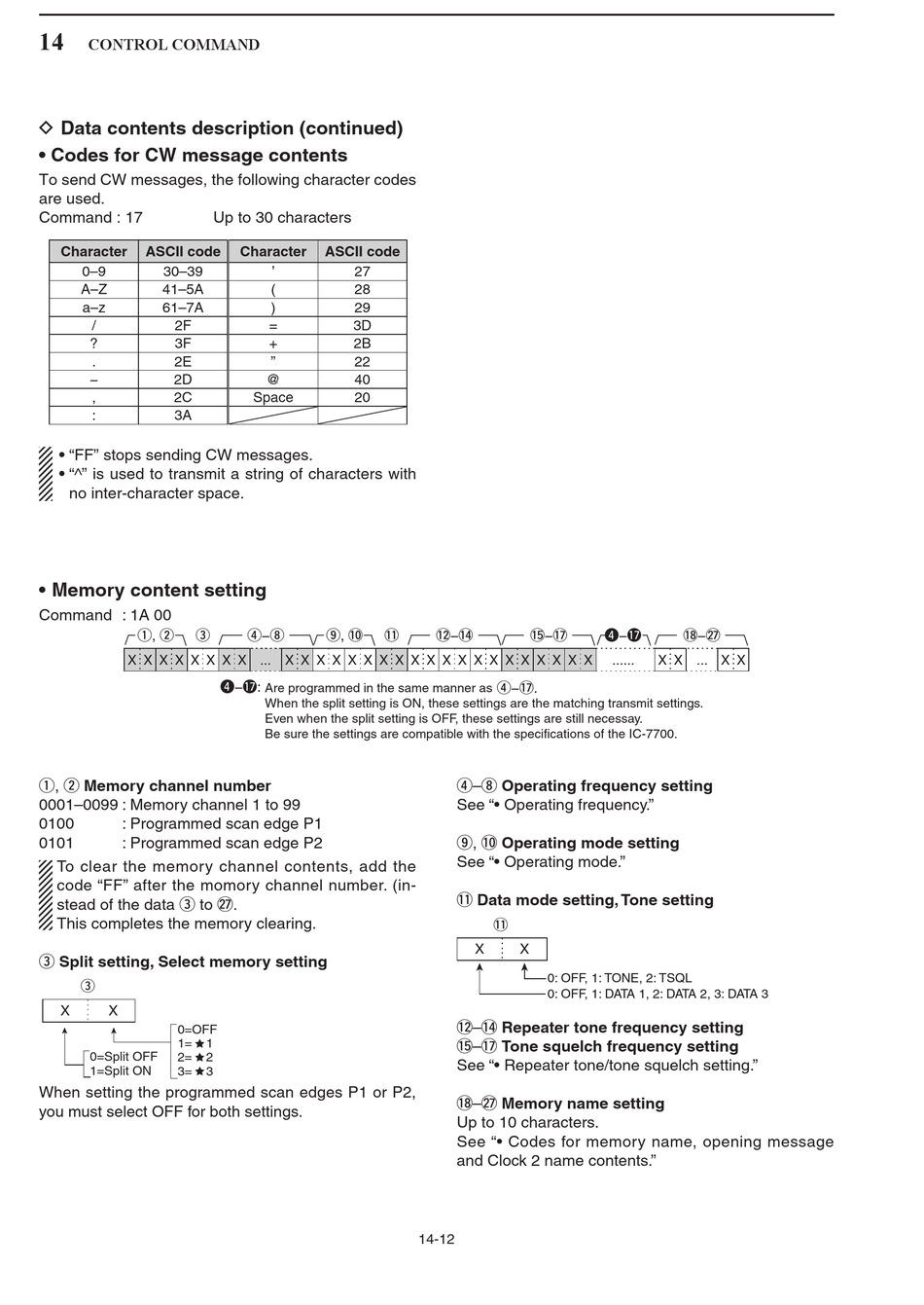

CONTROL COMMAND
D Data contents description (continued)
• Codes for CW message contents
To send CW messages, the following character codes
are used.
Command : 17
Character ASCII code
0–9 30–39
A–Z 41–5A
a–z 61–7A
/ 2F
? 3F
. 2E
− 2D
, 2C
: 3A
• "FF" stops sending CW messages.
• "^" is used to transmit a string of characters with
no inter-character space.
• Memory content setting
Command : 1A 00
q, w e
X X X X X
q, w Memory channel number
0001–0099 : Memory channel 1 to 99
0100 : Programmed scan edge P1
0101 : Programmed scan edge P2
To clear the memory channel contents, add the
code "FF" after the momory channel number. (in-
stead of the data e to @7 .
This completes the memory clearing.
e Split setting, Select memory setting
e
X X
0=OFF
1=
0=Split OFF
2=
1=Split ON
3=
When setting the programmed scan edges P1 or P2,
you must select OFF for both settings.
Up to 30 characters
Character ASCII code
' 27
( 28
) 29
= 3D
+ 2B
" 22
@ 40
Space 20
r−i o, !0
X X X ... X X X X X X X X X X X X X X X X X X
r−!7 :
Are programmed in the same manner as
When the split setting is ON, these settings are the matching transmit settings.
Even when the split setting is OFF, these settings are still necessay.
Be sure the settings are compatible with the specifications of the IC-7700.
1
2
3
!2 − !4 !5 − !7
!1
r−!7 .
r–i Operating frequency setting
See "• Operating frequency."
o, !0 Operating mode setting
See "• Operating mode."
!1 Data mode setting, Tone setting
!1
X X
!2 – !4 Repeater tone frequency setting
!5 – !7 Tone squelch frequency setting
See "• Repeater tone/tone squelch setting."
!8 – @7 Memory name setting
Up to 10 characters.
See "• Codes for memory name, opening message
and Clock 2 name contents."
14-12
!8 − @7
r−!7
X X ...... X X ...
0: OFF, 1: TONE, 2: TSQL
0: OFF, 1: DATA 1, 2: DATA 2, 3: DATA 3
X X
