Time Set Mode - Icom IC-7700 Instruction Manual

11
CLOCK AND TIMERS

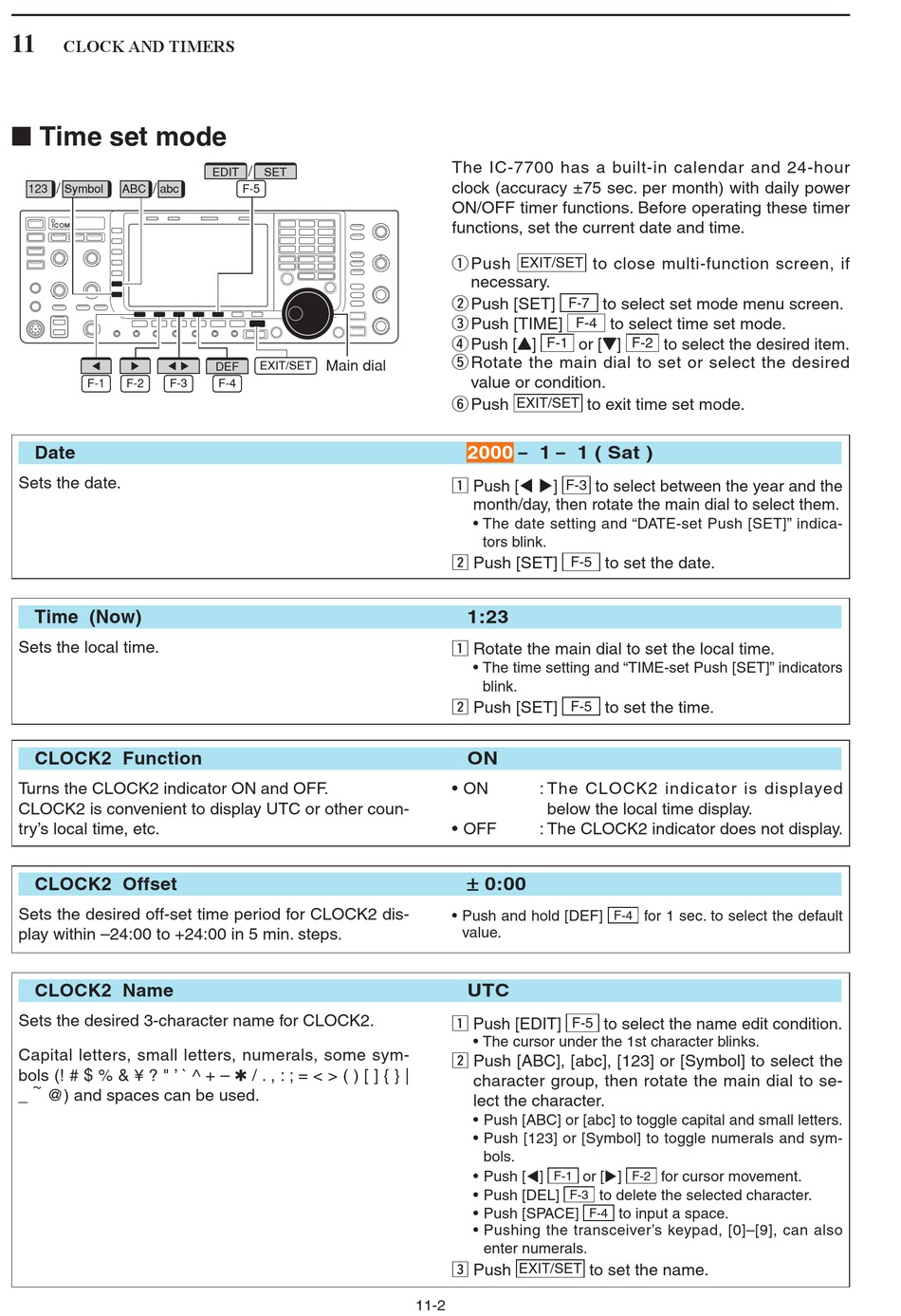

■ Time set mode

/ /
123 Symbol ABC abc
Ω ≈ Ω ≈
F-1 F-2 F-3
Date
Sets the date.
Time (Now)
Sets the local time.
CLOCK2 Function
Turns the CLOCK2 indicator ON and OFF.
CLOCK2 is convenient to display UTC or other coun-
try's local time, etc.
CLOCK2 Offset
Sets the desired off-set time period for CLOCK2 dis-
play within –24:00 to +24:00 in 5 min. steps.
CLOCK2 Name
Sets the desired 3-character name for CLOCK2.
Capital letters, small letters, numerals, some sym-
bols (! # $ % & ¥ ? " ' ` ^ + – ✱ / . , : ; = < > ( ) [ ] { } |
_ ~ @) and spaces can be used.
/
EDIT SET
F-5
Main dial
EXIT/SET
DEF
F-4
The IC-7700 has a built-in calendar and 24-hour
clock (accuracy ±75 sec. per month) with daily power
ON/OFF timer functions. Before operating these timer
functions, set the current date and time.
q Push
EXIT/SET
necessary.
w Push [SET] F-7
e Push [TIME]
F-4
r Push [Y] or [Z]
F-1
t Rotate the main dial to set or select the desired
value or condition.
y Push
EXIT/SET
2000 – 1 – 1 ( Sat )
z Push [t u]
F-3
month/day, then rotate the main dial to select them.
• The date setting and "DATE-set Push [SET]" indica-
tors blink.
x Push [SET] F-5
1:23
z Rotate the main dial to set the local time.
• The time setting and "TIME-set Push [SET]" indicators
blink.
x Push [SET] F-5
ON
• ON : The CLOCK2 indicator is displayed
below the local time display.
• OFF : The CLOCK2 indicator does not display.
0:00
• Push and hold [DEF]
value.
UTC
z Push [EDIT] F-5
• The cursor under the 1st character blinks.
x Push [ABC], [abc], [123] or [Symbol] to select the
character group, then rotate the main dial to se-
lect the character.
• Push [ABC] or [abc] to toggle capital and small letters.
• Push [123] or [Symbol] to toggle numerals and sym-
bols.
• Push [t] or [u]
F-1
• Push [DEL]
F-3
• Push [SPACE]
• Pushing the transceiver's keypad, [0]–[9], can also
enter numerals.
c Push
EXIT/SET
11-2
to close multi-function screen, if
to select set mode menu screen.
to select time set mode.
to select the desired item.
F-2
to exit time set mode.
to select between the year and the
to set the date.
to set the time.
for 1 sec. to select the default
F-4
to select the name edit condition.
for cursor movement.
F-2
to delete the selected character.
to input a space.
F-4
to set the name.
